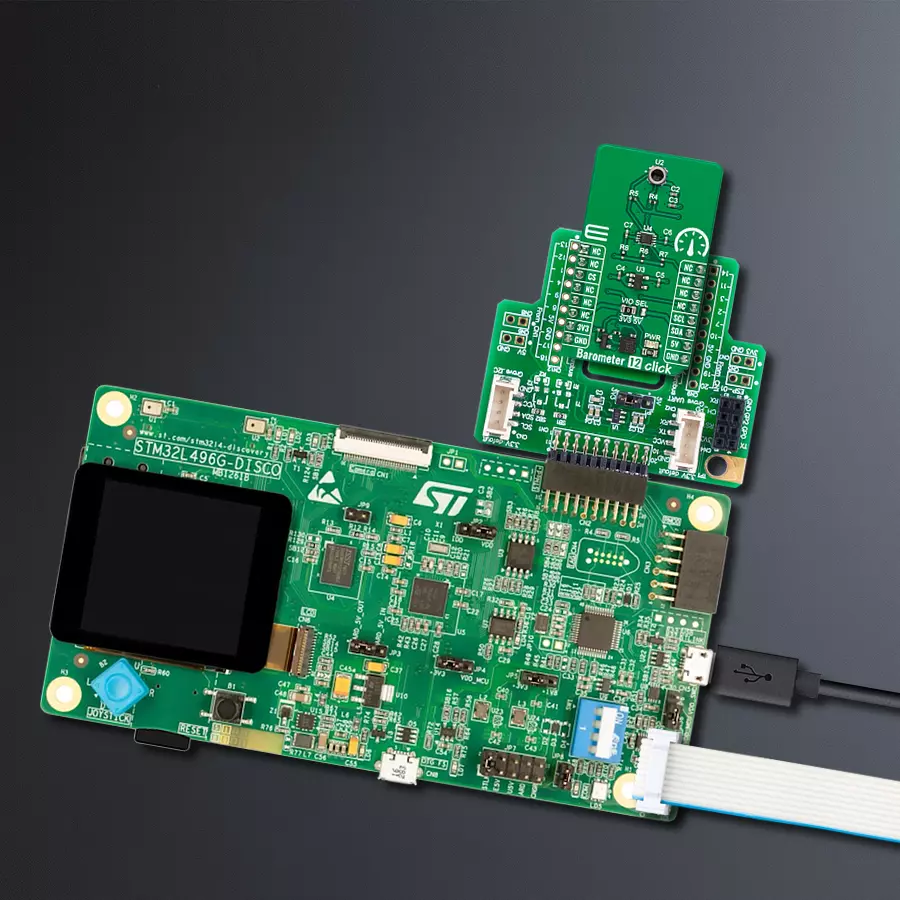

使用ICP-10125和STM32L496AG体验新的环境监测水平

/*!
 * @file main.c
 * @brief Barometer 12 Click example
 *
 * # Description
 * This library contains API for the Barometer 12 Click driver.
 * The library initializes and defines the I2C bus drivers
 * to write and read data from registers.
 * This demo application shows an example of
 * atmospheric pressure and temperature measurement.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * The initialization of the I2C module and log UART.
 * After driver initialization and default settings,
 * the app display device ID.
 *
 * ## Application Task
 * This is an example that shows the use of a Barometer 12 Click board™.
 * Logs the atmospheric pressure [ Pa ] and temperature [ degree Celsius ] data.
 * Results are being sent to the Usart Terminal where you can track their changes.
 *
 * @author Stefan Ilic
 *
 */

#include "board.h"
#include "log.h"
#include "barometer12.h"

static barometer12_t barometer12;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    barometer12_cfg_t barometer12_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    barometer12_cfg_setup( &barometer12_cfg );
    BAROMETER12_MAP_MIKROBUS( barometer12_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == barometer12_init( &barometer12, &barometer12_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( BAROMETER12_ERROR == barometer12_default_cfg ( &barometer12 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }
    Delay_ms ( 100 );

    static uint16_t device_id;
    err_t err_flag = barometer12_get_device_id( &barometer12, &device_id );
    if ( BAROMETER12_ERROR == err_flag )
    {
        log_error( &logger, " Communication Error. " );
        log_info( &logger, " Please, run program again... " );

        for ( ; ; );
    }
    log_printf( &logger, " Device ID   : 0x%.4X \r\n", device_id );
    log_printf( &logger, "----------------------------\r\n" );
    Delay_ms ( 1000 );

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    float pressure;
    float temperature;

    barometer12_get_press_and_temp( &barometer12, &pressure, &temperature );
    log_printf( &logger, " Pressure    : %.2f Pa\r\n", pressure );
    log_printf( &logger, " Temperature : %.2f C\r\n", temperature );
    log_printf( &logger, "----------------------------\r\n" );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
