使用NC1000C-9和STM32L496AG开发一个功能齐全的无线网状网络节点

超低功耗的自组织无线网状网络，适用于915MHz频段

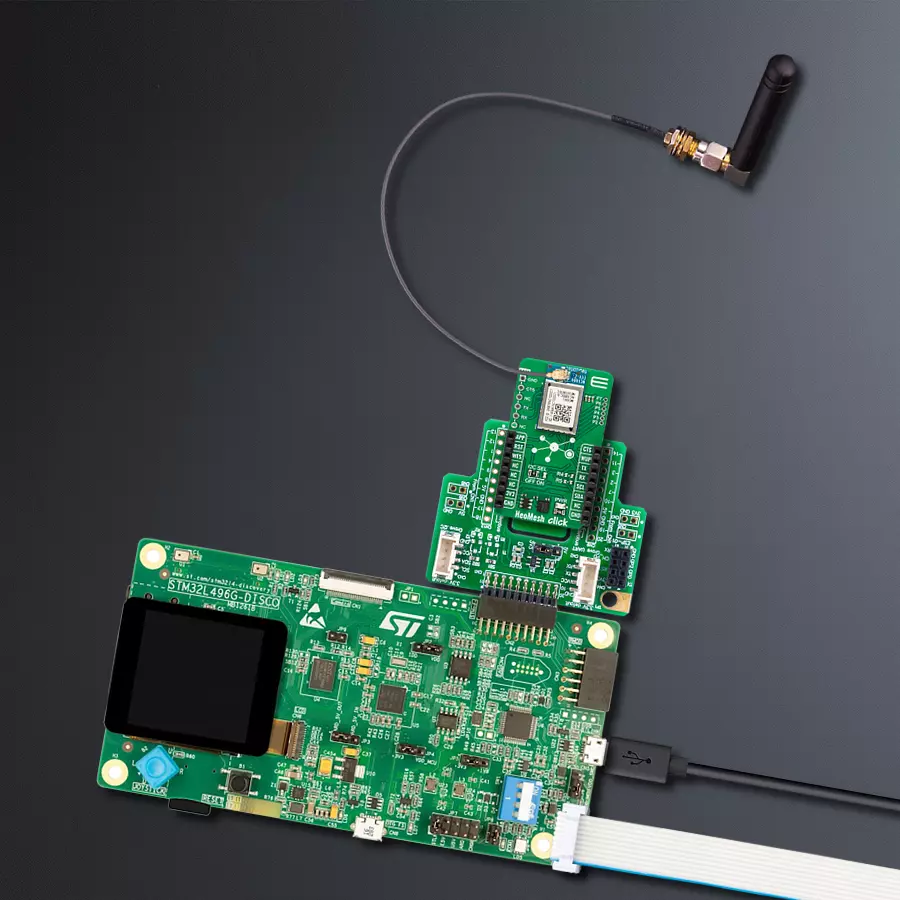

NeoMesh Click - 915MHz with Discovery kit with STM32L496AG MCU

已发布 7月 22, 2025

点击板

NeoMesh Click - 915MHz

开发板

Discovery kit with STM32L496AG MCU

编译器

NECTO Studio

微控制器单元

STM32L496AG

通过这个无线 Mesh 网络模块解决方案提升应用，该解决方案已预认证，可无缝集成，并且可定制以提高物联网和无线网络的效率。

硬件概览

它是如何工作的？

NeoMesh Click - 915MHz 基于 NeoCortec 的 NC1000C-9，这是一款无线 Mesh 网络模块。除了可以由主机 MCU 控制外，NeoMesh Click 还可以用作独立设备。您可以通过系统 API（SAPI）配置模块，这是一种基于 UART 的接口，具有硬件流控制。该接口配置为确保与 FTDI 串行到 USB 电缆直接兼容。使用 NeoMesh Click 作为独立板时，可以通过位于模块侧面的引脚头轻松访问 NeoMesh 模块的应用接口。这个引脚头有八个引脚，标记为 P2-7 的引脚头有六个引脚，允许您使用多达 6 个 12 位 ADC 通道、GPIO、I2C 传感器和 UART 应用 API。此引脚头的特定引脚可用于通过 UART 与外部微控制器接口。该模块还可以通过无线方式进行配置。底部有一个未连接的 WES 跳线。您可以通过连接它来使用无

线加密设置，但前提是它已经通过 WES 程序进行配置。每个 WES 通道都有一个指定的 AES 128 加密密钥。旁边是另一个跳线，VCC，这个跳线已连接。NeoMesh 经过优化，可实现超低功耗操作，允许在小型电池上运行数年。如果您想制作一个超低功耗节点，考虑使用 NeoMesh Click 与一些具有电池管理的低功耗开发板（如 Clicker 2 系列或类似的开发板）一起使用。此场景非常适合节点可以不频繁发送数据且有效载荷较小的情况。NeoMesh 是一个设计灵活的无线系统，允许用户在许多不同的应用领域中构建产品。该系统可以处理数据传输、失去的邻居节点、移动节点等。数据通过网络按顺序从节点传输到节点，直到数据到达目的地。有三种类型的 NeoMesh 设备：协调器、路由器和终端设备。您可以根据需要配

置您的设备。NeoMesh 使用标准 UART 串行接口与主机 MCU 通信，常用的 UART RX 和 TX 引脚，传输速度为 115200bps。硬件控制流通过 CTS 引脚提供。您还可以使用 I2C 接口作为虚拟 UART。I2C 线上有未填充的上拉电阻。可以通过 I2C SEL 跳线启用 I2C 接口。禁用时，您可以使用 WUP 引脚指示模块的唤醒活动状态；否则，WUP 功能不可用。模块可以通过 RST 引脚重置。通用应用活动通过 APP 引脚指示，激活时为逻辑低电平状态。如果无线加密设置 JP2 跳线闭合，您可以通过 WES 引脚启用 WES 客户端。此 Click board™ 只能在 3.3V 逻辑电压级别下运行。使用不同逻辑电平的 MCU 之前，必须进行适当的逻辑电平转换。另外，它配有包含功能和示例代码的库，可作为进一步开发的参考。

NeoMesh Click - 915MHz hardware overview image

功能概述

开发板

32L496GDISCOVERY Discovery 套件是一款功能全面的演示和开发平台，专为搭载 Arm® Cortex®-M4 内核的 STM32L496AG 微控制器设计。该套件适用于需要在高性能、先进图形处理和超低功耗之间取得平衡的应用，支持无缝原型开发，适用于各种嵌入式解决方案。STM32L496AG 采用创新的节能架构，集成

了扩展 RAM 和 Chrom-ART 图形加速器，在提升图形性能的同时保持低功耗，使其特别适用于音频处理、图形用户界面和实时数据采集等对能效要求较高的应用。为了简化开发流程，该开发板配备了板载 ST-LINK/V2-1 调试器/编程器，提供即插即用的调试和编程体验，使用户无需额外硬件即可轻松加载、调

试和测试应用程序。凭借低功耗特性、增强的内存能力以及内置调试工具，32L496GDISCOVERY 套件是开发先进嵌入式系统、实现高效能解决方案的理想选择。

Discovery kit with STM32L496AG MCU double side image

微控制器概述

MCU卡片 / MCU

建筑

ARM Cortex-M4

MCU 内存 (KB)

1024

硅供应商

STMicroelectronics

引脚数

169

RAM (字节)

327680

你完善了我！

配件

Rubber Antenna GSM/GPRS Right Angle 是我们广泛产品线中所有 GSM Click boards™ 的完美伴侣。这款专用天线旨在优化您的无线连接，具有令人印象深刻的功能。其宽频率范围涵盖 824-894/1710-1990MHz 或 890-960/1710-1890MHz，可以处理各种频段，确保无缝可靠的连接。天线具有 50 欧姆的阻抗和 2dB 的增益，增强信号接收和传输。其 70/180MHz 带宽为多种应用提供了灵活性。垂直极化进一步提升了其性能。最大输入功率容量为 50W，这款天线即使在苛刻条件下也能确保强大的通信。其紧凑的 50mm 长度和 SMA 公头连接器，使得 Rubber Antenna GSM/GPRS Right Angle 成为您无线通信需求的多功能紧凑解决方案。

NeoMesh Click - 915MHz accessories 1 image

IPEX-SMA 电缆是一种射频（RF）电缆组件。"IPEX" 指的是 IPEX 连接器，这是一种常用于小型电子设备中的微型同轴连接器。"SMA" 代表 SubMiniature Version A，是另一种常用于 RF 应用的同轴连接器。IPEX-SMA 电缆组件的一端有一个 IPEX 连接器，另一端有一个 SMA 连接器，允许它连接使用这些特定连接器的设备或组件。这些电缆通常用于 WiFi 或蜂窝天线、GPS 模块和其他 RF 通信系统中，需要可靠且低损耗的连接。

NeoMesh Click - 915MHz accessories 2 image

使用的MCU引脚

mikroBUS™映射器

Generic APP Activity

PA4

Reset / ID SEL

PB2

RST

WES Client / ID COMM

PG11

SCK

MISO

MOSI

Power Supply

3.3V

Ground

GND

UART CTS

PA0

PWM

WakeUp Time

PH2

INT

UART TX

PG10

UART RX

PB6

I2C Clock

PB8

SCL

I2C Data

PB7

SDA

Ground

GND

“仔细看看！”

Click board™ 原理图

NeoMesh Click - 915MHz Schematic schematic

一步一步来

项目组装

Discovery kit with STM32H750XB MCU front image hardware assembly

从选择您的开发板和Click板™开始。以Discovery kit with STM32L496AG MCU作为您的开发板开始。

Thermo 21 Click front image hardware assembly

Thermo 21 Click complete accessories setup image hardware assembly

Board mapper by product7 hardware assembly

Discovery kit with STM32H750XB MCU NECTO MCU Selection Step hardware assembly

Necto No Display image step 8 hardware assembly

实时跟踪您的结果

应用程序输出

1. 应用程序输出 - 在调试模式下，“应用程序输出”窗口支持实时数据监控，直接提供执行结果的可视化。请按照提供的教程正确配置环境，以确保数据正确显示。

2. UART 终端 - 使用UART Terminal通过USB to UART converter监视数据传输，实现Click board™与开发系统之间的直接通信。请根据项目需求配置波特率和其他串行设置，以确保正常运行。有关分步设置说明，请参考提供的教程。

3. Plot 输出 - Plot功能提供了一种强大的方式来可视化实时传感器数据，使趋势分析、调试和多个数据点的对比变得更加直观。要正确设置，请按照提供的教程，其中包含使用Plot功能显示Click board™读数的分步示例。在代码中使用Plot功能时，请使用以下函数：plot(insert_graph_name, variable_name);。这是一个通用格式，用户需要将“insert_graph_name”替换为实际图表名称，并将“variable_name”替换为要显示的参数。

软件支持

库描述

该库包含 NeoMesh Click - 915MHz 驱动程序的 API。

关键功能:

neomesh915mhz_send_aapi_frame - 此功能通过使用 UART 串行接口发送所需的 AAPI 帧。
neomesh915mhz_read_aapi_frame - 此功能通过使用 UART 串行接口读取 AAPI 帧。
neomesh915mhz_send_sapi_frame - 此功能通过使用 UART 串行接口发送所需的 SAPI 帧。

开源

代码示例

完整的应用程序代码和一个现成的项目可以通过NECTO Studio包管理器直接安装到NECTO Studio。应用程序代码也可以在MIKROE的GitHub账户中找到。

/*!
 * @file main.c
 * @brief NeoMesh 915MHz Click Example.
 *
 * # Description
 * This example demonstrates the use of NeoMesh 915MHz Click board by showing
 * the communication between the two Click boards.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and configures the Click board for the selected
 * application mode.
 *
 * ## Application Task
 * One Click board should be set to originator mode and the others to receiver 1 or 2.
 * If the SINGLE_RECEIVER_MODE is enabled, the originator device sends a desired message
 * to RECEIVER_1 node and waits for an acknowledge response, otherwise it sends the same
 * message to both RECEIVER_1 and RECEIVER_2 nodes. The receiver devices reads and parses
 * all incoming AAPI frames and displays them on the USB UART.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "neomesh915mhz.h"

// Comment out the line below to add the APP_RECEIVER_2 to the APP_ORIGINATOR example.
#define SINGLE_RECEIVER_MODE

// Demo aplication selection macros
#define APP_ORIGINATOR              0
#define APP_RECEIVER_1              1
#define APP_RECEIVER_2              2
#define DEMO_APP                    APP_ORIGINATOR

// Text message to send in the originator mode
#define DEMO_TEXT_MESSAGE           "MIKROE-NeoMesh"
#define DEFAULT_PORT                0

// Node ID macros
#define NODE_ID_ORIGINATOR          0x0100u
#define NODE_ID_RECEIVER_1          0x0020u
#define NODE_ID_RECEIVER_2          0x0021u

static neomesh915mhz_t neomesh915mhz;
static log_t logger;
static neomesh915mhz_aapi_frame_t aapi_frame;
static neomesh915mhz_sapi_frame_t sapi_frame;

/**
 * @brief NeoMesh 915MHz parse aapi rsp function.
 * @details This function reads and parses AAPI responses until an expected response is received.
 * @param[in] exp_rsp : Expected AAPI response.
 * @return @li @c  0 - Success,
 *         @li @c -1 - Error, no expected response is received,
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t neomesh915mhz_parse_aapi_rsp ( uint8_t exp_rsp );

/**
 * @brief NeoMesh 915MHz parse sapi rsp function.
 * @details This function reads and parses SAPI responses until an expected response is received.
 * @param[in] exp_rsp : Expected SAPI response.
 * @return @li @c  0 - Success,
 *         @li @c -1 - Error, no expected response is received,
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t neomesh915mhz_parse_sapi_rsp ( uint16_t exp_rsp );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    neomesh915mhz_cfg_t neomesh915mhz_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    neomesh915mhz_cfg_setup( &neomesh915mhz_cfg );
    NEOMESH915MHZ_MAP_MIKROBUS( neomesh915mhz_cfg, MIKROBUS_1 );
    if ( UART_ERROR == neomesh915mhz_init( &neomesh915mhz, &neomesh915mhz_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    log_printf( &logger, "\r\n Enable SAPI over AAPI\r\n" );
    aapi_frame.cmd = NEOMESH915MHZ_CMD_SAPI_TO_AAPI;
    aapi_frame.len = 0;
    neomesh915mhz_send_aapi_frame ( &neomesh915mhz, &aapi_frame );
    neomesh915mhz_parse_sapi_rsp ( NEOMESH915MHZ_SAPI_RSP_BOOTLOADER_START );

    log_printf( &logger, "\r\n Login with password\r\n" );
    sapi_frame.cmd = NEOMESH915MHZ_SAPI_CMD_LOGIN;
    sapi_frame.len = 5;
    sapi_frame.payload[ 0 ] = NEOMESH915MHZ_SAPI_LOGIN_PASSWORD_0;
    sapi_frame.payload[ 1 ] = NEOMESH915MHZ_SAPI_LOGIN_PASSWORD_1;
    sapi_frame.payload[ 2 ] = NEOMESH915MHZ_SAPI_LOGIN_PASSWORD_2;
    sapi_frame.payload[ 3 ] = NEOMESH915MHZ_SAPI_LOGIN_PASSWORD_3;
    sapi_frame.payload[ 4 ] = NEOMESH915MHZ_SAPI_LOGIN_PASSWORD_4;
    neomesh915mhz_send_sapi_frame ( &neomesh915mhz, &sapi_frame );
    neomesh915mhz_parse_sapi_rsp ( NEOMESH915MHZ_SAPI_RSP_OK );

    log_printf( &logger, "\r\n Set NODE ID to: " );
    sapi_frame.cmd = NEOMESH915MHZ_SAPI_CMD_SET_SETTING;
    sapi_frame.len = 3;
    sapi_frame.payload[ 0 ] = NEOMESH915MHZ_SAPI_SETTINGS_ID_NODE_ID;
#if ( DEMO_APP == APP_RECEIVER_1 )
    log_printf( &logger, "%.4X\r\n", ( uint16_t ) NODE_ID_RECEIVER_1 );
    sapi_frame.payload[ 1 ] = ( uint8_t ) ( ( NODE_ID_RECEIVER_1 >> 8 ) & 0xFF );
    sapi_frame.payload[ 2 ] = ( uint8_t ) ( NODE_ID_RECEIVER_1 & 0xFF );
#elif ( DEMO_APP == APP_RECEIVER_2 )
    log_printf( &logger, "%.4X\r\n", ( uint16_t ) NODE_ID_RECEIVER_2 );
    sapi_frame.payload[ 1 ] = ( uint8_t ) ( ( NODE_ID_RECEIVER_2 >> 8 ) & 0xFF );
    sapi_frame.payload[ 2 ] = ( uint8_t ) ( NODE_ID_RECEIVER_2 & 0xFF );
#elif ( DEMO_APP == APP_ORIGINATOR )
    log_printf( &logger, "%.4X\r\n", ( uint16_t ) NODE_ID_ORIGINATOR );
    sapi_frame.payload[ 1 ] = ( uint8_t ) ( ( NODE_ID_ORIGINATOR >> 8 ) & 0xFF );
    sapi_frame.payload[ 2 ] = ( uint8_t ) ( NODE_ID_ORIGINATOR & 0xFF );
#endif
    neomesh915mhz_send_sapi_frame ( &neomesh915mhz, &sapi_frame );
    neomesh915mhz_parse_sapi_rsp ( NEOMESH915MHZ_SAPI_RSP_OK );

    log_printf( &logger, "\r\n Commit settings\r\n" );
    sapi_frame.cmd = NEOMESH915MHZ_SAPI_CMD_COMMIT_SETTINGS;
    sapi_frame.len = 0;
    neomesh915mhz_send_sapi_frame ( &neomesh915mhz, &sapi_frame );
    neomesh915mhz_parse_sapi_rsp ( NEOMESH915MHZ_SAPI_RSP_OK );

    log_printf( &logger, "\r\n Start protocol stack\r\n" );
    sapi_frame.cmd = NEOMESH915MHZ_SAPI_CMD_START_PROTOCOL_STACK;
    sapi_frame.len = 0;
    neomesh915mhz_send_sapi_frame ( &neomesh915mhz, &sapi_frame );
    neomesh915mhz_parse_sapi_rsp ( NEOMESH915MHZ_SAPI_RSP_PROTOCOL_STACK_START );
    // Wait for the device to actually switch back to application layer
    while ( !neomesh915mhz_get_cts_pin ( &neomesh915mhz ) );

    log_printf( &logger, "\r\n Get NODE info\r\n" );
    aapi_frame.cmd = NEOMESH915MHZ_CMD_NODE_INFO;
    aapi_frame.len = 0;
    neomesh915mhz_send_aapi_frame ( &neomesh915mhz, &aapi_frame );
    neomesh915mhz_parse_aapi_rsp ( NEOMESH915MHZ_RSP_NODE_INFO );

    log_printf( &logger, "\r\n Get neighbour list\r\n" );
    aapi_frame.cmd = NEOMESH915MHZ_CMD_NEIGHBOUR_LIST;
    aapi_frame.len = 0;
    neomesh915mhz_send_aapi_frame ( &neomesh915mhz, &aapi_frame );
    neomesh915mhz_parse_aapi_rsp ( NEOMESH915MHZ_RSP_NEIGHBOUR_LIST );

#if ( DEMO_APP == APP_RECEIVER_1 )
    log_printf( &logger, "\r\n Application Mode: Receiver 1\r\n" );
#elif ( DEMO_APP == APP_RECEIVER_2 )
    log_printf( &logger, "\r\n Application Mode: Receiver 2\r\n" );
#elif ( DEMO_APP == APP_ORIGINATOR )
    log_printf( &logger, "\r\n Application Mode: Originator\r\n" );
#else
    #error "Selected application mode is not supported!"
#endif

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
#if ( DEMO_APP == APP_ORIGINATOR )
    log_printf( &logger, "\r\n Send message to node: %.4X\r\n", ( uint16_t ) NODE_ID_RECEIVER_1 );
    aapi_frame.cmd = NEOMESH915MHZ_CMD_ACK_SEND;
    aapi_frame.len = 3 + strlen ( DEMO_TEXT_MESSAGE );
    aapi_frame.payload[ 0 ] = ( uint8_t ) ( ( NODE_ID_RECEIVER_1 >> 8 ) & 0xFF );
    aapi_frame.payload[ 1 ] = ( uint8_t ) ( NODE_ID_RECEIVER_1 & 0xFF );
    aapi_frame.payload[ 2 ] = DEFAULT_PORT;
    strcpy ( &aapi_frame.payload[ 3 ], DEMO_TEXT_MESSAGE );
    if ( NEOMESH915MHZ_OK == neomesh915mhz_send_aapi_frame ( &neomesh915mhz, &aapi_frame ) )
    {
        neomesh915mhz_parse_aapi_rsp ( NEOMESH915MHZ_RSP_ACK );
    }
    #ifndef SINGLE_RECEIVER_MODE
        log_printf( &logger, "\r\n Send message to node: %.4X\r\n", ( uint16_t ) NODE_ID_RECEIVER_2 );
        aapi_frame.cmd = NEOMESH915MHZ_CMD_ACK_SEND;
        aapi_frame.len = 3 + strlen ( DEMO_TEXT_MESSAGE );
        aapi_frame.payload[ 0 ] = ( uint8_t ) ( ( NODE_ID_RECEIVER_2 >> 8 ) & 0xFF );
        aapi_frame.payload[ 1 ] = ( uint8_t ) ( NODE_ID_RECEIVER_2 & 0xFF );
        aapi_frame.payload[ 2 ] = DEFAULT_PORT;
        strcpy ( &aapi_frame.payload[ 3 ], DEMO_TEXT_MESSAGE );
        if ( NEOMESH915MHZ_OK == neomesh915mhz_send_aapi_frame ( &neomesh915mhz, &aapi_frame ) )
        {
            neomesh915mhz_parse_aapi_rsp ( NEOMESH915MHZ_RSP_ACK );
        }
    #endif
#else
   neomesh915mhz_parse_aapi_rsp ( NULL );
#endif
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static err_t neomesh915mhz_parse_aapi_rsp ( uint8_t exp_rsp )
{
    while ( NEOMESH915MHZ_OK == neomesh915mhz_read_aapi_frame ( &neomesh915mhz, &aapi_frame ) )
    {
        switch ( aapi_frame.cmd )
        {
            case NEOMESH915MHZ_RSP_ACK:
            {
                log_printf( &logger, "---- ACK ----\r\n" );
                log_printf( &logger, " Originator ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                break;
            }
            case NEOMESH915MHZ_RSP_NACK:
            {
                log_printf( &logger, "---- NACK ----\r\n" );
                log_printf( &logger, " Originator ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                break;
            }
            case NEOMESH915MHZ_RSP_ACK_HOST:
            {
                log_printf( &logger, "---- ACK HOST DATA ----\r\n" );
                log_printf( &logger, " Originator ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Packet Age: %.3f sec\r\n",
                            ( ( ( uint16_t ) aapi_frame.payload[ 2 ] << 8 ) |
                              aapi_frame.payload[ 3 ] ) * 0.125f );
                log_printf( &logger, " Port: %u\r\n", aapi_frame.payload[ 4 ] );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 5; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                aapi_frame.payload[ aapi_frame.len ] = 0;
                log_printf( &logger, " Payload (string): %s\r\n\n", &aapi_frame.payload[ 5 ] );
                break;
            }
            case NEOMESH915MHZ_RSP_ACK_HOST_HAPA:
            {
                log_printf( &logger, "---- ACK HOST DATA HAPA ----\r\n" );
                log_printf( &logger, " Originator ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Packet Age: %.3f sec\r\n",
                            ( ( ( uint32_t ) aapi_frame.payload[ 2 ] << 24 ) |
                              ( ( uint32_t ) aapi_frame.payload[ 3 ] << 16 ) |
                              ( ( uint16_t ) aapi_frame.payload[ 4 ] << 8 ) |
                              aapi_frame.payload[ 5 ] ) * pow ( 2, -19 ) );
                log_printf( &logger, " Port: %u\r\n", aapi_frame.payload[ 6 ] );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 7; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_RSP_NACK_HOST:
            {
                log_printf( &logger, "---- NACK HOST DATA ----\r\n" );
                log_printf( &logger, " Originator ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Packet Age: %.3f sec\r\n",
                            ( ( ( uint16_t ) aapi_frame.payload[ 2 ] << 8 ) |
                              aapi_frame.payload[ 3 ] ) * 0.125f );
                log_printf( &logger, " Port: %u\r\n", aapi_frame.payload[ 4 ] );
                log_printf( &logger, " Sequence number: %u\r\n",
                            ( ( ( uint16_t ) aapi_frame.payload[ 5 ] << 8 ) |
                              aapi_frame.payload[ 6 ] ) & 0x0FFFu );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 7; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_RSP_NACK_HOST_HAPA:
            {
                log_printf( &logger, "---- NACK HOST DATA HAPA ----\r\n" );
                log_printf( &logger, " Originator ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Packet Age: %.3f sec\r\n",
                            ( ( ( uint32_t ) aapi_frame.payload[ 2 ] << 24 ) |
                              ( ( uint32_t ) aapi_frame.payload[ 3 ] << 16 ) |
                              ( ( uint16_t ) aapi_frame.payload[ 4 ] << 8 ) |
                              aapi_frame.payload[ 5 ] ) * pow ( 2, -19 ) );
                log_printf( &logger, " Port: %u\r\n", aapi_frame.payload[ 6 ] );
                log_printf( &logger, " Sequence number: %u\r\n",
                            ( ( ( uint16_t ) aapi_frame.payload[ 7 ] << 8 ) |
                              aapi_frame.payload[ 8 ] ) & 0x0FFFu );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 9; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_RSP_NACK_SEND:
            {
                log_printf( &logger, "---- NACK SEND ----\r\n" );
                log_printf( &logger, " Destination ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Sequence number: %u\r\n",
                            ( ( ( uint16_t ) aapi_frame.payload[ 2 ] << 8 ) |
                              aapi_frame.payload[ 3 ] ) & 0x0FFFu );
                break;
            }
            case NEOMESH915MHZ_RSP_NACK_DROP:
            {
                log_printf( &logger, "---- NACK DROP ----\r\n" );
                log_printf( &logger, " Destination ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Sequence number: %u\r\n",
                            ( ( ( uint16_t ) aapi_frame.payload[ 2 ] << 8 ) |
                              aapi_frame.payload[ 3 ] ) & 0x0FFFu );
                break;
            }
            case NEOMESH915MHZ_RSP_NODE_INFO:
            {
                log_printf( &logger, "---- NODE INFO ----\r\n" );
                log_printf( &logger, " Node ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Unique ID: %.2X%.2X%.2X%.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 2 ], ( uint16_t ) aapi_frame.payload[ 3 ],
                            ( uint16_t ) aapi_frame.payload[ 4 ], ( uint16_t ) aapi_frame.payload[ 5 ],
                            ( uint16_t ) aapi_frame.payload[ 6 ] );
                log_printf( &logger, " Type: %.2X\r\n", ( uint16_t ) aapi_frame.payload[ 7 ] );
                break;
            }
            case NEOMESH915MHZ_RSP_NEIGHBOUR_LIST:
            {
                log_printf( &logger, "---- NEIGHBOUR LIST ----\r\n" );
                for ( uint8_t cnt = 0; cnt < aapi_frame.len; cnt += 3 )
                {
                    log_printf( &logger, " %u# -> ", ( uint16_t ) ( ( cnt / 3 ) + 1 ) );
                    if ( ( 0xFF != aapi_frame.payload[ cnt ] ) &&
                         ( 0xFF != aapi_frame.payload[ cnt + 1 ] ) )
                    {
                        log_printf( &logger, "Node ID: %.2X%.2X, RSSI: -%u dBm\r\n",
                                    ( uint16_t ) aapi_frame.payload[ cnt ],
                                    ( uint16_t ) aapi_frame.payload[ cnt + 1 ],
                                    ( uint16_t ) aapi_frame.payload[ cnt + 2 ] );
                    }
                    else
                    {
                        log_printf( &logger, "N/A\r\n" );
                    }
                }
                break;
            }
            case NEOMESH915MHZ_RSP_NETWORK_COMMAND:
            {
                log_printf( &logger, "---- NETWORK COMMAND ----\r\n" );
                log_printf( &logger, " Node ID: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ] );
                log_printf( &logger, " Command: %.2X\r\n", ( uint16_t ) aapi_frame.payload[ 2 ] );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 3; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_RSP_ROUTE_INFO:
            {
                log_printf( &logger, "---- ROUTE INFO ----\r\n" );
                log_printf( &logger, " Bit Mask: " );
                for ( uint8_t cnt = 0; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_RSP_WES_STATUS:
            {
                log_printf( &logger, "---- WES STATUS ----\r\n" );
                if ( !aapi_frame.payload[ 0 ] )
                {
                    log_printf( &logger, " WES stopped\r\n" );
                }
                else
                {
                    log_printf( &logger, " WES server running\r\n" );
                }
                break;
            }
            case NEOMESH915MHZ_RSP_WES_SETUP:
            {
                log_printf( &logger, "---- WES SETUP ----\r\n" );
                log_printf( &logger, " Unique ID: %.2X%.2X%.2X%.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 0 ], ( uint16_t ) aapi_frame.payload[ 1 ],
                            ( uint16_t ) aapi_frame.payload[ 2 ], ( uint16_t ) aapi_frame.payload[ 3 ],
                            ( uint16_t ) aapi_frame.payload[ 4 ] );
                log_printf( &logger, " Type: %.2X\r\n", ( uint16_t ) aapi_frame.payload[ 5 ] );
                break;
            }
            case NEOMESH915MHZ_RSP_GET_SW_VERSION:
            {
                log_printf( &logger, "---- SW VERSION ----\r\n" );
                log_printf( &logger, " HW/SW Type: %.2X\r\n", ( uint16_t ) aapi_frame.payload[ 0 ] );
                log_printf( &logger, " NeoMesh Version: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 1 ], ( uint16_t ) aapi_frame.payload[ 2 ] );
                log_printf( &logger, " Bootloader Version: %.2X%.2X\r\n",
                            ( uint16_t ) aapi_frame.payload[ 3 ], ( uint16_t ) aapi_frame.payload[ 4 ] );
                break;
            }
            case NEOMESH915MHZ_RSP_ALT_MODE:
            {
                log_printf( &logger, "---- ALT MODE ----\r\n" );
                if ( !aapi_frame.payload[ 0 ] )
                {
                    log_printf( &logger, " Network in Normal mode\r\n" );
                }
                else
                {
                    log_printf( &logger, " Network in Alternate mode\r\n" );
                }
                break;
            }
            default:
            {
                log_printf( &logger, "---- RESPONSE ----\r\n" );
                log_printf( &logger, " CMD: 0x%.2X\r\n", ( uint16_t ) aapi_frame.cmd );
                log_printf( &logger, " LEN: %u\r\n", ( uint16_t ) aapi_frame.len );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 0; cnt < aapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) aapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
        }
        if ( exp_rsp == aapi_frame.cmd )
        {
            return NEOMESH915MHZ_OK;
        }
    }
    return NEOMESH915MHZ_ERROR;
}

static err_t neomesh915mhz_parse_sapi_rsp ( uint16_t exp_rsp )
{
    while ( NEOMESH915MHZ_OK == neomesh915mhz_read_sapi_frame ( &neomesh915mhz, &sapi_frame ) )
    {
        switch ( sapi_frame.cmd )
        {
            case NEOMESH915MHZ_SAPI_RSP_OK:
            {
                log_printf( &logger, "---- OK ----\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_ERROR:
            {
                log_printf( &logger, "---- ERROR ----\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_BOOTLOADER_START:
            {
                log_printf( &logger, "---- Bootloader STARTED ----\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_PROTOCOL_STACK_START:
            {
                log_printf( &logger, "---- Protocol Stack STARTED ----\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_PROTOCOL_STACK_ERROR:
            {
                log_printf( &logger, "---- Protocol Stack ERROR ----\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_SETTINGS_LIST_OUTPUT:
            {
                log_printf( &logger, "---- Settings List Output ----\r\n" );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 0; cnt < sapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) sapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_SETTINGS_VALUE:
            {
                log_printf( &logger, "---- Settings Value ----\r\n" );
                log_printf( &logger, " Payload: " );
                for ( uint8_t cnt = 0; cnt < sapi_frame.len; cnt++ )
                {
                    log_printf( &logger, "%.2X ", ( uint16_t ) sapi_frame.payload[ cnt ] );
                }
                log_printf( &logger, "\r\n" );
                break;
            }
            case NEOMESH915MHZ_SAPI_RSP_RESET:
            {
                log_printf( &logger, "---- Reset EVENT ----\r\n" );
                break;
            }
            default:
            {
                log_printf( &logger, "---- RESPONSE ----\r\n" );
                log_printf( &logger, " CMD: 0x%.4X\r\n", ( uint16_t ) sapi_frame.cmd );
                log_printf( &logger, " PLEN: %u\r\n", ( uint16_t ) sapi_frame.len );
                if ( sapi_frame.len )
                {
                    log_printf( &logger, " Payload: " );
                    for ( uint8_t cnt = 0; cnt < sapi_frame.len; cnt++ )
                    {
                        log_printf( &logger, "%.2X ", ( uint16_t ) sapi_frame.payload[ cnt ] );
                    }
                    log_printf( &logger, "\r\n" );
                }
                break;
            }
        }
        if ( exp_rsp == sapi_frame.cmd )
        {
            return NEOMESH915MHZ_OK;
        }
    }
    return NEOMESH915MHZ_ERROR;
}

// ------------------------------------------------------------------------ END
