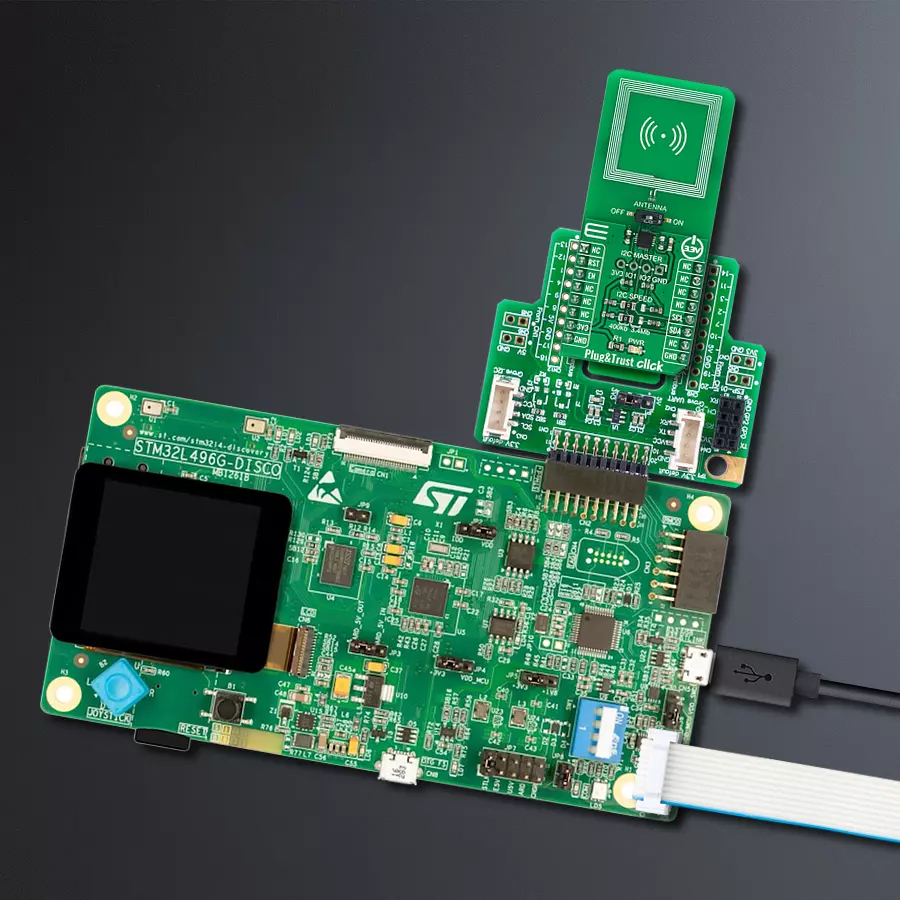

使用 SE050 Plug&Trust 和 STM32L496AG 提升物联网安全性

/*!
 * @file main.c
 * @brief PlugnTrust Click example
 *
 * # Description
 * This application is showcasing basic functionality of Plug&Trust
 * Click board. It gets identify data from device, selects card
 * manager and applet. Then checks free memory, reads all objects and
 * deletes not reserved ones. After that showcases a few of functionality:
 *      - Generating random data,
 *      - Creating, reading and deleteing binary objects,
 *      - Creating AES symmetrical key and cipher with it;
 * In the end it is showcasing funcionality in the endless loop.
 *
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * At the start it sets comunication interface from default
 * configuration[I2C]. Reads indetifing data from device,
 * and then selects Card manager and applet. After that it
 * reads free presistant memory, reads all objects and deletes
 * objects that are not reserved by the Applet. Then it generates
 * 2 byte of random data, and gets the version information
 * from the Applet. Thtas followed up with creating binary
 * object and 'MikroE' data is wrriten in it. Then its checked
 * it object is created, and reads data back, in the end its
 * deleted and checked if it still exists. Finally it creates
 * 128AES key (16bytes), and then it encrypts and then decrypts
 * data with that key, and in the end it deletes that key object.
 *
 * ## Application Task
 * It generates 16bytes of data, writes it in binary object and
 * then reads it and logs it. Then creates AES key and encrypts
 * that random data with it, and then decrypts it. In the end it
 * deletes both AES key object and binary object thats created
 * at the start of task.
 *
 * @note
 * For more informations and explanations refer to documents
 * from NXP->AN12413 and UM11225.
 *
 * @author Luka Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "plugntrust.h"

//Library and log objects
static plugntrust_t plugntrust;
static log_t logger;

//Communication objects
static plugntrust_apdu_t apdu_data;
static plugntrust_frame_data_t frame_data;

//Parsing parameters
#define PARSE_BUF_LEN 0xFF
static uint32_t parse_index = 0;
static uint32_t parse_len = PARSE_BUF_LEN;
static uint8_t parse_data[ PARSE_BUF_LEN ] = { 0 };

/**
 * @brief Reset parse data.
 * @details Clears parse index, buffer and resets @b parse_len.
 * @return Nothing.
 * @note None.
 */
static void reset_parse ( void );

/**
 * @brief Log buffer data to .
 * @details Logs buffer data to UART Terminal
 * @param[in] buf : Buffer to log.
 * @param[in] buf_len : Length of buffer to log.
 * @return Nothing.
 * @note None.
 */
static void log_buf_hex ( uint8_t *buf, uint8_t buf_len );

/**
 * @brief Log status data.
 * @details Log status data from @b apdu_data.
 * @return Nothing.
 * @note None.
 */
static void log_status ( void );

/**
 * @brief Log frame data.
 * @details Logs data from @b frame_data.
 * @return Nothing.
 * @note None.
 */
static void log_rsp_data_default ( void );

/**
 * @brief End APDU session.
 * @details Sends request to end APDU session.
 * @return Nothing.
 * @note None.
 */
static void end_apdu_session ( void );

/**
 * @brief Send request to reset device.
 * @details Sends request to reset device and logs ATR data.
 * @return Nothing.
 * @note None.
 */
static void soft_reset( void );

/**
 * @brief Check presistant free memory.
 * @details Sends request to check presistant free
 * memory from Applet, and logs it.
 * @return Nothing.
 * @note None.
 */
static void check_free_memory ( void );

/**
 * @brief Reads 2 bytes of random data from Applet.
 * @details Sends request to Applet to get 2 bytes of
 * random data, and logs it.
 * @return Nothing.
 * @note None.
 */
static void get_random ( void );

/**
 * @brief Read Object with UID.
 * @details Checks if Object with UID exists and then
 * reads its data, and logs it.
 * @return Nothing.
 * @note None.
 */
static void read_uid_object ( void );

/**
 * @brief Checks the current version of the Applet.
 * @details Send request to check the current version
 * of Applet and logs return data.
 * @return Nothing.
 * @note None.
 */
static void get_version ( void );

/**
 * @brief Get identify data from device.
 * @details Sends request to get identification data
 * from device, and logs data.
 * @return Nothing.
 * @note None.
 */
static void get_data_identify ( void );

/**
 * @brief Create, write, read, and delete binary object.
 * @details Creates and writes data to binary object.
 * Checks if that object exists. Reads that binary object,
 * and then delets it, and checks if its deleted.
 * Every step and status will be logged.
 * @return Nothing.
 * @note None.
 */
static void create_check_delete ( void );

/**
 * @brief List of all Applet objects and delete if not reserved.
 * @details Create one random object and then lists all objects
 * and delete ones that are not reserved.
 * @return Nothing.
 * @note None.
 */
static void list_and_delete_objects ( void );

/**
 * @brief Select Applet.
 * @details Select applet and log version info.
 * @return Nothing.
 * @note None.
 */
static void select_applet ( void );

/**
 * @brief Create AES key, Encrypt and Decrypt data, and delete AES key.
 * @details Creates 128AES Symmetrical key.
 * Encrypts data with it. Decrypt data with that key.
 * and in the end delete that AES key. Logs every status in the process.
 * @return Nothing.
 * @note None.
 */
static void aes_cipher ( void );

/**
 * @brief Select Card manager.
 * @details Select Card manager without return value request
 * @return Nothing.
 * @note None.
 */
static void select_card_manger ( void );

/**
 * @brief Create 128 AES symmetrical key.
 * @details Create 128 AES symetrical key and sets its value.
 * @param[in] aes_id : Object ID.
 * @param[in] aes_key : AES key value.
 * @return Nothing.
 * @note AES key value because it's 128 key should be 16 bytes of data.
 */
static void create_128_aes_key ( uint32_t aes_id, uint8_t *aes_key );

/**
 * @brief Encrypt or decrypt data with AES key.
 * @details Encrypt or decrypt data with AES key.
 * @param[in] aes_id : Object ID.
 * @param[in] cipher_type : Encrypt or decrypt macro @b[PLUGNTRUST_P2_ENCRYPT_ONESHOT] || @b[PLUGNTRUST_P2_DECRYPT_ONESHOT].
 * @param[in] data_in : Input buffer.
 * @param[out] data_out : Output buffer.
 * @return @li @c  0 - Success,
 *         @li @c -1 - Error.
 * @note None.
 */
static err_t cipher_data_with_aes_key ( uint32_t aes_id, uint8_t cipher_type, uint8_t *data_in, uint8_t *data_out );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    plugntrust_cfg_t plugntrust_cfg;  /**< Click config object. */
    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );
    // Click initialization.
    plugntrust_cfg_setup( &plugntrust_cfg );
    PLUGNTRUST_MAP_MIKROBUS( plugntrust_cfg, MIKROBUS_1 );
    err_t init_flag = plugntrust_init( &plugntrust, &plugntrust_cfg );
    if ( init_flag == I2C_MASTER_ERROR )
    {
        log_error( &logger, " Application Init Error. " );
        log_info( &logger, " Please, run program again... " );

        for ( ; ; );
    }

    frame_data.apdu = &apdu_data;

    plugntrust_default_cfg ( &plugntrust );

    if ( PLUGNTRUST_INTERFACE_ISO14443 == plugntrust.interface )
    {
        log_info( &logger, " ISO14443 Interface active..." );
        for ( ; ; );
    }

    soft_reset( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    get_data_identify( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    select_card_manger( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    select_applet( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    check_free_memory( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    list_and_delete_objects( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    get_random( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    read_uid_object( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    get_version(  );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    create_check_delete( );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    aes_cipher( );

    log_info( &logger, " Application Task " );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

void application_task ( void )
{
    #define DATA_LEN 16
    static uint8_t aes_value[ DATA_LEN ]    = { 0x40, 0x41, 0x42, 0x43,0x44, 0x45, 0x46, 0x47,
                                                0x48, 0x49, 0x4A, 0x4B,0x4C, 0x4D, 0x4E, 0x4F };
    static uint32_t binary_id               = 0xBBBBBBBBul;
    static uint32_t aes_id                  = 0xCCCCCCCCul;
    uint8_t random_data[ DATA_LEN ]         = { 0 };
    uint8_t read_data[ DATA_LEN ]           = { 0 };
    uint8_t encrypted_data[ DATA_LEN ]      = { 0 };
    uint32_t read_len = DATA_LEN;

    if ( PLUGNTRUST_OK == plugntrust_get_random_numbers( &plugntrust, random_data, DATA_LEN ) )
    {
        log_printf( &logger, " > Generated random data: 0x" );
        log_buf_hex( random_data, DATA_LEN );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Random" );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    if ( PLUGNTRUST_OBJECT_DOESNT_EXIST == plugntrust_check_object_exist( &plugntrust, binary_id ) )
    {
        log_printf( &logger, " Write random data to binary object...\r\n" );
        if ( PLUGNTRUST_OK != plugntrust_write_binary_object( &plugntrust, binary_id, 0, DATA_LEN, random_data ) )
        {
            log_error( &logger, " Write Binary" );
        }
        else
        {
            log_info( &logger, " Status OK" );
        }
    }
    else
    {
        log_error( &logger, " Binary object already exist" );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    if ( PLUGNTRUST_OBJECT_DOES_EXISTS == plugntrust_check_object_exist( &plugntrust, binary_id ) )
    {
        if ( PLUGNTRUST_OK == plugntrust_read_object( &plugntrust, binary_id, 0, 0, read_data, &read_len ) )
        {
            log_printf( &logger, " > Read data from binary object: 0x" );
            log_buf_hex( read_data, read_len );
            log_printf( &logger, "\r\n" );
        }
        else
        {
            log_error( &logger, " Read binray object" );
        }
    }
    else
    {
        log_error( &logger, " Binary object doesn't exist" );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    log_printf( &logger, " Create AES key...\r\n" );
    create_128_aes_key( aes_id, aes_value );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    if ( PLUGNTRUST_OK == cipher_data_with_aes_key( aes_id, PLUGNTRUST_P2_ENCRYPT_ONESHOT, read_data, encrypted_data ) )
    {
        log_printf( &logger, " > Encrypted data: 0x" );
        log_buf_hex( encrypted_data, DATA_LEN );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Encrypting data" );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    if ( PLUGNTRUST_OK == cipher_data_with_aes_key( aes_id, PLUGNTRUST_P2_DECRYPT_ONESHOT, encrypted_data, read_data ) )
    {
        log_printf( &logger, " > Decrypted data: 0x" );
        log_buf_hex( read_data, DATA_LEN );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Decrypting data" );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    log_printf( &logger, " Delete Binary and AES object...\r\n" );
    if ( ( PLUGNTRUST_OK != plugntrust_delete_object( &plugntrust, binary_id ) ) || ( PLUGNTRUST_OK != plugntrust_delete_object( &plugntrust, aes_id ) ) )
    {
        log_error( &logger, " Deleting objects" );
    }
    log_printf( &logger, "*****************************************************************************\r\n" );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void reset_parse ( void )
{
    parse_index = 0;
    parse_len = PARSE_BUF_LEN;
    memset( parse_data, 0, parse_len );
}

static void log_buf_hex ( uint8_t *buf, uint8_t buf_len )
{
    for ( uint8_t i = 0; i < buf_len; i++ )
    {
        log_printf( &logger, "%0.2X", ( uint16_t )buf[ i ] );
    }
}

static void log_status ( void )
{
    if ( ( ( frame_data.pcb & PLUGNTRUST_PCB_BLOCK_R ) != PLUGNTRUST_PCB_BLOCK_R ) &&
         ( ( frame_data.pcb & PLUGNTRUST_PCB_BLOCK_S ) != PLUGNTRUST_PCB_BLOCK_S ) )
    {
        switch ( frame_data.apdu->status )
        {
            case PLUGNTRUST_SW_NOERROR:
            {
                log_info( &logger, " Status OK" );
                break;
            }
            default:
            {
                log_error( &logger, " Status: 0x%.4X", frame_data.apdu->status );
            }
        }
    }
}

static void log_rsp_data_default ( void )
{
    log_printf( &logger, " >NAD: 0x%0.2X \r\n", ( uint16_t )frame_data.nad );
    log_printf( &logger, " >PCB: 0x%0.2X \r\n", ( uint16_t )frame_data.pcb );
    log_printf( &logger, " >LEN: 0x%0.2X \r\n", ( uint16_t )frame_data.len );
    if ( frame_data.len > 0 )
    {
        log_printf( &logger, " >APDU: 0x" );
    }
    log_buf_hex( frame_data.apdu->payload, frame_data.len );
    if ( frame_data.len > 0 )
    {
        log_printf( &logger, " \r\n" );
    }
    log_printf( &logger, " >CRC: 0x%0.4X \r\n", frame_data.crc16 );
    log_printf( &logger, "************************************************************************\r\n" );
}

static void soft_reset( void )
{
    log_info( &logger, " Resetting device..." );
    plugntrust_atr_t atr_data;
    if ( PLUGNTRUST_OK == plugntrust_sw_reset( &plugntrust, &atr_data ) )
    {
        log_printf( &logger, " > Protocol version: %d\r\n", ( uint16_t )atr_data.protocol_version );
        log_printf( &logger, " > Length of Data Link Layer Parameters value: %d\r\n",
                    ( uint16_t ) atr_data.data_link_layer_parameters_len );
        log_printf( &logger, " > Data Link Layer Parameters: 0x" );
        log_buf_hex( atr_data.data_link_layer_parameters, atr_data.data_link_layer_parameters_len );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Physical Layer ID: %d\r\n", ( uint16_t )atr_data.physical_layer_id );
        log_printf( &logger, " > Length of Physical Layer Parameters value: %d\r\n",
                    ( uint16_t ) atr_data.physical_layer_parameters_len );
        log_printf( &logger, " > Physical Layer Parameters: 0x" );
        log_buf_hex( atr_data.physical_layer_parameters, atr_data.physical_layer_parameters_len );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Length of Historical Bytes value: %d\r\n", ( uint16_t ) atr_data.historical_len );
        log_printf( &logger, " > Historical Bytes: 0x" );
        log_buf_hex( atr_data.historical, atr_data.historical_len );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Resetting..." );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void check_free_memory ( void )
{
    log_info( &logger, " Check free memory" );
    uint16_t free_memory = 0;
    if ( PLUGNTRUST_OK == plugntrust_get_free_memory( &plugntrust, PLUGNTRUST_MEM_TRANSIENT_DESELECT, &free_memory ) )
    {
        log_printf( &logger, " > Free Memory: %d\r\n", free_memory );
    }
    else
    {
        log_error( &logger, " Reading Memory" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void get_random ( void )
{
    log_info( &logger, " Get Random" );
    if ( PLUGNTRUST_OK == plugntrust_get_random_numbers( &plugntrust, parse_data, 2 ) )
    {
        log_printf( &logger, " > Random data: 0x" );
        log_buf_hex( parse_data, 2 );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Random" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void read_uid_object ( void )
{
    if ( PLUGNTRUST_OBJECT_DOES_EXISTS == plugntrust_check_object_exist( &plugntrust, PLUGNTRUST_APPLET_RES_ID_UNIQUE_ID ) )
    {
        log_info( &logger, " Read object with Unique ID" );

        if ( PLUGNTRUST_OK == plugntrust_read_object( &plugntrust,
            PLUGNTRUST_APPLET_RES_ID_UNIQUE_ID, 0, 0, parse_data, &parse_len ) )
        {
            log_printf( &logger, " > Object data: 0x" );
            log_buf_hex( parse_data, parse_len );
            log_printf( &logger, "\r\n" );
        }
        else
        {
            log_error( &logger, " Read object with Unique ID" );
        }
        log_printf( &logger, "************************************************************************\r\n" );
    }
}

static void get_version ( void )
{
    log_info( &logger, " Get Version" );
    plugntrust_version_info_t ver_info;
    if ( PLUGNTRUST_OK == plugntrust_get_applet_info( &plugntrust, &ver_info ) )
    {
        log_printf( &logger, " > Applet Version = %d.%d.%d\r\n", ( uint16_t )ver_info.major_version,
                                                                 ( uint16_t )ver_info.minor_version,
                                                                 ( uint16_t )ver_info.patch_version );
        log_printf( &logger, " > AppletConfig = 0x%0.4X\r\n", ver_info.applet_config );
        log_printf( &logger, " > SecureBox = 0x%0.4X\r\n", ver_info.secure_box );
    }
    else
    {
        log_error( &logger, " Version Info" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void get_data_identify ( void )
{
    //select card
    select_card_manger( );
    end_apdu_session( );
    //get data identify
    typedef struct
    {
        uint8_t tag_value_proprietary_data;//0xFE Tag value - proprietary data Only present if class byte is 0x80
        uint8_t length_of_following_data;//0x49 / 0x45 Length of following data Only present if class byte is 0x80
        uint8_t tag_card_identification_data[0x02];//0xDF28 Tag card identification data Only present if class byte is 0x80
        uint8_t length_of_card_identification_data;//0x46 Length of card identification data Only present if class byte is 0x80

        uint8_t tag_configuration_id;//0x01 Tag configuration ID Identifies the configuration content
        uint8_t length_configuration_id; //0x0C Length configuration ID
        uint8_t configuration_id[ 0x0C ];  //var Configuration ID

        uint8_t tag_patch_id;    //0x02 Tag patch ID Identifies the patch level
        uint8_t length_patch_id; //0x08 Length patch ID
        uint8_t patch_id[ 0x08 ];  //var Patch ID

        uint8_t tag_platform_build_id1;//0x03 Tag platform build ID1 Identifies the JCOP platform
        uint8_t length_platform_build_id; //0x18 Length platform build ID
        uint8_t platform_build_id[ 0x18 ];  //var Platform build ID

        uint8_t tag_fips_mode;    //0x052 Tag FIPS mode FIPS mode active
        uint8_t length_fips_mode; //0x01 Length FIPS mode
        uint8_t fips_mode;//var FIPS mode 0x00 - FIPS mode not active, 0x01 - FIPS mode active

        uint8_t tag_pre_perso_state;//0x07 Tag pre-perso state Lists pre-perso state
        uint8_t length_pre_perso_state;//0x01 Length pre-perso state
        //var Bit mask of pre-perso state bit0 = 1 = config module available,
        //  bit1 = 1 = transport state is active.
        //  Unused bits are set to 0x0.
        uint8_t bit_mask_of_pre_perso_state;

        uint8_t tag_rom_id;    //'08' Tag ROM ID Indentifies the ROM content
        uint8_t length_rom_id; //'08' Length ROM ID Normal ending
        uint8_t rom_id[ 0x08 ];  //var ROM ID
        uint8_t status_word_sw[ 0x02 ]; //9000h Status Word (SW)
    } identify_rsp_t;

    identify_rsp_t identify_rsp = {0};
    uint32_t prsp_len = sizeof(identify_rsp_t);
    log_info( &logger, " Get data identify" );
    frame_data.pcb = PLUGNTRUST_PCB_BLOCK_I;
    frame_data.len = 8;
    frame_data.apdu->cla = PLUGNTRUST_CLA_NOT_SECURE;
    frame_data.apdu->ins = 0xCA;
    frame_data.apdu->p1 = 0x00;
    frame_data.apdu->p2 = 0xFE;
    frame_data.apdu->payload_len = 0x02;
    frame_data.apdu->rsp_len = 0x00;
    uint8_t df28[ 2 ] = { 0xDF, 0x28 };
    memcpy( frame_data.apdu->payload, df28, 2 );
    plugntrust_apdu_transfer( &plugntrust, &frame_data );
    if ( frame_data.len == prsp_len )
    {
        memcpy( (uint8_t *)&identify_rsp, frame_data.apdu->payload, prsp_len );
        log_printf( &logger, " > Tag value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_value_proprietary_data );
        log_printf( &logger, " > Length value: %d\r\n", ( uint16_t ) identify_rsp.length_of_following_data );
        log_printf( &logger, " > Tag Card ID value: 0x" );
        log_buf_hex( identify_rsp.tag_card_identification_data, 2 );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Length of Card ID value: %d\r\n", ( uint16_t ) identify_rsp.length_of_card_identification_data );
        log_printf( &logger, " > Tag of Configuration ID value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_configuration_id );
        log_printf( &logger, " > Length of Configuration ID value: %d\r\n", ( uint16_t ) identify_rsp.length_configuration_id );
        log_printf( &logger, " > Configuration ID: 0x" );
        log_buf_hex( identify_rsp.configuration_id, identify_rsp.length_configuration_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of Patch ID value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_patch_id );
        log_printf( &logger, " > Length of Patch ID value: %d\r\n", ( uint16_t ) identify_rsp.length_patch_id );
        log_printf( &logger, " > Patch ID: 0x" );
        log_buf_hex( identify_rsp.patch_id, identify_rsp.length_patch_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of Platform Build ID1 value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_platform_build_id1 );
        log_printf( &logger, " > Length of Platform Build ID1 value: %d\r\n", ( uint16_t ) identify_rsp.length_platform_build_id );
        log_printf( &logger, " > Platform Build ID1: 0x" );
        log_buf_hex( identify_rsp.platform_build_id, identify_rsp.length_platform_build_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of FIPS Mode value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_fips_mode );
        log_printf( &logger, " > Length of FIPS Mode value: %d\r\n", ( uint16_t ) identify_rsp.length_fips_mode );
        log_printf( &logger, " > FIPS Mode: 0x" );
        log_buf_hex( &identify_rsp.fips_mode, identify_rsp.length_fips_mode );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of Pre-Preso State value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_pre_perso_state );
        log_printf( &logger, " > Length of Pre-Preso State value: %d\r\n", ( uint16_t ) identify_rsp.length_pre_perso_state );
        log_printf( &logger, " > Pre-Preso State: 0x" );
        log_buf_hex( &identify_rsp.bit_mask_of_pre_perso_state, identify_rsp.length_pre_perso_state );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of ROM ID value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_rom_id );
        log_printf( &logger, " > Length of ROM ID value: %d\r\n", ( uint16_t ) identify_rsp.length_rom_id );
        log_printf( &logger, " > ROM ID: 0x" );
        log_buf_hex( identify_rsp.rom_id, identify_rsp.length_rom_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Status Word: 0x" );
        log_buf_hex( identify_rsp.status_word_sw, 2 );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Size Error" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
    end_apdu_session( );
}

static void end_apdu_session ( void )
{
    if ( PLUGNTRUST_OK != plugntrust_end_apdu_session( &plugntrust ) )
    {
        log_error( &logger, " End APDU session" );
    }
}

static void create_check_delete ( void )
{
    //create binary object
    log_info( &logger, " Write Binary" );
    uint8_t data_buf[ 7 ] = "MikroE";
    uint32_t binary_id = 0xAAAAAAAAul;

    if ( PLUGNTRUST_OK != plugntrust_write_binary_object( &plugntrust,
            binary_id, 0, 6, data_buf ) )
    {
        log_error( &logger, " Write Binary" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    //check if object exists
    log_info( &logger, " Check object exists" );
    if ( PLUGNTRUST_OBJECT_DOES_EXISTS == plugntrust_check_object_exist( &plugntrust, binary_id ) )
    {
        log_printf( &logger, " > Object exist\r\n" );
    }
    else
    {
        log_printf( &logger, " > Object doesn't exist\r\n" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    //read binary object
    log_info( &logger, " Read object" );
    reset_parse();
    if ( PLUGNTRUST_OK == plugntrust_read_object( &plugntrust,
            binary_id, 0, 0, parse_data, &parse_len ) )
    {
        log_printf( &logger, " > Object data: %s\r\n", parse_data );
    }
    else
    {
        log_error( &logger, " Read binary object" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
    //delete object
    log_info( &logger, " Delete Secure Object" );
    if ( PLUGNTRUST_OK == plugntrust_delete_object( &plugntrust, binary_id ) )
    {
        log_printf( &logger, " Object 0x%0.8LX deleted\r\n", binary_id );
    }
    else
    {
        log_error( &logger, " Delete Object"  );
    }
    log_printf( &logger, "************************************************************************\r\n" );
    //check if object exists
    log_info( &logger, " Check object exists" );
    if ( PLUGNTRUST_OBJECT_DOES_EXISTS == plugntrust_check_object_exist( &plugntrust, binary_id ) )
    {
        log_printf( &logger, " > Object exist\r\n" );
    }
    else
    {
        log_printf( &logger, " > Object doesn't exist\r\n" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void list_and_delete_objects( void )
{
    plugntrust_write_binary_object( &plugntrust, 0xAABBCCDDul, 0, 4, "Data" );

    log_info( &logger, " Get Object list" );
    uint32_t ids[ 30 ] = { 0 };
    uint8_t len = 0;
    if ( PLUGNTRUST_OK == plugntrust_object_id_list( &plugntrust, ids, &len ) )
    {
        log_info( &logger, " List len: %d", ( uint16_t )len );
        for ( uint8_t cnt = 0; cnt < len; cnt++ )
        {   //if not NXP defined objectect delete that object
            if ( ( PLUGNTRUST_OBJID_SE05X_APPLET_RES_START != ( PLUGNTRUST_OBJID_APPLET_MASK & ids[ cnt ] ) ) &&
                 ( PLUGNTRUST_SSS_OBJID_DEMO_AUTH_START != ( PLUGNTRUST_OBJID_APPLET_MASK & ids[ cnt ] ) ) &&
                 ( PLUGNTRUST_SSS_OBJID_IOT_HUB_A_START != ( PLUGNTRUST_OBJID_IOT_MASK & ids[ cnt ] ) ) )
            {
                if ( PLUGNTRUST_OK == plugntrust_delete_object( &plugntrust, ids[ cnt ] ) )
                {
                    log_printf( &logger, " > Object Deleted 0x%.8LX\r\n", ids[ cnt ] );
                }
                else
                {
                    log_error( &logger, " Delecte Object  0x%.8LX", ids[ cnt ] );
                }
            }
            else
            {
                log_printf( &logger, " > Object ID: 0x%.8LX\r\n", ids[ cnt ] );
            }
        }
    }
    else
    {
        log_error( &logger, " Object ID List" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void select_applet ( void )
{
    log_info( &logger, " Select SE050 Applet" );
    plugntrust_version_info_t ver_info;
    plugntrust_select_applet( &plugntrust, PLUGNTRUST_PCB_BLOCK_I_NS_ENCODE, &ver_info );
    log_printf( &logger, " > Applet Version = %d.%d.%d\r\n", ( uint16_t )ver_info.major_version,
                                                             ( uint16_t )ver_info.minor_version,
                                                             ( uint16_t )ver_info.patch_version );
    log_printf( &logger, " > AppletConfig = 0x%0.4X\r\n", ver_info.applet_config );
    log_printf( &logger, " > SecureBox = 0x%0.4X\r\n", ver_info.secure_box );
    log_printf( &logger, "************************************************************************\r\n" );
}

static void aes_cipher ( void )
{
    //Create AES Key
    log_info( &logger, " Write AES Key" );
    #define AES_DATA_SIZE 16
    uint8_t aes_value[ AES_DATA_SIZE ] = { 0x40, 0x41, 0x42, 0x43,0x44, 0x45, 0x46, 0x47,
                                           0x48, 0x49, 0x4A, 0x4B,0x4C, 0x4D, 0x4E, 0x4F };
    uint32_t symm_id = 0x12345678ul;
    create_128_aes_key( symm_id, aes_value );

    //Encrypt Data
    if ( PLUGNTRUST_OBJECT_DOES_EXISTS == plugntrust_check_object_exist( &plugntrust, symm_id ) )
    {
        log_info( &logger, " Encrypt Data" );
        uint8_t data_value[ 16 ] = { ' ', '>', 'P', 'l', 'u', 'g', ' ', '&', ' ', 'T', 'r', 'u', 's', 't', '<', ' ' };
        reset_parse( );
        if ( PLUGNTRUST_OK == cipher_data_with_aes_key( symm_id, PLUGNTRUST_P2_ENCRYPT_ONESHOT, data_value, parse_data ) )
        {
            log_printf( &logger, " > Encrypted data hex: 0x" );
            log_buf_hex( parse_data, AES_DATA_SIZE );
            log_printf( &logger, "\r\n" );
            log_printf( &logger, " > Encrypted data string: %s\r\n", parse_data );
        }
        else
        {
            log_error( &logger, " Parse error" );
        }
    }
    else
    {
        log_printf( &logger, " > Object doesn't exist\r\n" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    //Decrypt Data
    log_info( &logger, " Decrypt Data" );
    if ( PLUGNTRUST_OK == cipher_data_with_aes_key( symm_id, PLUGNTRUST_P2_DECRYPT_ONESHOT, parse_data, parse_data ) )
    {
        log_printf( &logger, " > Decrypted data hex: 0x" );
        log_buf_hex( parse_data, parse_len );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Decrypted data string: %s\r\n", parse_data );
    }
    else
    {
        log_error( &logger, " Parse error" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    //Delete Object
    log_info( &logger, " Delete Secure Object" );
    if ( PLUGNTRUST_OK == plugntrust_delete_object( &plugntrust, symm_id ) )
    {
        log_printf( &logger, " Object 0x%0.8LX deleted\r\n", symm_id );
    }
    else
    {
        log_error( &logger, " Delete Object"  );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void select_card_manger ( void )
{
    log_info( &logger, " Select the card manager " );
    if ( PLUGNTRUST_OK != plugntrust_select_card_manager( &plugntrust, PLUGNTRUST_CARD_MANAGER_WITHOUT_RSP, 0, 0 ) )
    {
        log_error( &logger, " Card manager"  );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void create_128_aes_key ( uint32_t aes_id, uint8_t *aes_key )
{
    #define AES_KEY_SIZE 16
    frame_data.pcb = PLUGNTRUST_PCB_BLOCK_I;
    frame_data.apdu->cla = PLUGNTRUST_CLA_NOT_SECURE;
    frame_data.apdu->ins = PLUGNTRUST_INS_WRITE | PLUGNTRUST_INS_TRANSIENT;
    frame_data.apdu->p1 = PLUGNTRUST_P1_AES;
    frame_data.apdu->p2 = PLUGNTRUST_P2_DEFAULT;
    frame_data.apdu->payload_len = 0;//reset apdu payload_len
    frame_data.apdu->rsp_len = 0;//reset apdu le value
    plugntrust_set_tlv_u32( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                            PLUGNTRUST_TLV_TAG_1, aes_id ); //AES key ID
    plugntrust_set_tlv_u8buf( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                            PLUGNTRUST_TLV_TAG_3, aes_key, AES_KEY_SIZE ); //AES key value
    frame_data.len = plugntrust_calculate_apdu_size( frame_data.apdu ); //calculate apdu size
    plugntrust_apdu_transfer( &plugntrust, &frame_data );
    log_status();
    end_apdu_session( );
}

static err_t cipher_data_with_aes_key ( uint32_t aes_id, uint8_t cipher_type, uint8_t *data_in, uint8_t *data_out )
{
    if ( PLUGNTRUST_OBJECT_DOES_EXISTS == plugntrust_check_object_exist( &plugntrust, aes_id ) )//check if object with aes_id exists
    {
        frame_data.pcb = PLUGNTRUST_PCB_BLOCK_I;
        frame_data.apdu->cla = PLUGNTRUST_CLA_NOT_SECURE;
        frame_data.apdu->ins = PLUGNTRUST_INS_CRYPTO;
        frame_data.apdu->p1 = PLUGNTRUST_P1_CIPHER;
        frame_data.apdu->p2 = cipher_type;//PLUGNTRUST_P2_ENCRYPT_ONESHOT || PLUGNTRUST_P2_DECRYPT_ONESHOT
        frame_data.apdu->payload_len = 0;
        frame_data.apdu->rsp_len = 0;
        frame_data.len = 0;
        plugntrust_set_tlv_u32( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                PLUGNTRUST_TLV_TAG_1, aes_id );//set aes key to be used
        plugntrust_set_tlv_u8( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                PLUGNTRUST_TLV_TAG_2, PLUGNTRUST_CIPHER_AES_CTR );//set ae cipher type to be used
        plugntrust_set_tlv_u8buf( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                PLUGNTRUST_TLV_TAG_3, data_in, 16 );//set data to encrypt/decrypt
        frame_data.len = plugntrust_calculate_apdu_size( frame_data.apdu );//calculate apdu data
        frame_data.len++;//increment data
        plugntrust_apdu_transfer( &plugntrust, &frame_data );
        reset_parse( );//reset prase data
        if ( PLUGNTRUST_OK == plugntrust_get_tlv_u8buf( frame_data.apdu->payload, &parse_index, frame_data.len,
                                                        PLUGNTRUST_TLV_TAG_1, data_out, &parse_len ) )//get encryted/decrypted data
        {
            end_apdu_session( );
            return PLUGNTRUST_OK;
        }
        else
        {
            end_apdu_session( );
            return PLUGNTRUST_ERROR;
        }
    }
    else
    {
        return PLUGNTRUST_ERROR;
    }
}

// ------------------------------------------------------------------------ END
