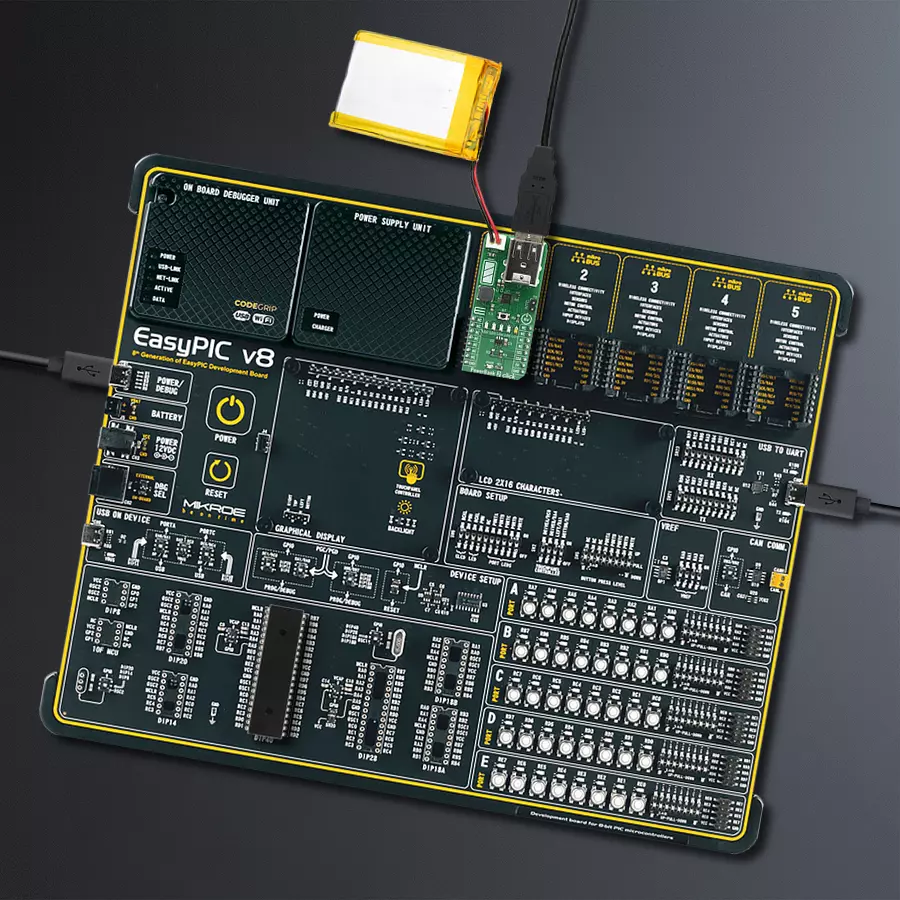

使用RT9480和PIC18F4685设计方便便携的充电解决方案

/*!
 * \file
 * \brief Powerbank2 Click example
 *
 * # Description
 * This single chip includes a linear charger, a synchronous Boost with dual output load
 * management and a torch function support.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initalizes I2C driver and makes an initial log.
 *
 * ## Application Task
 * This example shows the capabilities of the Power Bank 2 Click
 * by measuring voltage of the connected battery. In order to get correct calculations
 * the user should change "v_ref" value to his own power supply voltage.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "powerbank2.h"

// ------------------------------------------------------------------ VARIABLES

static powerbank2_t powerbank2;
static log_t logger;

static uint16_t voltage;
static uint16_t v_ref = 5000; // milivolts

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    powerbank2_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    powerbank2_cfg_setup( &cfg );
    POWERBANK2_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    powerbank2_init( &powerbank2, &cfg );
}

void application_task ( void )
{
    voltage = powerbank2_read_voltage( &powerbank2, v_ref );

    log_printf( &logger, "Battery voltage: %u mV\r\n", voltage );

    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
