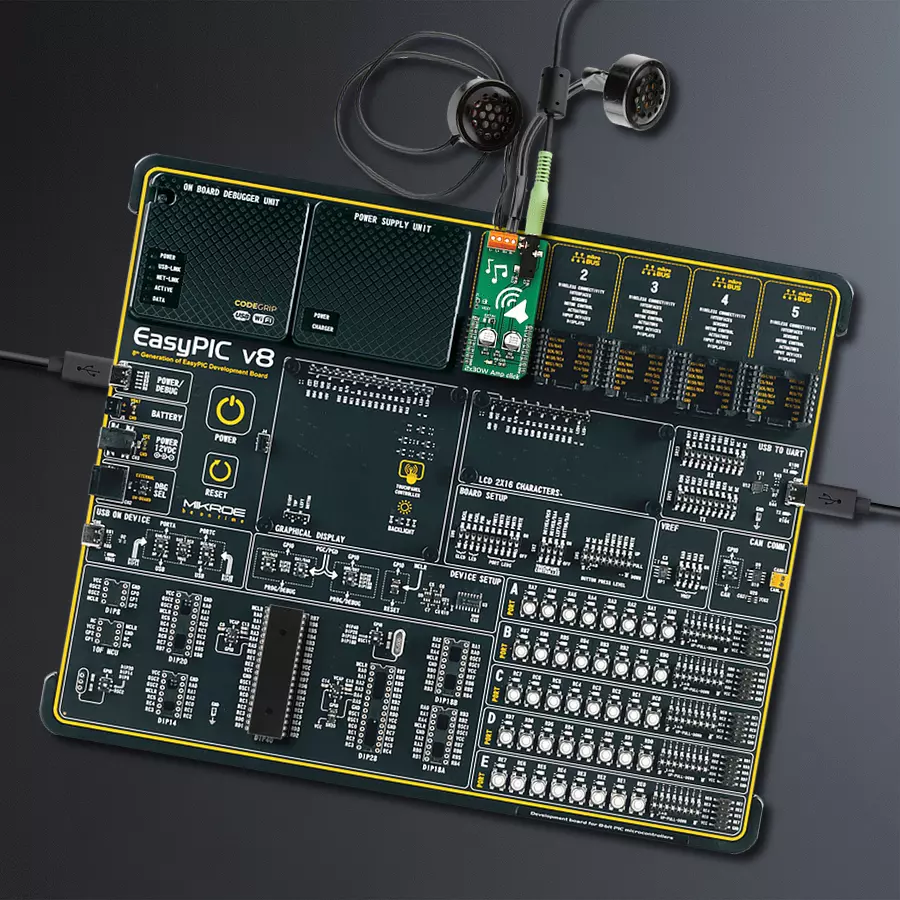

使用 TPA3128D2 和 PIC18F45K42 体验无与伦比的强劲音效。

/*!
 * \file
 * \brief c2x30W Amp Click example
 *
 * # Description
 * This application is audio amplifier.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes GPIO driver and enables the device.
 *
 * ## Application Task
 * Mute output for a period of 3 seconds, then keep it unmuted for a period of 10 seconds.
 * After that, checks if over current fault, over temperature fault or too high DC offset fault occurred.
 *
 * ## NOTE
 * When under or over voltage condition occurres the output goes to high impedance state,
 * but the FAULT pin will not be asserted.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "c2x30wamp.h"

// ------------------------------------------------------------------ VARIABLES

static c2x30wamp_t c2x30wamp;
static log_t logger;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    c2x30wamp_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info(&logger, "---- Application Init ----");

    //  Click initialization.

    c2x30wamp_cfg_setup( &cfg );
    C2X30WAMP_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    c2x30wamp_init( &c2x30wamp, &cfg );

    c2x30wamp_enable( &c2x30wamp, C2X30WAMP_ENABLE );
    log_printf( &logger, "2x30W AMP is initialized \r\n" );
    Delay_ms ( 200 );
}

void application_task ( void )
{
    c2x30wamp_mute( &c2x30wamp, C2X30WAMP_MUTE );
    log_printf( &logger, "---------------------- \r\n" );
    log_printf( &logger, "MUTE \r\n" );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    c2x30wamp_mute( &c2x30wamp, C2X30WAMP_UNMUTE );
    log_printf( &logger, "---------------------- \r\n" );
    log_printf( &logger, "UNMUTE \r\n" );
    // 10 seconds delay
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );

    uint8_t fault_check = c2x30wamp_check_diagnostic( &c2x30wamp );

    if ( fault_check == 0 )
    {
        log_printf( &logger, "Fault condition! \r\n" );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
