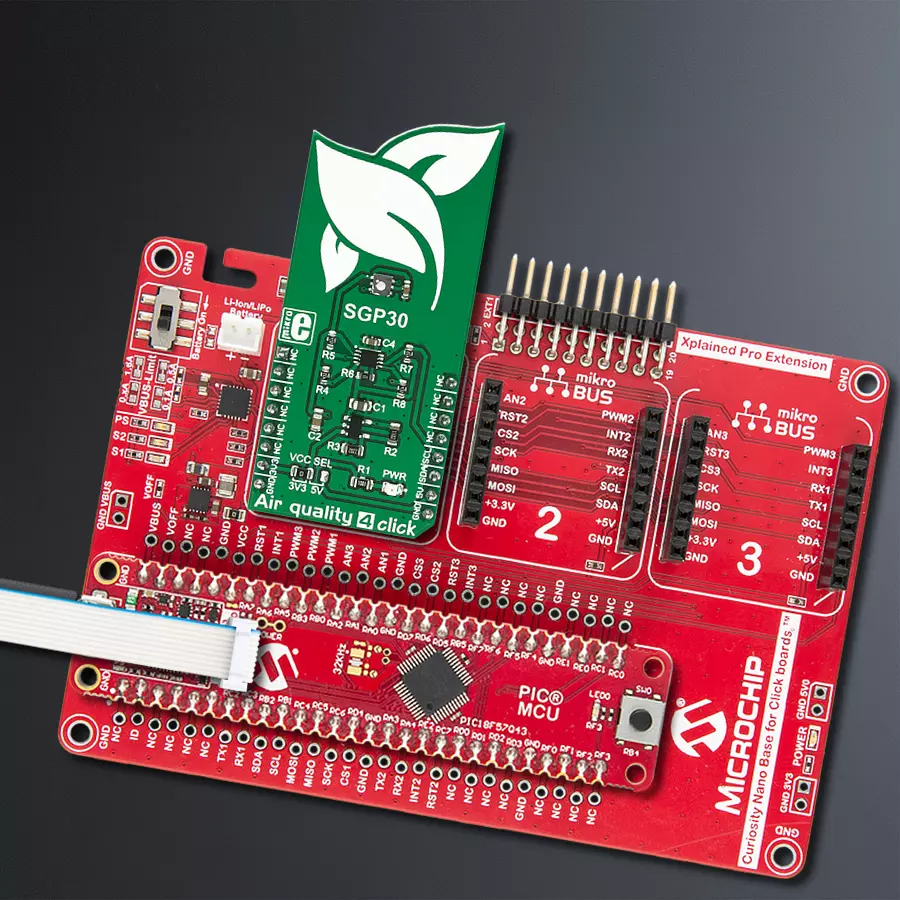

使用SGP30和PIC18F57Q43确保您呼吸的空气质量达到最高标准

/*!
 * \file
 * \brief AirQuality4 Click example
 *
 * # Description
 * This application measures the amount of substances in air and air quality and logs the results.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * nitializes Click driver and gets ID data.
 *
 * ## Application Task
 * Performs measurements of air concentracion for H2, EthOH, CO2 and TVOC data.
 * Results of measurement shows on USBUART.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "airquality4.h"

// ------------------------------------------------------------------ VARIABLES

static airquality4_t airquality4;
static log_t logger;
static uint8_t buffer_data[ 6 ];
static uint16_t data_buffer[ 2 ];

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    airquality4_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    airquality4_cfg_setup( &cfg );
    AIRQUALITY4_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    airquality4_init( &airquality4, &cfg );
    airquality4_default_cfg( &airquality4 );
}

void application_task ( void )
{
    air_quality4_get_h2_and_ethon( &airquality4, data_buffer);

    log_printf( &logger, "H2 value is: %u\n", data_buffer[ 0 ] );
    log_printf( &logger, "EthOH value is:  %u\n", data_buffer[ 1 ] );

    air_quality4_set_baseline( &airquality4 );
    air_quality4_get_co2_and_tvoc( &airquality4, &data_buffer[ 0 ] );

    log_printf( &logger, "CO2 value is: %u\n", data_buffer[ 0 ] );
    log_printf( &logger, "TVOC value is: %u\n\n", data_buffer[ 1 ] );

    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}


// ------------------------------------------------------------------------ END
