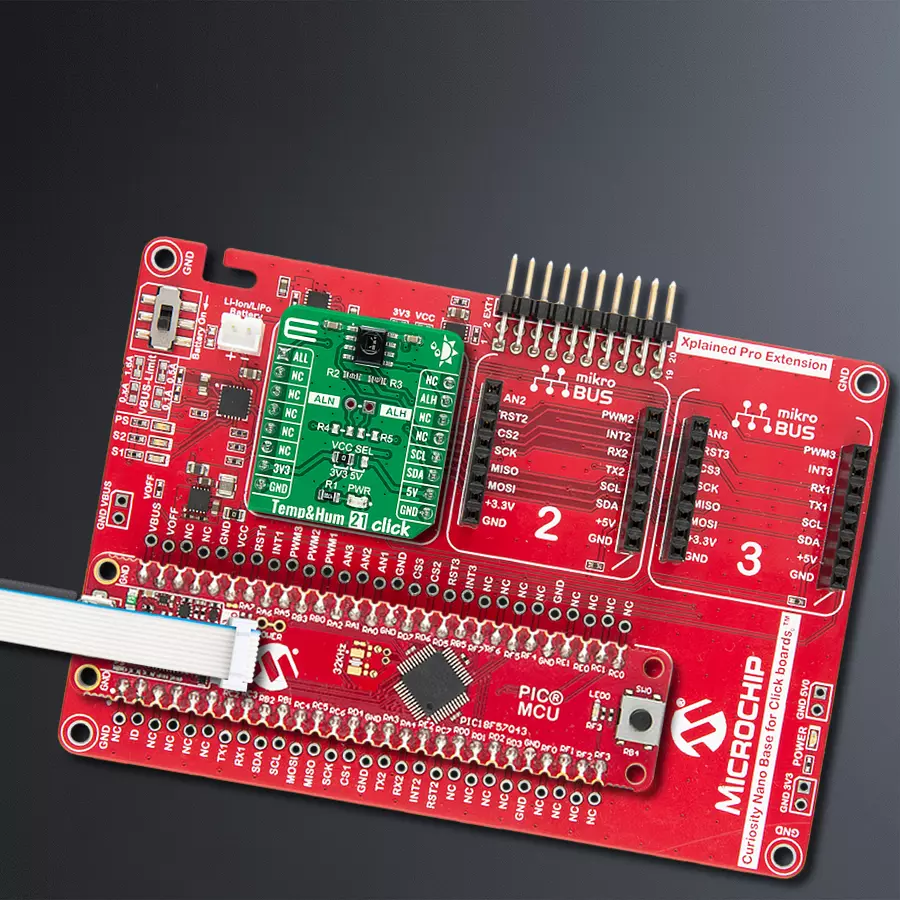

使用HIH8130-021-001和PIC18F57Q43制作您的个人气象监测器

/*!
 * @file main.c
 * @brief TempHum21 Click example
 *
 * # Description
 * This example demonstrates the use of Temp & Hum 21 Click board by reading
 * the temperature and humidity data.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and performs the Click default configuration.
 *
 * ## Application Task
 * Reads the temperature (Celsius) and humidity (Percents) data and displays the
 * results on the USB UART approximately once per second. It also checks if any alarm
 * is detected on the humidity measurement.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "temphum21.h"

static temphum21_t temphum21;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    temphum21_cfg_t temphum21_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    temphum21_cfg_setup( &temphum21_cfg );
    TEMPHUM21_MAP_MIKROBUS( temphum21_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == temphum21_init( &temphum21, &temphum21_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( TEMPHUM21_ERROR == temphum21_default_cfg ( &temphum21 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    float temperature = 0;
    float humidity = 0;
    if ( TEMPHUM21_STATUS_NORMAL_OP == temphum21_read_measurement ( &temphum21, &temperature, &humidity ) )
    {
        if ( temphum21_get_all_pin ( &temphum21 ) )
        {
            log_info ( &logger, " Alarm LOW detected " );
        }
        else if ( temphum21_get_alh_pin ( &temphum21 ) )
        {
            log_info ( &logger, " Alarm HIGH detected " );
        }

        log_printf ( &logger, " Temperature: %.2f C\r\n", temperature );
        log_printf ( &logger, " Humidity: %.2f %%\r\n\n", humidity );

        Delay_ms ( 1000 );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
