使用L80和ATmega328打造独特的导航解决方案

轻松规划你的航线

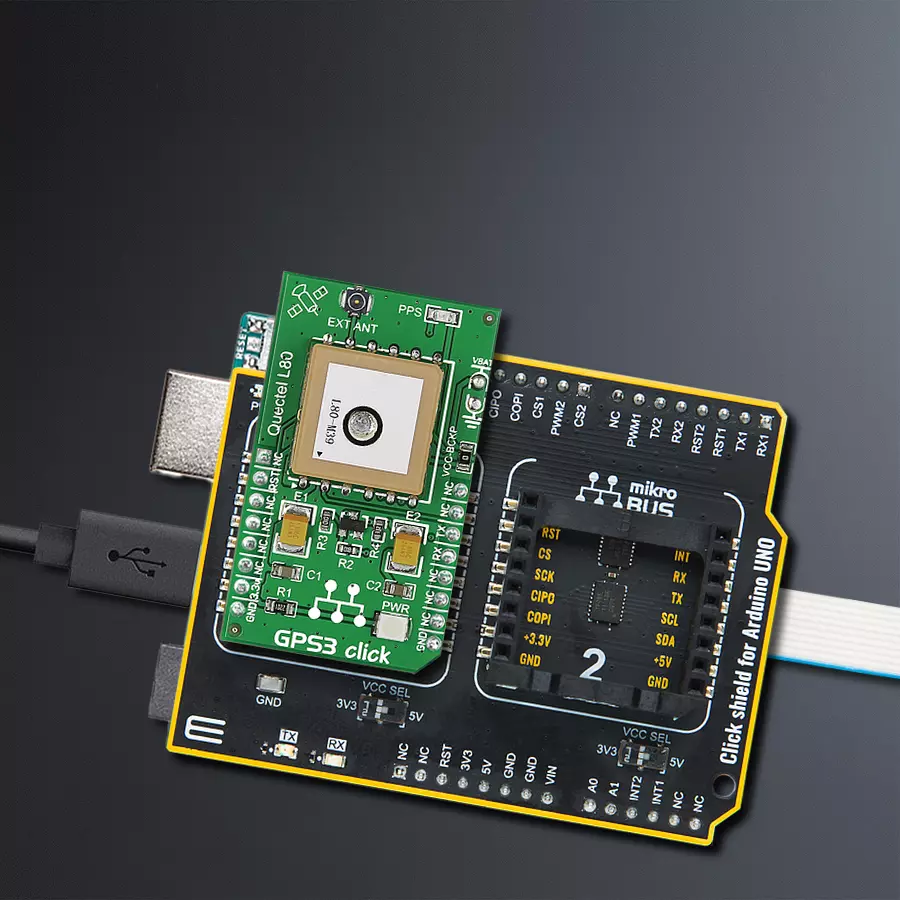

GPS3 Click with Arduino UNO Rev3

已发布 6月 24, 2024

点击板

GPS3 Click

开发板

Arduino UNO Rev3

编译器

NECTO Studio

微控制器单元

ATmega328

释放导航技术的无限潜力,彻底改变人们探索和导航的方式。

A

A

硬件概览

它是如何工作的?

GPS3 Click 基于 Quectel 的 L80,这是一个带有补丁天线的 GPS 接收模块,装备了 MTK 定位引擎。L80 在 1575.42MHz 的标称频率下内嵌低噪声放大器,接收 GPS 卫星的 L1 带信号。该模块使用 66 个搜索频道和 22 个同时跟踪频道,即使在信号挑战性环境中也能在最短时间内跟踪和寻找卫星。嵌入式闪存存储有用的导航数据并执行更新。L80 通过 UART 接口与宿主 MCU 通信,使用常用的 UART RX 和

TX  引脚作为其通信协议,操作速率为 9600bps。此外,还有一个 RST 引脚用于重置设备。GPS 3 Click 还具有 VBAT 连接器,用于连接 RTC 领域的电池,有助于降低功耗。关于电池使用,应该移除 VCC-BCKP 焊接跳线。虽然当前日期和时间在 NMEA 句子中传输(UTC),但提供精确准确的时间信号,并通过标记为 PPS 的红色 LED 指示器指示。GPS 3 Click 还具有 u.FL 连接器,用于连接 MIKROE 提供

的适当主动天线,以改善范围和接收信号强度。天线检测和切换功能将在保持定位的同时无障碍地处理连接源。天线的检测结果、通知和状态也将包含在 NMEA 消息中。此 Click board™ 只能在 3.3V 逻辑电压水平下操作。因此,在使用具有不同逻辑电平的 MCU 之前,必须执行适当的逻辑电压转换。然而,这款 Click board™ 配备了一个包含功能和示例代码的库,可用作进一步开发的参考。

GPS3 Click hardware overview image

功能概述

开发板

Arduino UNO 是围绕 ATmega328P 芯片构建的多功能微控制器板。它为各种项目提供了广泛的连接选项,具有 14 个数字输入/输出引脚,其中六个支持 PWM 输出,以及六个模拟输入。其核心组件包括一个 16MHz 的陶瓷谐振器、一个 USB 连接器、一个电

源插孔、一个 ICSP 头和一个复位按钮,提供了为板 子供电和编程所需的一切。UNO 可以通过 USB 连接到计算机,也可以通过 AC-to-DC 适配器或电池供电。作为第一个 USB Arduino 板,它成为 Arduino 平台的基准,"Uno" 符号化其作为系列首款产品的地

位。这个名称选择,意为意大利语中的 "一",是为了 纪念 Arduino Software(IDE)1.0 的推出。最初与 Arduino Software(IDE)版本1.0 同时推出,Uno 自此成为后续 Arduino 发布的基础模型,体现了该平台的演进。

Arduino UNO Rev3 double side image

微控制器概述

MCU卡片 / MCU

default

建筑

AVR

MCU 内存 (KB)

32

硅供应商

Microchip

引脚数

32

RAM (字节)

2048

你完善了我!

配件

Click Shield for Arduino UNO 具有两个专有的 mikroBUS™ 插座,使所有 Click board™ 设备能够轻松与 Arduino UNO 板进行接口连接。Arduino UNO 是一款基于 ATmega328P 的微控制器开发板,为用户提供了一种经济实惠且灵活的方式来测试新概念并构建基于 ATmega328P 微控制器的原型系统,结合了性能、功耗和功能的多种配置选择。Arduino UNO 具有 14 个数字输入/输出引脚(其中 6 个可用作 PWM 输出)、6 个模拟输入、16 MHz 陶瓷谐振器(CSTCE16M0V53-R0)、USB 接口、电源插座、ICSP 头和复位按钮。大多数 ATmega328P 微控制器的引脚都连接到开发板左右两侧的 IO 引脚,然后再连接到两个 mikroBUS™ 插座。这款 Click Shield 还配备了多个开关,可执行各种功能,例如选择 mikroBUS™ 插座上模拟信号的逻辑电平,以及选择 mikroBUS™ 插座本身的逻辑电压电平。此外,用户还可以通过现有的双向电平转换电压转换器使用任何 Click board™,无论 Click board™ 运行在 3.3V 还是 5V 逻辑电压电平。一旦将 Arduino UNO 板与 Click Shield for Arduino UNO 连接,用户即可访问数百种 Click board™,并兼容 3.3V 或 5V 逻辑电压电平的设备。

Click Shield for Arduino UNO accessories 1 image

使用的MCU引脚

mikroBUS™映射器

NC
NC
AN
Reset
PD2
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
NC
NC
INT
UART TX
PD0
TX
UART RX
PD1
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

“仔细看看!”

Click board™ 原理图

GPS3 Click Schematic schematic

一步一步来

项目组装

Click Shield for Arduino UNO front image hardware assembly

从选择您的开发板和Click板™开始。以Arduino UNO Rev3作为您的开发板开始。

Click Shield for Arduino UNO front image hardware assembly
Arduino UNO Rev3 front image hardware assembly
Charger 27 Click front image hardware assembly
Prog-cut hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Arduino UNO MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

实时跟踪您的结果

应用程序输出

1. 应用程序输出 - 在调试模式下,“应用程序输出”窗口支持实时数据监控,直接提供执行结果的可视化。请按照提供的教程正确配置环境,以确保数据正确显示。

2. UART 终端 - 使用UART Terminal通过USB to UART converter监视数据传输,实现Click board™与开发系统之间的直接通信。请根据项目需求配置波特率和其他串行设置,以确保正常运行。有关分步设置说明,请参考提供的教程

3. Plot 输出 - Plot功能提供了一种强大的方式来可视化实时传感器数据,使趋势分析、调试和多个数据点的对比变得更加直观。要正确设置,请按照提供的教程,其中包含使用Plot功能显示Click board™读数的分步示例。在代码中使用Plot功能时,请使用以下函数:plot(insert_graph_name, variable_name);。这是一个通用格式,用户需要将“insert_graph_name”替换为实际图表名称,并将“variable_name”替换为要显示的参数。

软件支持

库描述

此库包含 GPS3 Click 驱动程序的 API。

关键功能:

  • gps3_generic_read - 此功能通过使用 UART 串行接口读取所需数量的数据字节。

  • gps3_clear_ring_buffers - 此功能清除 UART TX 和 RX 环形缓冲区。

  • gps3_parse_gpgga - 此功能从读取响应缓冲区解析 GPGGA 数据。

开源

代码示例

完整的应用程序代码和一个现成的项目可以通过NECTO Studio包管理器直接安装到NECTO Studio 应用程序代码也可以在MIKROE的GitHub账户中找到。

/*!
 * @file main.c
 * @brief GPS 3 Click Example.
 *
 * # Description
 * This example demonstrates the use of GPS 3 Click by reading and displaying
 * the GPS coordinates.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and logger.
 *
 * ## Application Task
 * Reads the received data, parses the GPGGA info from it, and once it receives the position fix
 * it will start displaying the coordinates on the USB UART.
 *
 * ## Additional Function
 * - static void gps3_clear_app_buf ( void )
 * - static err_t gps3_process ( gps3_t *ctx )
 * - static void gps3_parser_application ( char *rsp )
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "gps3.h"
#include "string.h"

#define PROCESS_BUFFER_SIZE 200

static gps3_t gps3;
static log_t logger;

static char app_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;

/**
 * @brief GPS 3 clearing application buffer.
 * @details This function clears memory of application buffer and reset its length.
 * @return None.
 * @note None.
 */
static void gps3_clear_app_buf ( void );

/**
 * @brief GPS 3 data reading function.
 * @details This function reads data from device and concatenates data to application buffer.
 * @param[in] ctx : Click context object.
 * See #gps3_t object definition for detailed explanation.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t gps3_process ( gps3_t *ctx );

/**
 * @brief GPS 3 parser application function.
 * @details This function parses GNSS data and logs it on the USB UART. It clears app and ring buffers
 * after successfully parsing data.
 * @param[in] ctx : Click context object.
 * See #gps3_t object definition for detailed explanation.
 * @param[in] rsp Response buffer.
 * @return None.
 * @note None.
 */
static void gps3_parser_application ( gps3_t *ctx, char *rsp );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    gps3_cfg_t gps3_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    gps3_cfg_setup( &gps3_cfg );
    GPS3_MAP_MIKROBUS( gps3_cfg, MIKROBUS_1 );
    if ( UART_ERROR == gps3_init( &gps3, &gps3_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }
    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    if ( GPS3_OK == gps3_process( &gps3 ) )
    {
        if ( PROCESS_BUFFER_SIZE == app_buf_len )
        {
            gps3_parser_application( &gps3, app_buf );
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void gps3_clear_app_buf ( void )
{
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
}

static err_t gps3_process ( gps3_t *ctx )
{
    char rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
    int32_t rx_size = 0;
    rx_size = gps3_generic_read( ctx, rx_buf, PROCESS_BUFFER_SIZE );
    if ( rx_size > 0 )
    {
        int32_t buf_cnt = app_buf_len;
        if ( ( ( app_buf_len + rx_size ) > PROCESS_BUFFER_SIZE ) && ( app_buf_len > 0 ) )
        {
            buf_cnt = PROCESS_BUFFER_SIZE - ( ( app_buf_len + rx_size ) - PROCESS_BUFFER_SIZE );
            memmove ( app_buf, &app_buf[ PROCESS_BUFFER_SIZE - buf_cnt ], buf_cnt );
        }
        for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
        {
            if ( rx_buf[ rx_cnt ] )
            {
                app_buf[ buf_cnt++ ] = rx_buf[ rx_cnt ];
                if ( app_buf_len < PROCESS_BUFFER_SIZE )
                {
                    app_buf_len++;
                }
            }
        }
        return GPS3_OK;
    }
    return GPS3_ERROR;
}

static void gps3_parser_application ( gps3_t *ctx, char *rsp )
{
    char element_buf[ 100 ] = { 0 };
    if ( GPS3_OK == gps3_parse_gpgga( rsp, GPS3_GPGGA_LATITUDE, element_buf ) )
    {
        static uint8_t wait_for_fix_cnt = 0;
        if ( strlen( element_buf ) > 0 )
        {
            log_printf( &logger, "\r\n Latitude: %.2s degrees, %s minutes \r\n", element_buf, &element_buf[ 2 ] );
            gps3_parse_gpgga( rsp, GPS3_GPGGA_LONGITUDE, element_buf );
            log_printf( &logger, " Longitude: %.3s degrees, %s minutes \r\n", element_buf, &element_buf[ 3 ] );
            memset( element_buf, 0, sizeof( element_buf ) );
            gps3_parse_gpgga( rsp, GPS3_GPGGA_ALTITUDE, element_buf );
            log_printf( &logger, " Altitude: %s m \r\n", element_buf );
            wait_for_fix_cnt = 0;
        }
        else
        {
            if ( wait_for_fix_cnt % 5 == 0 )
            {
                log_printf( &logger, " Waiting for the position fix...\r\n\n" );
                wait_for_fix_cnt = 0;
            }
            wait_for_fix_cnt++;
        }
        gps3_clear_ring_buffers( ctx );
        gps3_clear_app_buf( );
    }
}

// ------------------------------------------------------------------------ END
