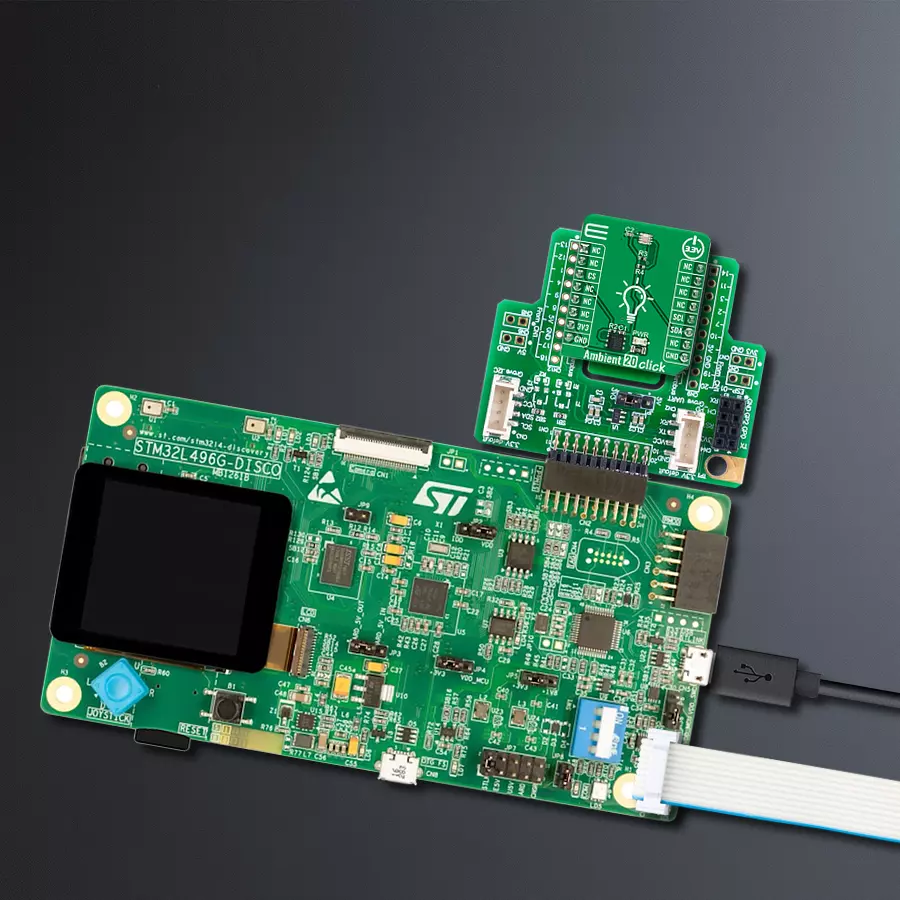

使用 BU27030NUC 和 STM32L496AG 提供准确的环境光强度信息

/*!
 * @file main.c
 * @brief Ambient 20 Click example
 *
 * # Description
 * This example demonstrates the use of Ambient 20 Click board by measuring
 * the ambient light level.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and performs the Click default configuration.
 *
 * ## Application Task
 * Measuring ambient light level by reading DATA0 and DATA1 channels of the Ambient 20 Click board
 * and displaying it using UART Serial terminal.
 *
 * @author Stefan Ilic
 *
 */

#include "board.h"
#include "log.h"
#include "ambient20.h"

static ambient20_t ambient20;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    ambient20_cfg_t ambient20_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    ambient20_cfg_setup( &ambient20_cfg );
    AMBIENT20_MAP_MIKROBUS( ambient20_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == ambient20_init( &ambient20, &ambient20_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( AMBIENT20_ERROR == ambient20_default_cfg ( &ambient20 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    uint8_t id;
    ambient20_get_manufacturer_id( &ambient20, &id );

    log_printf( &logger, "- - - - - - - - - - - - -\r\n" );
    log_printf( &logger, " Part ID = 0x%.2X \r\n", ( uint16_t ) id );
    log_printf( &logger, "- - - - - - - - - - - - -\r\n" );


    log_info( &logger, " Application Task " );
    log_printf( &logger, "- - - - - - - - - - - - -\r\n" );
}

void application_task ( void )
{
    //  Task implementation.
    float data0, data1;
    ambient20_get_data_lux( &ambient20, &data0, &data1 );

    log_printf( &logger, "Data 0: %.2f lx \r\n", data0 );
    log_printf( &logger, "Data 1: %.2f lx \r\n", data1 );
    log_printf( &logger, "- - - - - - - - - - - - -\r\n" );

    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
