使用IQS263B和STM32L496AG现代化用户体验
升级触控体验
已发布 7月 22, 2025
点击板
Cap Wheel 2 Click
开发板
Discovery kit with STM32L496AG MCU
编译器
NECTO Studio
微控制器单元
STM32L496AG
这种电容式解决方案旨在彻底改变用户交互，提供响应灵敏且直观的方式来通过简单触摸控制设备。
A
A

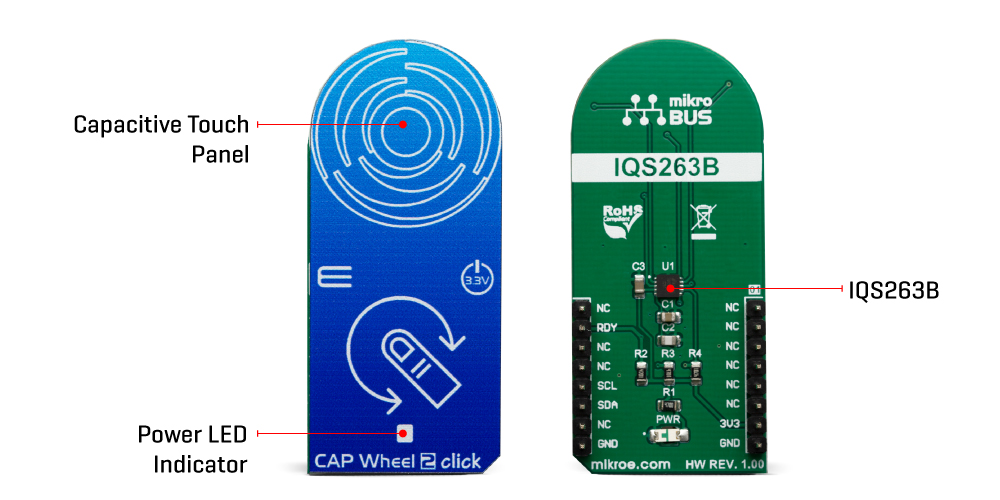

硬件概览
它是如何工作的？
Cap Wheel 2 Click基于Azoteq的IQS263B ProxSense® IC，这是一个3通道的投影式（或自身）电容接近和触摸控制器。该IC具有高级功能，如自动漂移补偿、高达80Hz的报告速率、长距离接近范围、自动调整以获得最佳性能（ATI）和可配置的8位2/3通道滑块或3通道滚轮。这些功能使Cap Wheel 2 Click能够展现出可靠和准确的触摸检测。电容式触摸传感是基于检测到由外部物体影
响而引起的电容变化。传感器的电容，也称为天线，被测量和监测，如果在检测积分器处理后发生显著变化，则确认触摸事件。Cap Wheel 2 Click是根据这些要求设计的，电极是“自电容轮”形状。IQS263B IC通过3线（SDA、SCL和RDY）串行接口总线与主控制器进行接口连接，该接口与I2C™兼容，最大通信速度为400kbit/s。主MCU可以通过拉低RDY线来随时强制通信。通信将直接在
当前转换周期之后开始。如果看门狗定时器终止事件，设备将复位。在每个上电周期后，设备都会重新校准自身。这需要一些时间，因此在构建自定义应用程序时应考虑这一点。MikroElektronika提供库和演示应用程序，供未来设计参考。正如之前提到的，这个Click板™是I2C兼容的，并使用SCL、SDA和RDY引脚进行通信，路由到mikroBUS™上的SCL、SDA和INT引脚。
功能概述
开发板
32L496GDISCOVERY Discovery 套件是一款功能全面的演示和开发平台，专为搭载 Arm® Cortex®-M4 内核的 STM32L496AG 微控制器设计。该套件适用于需要在高性能、先进图形处理和超低功耗之间取得平衡的应用，支持无缝原型开发，适用于各种嵌入式解决方案。STM32L496AG 采用创新的节能架构，集成
了扩展 RAM 和 Chrom-ART 图形加速器，在提升图形性能的同时保持低功耗，使其特别适用于音频处理、图形用户界面和实时数据采集等对能效要求较高的应用。为了简化开发流程，该开发板配备了板载 ST-LINK/V2-1 调试器/编程器，提供即插即用的调试和编程体验，使用户无需额外硬件即可轻松加载、调
试和测试应用程序。凭借低功耗特性、增强的内存能力以及内置调试工具，32L496GDISCOVERY 套件是开发先进嵌入式系统、实现高效能解决方案的理想选择。
微控制器概述
MCU卡片 / MCU
建筑
ARM Cortex-M4
MCU 内存 (KB)
1024
硅供应商
STMicroelectronics
引脚数
169
RAM (字节)
327680
使用的MCU引脚
mikroBUS™映射器
NC
NC
AN
NC
NC
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
Data Ready
PH2
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB8
SCL
I2C Data
PB7
SDA
NC
NC
5V
Ground
GND
GND
1
“仔细看看！”
Click board™ 原理图
一步一步来

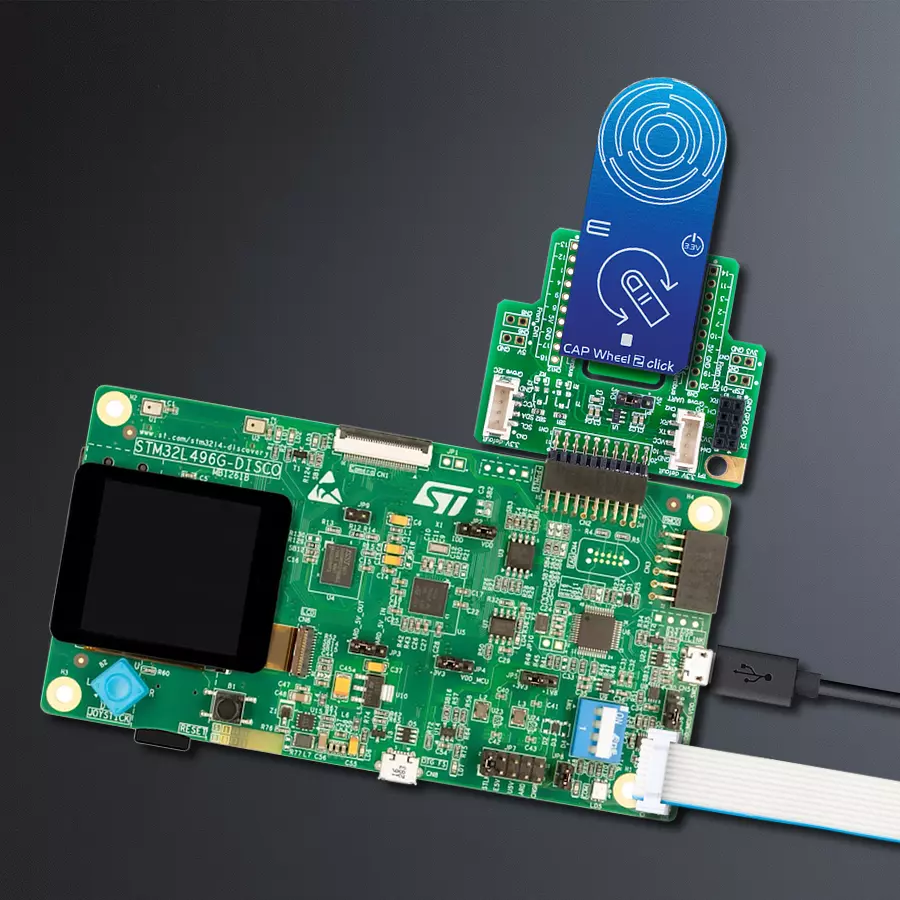

项目组装
从选择您的开发板和Click板™开始。以Discovery kit with STM32L496AG MCU作为您的开发板开始。
软件支持
库描述
该库包含 这个库包含了Cap Wheel 2 Click 驱动程序的 API。
关键函数：
capwheel2_int_get- 此函数获取INT引脚的状态。capwheel2_wait_for_rdy- 此函数等待RDY引脚从高状态转变为低状态。
开源
代码示例
完整的应用程序代码和一个现成的项目可以通过NECTO Studio包管理器直接安装到NECTO Studio。 应用程序代码也可以在MIKROE的GitHub账户中找到。
/*!
* \file
* \brief CapWheel2 Click example
*
* # Description
* This example sets basic device configuration; Contains function for waiting RDY(INT) pin, function for getting RDY(INT) pin state,
* function for I2C read and write with waiting for RDY(INT) pin and without waiting for RDY(INT) pin.
*
* The demo application is composed of two sections :
*
* ## Application Init
* Initializes CAP Wheel 2 device
*
* ## Application Task
* Executes one of three 'capwheel2_get_xxx_task( )' functions
*
* Additional Functions :
*
* - capwheel2_error( ) - Logs error message and blocks code execution in endless while loop
* - capwheel2_get_channels_task( ) - Logs active channels in touch and halt bytes ( channels: CH0 - proximity channel, CH1, CH2, CH3 )
* - capwheel2_get_gesture_task( ) - Logs active gestures ( gestures: tap, touch, proximity )
* - capwheel2_get_channel_counts_task( ) - Logs channel count values for each channel
* - capwheel2_get_channels_touch( ) - Logs touch byte active channels ( exectuted by 'capwheel2_get_channels_task( )' function )
* - capwheel2_get_channels_halt( ) - Logs halt byte active channels ( exectuted by 'capwheel2_get_channels_task( )' function )
* \author MikroE Team
*
*/
// ------------------------------------------------------------------- INCLUDES
#include "board.h"
#include "log.h"
#include "capwheel2.h"
// ------------------------------------------------------------------ VARIABLES
static capwheel2_t capwheel2;
static log_t logger;
static uint8_t data_buffer[ 30 ];
static uint16_t channel_0_counts;
static uint16_t channel_1_counts;
static uint16_t channel_2_counts;
static uint16_t channel_3_counts;
// ------------------------------------------------------- ADDITIONAL FUNCTIONS
void capwheel2_error( )
{
log_info( &logger, "> error : reset system" );
while( 1 );
}
void capwheel2_get_channels_touch( )
{
switch ( data_buffer[ 0 ] )
{
case 0x00 :
{
log_printf( &logger, "> | | | < \r\n" );
break;
}
case 0x01 :
{
log_printf( &logger, "> | | | CH0 < \r\n" );
break;
}
case 0x02 :
{
log_printf( &logger, "> | | CH1 | < \r\n" );
break;
}
case 0x03 :
{
log_printf( &logger, "> | | CH1 | CH0 < \r\n" );
break;
}
case 0x04 :
{
log_printf( &logger, "> | CH2 | | < \r\n" );
break;
}
case 0x05 :
{
log_printf( &logger, "> | CH2 | | CH0 < \r\n" );
break;
}
case 0x06 :
{
log_printf( &logger, "> | CH2 | CH1 | < \r\n" );
break;
}
case 0x07 :
{
log_printf( &logger, "> | CH2 | CH1 | CH0 < \r\n" );
break;
}
case 0x08 :
{
log_printf( &logger, "> CH3 | | | < \r\n" );
break;
}
case 0x09 :
{
log_printf( &logger, "> CH3 | | | CH0 < \r\n" );
break;
}
case 0x0A :
{
log_printf( &logger, "> CH3 | | CH1 | < \r\n" );
break;
}
case 0x0B :
{
log_printf( &logger, "> CH3 | | CH1 | CH0 < \r\n" );
break;
}
case 0x0C :
{
log_printf( &logger, "> CH3 | CH2 | | < \r\n" );
break;
}
case 0x0D :
{
log_printf( &logger, "> CH3 | CH2 | | CH0 < \r\n" );
break;
}
case 0x0E :
{
log_printf( &logger, "> CH3 | CH2 | CH1 | < \r\n" );
break;
}
case 0x0F :
{
log_printf( &logger, "> CH3 | CH2 | CH1 | CH0 < \r\n" );
break;
}
default :
{
break;
}
}
}
void capwheel2_get_channels_halt( )
{
switch ( data_buffer[ 1 ] )
{
case 0x00 :
{
log_printf( &logger, "> | | | <\r\n" );
break;
}
case 0x01 :
{
log_printf( &logger, "> | | | CH0 <\r\n" );
break;
}
case 0x02 :
{
log_printf( &logger, "> | | CH1 | <\r\n" );
break;
}
case 0x03 :
{
log_printf( &logger, "> | | CH1 | CH0 <\r\n" );
break;
}
case 0x04 :
{
log_printf( &logger, "> | CH2 | | <\r\n" );
break;
}
case 0x05 :
{
log_printf( &logger, "> | CH2 | | CH0 <\r\n" );
break;
}
case 0x06 :
{
log_printf( &logger, "> | CH2 | CH1 | <\r\n" );
break;
}
case 0x07 :
{
log_printf( &logger, "> | CH2 | CH1 | CH0 <\r\n" );
break;
}
case 0x08 :
{
log_printf( &logger, "> CH3 | | | <\r\n" );
break;
}
case 0x09 :
{
log_printf( &logger, "> CH3 | | | CH0 <\r\n" );
break;
}
case 0x0A :
{
log_printf( &logger, "> CH3 | | CH1 | <\r\n" );
break;
}
case 0x0B :
{
log_printf( &logger, "> CH3 | | CH1 | CH0 <\r\n" );
break;
}
case 0x0C :
{
log_printf( &logger, "> CH3 | CH2 | | <\r\n" );
break;
}
case 0x0D :
{
log_printf( &logger, "> CH3 | CH2 | | CH0 <\r\n" );
break;
}
case 0x0E :
{
log_printf( &logger, "> CH3 | CH2 | CH1 | <\r\n" );
break;
}
case 0x0F :
{
log_printf( &logger, "> CH3 | CH2 | CH1 | CH0 <\r\n" );
break;
}
default :
{
break;
}
}
}
void capwheel2_get_channels_task( )
{
if ( capwheel2_i2c_read_wait( &capwheel2, CAPWHEEL2_TOUCH_BYTES, &data_buffer[ 0 ], 2 ) )
{
capwheel2_error( );
}
log_printf( &logger, " ");
log_printf( &logger, "> TOUCH BYTES <\r\n" );
log_printf( &logger, "> HALT BYTES <\r\n" );
capwheel2_get_channels_touch( );
capwheel2_get_channels_halt( );
Delay_ms ( 150 );
}
void capwheel2_get_gesture_task( )
{
if ( capwheel2_i2c_read_wait( &capwheel2, CAPWHEEL2_SYS_FLAGS, &data_buffer[ 0 ], 2 ) )
{
capwheel2_error( );
}
if ( ( data_buffer[ 1 ] & CAPWHEEL2_TAP_MASK ) == CAPWHEEL2_TAP_MASK)
{
log_printf( &logger, "> TAP\r\n" );
}
else if ( ( data_buffer[ 1 ] & CAPWHEEL2_TOUCH_MASK ) == CAPWHEEL2_TOUCH_MASK)
{
log_printf( &logger, "> TOUCH\r\n" );
}
else if ( ( data_buffer[ 1 ] & CAPWHEEL2_PROX_MASK ) == CAPWHEEL2_PROX_MASK)
{
log_printf( &logger, "> PROX\r\n" );
}
Delay_ms ( 800 );
}
void capwheel2_get_channel_counts_task( )
{
if (capwheel2_i2c_read_wait( &capwheel2, CAPWHEEL2_COUNTS, &data_buffer[ 0 ], 10))
{
capwheel2_error( );
}
channel_0_counts = data_buffer[ 3 ];
channel_0_counts <<= 8;
channel_0_counts |= data_buffer[ 2 ];
channel_1_counts = data_buffer[ 5 ];
channel_1_counts <<= 8;
channel_1_counts |= data_buffer[ 4 ];
channel_2_counts = data_buffer[ 7 ];
channel_2_counts <<= 8;
channel_2_counts |= data_buffer[ 6 ];
channel_3_counts = data_buffer[ 9 ];
channel_3_counts <<= 8;
channel_3_counts |= data_buffer[ 8 ];
log_printf( &logger, "> Channel 0 counts : %u \r\n", channel_0_counts );
log_printf( &logger, "> Channel 1 counts : %u \r\n", channel_1_counts );
log_printf( &logger, "> Channel 2 counts : %u \r\n", channel_2_counts );
log_info( &logger, " ");
Delay_ms ( 150 );
}
// ------------------------------------------------------ APPLICATION FUNCTIONS
void application_init ( void )
{
log_cfg_t log_cfg;
capwheel2_cfg_t cfg;
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, "---- Application Init ----" );
// Click initialization.
capwheel2_cfg_setup( &cfg );
CAPWHEEL2_MAP_MIKROBUS( cfg, MIKROBUS_1 );
capwheel2_init( &capwheel2, &cfg );
}
void application_task ( void )
{
capwheel2_get_channels_task( );
}
int main ( void )
{
/* Do not remove this line or clock might not be set correctly. */
#ifdef PREINIT_SUPPORTED
preinit();
#endif
application_init( );
for ( ; ; )
{
application_task( );
}
return 0;
}
// ------------------------------------------------------------------------ END
