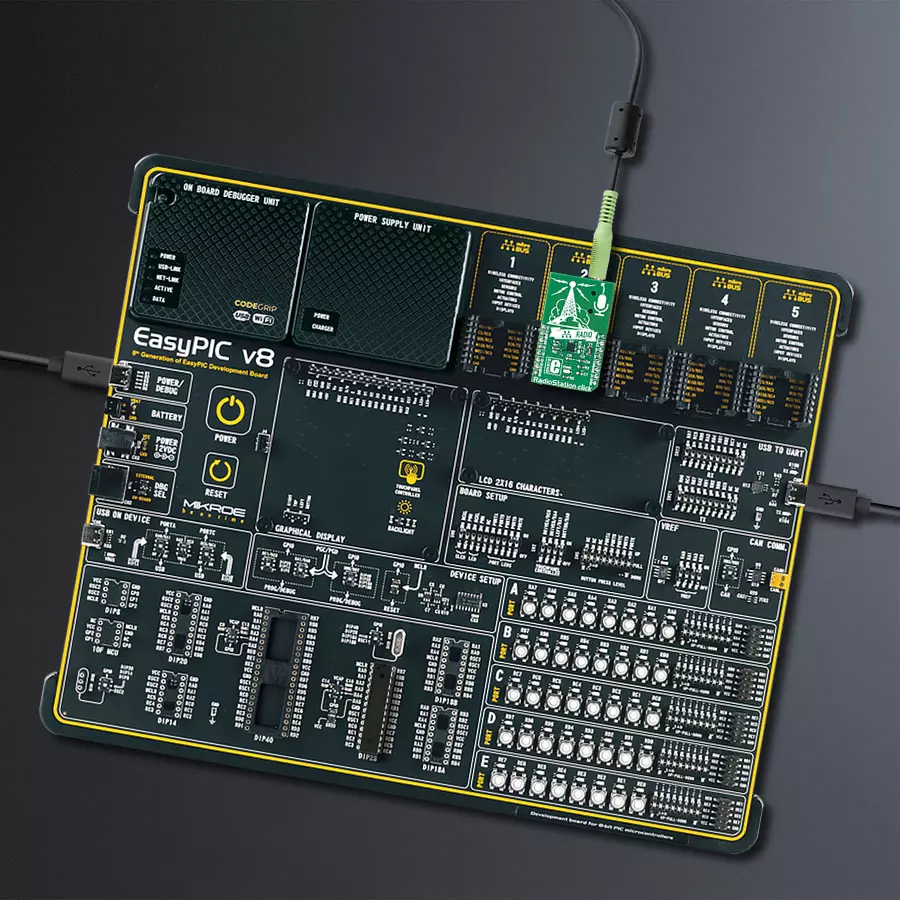

使用Si4713-B30和PIC18F2680通过FM广播频段传输音乐

/*!
 * \file
 * \brief RadioStation Click example
 *
 * # Description
 * RadioStation Click can be used to broadcast the music via the FM radio band
 * ( which operates in the frequency range of 76MHz to 108MHz ).
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization driver enable's - I2C and sets transmit_frequency.
 *
 * ## Application Task
 * In this example Radio Station Click is receiving signal from audio connector and broadcasting
 * it on 100.00 MHz frequency.
 *
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "radiostation.h"

// ------------------------------------------------------------------ VARIABLES

static radiostation_t radiostation;
static radiostation_cmd_t radiostation_cmd;
static log_t logger;

static uint8_t buff[ 16 ];

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    radiostation_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    radiostation_cfg_setup( &cfg, true );
    RADIOSTATION_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    radiostation_init( &radiostation, &cfg );

    radiostation.transmit_frequency = 10000;
    radiostation.status = 0xFF;

    radiostation_default_cfg( &radiostation, &radiostation_cmd );
}

void application_task ( void )
{
    radiostation_get_asq_status( &radiostation, &radiostation_cmd, &buff[ 0 ] );
    Delay_ms ( 50 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
