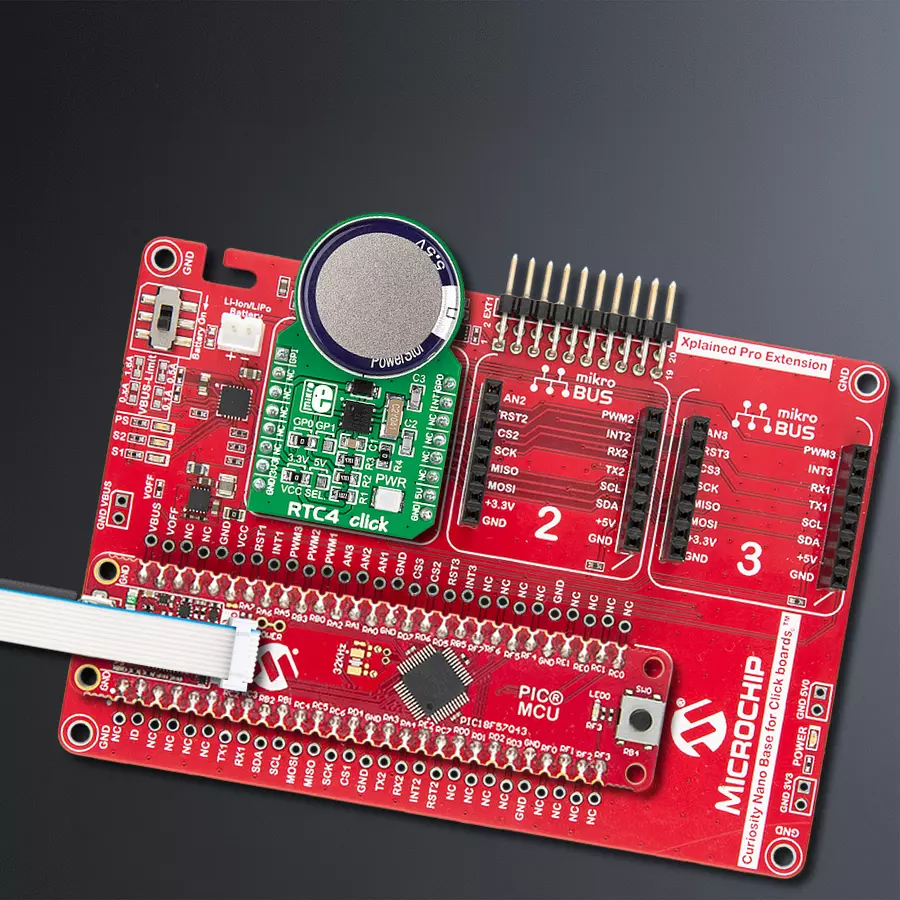

使用DS2417和PIC18F57Q43在你的项目中体验更高水平的精度和同步

/*!
 * @file main.c
 * @brief RTC 4 Click Example.
 *
 * # Description
 * This example demonstrates the use of the RTC 4 Click board.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and logger and then sets the starting time
 * to 23:59:50 and date to 31.12.2022.
 *
 * ## Application Task
 * With the usage of rtc4_get_date_time we get the time and
 * date from the register and display them on the UART Terminal.
 * The counter increments once per second.
 *
 * @author Aleksandra Cvjetićanin
 *
 */

#include "board.h"
#include "log.h"
#include "rtc4.h"

static rtc4_t rtc4;
static log_t logger;

rtc4_time_t time;
rtc4_date_t date;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    rtc4_cfg_t rtc4_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    rtc4_cfg_setup( &rtc4_cfg );
    RTC4_MAP_MIKROBUS( rtc4_cfg, MIKROBUS_1 );
    if ( ONE_WIRE_ERROR == rtc4_init( &rtc4, &rtc4_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( RTC4_ERROR == rtc4_check_communication ( &rtc4 ) )
    {
        log_error( &logger, " Check communication." );
        for ( ; ; );
    }

    time.hours = 23;
    time.min = 59;
    time.sec = 50;

    date.day = 31;
    date.month = 12;
    date.year = 2022;

    rtc4_set_date_time ( &rtc4, &date, &time, RTC4_DCB_INTERVAL_1S );

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    while ( rtc4_get_interrupt ( &rtc4 ) );

    if ( RTC4_OK == rtc4_get_date_time ( &rtc4, &date, &time ) )
    {
        log_printf( &logger, "Time: %.2u:%.2u:%.2u\r\n",
                    ( uint16_t ) time.hours, ( uint16_t ) time.min, ( uint16_t ) time.sec );
        log_printf( &logger, "Date: %.2u/%.2u/%u\r\n",
                    ( uint16_t ) date.day, ( uint16_t ) date.month, ( uint16_t ) date.year );
        log_printf( &logger, "------------------------\r\n\n");
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
