中级
30 分钟
通过BHI260AP、BME688、BMP390、BMM150和STM32F302VC赋能智能传感应用
智能传感的未来就在这里！
已发布 7月 22, 2025
点击板
Smart Sens 2 Click
开发板
CLICKER 4 for STM32F302VCT6
编译器
NECTO Studio
微控制器单元
STM32F302VC
完整的传感器子系统和计算平台，始终以最低功耗运行传感器数据处理算法。
A
A
硬件概览
它是如何工作的？
Smart Sens 2 Click基于Bosch Sensortec的BHI260AP、BME688、BMP390和BMM150，这些都是低功耗可编程智能传感器、环境和压力传感器以及磁力计。BHI260AP基于32位微控制器（Fuser2），主要作为协处理器卸载主CPU的任何传感器数据处理相关任务，在这种情况下处理来自多个板载传感器的数据。它集成了惯性测量单元（6DoF IMU）和事件驱动软件框架，使BHI260AP成为一个完整的传感器子系统和计算平台，以最低功耗运行始终开启的传感器数据处理算法。BMM150是一个地磁传感器，允许在三个垂直轴上进行磁场测量。应用专用电路（ASIC）将地磁传感器的输出转换为数字结果，然后通过辅助数字I2C接口发送到BHI260AP进行信号处理。同样，BME688和BMP390也通过I2C接口将其数据发送到BHI260AP进行进一步处理。
BME688检测挥发性有机物（VOCs）、硫化合物（VSCs）和其他气体，如一氧化碳和氢气，范围在ppb级，而BMP390进行压力和温度测量。Smart Sens 2 Click允许使用I2C和SPI接口与MCU通信。选择可以通过将标记为COMM SEL的SMD跳线放置在适当位置来完成。注意，所有跳线的位置必须在同一侧，否则Click板™可能会无响应。当选择I2C接口时，BHI260AP允许使用标记为ADDR SEL的SMD跳线选择其I2C从地址的最低有效位（LSB）。除了接口引脚外，此Click板™还使用复位引脚（mikroBUS™插槽上的RST引脚）和INT引脚（mikroBUS™插槽上的INT引脚），指示从BHI260AP到MCU的数据传输请求，以及一个用于事件中断指示的红色LED。由于所有板载传感器的操作需要1.8V电压才能准确工作，一个小型稳压LDO AP2112从
mikroBUS™电源轨提供1.8V电压。这就是为什么还具有电压电平转换器TXB0106和PCA9306的原因。接口总线线被路由到双向电压电平转换器，使此Click板™能够与3.3V和5V的MCU正确配合工作。此外，板载BOOT开关用于选择是使用主机接口（HOST位置），还是BHI260AP尝试从板载QSPI闪存（W25Q32JW）启动并在独立操作模式下运行（QSPI位置）。此外，在此Click板™的右侧，有一个额外的未填充头部，标记为JTAG，用于通过JTAG接口引脚（TCK和TMS）进行调试。此Click板™可以通过VIO SEL跳线选择使用3.3V或5V逻辑电压电平。这样，3.3V和5V能力的MCU都可以正确使用通信线。此外，此Click板™配备了包含易于使用的函数和示例代码的库，可用作进一步开发的参考。
功能概述
开发板
Clicker 4 for STM32F3 是一款紧凑型开发板，作为完整的解决方案而设计，可帮助用户快速构建具备独特功能的定制设备。该板搭载 STMicroelectronics 的 STM32F302VCT6 微控制器，配备四个 mikroBUS™ 插槽用于连接 Click boards™、完善的电源管理功能以及其他实用资源，是快速开发各类应用的理想平台。其核心 MCU STM32F302VCT6 基于高性能
Arm® Cortex®-M4 32 位处理器，运行频率高达 168MHz，处理能力强大，能够满足各种高复杂度任务的需求，使 Clicker 4 能灵活适应多种应用场景。除了两个 1x20 引脚排针外，板载最显著的连接特性是四个增强型 mikroBUS™ 插槽，支持接入数量庞大的 Click boards™ 生态系统，该生态每日持续扩展。Clicker 4 各功能区域标识清晰，界面直观简洁，极大
提升使用便捷性和开发效率。Clicker 4 的价值不仅在于加速原型开发与应用构建阶段，更在于其作为独立完整方案可直接集成至实际项目中，无需额外硬件修改。四角各设有直径 4.2mm（0.165"）的安装孔，便于通过螺丝轻松固定。对于多数应用，只需配套一个外壳，即可将 Clicker 4 开发板转化为完整、实用且外观精美的定制系统。
微控制器概述
MCU卡片 / MCU
建筑
ARM Cortex-M4
MCU 内存 (KB)
256
硅供应商
STMicroelectronics
引脚数
100
RAM (字节)
40960
使用的MCU引脚
mikroBUS™映射器
NC
NC
AN
Reset
PC15
RST
SPI Chip Select
PA4
CS
SPI Clock
PA5
SCK
SPI Data OUT
PA6
MISO
SPI Data IN
PA7
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
Interrupt
PD0
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB10
SCL
I2C Data
PB11
SDA
Power Supply
5V
5V
Ground
GND
GND
1
“仔细看看！”
Click board™ 原理图
一步一步来
项目组装

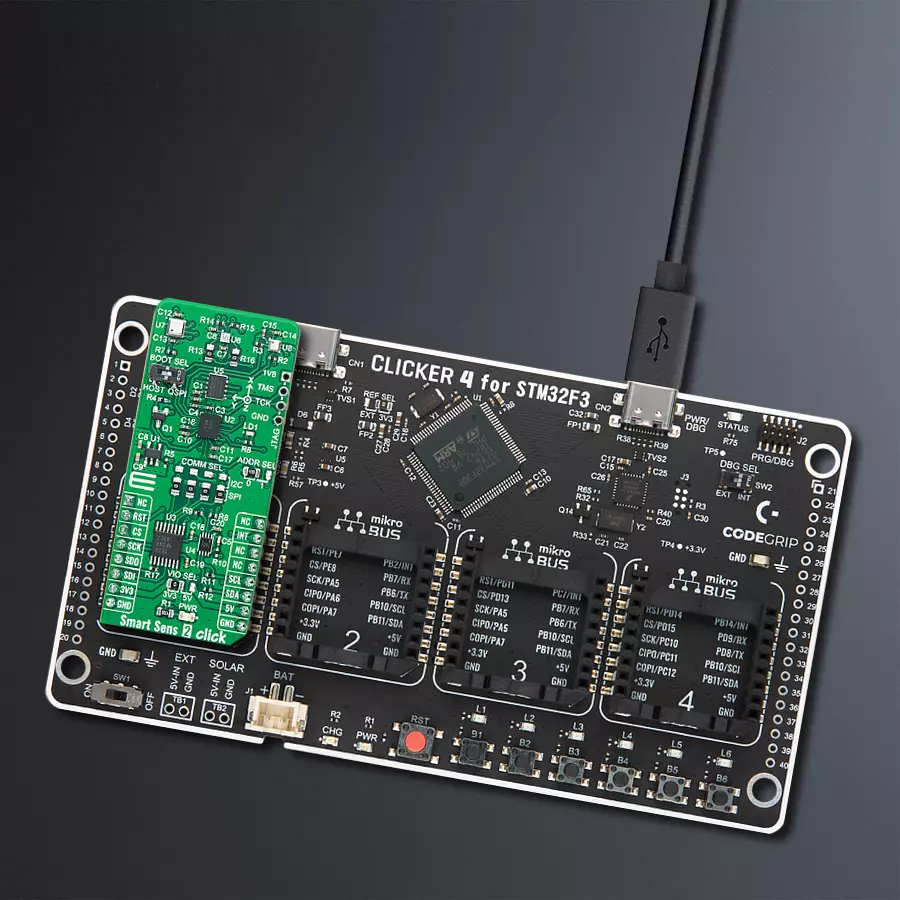

从选择您的开发板和Click板™开始。以CLICKER 4 for STM32F302VCT6作为您的开发板开始。
实时跟踪您的结果
应用程序输出
1. 应用程序输出 - 在调试模式下，“应用程序输出”窗口支持实时数据监控，直接提供执行结果的可视化。请按照提供的教程正确配置环境，以确保数据正确显示。
2. UART 终端 - 使用UART Terminal通过USB to UART converter监视数据传输，实现Click board™与开发系统之间的直接通信。请根据项目需求配置波特率和其他串行设置，以确保正常运行。有关分步设置说明，请参考提供的教程。
3. Plot 输出 - Plot功能提供了一种强大的方式来可视化实时传感器数据，使趋势分析、调试和多个数据点的对比变得更加直观。要正确设置，请按照提供的教程，其中包含使用Plot功能显示Click board™读数的分步示例。在代码中使用Plot功能时，请使用以下函数：plot(insert_graph_name, variable_name);。这是一个通用格式，用户需要将“insert_graph_name”替换为实际图表名称，并将“variable_name”替换为要显示的参数。
软件支持
库描述
该库包含 Smart Sens 2 Click 驱动程序的 API。
关键功能:
smartsens2_register_fifo_parse_callback- 当传感器事件在FIFO中可用时，链接回调和相关引用的函数。smartsens2_set_virt_sensor_cfg- 设置虚拟传感器的采样率和延迟的函数。smartsens2_get_and_process_fifo- 获取和处理FIFO的函数。
开源
代码示例
完整的应用程序代码和一个现成的项目可以通过NECTO Studio包管理器直接安装到NECTO Studio。 应用程序代码也可以在MIKROE的GitHub账户中找到。
/*!
* @file main.c
* @brief SmartSens2 Click example
*
* # Description
* This example showcases the ability of the Smart Sens 2 Click board.
* It has multiple examples that you can easily select with the
* defines at the top of the main. There are 9 examples: Euler, Quaternion,
* Vector (Accelerometer, Gyroscope, Magnetometer), and
* Environmental (Temperature, Barometer, Humidity, Gas).
*
* The demo application is composed of two sections :
*
* ## Application Init
* Initialization of communication modules (SPI/I2C) and additional
* pins(int_pin, rst). After that going through reset sequence and checking
* device and product IDs, interrupt mask, and host control is set to 0, so
* every interrupt enabled. If boot status is OK boot sequence is initiated,
* depending on the defines from the library header it will use RAM or Flash type
* of the boot. If RAM is selected firmware image first needs to be uploaded to RAM
* and then it will be booted. If Flash example is selected it will try to boot
* firmware first if it fails it will then write firmware image to flash and then
* try to boot it again. When firmware boot is finished Kernel version and Feature
* registers will be read to check if the firmware is loaded. Then all the callback function
* will be registered(meta event callback and whatever type of example parser you set),
* and driver will update the list of virtual sensors present, and finally will configure
* virtual sensor that will be used in the selected example.
*
* ## Application Task
* Wait for an interrupt to occur, then read wake-up, non-weak-up, and status FIFO.
* Parse received data and run the callback parsers to show data on the USB UART.
*
* @note
* Select one of the examples with macros at the top of the main file. Euler example is selected by default.
* You can choose one of 4 type of parsers: Euler, Quaternion, Vector, Environmental. If Vector example is selected
* you choose one of the 3 sensors to show X, Y, and Z values: Accelerometer, Gyroscope, or Magnetometer.
* If Environmental example is selected you choose one of the 4 sensors: Temperature, Barometer, Humidity, or Gas.
*
* @author Stefan Filipovic
*
*/
#include "board.h"
#include "log.h"
#include "smartsens2.h"
/**
* @brief Example parser selector.
* @details Macros for selecting example and its parser.
*/
#define EULER 1
#define QUATERNION 0
#define VECTOR 0
#define ENVIRONMENTAL 0
/**
* @brief Vector sensor selector.
* @details Macros for selecting vector's sensor.
*/
#define ACCELEROMETER 1
#define GYROSCOPE 0
#define MAGNETOMETER 0
/**
* @brief Environmental sensor selector.
* @details Macros for selecting environmental sensor.
*/
#define TEMPERATURE 1
#define BAROMETER 0
#define HUMIDITY 0
#define GAS 0
#define WORK_BUFFER_SIZE 2048
uint8_t work_buffer[ WORK_BUFFER_SIZE ] = { 0 };
static smartsens2_t smartsens2;
static log_t logger;
uint8_t accuracy; /* Accuracy is reported as a meta event. It is being printed alongside the data */
#if EULER
/**
* @brief Euler data.
* @details Struct for euler data of the Smart Sens 2 Click example.
*/
struct smartsens2_data_orientation
{
int16_t heading;
int16_t pitch;
int16_t roll;
};
/**
* @brief Euler callback parsing function.
* @details Callback function to parse euler data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_euler ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
#elif QUATERNION
/**
* @brief Quaternion data.
* @details Struct for quaternion data of the Smart Sens 2 Click example.
*/
struct smartsens2_data_quaternion
{
int16_t x;
int16_t y;
int16_t z;
int16_t w;
uint16_t accuracy;
};
/**
* @brief Parse FIFO frame data into quaternion
* @details Function to parse FIFO frame data into quaternion
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
*/
static void parse_quaternion ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
#elif VECTOR
/**
* @brief Vector data.
* @details Struct for vector data of the Smart Sens 2 Click example.
*/
struct smartsens2_data_xyz
{
int16_t x;
int16_t y;
int16_t z;
};
/**
* @brief Parse reference.
* @details Struct for parse reference data of the Smart Sens 2 Click example.
*/
struct parse_ref
{
struct
{
uint8_t accuracy;
float scaling_factor;
}
sensor[ SMARTSENS2_SENSOR_ID_MAX ];
uint8_t *verbose;
};
struct parse_ref parse_table;
/**
* @brief Vector callback parsing function.
* @details Callback function to parse vector data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_vector_s16 ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
#elif ENVIRONMENTAL
/**
* @brief Temperature callback parsing function.
* @details Callback function to parse temperature data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_temperature ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
/**
* @brief Barometer callback parsing function.
* @details Callback function to parse barometer data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_barometer ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
/**
* @brief Humidity callback parsing function.
* @details Callback function to parse humidity data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_humidity ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
/**
* @brief Gas callback parsing function.
* @details Callback function to parse gas data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_gas ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
#else
#error NO_EXAMPLE_DEFINED
#endif
/**
* @brief Meta event callback parsing function.
* @details Callback function to parse meta event data.
* @param[in] callback_info : Callback data.
* @param[in] callback_ref : Callback reference.
* @return Nothing
*/
static void parse_meta_event ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref );
/**
* @brief Get name of the virtual sensor by ID.
* @details Function return name of the virutal sensor by its ID.
* @param[in] sensor_id : Virtual sensor ID.
* @return Virtual sensor name.
*/
static char* get_sensor_name ( uint8_t sensor_id );
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
smartsens2_cfg_t smartsens2_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, " Application Init " );
// Click initialization.
smartsens2_cfg_setup( &smartsens2_cfg );
SMARTSENS2_MAP_MIKROBUS( smartsens2_cfg, MIKROBUS_1 );
err_t init_flag = smartsens2_init( &smartsens2, &smartsens2_cfg );
if ( ( I2C_MASTER_ERROR == init_flag ) || ( SPI_MASTER_ERROR == init_flag ) )
{
log_error( &logger, " Communication init." );
for ( ; ; );
}
/* It can take a few seconds to configure and boot device */
log_info( &logger, " Configuring device..." );
if ( SMARTSENS2_ERROR == smartsens2_default_cfg ( &smartsens2 ) )
{
log_error( &logger, " Default configuration." );
for ( ; ; );
}
log_info( &logger, " Setting callbacks..." );
/* Set callbacks */
if ( smartsens2_register_fifo_parse_callback( &smartsens2, SMARTSENS2_SYS_ID_META_EVENT,
parse_meta_event, &accuracy ) )
{
log_error( &logger, " FIFO sys meta event." );
for ( ; ; );
}
if ( smartsens2_register_fifo_parse_callback( &smartsens2, SMARTSENS2_SYS_ID_META_EVENT_WU,
parse_meta_event, &accuracy ) )
{
log_error( &logger, " FIFO sys meta event wu." );
for ( ; ; );
}
uint8_t sensor_id;
smartsens2_fifo_parse_callback_t callback;
void *callback_ref;
#if EULER
sensor_id = SMARTSENS2_SENSOR_ID_ORI;
callback = parse_euler;
callback_ref = &accuracy;
#elif QUATERNION
sensor_id = SMARTSENS2_SENSOR_ID_RV;
callback = parse_quaternion;
callback_ref = NULL;
#elif VECTOR
#if ACCELEROMETER
parse_table.sensor[ SMARTSENS2_SENSOR_ID_ACC ].scaling_factor = 1.0f / 4096.0f;
sensor_id = SMARTSENS2_SENSOR_ID_ACC;
#elif GYROSCOPE
parse_table.sensor[ SMARTSENS2_SENSOR_ID_GYRO ].scaling_factor = 1.0f;
sensor_id = SMARTSENS2_SENSOR_ID_GYRO;
#elif MAGNETOMETER
parse_table.sensor[ SMARTSENS2_SENSOR_ID_MAG ].scaling_factor = 1.0f;
sensor_id = SMARTSENS2_SENSOR_ID_MAG;
#else
#error NO_VECTOR_EXAMPLE_DEFINED
#endif
callback = parse_vector_s16;
callback_ref = &parse_table;
#elif ENVIRONMENTAL
#if TEMPERATURE
sensor_id = SMARTSENS2_SENSOR_ID_TEMP;
callback = parse_temperature;
#elif BAROMETER
sensor_id = SMARTSENS2_SENSOR_ID_BARO;
callback = parse_barometer;
#elif HUMIDITY
sensor_id = SMARTSENS2_SENSOR_ID_HUM;
callback = parse_humidity;
#elif GAS
sensor_id = SMARTSENS2_SENSOR_ID_GAS;
callback = parse_gas;
#else
#error NO_ENVIRONMENTAL_EXAMPLE_DEFINED
#endif
callback_ref = NULL;
#else
#error NO_EXAMPLE_DEFINED
#endif
if ( smartsens2_register_fifo_parse_callback( &smartsens2, sensor_id, callback, callback_ref ) )
{
log_error( &logger, " FIFO sensor id." );
for ( ; ; );
}
/* Go through fifo process */
if ( smartsens2_get_and_process_fifo( &smartsens2, work_buffer, WORK_BUFFER_SIZE ) )
{
log_error( &logger, " FIFO get and process." );
for ( ; ; );
}
/* Update virtual sensor list in context object */
if ( smartsens2_update_virtual_sensor_list( &smartsens2 ) )
{
log_error( &logger, " Update virtual sensor list." );
for ( ; ; );
}
/* Set virtual sensor configuration */
float sample_rate = 10.0; /* Read out data at 10Hz */
uint32_t report_latency_ms = 0; /* Report immediately */
if ( smartsens2_set_virt_sensor_cfg( &smartsens2, sensor_id, sample_rate, report_latency_ms ) )
{
log_error( &logger, " Set virtual sensor configuration." );
for ( ; ; );
}
log_info( &logger, " Application Task " );
}
void application_task ( void )
{
/* Check interrupt and get and process fifo buffer */
if ( smartsens2_get_interrupt( &smartsens2 ) )
{
/* Data from the FIFO is read and the relevant callbacks if registered are called */
if ( smartsens2_get_and_process_fifo( &smartsens2, work_buffer, WORK_BUFFER_SIZE ) )
{
log_error( &logger, " Get and process fifo." );
for ( ; ; );
}
}
}
int main ( void )
{
/* Do not remove this line or clock might not be set correctly. */
#ifdef PREINIT_SUPPORTED
preinit();
#endif
application_init( );
for ( ; ; )
{
application_task( );
}
return 0;
}
#if EULER
static void parse_euler ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
struct smartsens2_data_orientation data_val;
uint8_t *accuracy = ( uint8_t* ) callback_ref;
if ( callback_info->data_size != 7 ) /* Check for a valid payload size. Includes sensor ID */
{
return;
}
data_val.heading = SMARTSENS2_LE2S16( callback_info->data_ptr );
data_val.pitch = SMARTSENS2_LE2S16( callback_info->data_ptr + 2 );
data_val.roll = SMARTSENS2_LE2S16( callback_info->data_ptr + 4 );
if ( accuracy )
{
log_printf( &logger, "SID: %s; H: %.3f, P: %.3f, R: %.3f; acc: %u; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( float ) ( data_val.heading * 360.0f / 32768.0f ),
( float ) ( data_val.pitch * 360.0f / 32768.0f ),
( float ) ( data_val.roll * 360.0f / 32768.0f ),
( uint16_t ) ( *accuracy ),
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
else
{
log_printf( &logger, "SID: %s; H: %.3f, P: %.3f, R: %.3f; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( float ) ( data_val.heading * 360.0f / 32768.0f ),
( float ) ( data_val.pitch * 360.0f / 32768.0f ),
( float ) ( data_val.roll * 360.0f / 32768.0f ),
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
}
#elif QUATERNION
static void parse_quaternion ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
struct smartsens2_data_quaternion data_val;
if ( callback_info->data_size != 11 ) /* Check for a valid payload size. Includes sensor ID */
{
return;
}
data_val.x = SMARTSENS2_LE2S16( callback_info->data_ptr );
data_val.y = SMARTSENS2_LE2S16( callback_info->data_ptr + 2 );
data_val.z = SMARTSENS2_LE2S16( callback_info->data_ptr + 4 );
data_val.w = SMARTSENS2_LE2S16( callback_info->data_ptr + 6 );
data_val.accuracy = SMARTSENS2_LE2U16( callback_info->data_ptr + 8 );
log_printf( &logger, "SID: %s; X: %.3f, Y: %.3f, Z: %.3f, W: %.3f; acc: %.2f; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( float ) ( data_val.x / 16384.0f ),
( float ) ( data_val.y / 16384.0f ),
( float ) ( data_val.z / 16384.0f ),
( float ) ( data_val.w / 16384.0f ),
( float ) ( ( ( data_val.accuracy * 180.0f ) / 16384.0f ) / 3.141592653589793f ),
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
#elif VECTOR
static void parse_vector_s16 ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
struct smartsens2_data_xyz data_value;
if ( callback_ref )
{
struct parse_ref *parse_table = ( struct parse_ref* ) callback_ref;
float scaling_factor = parse_table->sensor[ callback_info->sensor_id ].scaling_factor;
data_value.x = SMARTSENS2_LE2S16( callback_info->data_ptr );
data_value.y = SMARTSENS2_LE2S16( callback_info->data_ptr + 2 );
data_value.z = SMARTSENS2_LE2S16( callback_info->data_ptr + 4 );
#if ACCELEROMETER
log_printf( &logger, "SID: %s; X: %.3f, Y: %.3f, Z: %.3f; acc: %u; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( float ) ( data_value.x * scaling_factor ),
( float ) ( data_value.y * scaling_factor ),
( float ) ( data_value.z * scaling_factor ),
( uint16_t ) parse_table->sensor[ callback_info->sensor_id ].accuracy,
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
#elif GYROSCOPE
log_printf( &logger, "SID: %s; X: %d, Y: %d, Z: %d; acc: %u; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( int16_t ) ( data_value.x * scaling_factor ),
( int16_t ) ( data_value.y * scaling_factor ),
( int16_t ) ( data_value.z * scaling_factor ),
( uint16_t ) parse_table->sensor[ callback_info->sensor_id ].accuracy,
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
#elif MAGNETOMETER
log_printf( &logger, "SID: %s; X: %d, Y: %d, Z: %d; acc: %u; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( int16_t ) ( data_value.x * scaling_factor ),
( int16_t ) ( data_value.y * scaling_factor ),
( int16_t ) ( data_value.z * scaling_factor ),
( uint16_t ) parse_table->sensor[ callback_info->sensor_id ].accuracy,
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
#else
#error NO_VECTOR_EXAMPLE_DEFINED
#endif
}
else
{
log_error( &logger, "Null reference" );
}
}
#elif ENVIRONMENTAL
static void parse_temperature ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
if ( callback_info->data_size != 5 ) /* Check for a valid payload size. Includes sensor ID */
{
return;
}
log_printf( &logger, "SID: %s; T: %.2f C; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( SMARTSENS2_LE2S16( callback_info->data_ptr ) / 100.0 ),
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
static void parse_barometer ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
if ( callback_info->data_size != 4 ) /* Check for a valid payload size. Includes sensor ID */
{
return;
}
log_printf( &logger, "SID: %s; P: %.1f mBar; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( SMARTSENS2_LE2U24( callback_info->data_ptr ) / 128.0 ),
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
static void parse_humidity ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
if ( callback_info->data_size != 2 ) /* Check for a valid payload size. Includes sensor ID */
{
return;
}
log_printf( &logger, "SID: %s; H: %u %%; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
( uint16_t ) callback_info->data_ptr[ 0 ],
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
static void parse_gas ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
if ( callback_info->data_size != 5 ) /* Check for a valid payload size. Includes sensor ID */
{
return;
}
log_printf( &logger, "SID: %s; G: %lu Ohms; Time: %lus\r\n",
get_sensor_name( callback_info->sensor_id ),
SMARTSENS2_LE2U32( callback_info->data_ptr ),
SMARTSENS2_TIMESTAMP_TO_SEC( *callback_info->time_stamp ) );
}
#else
#error NO_EXAMPLE_DEFINED
#endif
static void parse_meta_event ( struct smartsens2_fifo_parse_data_info *callback_info, void *callback_ref )
{
uint8_t meta_event_type = callback_info->data_ptr[ 0 ];
uint8_t byte1 = callback_info->data_ptr[ 1 ];
uint8_t byte2 = callback_info->data_ptr[ 2 ];
uint8_t *accuracy = ( uint8_t* ) callback_ref;
char *event_text;
if ( SMARTSENS2_SYS_ID_META_EVENT == callback_info->sensor_id )
{
event_text = "[META EVENT]";
}
else if ( SMARTSENS2_SYS_ID_META_EVENT_WU == callback_info->sensor_id )
{
event_text = "[META EVENT WAKE UP]";
}
else
{
return;
}
switch ( meta_event_type )
{
case SMARTSENS2_META_EVENT_FLUSH_COMPLETE:
{
log_printf( &logger, "%s Flush complete for sensor id %s\r\n",
event_text, get_sensor_name( byte1 ) );
break;
}
case SMARTSENS2_META_EVENT_SAMPLE_RATE_CHANGED:
{
log_printf( &logger, "%s Sample rate changed for sensor id %s\r\n",
event_text, get_sensor_name( byte1 ) );
break;
}
case SMARTSENS2_META_EVENT_POWER_MODE_CHANGED:
{
log_printf( &logger, "%s Power mode changed for sensor id %s\r\n",
event_text, get_sensor_name( byte1 ) );
break;
}
case SMARTSENS2_META_EVENT_ALGORITHM_EVENTS:
{
log_printf( &logger, "%s Algorithm event\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_SENSOR_STATUS:
{
log_printf( &logger, "%s Accuracy for sensor id %s changed to %s\r\n",
event_text, get_sensor_name( byte1 ), get_sensor_name( byte2 ) );
if ( accuracy )
{
*accuracy = byte2;
}
break;
}
case SMARTSENS2_META_EVENT_BSX_DO_STEPS_MAIN:
{
log_printf( &logger, "%s BSX event (do steps main)\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_BSX_DO_STEPS_CALIB:
{
log_printf( &logger, "%s BSX event (do steps calib)\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_BSX_GET_OUTPUT_SIGNAL:
{
log_printf( &logger, "%s BSX event (get output signal)\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_SENSOR_ERROR:
{
log_printf( &logger, "%s Sensor id %u reported error 0x%02X\r\n",
event_text, byte1, byte2 );
break;
}
case SMARTSENS2_META_EVENT_FIFO_OVERFLOW:
{
log_printf( &logger, "%s FIFO overflow\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_DYNAMIC_RANGE_CHANGED:
{
log_printf( &logger, "%s Dynamic range changed for sensor id %s\r\n",
event_text, get_sensor_name( byte1 ) );
break;
}
case SMARTSENS2_META_EVENT_FIFO_WATERMARK:
{
log_printf( &logger, "%s FIFO watermark reached\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_INITIALIZED:
{
log_printf( &logger, "%s Firmware initialized. Firmware version %u\r\n",
event_text, ( ( uint16_t )byte2 << 8 ) | byte1 );
break;
}
case SMARTSENS2_META_TRANSFER_CAUSE:
{
log_printf( &logger, "%s Transfer cause for sensor id %s\r\n",
event_text, get_sensor_name( byte1 ) );
break;
}
case SMARTSENS2_META_EVENT_SENSOR_FRAMEWORK:
{
log_printf( &logger, "%s Sensor framework event for sensor id %s\r\n",
event_text, byte1 );
break;
}
case SMARTSENS2_META_EVENT_RESET:
{
log_printf( &logger, "%s Reset event\r\n", event_text );
break;
}
case SMARTSENS2_META_EVENT_SPACER:
{
break;
}
default:
{
log_printf( &logger, "%s Unknown meta event with id: %u\r\n",
event_text, meta_event_type );
break;
}
}
}
static char* get_sensor_name ( uint8_t sensor_id )
{
char *ret;
switch ( sensor_id )
{
case SMARTSENS2_SENSOR_ID_ACC_PASS:
{
ret = "Accelerometer passthrough";
break;
}
case SMARTSENS2_SENSOR_ID_ACC_RAW:
{
ret = "Accelerometer uncalibrated";
break;
}
case SMARTSENS2_SENSOR_ID_ACC:
ret = "Accelerometer corrected";
break;
case SMARTSENS2_SENSOR_ID_ACC_BIAS:
{
ret = "Accelerometer offset";
break;
}
case SMARTSENS2_SENSOR_ID_ACC_WU:
{
ret = "Accelerometer corrected wake up";
break;
}
case SMARTSENS2_SENSOR_ID_ACC_RAW_WU:
{
ret = "Accelerometer uncalibrated wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO_PASS:
{
ret = "Gyroscope passthrough";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO_RAW:
{
ret = "Gyroscope uncalibrated";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO:
{
ret = "Gyroscope corrected";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO_BIAS:
{
ret = "Gyroscope offset";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO_WU:
{
ret = "Gyroscope wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO_RAW_WU:
{
ret = "Gyroscope uncalibrated wake up";
break;
}
case SMARTSENS2_SENSOR_ID_MAG_PASS:
{
ret = "Magnetometer passthrough";
break;
}
case SMARTSENS2_SENSOR_ID_MAG_RAW:
{
ret = "Magnetometer uncalibrated";
break;
}
case SMARTSENS2_SENSOR_ID_MAG:
{
ret = "Magnetometer corrected";
break;
}
case SMARTSENS2_SENSOR_ID_MAG_BIAS:
{
ret = "Magnetometer offset";
break;
}
case SMARTSENS2_SENSOR_ID_MAG_WU:
{
ret = "Magnetometer wake up";
break;
}
case SMARTSENS2_SENSOR_ID_MAG_RAW_WU:
{
ret = "Magnetometer uncalibrated wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GRA:
{
ret = "Gravity vector";
break;
}
case SMARTSENS2_SENSOR_ID_GRA_WU:
{
ret = "Gravity vector wake up";
break;
}
case SMARTSENS2_SENSOR_ID_LACC:
{
ret = "Linear acceleration";
break;
}
case SMARTSENS2_SENSOR_ID_LACC_WU:
{
ret = "Linear acceleration wake up";
break;
}
case SMARTSENS2_SENSOR_ID_RV:
{
ret = "Rotation vector";
break;
}
case SMARTSENS2_SENSOR_ID_RV_WU:
{
ret = "Rotation vector wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GAMERV:
{
ret = "Game rotation vector";
break;
}
case SMARTSENS2_SENSOR_ID_GAMERV_WU:
{
ret = "Game rotation vector wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GEORV:
{
ret = "Geo-magnetic rotation vector";
break;
}
case SMARTSENS2_SENSOR_ID_GEORV_WU:
{
ret = "Geo-magnetic rotation vector wake up";
break;
}
case SMARTSENS2_SENSOR_ID_ORI:
{
ret = "Orientation";
break;
}
case SMARTSENS2_SENSOR_ID_ORI_WU:
{
ret = "Orientation wake up";
break;
}
case SMARTSENS2_SENSOR_ID_TILT_DETECTOR:
{
ret = "Tilt detector";
break;
}
case SMARTSENS2_SENSOR_ID_STD:
{
ret = "Step detector";
break;
}
case SMARTSENS2_SENSOR_ID_STC:
{
ret = "Step counter";
break;
}
case SMARTSENS2_SENSOR_ID_STC_WU:
{
ret = "Step counter wake up";
break;
}
case SMARTSENS2_SENSOR_ID_SIG:
{
ret = "Significant motion";
break;
}
case SMARTSENS2_SENSOR_ID_WAKE_GESTURE:
{
ret = "Wake gesture";
break;
}
case SMARTSENS2_SENSOR_ID_GLANCE_GESTURE:
{
ret = "Glance gesture";
break;
}
case SMARTSENS2_SENSOR_ID_PICKUP_GESTURE:
{
ret = "Pickup gesture";
break;
}
case SMARTSENS2_SENSOR_ID_AR:
{
ret = "Activity recognition";
break;
}
case SMARTSENS2_SENSOR_ID_WRIST_TILT_GESTURE:
{
ret = "Wrist tilt gesture";
break;
}
case SMARTSENS2_SENSOR_ID_DEVICE_ORI:
{
ret = "Device orientation";
break;
}
case SMARTSENS2_SENSOR_ID_DEVICE_ORI_WU:
{
ret = "Device orientation wake up";
break;
}
case SMARTSENS2_SENSOR_ID_STATIONARY_DET:
{
ret = "Stationary detect";
break;
}
case SMARTSENS2_SENSOR_ID_MOTION_DET:
{
ret = "Motion detect";
break;
}
case SMARTSENS2_SENSOR_ID_ACC_BIAS_WU:
{
ret = "Accelerometer offset wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GYRO_BIAS_WU:
{
ret = "Gyroscope offset wake up";
break;
}
case SMARTSENS2_SENSOR_ID_MAG_BIAS_WU:
{
ret = "Magnetometer offset wake up";
break;
}
case SMARTSENS2_SENSOR_ID_STD_WU:
{
ret = "Step detector wake up";
break;
}
case SMARTSENS2_SENSOR_ID_TEMP:
{
ret = "Temperature";
break;
}
case SMARTSENS2_SENSOR_ID_BARO:
{
ret = "Barometer";
break;
}
case SMARTSENS2_SENSOR_ID_HUM:
{
ret = "Humidity";
break;
}
case SMARTSENS2_SENSOR_ID_GAS:
{
ret = "Gas";
break;
}
case SMARTSENS2_SENSOR_ID_TEMP_WU:
{
ret = "Temperature wake up";
break;
}
case SMARTSENS2_SENSOR_ID_BARO_WU:
{
ret = "Barometer wake up";
break;
}
case SMARTSENS2_SENSOR_ID_HUM_WU:
{
ret = "Humidity wake up";
break;
}
case SMARTSENS2_SENSOR_ID_GAS_WU:
{
ret = "Gas wake up";
break;
}
case SMARTSENS2_SENSOR_ID_STC_HW:
{
ret = "Hardware Step counter";
break;
}
case SMARTSENS2_SENSOR_ID_STD_HW:
{
ret = "Hardware Step detector";
break;
}
case SMARTSENS2_SENSOR_ID_SIG_HW:
{
ret = "Hardware Significant motion";
break;
}
case SMARTSENS2_SENSOR_ID_STC_HW_WU:
{
ret = "Hardware Step counter wake up";
break;
}
case SMARTSENS2_SENSOR_ID_STD_HW_WU:
{
ret = "Hardware Step detector wake up";
break;
}
case SMARTSENS2_SENSOR_ID_SIG_HW_WU:
{
ret = "Hardware Significant motion wake up";
break;
}
case SMARTSENS2_SENSOR_ID_ANY_MOTION:
{
ret = "Any motion";
break;
}
case SMARTSENS2_SENSOR_ID_ANY_MOTION_WU:
{
ret = "Any motion wake up";
break;
}
case SMARTSENS2_SENSOR_ID_EXCAMERA:
{
ret = "External camera trigger";
break;
}
case SMARTSENS2_SENSOR_ID_GPS:
{
ret = "GPS";
break;
}
case SMARTSENS2_SENSOR_ID_LIGHT:
{
ret = "Light";
break;
}
case SMARTSENS2_SENSOR_ID_PROX:
{
ret = "Proximity";
break;
}
case SMARTSENS2_SENSOR_ID_LIGHT_WU:
{
ret = "Light wake up";
break;
}
case SMARTSENS2_SENSOR_ID_PROX_WU:
{
ret = "Proximity wake up";
break;
}
default:
{
if ( ( sensor_id >= SMARTSENS2_SENSOR_ID_CUSTOM_START ) && ( sensor_id <= SMARTSENS2_SENSOR_ID_CUSTOM_END ) )
{
ret = "Custom sensor ID ";
}
else
{
ret = "Undefined sensor ID ";
}
}
}
return ret;
}
// ------------------------------------------------------------------------ END
额外支持
资源
类别:环境
