Make BLDC motor spinning as simple as possible with TC78B027FTG and TM4C129ENCPDT

Unlock the potential of brushless

Brushless 9 Click with Fusion for Tiva v8

Published Jul 27, 2023

Click board™

Brushless 9 Click

Dev. board

Fusion for Tiva v8

Compiler

NECTO Studio

MCU

TM4C129ENCPDT

Take full command of your motors with our intuitive brushless motor control solution, providing precise speed and torque regulation for optimal performance

A

A

Hardware Overview

How does it work?

Brushless 9 Click is based on the TC78B027FTG, a 1-Hall sine-wave PWM controller for three-phase brushless DC motors from Toshiba Semiconductor. The TC78B027FTG simplifies the motor selection by using only one Hall sensor input that can be used with either a single Hall sensor motor or the more conventional 3 Hall sensor motors. It can be operated by 1-Hall sine-wave commutation and 1-Hall 150° commutation, which can be switched by register configuration. Also, a closed-loop speed control function is implemented without using an external MCU. The closed-loop control function regulates motor rotational speed fluctuations caused by the power supply voltage and load changes. The TC78B027FTG also has some protection features such as thermal shutdown, overvoltage and overcurrent protection, lock detection, and many more. For Normal operation, it is necessary to apply the voltage from 9V to 16V to the external connector labeled as VM and connect Hall signals from the BLDC motor through the J1 header on the left side of the board. The operation moves to the Standby mode when a

zero cross of the Hall signal is not detected for a lock detection period after the voltage of 1V or less is applied to the SPD pin. In the Standby mode, the power consumption is reduced by powering off its internal 5V regulator. The TC78B027FTG also drives six external N-CH MOSFETs, the SSM6K513NU from Toshiba Semiconductor, that run the connected Brushless DC Motor. For this type of application, more precisely for Brushless Click boards that require BLDC Motor with Hall Sensor for their work, Mikroe offers its users just one such motor, whose offer you can find in our shop. Brushless 9 Click communicates with MCU using several GPIO pins. The DIR pin, routed on the RST pin of the mikroBUS™ socket, is used to select the direction of motor rotation, while the motor braking function is available on the CS pin of the mikroBUS™ socket labeled as BRK. The TC78B027FTG has several braking functions: Motor OFF, Short Brake, Reverse Brake, and Mild Brake. On the other hand, functions such as Motor START, Motor STOP, and Rotation Speed can be set using the SPD pin routed on the PWM pin of the

mikroBUS™ socket, where the register can configure the PWM duty signal and the polarity of this signal. Suppose critical conditions (such over current, over temperature, motor lock) occur. In that case, the TC78B027FTG will signal such a phenomenon using an LED labeled ALERT connected to the interrupt pin marked as INT on the mikroBUS™ socket. Besides, it is possible to detect motor lock events where the indication of such a condition is performed using the LED indicator labeled as FG routed on the AN pin of the mikroBUS™ socket. Pins such as FG, SPD, and INT can also be used as serial interface pins, where FG can be used for SDI or SIO signal, SPD for SCK signal, while INT can be used as SDO signal in case of 3-wire SPI communication. If the SDO line is not used, INT retains its ALERT function. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly.

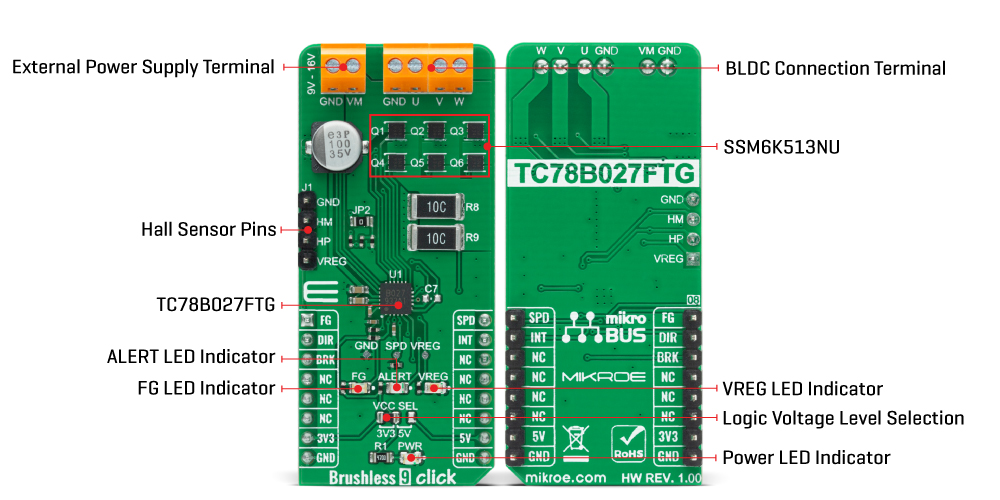

Brushless 9 Click hardware overview image

Features overview

Development board

Fusion for TIVA v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports a wide range of microcontrollers, such as different 32-bit ARM® Cortex®-M based MCUs from Texas Instruments, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer over a WiFi network. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, Fusion for TIVA v8 provides a fluid and immersive working experience, allowing access

anywhere and under any circumstances at any time. Each part of the Fusion for TIVA v8 development board contains the components necessary for the most efficient operation of the same board. An advanced integrated CODEGRIP programmer/debugger module offers many valuable programming/debugging options, including support for JTAG, SWD, and SWO Trace (Single Wire Output)), and seamless integration with the Mikroe software environment. Besides, it also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.

Communication options such as USB-UART, USB HOST/DEVICE, CAN (on the MCU card, if supported), and Ethernet is also included. In addition, it also has the well-established mikroBUS™ standard, a standardized socket for the MCU card (SiBRAIN standard), and two display options for the TFT board line of products and character-based LCD. Fusion for TIVA v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

Fusion for Tiva v8 horizontal image

Microcontroller Overview

MCU Card / MCU

default

Type

8th Generation

Architecture

ARM Cortex-M4

MCU Memory (KB)

1024

Silicon Vendor

Texas Instruments

Pin count

128

RAM (Bytes)

262144

You complete me!

Accessories

Brushless DC (BLDC) Motor with a Hall sensor represents a high-performance motor from the 42BLF motor series. This motor, wired in a star configuration, boasts a Hall Effect angle of 120°, ensuring precise and reliable performance. With a compact motor length of 47mm and a lightweight design tipping the scales at just 0.29kg, this BLDC motor is engineered to meet your needs. Operating flawlessly at a voltage rating of 24VDC and a speed range of 4000 ± 10% RPM, this motor offers consistent and dependable power. It excels in a normal operational temperature range from -20 to +50°C, maintaining efficiency with a rated current of 1.9A. Also, this product seamlessly integrates with all Brushless Click boards™ and those that require BLDC motors with Hall sensors.

Brushless 9 Click accessories image

Used MCU Pins

mikroBUS™ mapper

Hall Signal Rotation Pulse/Motor Lock Detection
PD0
AN
Forward/Reverse Direction
PK3
RST
Motor Brake
PH0
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Motor Control/Rotation Speed
PL4
PWM
Interrupt
PQ4
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

Brushless 9 Click Schematic schematic

Step by step

Project assembly

Fusion for PIC v8 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Fusion for Tiva v8 as your development board.

Fusion for PIC v8 front image hardware assembly
GNSS2 Click front image hardware assembly
SiBRAIN for PIC32MZ1024EFK144 front image hardware assembly
GNSS2 Click complete accessories setup image hardware assembly
v8 SiBRAIN Access MB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto image step 7 hardware assembly
Necto image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for Brushless 9 Click driver.

Key functions:

  • brushless9_cfg_setup - This function initializes click configuration structure to initial values

  • brushless9_init - This function initializes all necessary peripherals

  • brushless9_default_cfg - This function sets default configuration

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief Brushlesss9 Click example
 *
 * # Description
 * This application is a showcase of controlling speed and direction of brushless motor with hall sensor.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization of LOG, PWM module and additional pins for controlling motor.
 *
 * ## Application Task
 * In span of 2 seconds changes duty cycle from 0 to 100% and then back to 0, at the end changes direction of motor.
 *
 * @author Luka Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "brushless9.h"

#define DUTY_CHANGE_DELAY   2000
#define BREAK_DELAY         5000

static brushless9_t brushless9;
static log_t logger;

static uint8_t direction = 0;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    brushless9_cfg_t brushless9_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    brushless9_cfg_setup( &brushless9_cfg );
    BRUSHLESS9_MAP_MIKROBUS( brushless9_cfg, MIKROBUS_1 );
    err_t init_flag  = brushless9_init( &brushless9, &brushless9_cfg );
    if ( init_flag == PWM_ERROR )
    {
        log_error( &logger, " Application Init Error. " );
        log_info( &logger, " Please, run program again... " );

        for ( ; ; );
    }

    brushless9_set_dir( &brushless9, direction );
    brushless9_set_brk( &brushless9, 1 );

    brushless9_set_duty_cycle ( &brushless9, 0 );
    brushless9_pwm_start( &brushless9 );
    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    log_info( &logger, " Starting... " );
    brushless9_set_brk( &brushless9, 0 );
    for ( uint8_t duty_cnt = 1; duty_cnt < 10; duty_cnt++ )
    {
        Delay_ms ( DUTY_CHANGE_DELAY );
        brushless9_set_duty_cycle ( &brushless9, ( float ) duty_cnt / 10.0 );
        log_printf( &logger, "Duty cycle: %u%%\r\n", ( uint16_t ) ( duty_cnt * 10 ) );
    }

    for ( uint8_t duty_cnt = 10; duty_cnt > 0; duty_cnt-- )
    {
        Delay_ms ( DUTY_CHANGE_DELAY );
        brushless9_set_duty_cycle ( &brushless9, ( float ) duty_cnt / 10.0 );
        log_printf( &logger, "Duty cycle: %u%%\r\n", ( uint16_t ) ( duty_cnt * 10 ) );
    }

    Delay_ms ( DUTY_CHANGE_DELAY );
    log_info( &logger, " Stopping... " );
    brushless9_set_duty_cycle ( &brushless9, 0 );
    brushless9_set_brk( &brushless9, 1 );
    Delay_ms ( BREAK_DELAY );
    log_info( &logger, " Changing direction... " );
    direction = !direction;
    brushless9_set_dir( &brushless9, direction );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
