By embracing the strength of GSM networks, we empower you to communicate with confidence and reliability, shaping a future of endless possibilities
A
A
Hardware Overview
How does it work?
GSM3 Click is based on the SIM800H, a GSM/GPRS module from SIMCom. This module is GSM Phase 2/2+ compliant, featuring a full set of cellular networking and communication options. It has a network status indication, jamming detection, and embedded internet protocols, including TCP/IP, UDP, FTP, PPP, HTTP, E-mail, MMS, and more. It also features advanced voice/audio functions, including the FM radio interface. The GPRS multislot class 12 implementation allows four uplink and four downlink slots, with five open slots. Data communication speed is rated at 85.6 kbps for both uplink and downlink connection. An outstanding feature of this module is the support for the Bluetooth 3.0+ EDR protocol. The SIM800H covers frequencies of 850/900 MHz (2W of TX power) and 1800/1900 MHz (1W of TX power). The module consists of several internal blocks or sections, such as an antenna switching section, RF transceiver section (BT, FM, and GSM), memory, power management, analog section (audio, ADC), and most importantly - the cellular baseband processor. Its interface consists of several lines that report the device and network status, SIM card interface lines, UART interface lines, and device control lines. These lines are routed to the respective elements of the Click board™. The SIM800H is powered by around 4V through the onboard LDO over the 5V mikroBUS™ power rail, no matter the chosen DATA LEVEL. Digital sections of the SIM800H are internally supplied by 2.8V, so it is necessary to condition the communication bus lines that connect the host MCU with the module. For this purpose, the GSM3 comes with the TXB0106, a 6-bit bi-directional level shifting and voltage translator with automatic
direction sensing, from Texas Instruments. To communicate with the host MCU, GSM3 Click uses a UART interface with commonly used UART RX and TX pins, supporting standard baud rates ranging from 1200bps to 115.2kbps. The automatic baud rate detection is supported for baud rates up to 57.6kbps and is set by default. The baud rate settings are stored in the internal non-volatile memory, so once stored, these settings will be retained between power cycles. In addition to the UART interface, the GSM3 Click includes hardware flow control pins RTS and CTS. A red LED labeled NET indicates the network status (network search/not registered, registered to the network, and communication established). A yellow LED labeled STAT is used to indicate the device status. When it is lit, the device is operational. It also signals that the internal module initialization is finished and that the module is ready to work. Besides LED, this status is routed via the STA pin to the host MCU. The PWRKEY pin is routed to the mikroBUS™ PWK pin and is used to manually power up/down the Click board™. Asserting this pin to a LOW logic level for at least 1s will toggle the power state of the SIM800H module. To properly detach from the network and store the working parameters in its non-volatile memory, the module should be safely powered off using the PWK (PWRKEY) pin or by issuing the AT+CPOWD=1 command. Abrupt termination of the power supply might lead to a loss of the current parameter settings and improper detachment from the network. If these methods don't work, the RST pin with the LOW logic state can also reset the module. One of the stand-out features of this Click board™ is the support for the
Bluetooth 3.0+ EDR protocol via the 2.4GHz RUFA SMD antenna from Antenova. For GSM/GPRS communication, the GSM3 Click board comes equipped with the SMA connector, while an appropriate antenna can be purchased at the MIKROE shop. The Micro SIM card holder on the back of the Click board™ is used to install a microSIM card. This device cannot be used without a valid SIM card, which allows connection to the cellular network. Both 1.8V and 3V SIM card types are supported, with fast 64kbps SIM card communication speed (GSM Phase 2+). The SIM800H module also offers extensive audio features, including half rate, full rate, enhanced full rate, adaptive multi-rate voice codecs, superior echo cancellation, and is configurable with the AT commands. The audio DSP section is integrated into the module and requires only a few external components. The headset can be connected via the connection pad on the side of the Click board™. The pad also offers an FM antenna connection, allowing listening to the FM radio transmissions. A headset with an integrated FM antenna inside the cable can be used. The functions of the FM radio receiver can be adjusted via the AT commands. The incoming call interrupts the FM receiver's signal and is redirected to the headset instead. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the DATA LEVEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.
Features overview
Development board

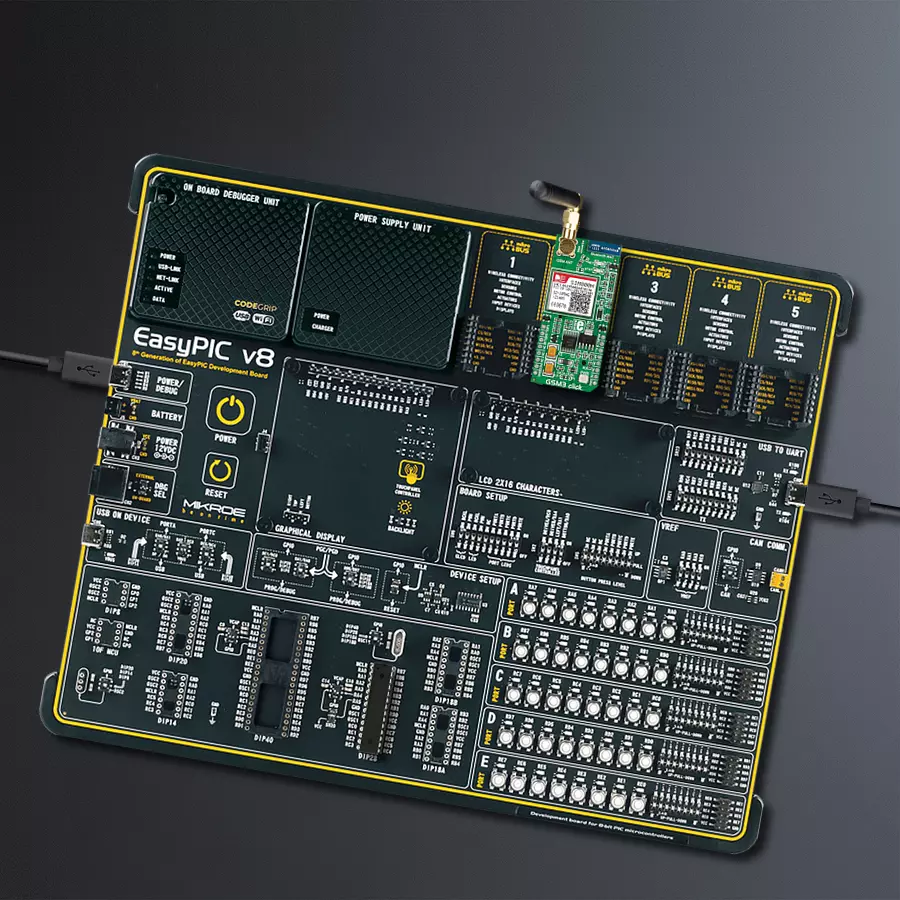

EasyPIC v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports many high pin count 8-bit PIC microcontrollers from Microchip, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, EasyPIC v8 provides a fluid and immersive working experience, allowing access anywhere and under any
circumstances at any time. Each part of the EasyPIC v8 development board contains the components necessary for the most efficient operation of the same board. In addition to the advanced integrated CODEGRIP programmer/debugger module, which offers many valuable programming/debugging options and seamless integration with the Mikroe software environment, the board also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.
Communication options such as USB-UART, USB DEVICE, and CAN are also included, including the well-established mikroBUS™ standard, two display options (graphical and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from the smallest PIC MCU devices with only eight up to forty pins. EasyPIC v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.
Microcontroller Overview
MCU Card / MCU

Architecture
PIC
MCU Memory (KB)
64
Silicon Vendor
Microchip
Pin count
28
RAM (Bytes)
3968
You complete me!
Accessories
Rubber Antenna GSM/GPRS Right Angle is the perfect companion for all GSM Click boards™ in our extensive lineup. This specialized antenna is designed to optimize your wireless connectivity with impressive features. With a wide frequency range spanning 824-894/1710-1990MHz or 890-960/1710-1890MHz, it can handle various frequency bands, ensuring a seamless and reliable connection. The antenna boasts an impedance of 50 Ohms and a gain of 2dB, enhancing signal reception and transmission. Its 70/180MHz bandwidth provides flexibility for diverse applications. The vertical polarization further enhances its performance. With a maximum input power capacity of 50W, this antenna ensures robust communication even under demanding conditions. Measuring a compact 50mm in length and featuring an SMA male connector, the Rubber Antenna GSM/GPRS Right Angle is a versatile and compact solution for your wireless communication needs.
Used MCU Pins
mikroBUS™ mapper
Take a closer look
Click board™ Schematic

Step by step
Project assembly
Track your results in real time
Application Output
1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support
Library Description
This library contains API for GSM3 Click driver.
Key functions:
gsm3_set_sim_apn
- This function sets APN for sim cardgsm3_send_sms_text
- This function sends text message to a phone number.gsm3_send_sms_pdu
- This function sends text message to a phone number in PDU mode
Open Source
Code example
The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
/*!
* @file main.c
* @brief GSM 3 Click Example.
*
* # Description
* Application example shows device capability of connecting to the network and
* sending SMS or TCP/UDP messages using standard "AT" commands.
*
* The demo application is composed of two sections :
*
* ## Application Init
* Initializes the driver, tests the communication by sending "AT" command, and after that restarts the device.
*
* ## Application Task
* Application task is split in few stages:
* - GSM3_CONFIGURE_FOR_NETWORK:
* Sets configuration to device to be able to connect to the network.
*
* - GSM3_WAIT_FOR_CONNECTION:
* Waits for the network registration indicated via CREG URC event and then checks
* the connection status.
*
* - GSM3_CONFIGURE_FOR_EXAMPLE:
* Sets the device configuration for sending SMS or TCP/UDP messages depending on the selected demo example.
*
* - GSM3_EXAMPLE:
* Depending on the selected demo example, it sends an SMS message (in PDU or TXT mode) or TCP/UDP message.
*
* By default, the TCP/UDP example is selected.
*
* ## Additional Function
* - static void gsm3_clear_app_buf ( void )
* - static err_t gsm3_process ( void )
* - static void gsm3_error_check( err_t error_flag )
* - static void gsm3_log_app_buf ( void )
* - static err_t gsm3_rsp_check ( uint8_t *rsp )
* - static err_t gsm3_configure_for_connection( void )
* - static err_t gsm3_check_connection( void )
* - static err_t gsm3_configure_for_messages( void )
* - static err_t gsm3_send_message( void )
*
* @note
* In order for the examples to work, user needs to set the APN and SMSC (SMS PDU mode only)
* of entered SIM card as well as the phone number (SMS mode only) to which he wants to send an SMS.
* Enter valid values for the following macros: SIM_APN, SIM_SMSC and PHONE_NUMBER_TO_MESSAGE.
* Example:
SIM_APN "internet"
SIM_SMSC "+381610401"
PHONE_NUMBER_TO_MESSAGE "+381659999999"
*
* @author Stefan Filipovic
*
*/
#include "board.h"
#include "log.h"
#include "gsm3.h"
#include "conversions.h"
// Example selection macros
#define EXAMPLE_TCP_UDP 0 // Example of sending messages to a TCP/UDP echo server
#define EXAMPLE_SMS 1 // Example of sending SMS to a phone number
#define DEMO_EXAMPLE EXAMPLE_TCP_UDP // Example selection macro
// SIM APN config
#define SIM_APN "internet" // Set valid SIM APN
// SMS example parameters
#define SIM_SMSC "" // Set valid SMS Service Center Address - only in SMS PDU mode
#define PHONE_NUMBER_TO_MESSAGE "" // Set Phone number to message
#define SMS_MODE "1" // SMS mode: "0" - PDU, "1" - TXT
// TCP/UDP example parameters
#define REMOTE_IP "77.46.162.162" // TCP/UDP echo server IP address
#define REMOTE_PORT "51111" // TCP/UDP echo server port
// Message content
#define MESSAGE_CONTENT "GSM 3 Click board - demo example."
// Application buffer size
#define APP_BUFFER_SIZE 256
#define PROCESS_BUFFER_SIZE 256
/**
* @brief Example states.
* @details Predefined enum values for application example state.
*/
typedef enum
{
GSM3_CONFIGURE_FOR_NETWORK = 1,
GSM3_WAIT_FOR_CONNECTION,
GSM3_CONFIGURE_FOR_EXAMPLE,
GSM3_EXAMPLE
} gsm3_example_state_t;
static gsm3_t gsm3;
static log_t logger;
/**
* @brief Application example variables.
* @details Variables used in application example.
*/
static uint8_t app_buf[ APP_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;
static err_t error_flag;
static gsm3_example_state_t example_state;
/**
* @brief Clearing application buffer.
* @details This function clears memory of application
* buffer and reset its length and counter.
*/
static void gsm3_clear_app_buf ( void );
/**
* @brief Data reading function.
* @details This function reads data from device and
* appends it to the application buffer.
* @return @li @c 0 - Some data is read.
* @li @c -1 - Nothing is read.
* See #err_t definition for detailed explanation.
*/
static err_t gsm3_process ( void );
/**
* @brief Check for errors.
* @details This function checks for different types of
* errors and logs them on UART or logs the response if no errors occured.
* @param[in] error_flag Error flag to check.
*/
static void gsm3_error_check ( err_t error_flag );
/**
* @brief Logs application buffer.
* @details This function logs data from application buffer.
*/
static void gsm3_log_app_buf ( void );
/**
* @brief Response check.
* @details This function checks for response and
* returns the status of response.
* @param[in] rsp Expected response.
* @return @li @c 0 - OK response.
* @li @c -2 - Timeout error.
* @li @c -3 - Command error.
* @li @c -4 - Unknown error.
* See #err_t definition for detailed explanation.
*/
static err_t gsm3_rsp_check ( uint8_t *rsp );
/**
* @brief Configure device for connection to the network.
* @details Sends commands to configure and enable
* connection to the specified network.
* @return @li @c 0 - OK response.
* @li @c -2 - Timeout error.
* @li @c -3 - Command error.
* @li @c -4 - Unknown error.
* See #err_t definition for detailed explanation.
*/
static err_t gsm3_configure_for_network ( void );
/**
* @brief Wait for connection signal.
* @details Wait for connection signal from CREG URC.
* @return @li @c 0 - OK response.
* @li @c -2 - Timeout error.
* @li @c -3 - Command error.
* @li @c -4 - Unknown error.
* See #err_t definition for detailed explanation.
*/
static err_t gsm3_check_connection ( void );
/**
* @brief Configure device for example.
* @details Configure device for the specified example.
* @return @li @c 0 - OK response.
* @li @c -2 - Timeout error.
* @li @c -3 - Command error.
* @li @c -4 - Unknown error.
* See #err_t definition for detailed explanation.
*/
static err_t gsm3_configure_for_example ( void );
/**
* @brief Execute example.
* @details This function executes SMS or TCP/UDP example depending on the DEMO_EXAMPLE macro.
* @return @li @c 0 - OK response.
* @li @c -2 - Timeout error.
* @li @c -3 - Command error.
* @li @c -4 - Unknown error.
* See #err_t definition for detailed explanation.
*/
static err_t gsm3_example ( void );
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
gsm3_cfg_t gsm3_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, " Application Init " );
// Click initialization.
gsm3_cfg_setup( &gsm3_cfg );
GSM3_MAP_MIKROBUS( gsm3_cfg, MIKROBUS_1 );
if ( UART_ERROR == gsm3_init( &gsm3, &gsm3_cfg ) )
{
log_error( &logger, " Application Init Error. " );
log_info( &logger, " Please, run program again... " );
for ( ; ; );
}
gsm3_process( );
gsm3_clear_app_buf( );
// Check communication
gsm3_send_cmd( &gsm3, GSM3_CMD_AT );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
gsm3_error_check( error_flag );
// Restart device
#define RESTART_DEVICE "1,1"
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CFUN, RESTART_DEVICE );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
gsm3_error_check( error_flag );
log_info( &logger, " Application Task " );
example_state = GSM3_CONFIGURE_FOR_NETWORK;
}
void application_task ( void )
{
switch ( example_state )
{
case GSM3_CONFIGURE_FOR_NETWORK:
{
if ( GSM3_OK == gsm3_configure_for_network( ) )
{
example_state = GSM3_WAIT_FOR_CONNECTION;
}
break;
}
case GSM3_WAIT_FOR_CONNECTION:
{
if ( GSM3_OK == gsm3_check_connection( ) )
{
example_state = GSM3_CONFIGURE_FOR_EXAMPLE;
}
break;
}
case GSM3_CONFIGURE_FOR_EXAMPLE:
{
if ( GSM3_OK == gsm3_configure_for_example( ) )
{
example_state = GSM3_EXAMPLE;
}
break;
}
case GSM3_EXAMPLE:
{
gsm3_example( );
break;
}
default:
{
log_error( &logger, " Example state." );
break;
}
}
}
int main ( void )
{
/* Do not remove this line or clock might not be set correctly. */
#ifdef PREINIT_SUPPORTED
preinit();
#endif
application_init( );
for ( ; ; )
{
application_task( );
}
return 0;
}
static void gsm3_clear_app_buf ( void )
{
memset( app_buf, 0, app_buf_len );
app_buf_len = 0;
}
static err_t gsm3_process ( void )
{
uint8_t rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
int32_t rx_size = 0;
rx_size = gsm3_generic_read( &gsm3, rx_buf, PROCESS_BUFFER_SIZE );
if ( rx_size > 0 )
{
int32_t buf_cnt = app_buf_len;
if ( ( ( app_buf_len + rx_size ) > APP_BUFFER_SIZE ) && ( app_buf_len > 0 ) )
{
buf_cnt = APP_BUFFER_SIZE - ( ( app_buf_len + rx_size ) - APP_BUFFER_SIZE );
memmove ( app_buf, &app_buf[ APP_BUFFER_SIZE - buf_cnt ], buf_cnt );
}
for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
{
if ( rx_buf[ rx_cnt ] )
{
app_buf[ buf_cnt++ ] = rx_buf[ rx_cnt ];
if ( app_buf_len < APP_BUFFER_SIZE )
{
app_buf_len++;
}
}
}
return GSM3_OK;
}
return GSM3_ERROR;
}
static err_t gsm3_rsp_check ( uint8_t *rsp )
{
uint32_t timeout_cnt = 0;
uint32_t timeout = 120000;
gsm3_clear_app_buf( );
gsm3_process( );
while ( ( 0 == strstr( app_buf, rsp ) ) &&
( 0 == strstr( app_buf, GSM3_RSP_ERROR ) ) )
{
gsm3_process( );
if ( timeout_cnt++ > timeout )
{
gsm3_clear_app_buf( );
return GSM3_ERROR_TIMEOUT;
}
Delay_ms ( 1 );
}
Delay_ms ( 100 );
gsm3_process( );
if ( strstr( app_buf, rsp ) )
{
return GSM3_OK;
}
else if ( strstr( app_buf, GSM3_RSP_ERROR ) )
{
return GSM3_ERROR_CMD;
}
else
{
return GSM3_ERROR_UNKNOWN;
}
}
static void gsm3_error_check ( err_t error_flag )
{
switch ( error_flag )
{
case GSM3_OK:
{
gsm3_log_app_buf( );
break;
}
case GSM3_ERROR:
{
log_error( &logger, " Overflow!" );
break;
}
case GSM3_ERROR_TIMEOUT:
{
log_error( &logger, " Timeout!" );
break;
}
case GSM3_ERROR_CMD:
{
log_error( &logger, " CMD!" );
break;
}
case GSM3_ERROR_UNKNOWN:
default:
{
log_error( &logger, " Unknown!" );
break;
}
}
Delay_ms ( 500 );
}
static void gsm3_log_app_buf ( void )
{
for ( int32_t buf_cnt = 0; buf_cnt < app_buf_len; buf_cnt++ )
{
log_printf( &logger, "%c", app_buf[ buf_cnt ] );
}
}
static err_t gsm3_configure_for_network ( void )
{
err_t func_error = GSM3_OK;
#if ( ( DEMO_EXAMPLE == EXAMPLE_TCP_UDP ) || ( DEMO_EXAMPLE == EXAMPLE_SMS ) )
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
// Deregister from network
#define DEREGISTER_FROM_NETWORK "2"
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_COPS, DEREGISTER_FROM_NETWORK );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Set SIM APN
gsm3_set_sim_apn( &gsm3, SIM_APN );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Enable full functionality
#define FULL_FUNCTIONALITY "1"
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CFUN, FULL_FUNCTIONALITY );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Enable network registartion
#define ENABLE_REG "2"
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CREG, ENABLE_REG );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Automatic registration
#define AUTOMATIC_REGISTRATION "0"
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_COPS, AUTOMATIC_REGISTRATION );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
#endif
return func_error;
}
static err_t gsm3_check_connection ( void )
{
#if ( ( DEMO_EXAMPLE == EXAMPLE_TCP_UDP ) || ( DEMO_EXAMPLE == EXAMPLE_SMS ) )
#define CONNECTED "+CREG: 2,1"
gsm3_send_cmd_check ( &gsm3, GSM3_CMD_CREG );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
gsm3_error_check( error_flag );
if ( strstr( app_buf, CONNECTED ) )
{
Delay_ms ( 100 );
// Check signal quality
gsm3_send_cmd( &gsm3, GSM3_CMD_CSQ );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
gsm3_error_check( error_flag );
#define NO_SIGNAL "99,99"
if ( !strstr( app_buf, NO_SIGNAL ) )
{
Delay_ms ( 1000 );
return error_flag;
}
}
Delay_ms ( 1000 );
return GSM3_ERROR;
#endif
return GSM3_OK;
}
static err_t gsm3_configure_for_example ( void )
{
err_t func_error = GSM3_OK;
#if ( DEMO_EXAMPLE == EXAMPLE_TCP_UDP )
#define ENABLE_RESPONSE_HEADER "1"
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CIPHEAD, ENABLE_RESPONSE_HEADER );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
#elif ( DEMO_EXAMPLE == EXAMPLE_SMS )
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CMGF, SMS_MODE );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
#else
#error "No demo example selected"
#endif
return func_error;
}
static err_t gsm3_example ( void )
{
err_t func_error = GSM3_OK;
#if ( DEMO_EXAMPLE == EXAMPLE_TCP_UDP )
uint8_t cmd_buf[ 100 ] = { 0 };
// Open TCP socket.
#define RESPONSE_CONNECT "CONNECT OK"
#define TCP_SERVICE_TYPE "\"TCP\","
strcpy( cmd_buf, TCP_SERVICE_TYPE );
strcat( cmd_buf, "\"" );
strcat( cmd_buf, REMOTE_IP );
strcat( cmd_buf, "\"" );
strcat( cmd_buf, "," );
strcat( cmd_buf, REMOTE_PORT );
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CIPSTART, cmd_buf );
error_flag = gsm3_rsp_check( RESPONSE_CONNECT );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Get message length
uint8_t message_len_buf[ 10 ] = { 0 };
uint16_t message_len = strlen( MESSAGE_CONTENT );
uint16_to_str( message_len, message_len_buf );
l_trim( message_len_buf );
r_trim( message_len_buf );
// Write message to TCP socket
uint8_t ctrl_z = 0x1A;
strcpy( cmd_buf, message_len_buf );
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CIPSEND, cmd_buf );
error_flag = gsm3_rsp_check( ">" );
func_error |= error_flag;
gsm3_error_check( error_flag );
gsm3_generic_write ( &gsm3, MESSAGE_CONTENT, message_len );
gsm3_generic_write ( &gsm3, &ctrl_z, 1 );
// Read response
#define RESPONSE_URC "+IPD"
error_flag = gsm3_rsp_check( RESPONSE_URC );
func_error |= error_flag;
gsm3_error_check( error_flag );
log_printf( &logger, "\r\n" );
// Close TCP socket
gsm3_send_cmd( &gsm3, GSM3_CMD_CIPCLOSE );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Open UDP socket.
#define UDP_SERVICE_TYPE "\"UDP\","
strcpy( cmd_buf, UDP_SERVICE_TYPE );
strcat( cmd_buf, "\"" );
strcat( cmd_buf, REMOTE_IP );
strcat( cmd_buf, "\"" );
strcat( cmd_buf, "," );
strcat( cmd_buf, REMOTE_PORT );
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CIPSTART, cmd_buf );
error_flag = gsm3_rsp_check( RESPONSE_CONNECT );
func_error |= error_flag;
gsm3_error_check( error_flag );
// Write message to UDP socket
strcpy( cmd_buf, message_len_buf );
gsm3_send_cmd_with_par( &gsm3, GSM3_CMD_CIPSEND, cmd_buf );
error_flag = gsm3_rsp_check( ">" );
func_error |= error_flag;
gsm3_error_check( error_flag );
gsm3_generic_write ( &gsm3, MESSAGE_CONTENT, message_len );
gsm3_generic_write ( &gsm3, &ctrl_z, 1 );
// Read response
error_flag = gsm3_rsp_check( RESPONSE_URC );
func_error |= error_flag;
gsm3_error_check( error_flag );
log_printf( &logger, "\r\n" );
// Close UDP socket
gsm3_send_cmd( &gsm3, GSM3_CMD_CIPCLOSE );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
#elif ( DEMO_EXAMPLE == EXAMPLE_SMS )
// Check SMS mode
#define CMGF_PDU "+CMGF: 0"
#define CMGF_TXT "+CMGF: 1"
gsm3_send_cmd_check( &gsm3, GSM3_CMD_CMGF );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
if ( strstr( app_buf, CMGF_PDU ) )
{
// Send SMS in PDU mode
gsm3_send_sms_pdu( &gsm3, SIM_SMSC, PHONE_NUMBER_TO_MESSAGE, MESSAGE_CONTENT );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
}
else if ( strstr( app_buf, CMGF_TXT ) )
{
// Send SMS in TXT mode
gsm3_send_sms_text ( &gsm3, PHONE_NUMBER_TO_MESSAGE, MESSAGE_CONTENT );
error_flag = gsm3_rsp_check( GSM3_RSP_OK );
func_error |= error_flag;
gsm3_error_check( error_flag );
}
// 30 seconds delay
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
Delay_ms ( 1000 );
#else
#error "No demo example selected"
#endif
return func_error;
}
// ------------------------------------------------------------------------ END
