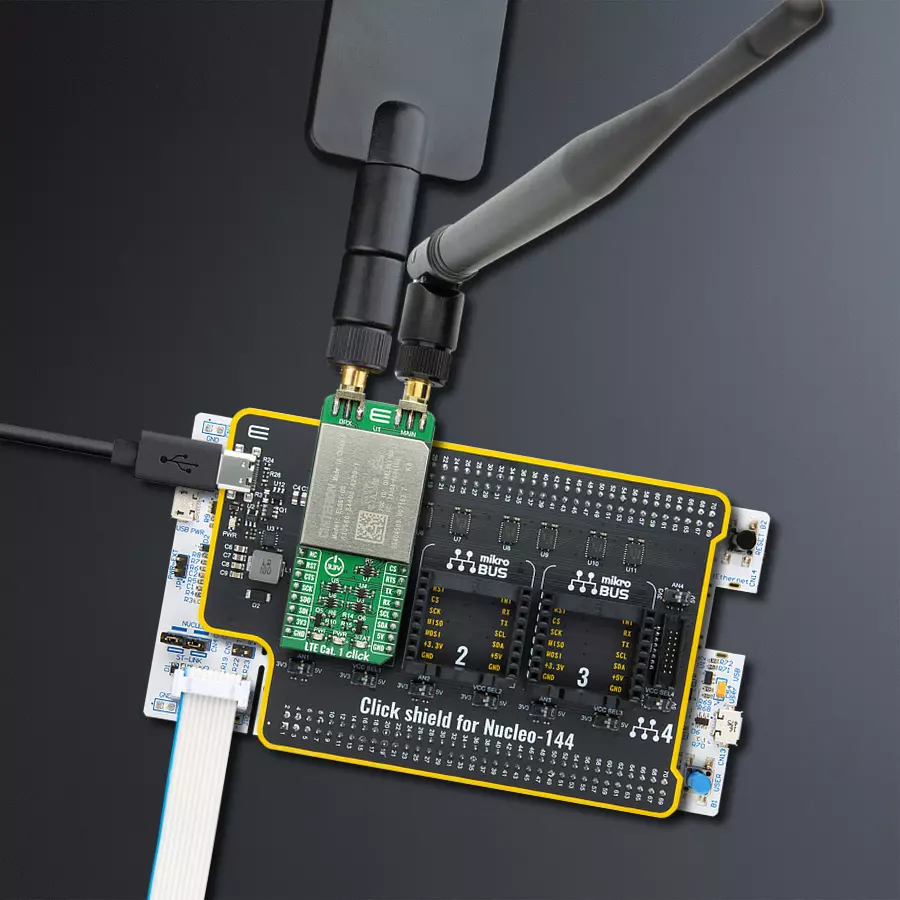

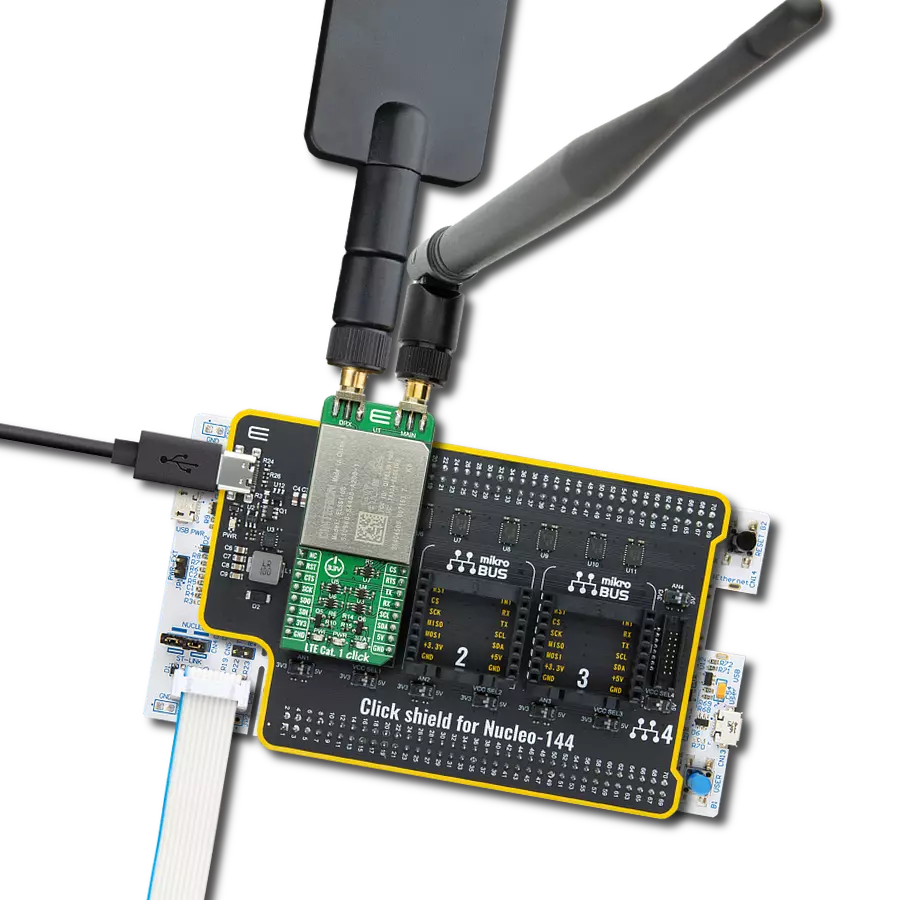

Experience the next-level of LTE connectivity in US with ELS61-US and STM32F413ZH

Connectivity perfected: Cat 1 LTE for US

LTE Cat.1-US Click (for United States) with Nucleo 144 with STM32F413ZH MCU

Published Feb 14, 2024

Click board™

LTE Cat.1-US Click (for United States)

Dev. board

Nucleo 144 with STM32F413ZH MCU

Compiler

NECTO Studio

MCU

STM32F413ZH

Designed to focus on M2M IoT excellence, our wireless module empowers US businesses with highly efficient Cat 1 LTE connectivity, providing a reliable and versatile communication solution with seamless network fallback to 2G and 3G

A

A

Hardware Overview

How does it work?

LTE Cat.1-US Click is based on the ELS61, a multi-band wireless module from Thales. There are two Click boards™ to cover two different regions: LTE Cat.1-EU Click for the Europe region, which features the ELS61-E module, and the LTE Cat.1-US click for the North American region, which features the ELS61-US module. The main difference between these two modules is the supported frequency bands, which comply with each region's regulations. A complete list of supported bands for each module and other relevant info about the module itself can be found in the attached ELS61 datasheet. The ELS61-US module featured on LTE Cat.1-US Click comes with a Java® embedded virtual machine leveraging a robust ARM11 architecture that allows device manufacturers to utilize the massive to reduce complexity and speed application integration. The latest Java ME 3.2 client runtime platform reduces

total cost of ownership (TCO) and time to market by sharing internal resources such as memory, a large existing codebase, and proven software building blocks. The module uses Multi MIDlet Java execution to host and run multiple applications and protocols simultaneously. The UART bus of the ELS61-US series module is connected to one side of the level shifter, while the other side (shifted) is connected to the respective mikroBUS™ UART pins. However, the ELS61 series module is designed as the traditional DCE device (Data Communication Equipment), offering the full UART pin count, including the hardware flow control pins (CTS, RTS). These pins are routed to the mikroBUS™ CS (CTS) and the INT pin (RTS) and can be used in the MCU software if the hardware flow control is needed. An extended security concept with the latest TLS/SSL engine provides secure and reliable TCP/IP connectivity.

Its sophisticated sandbox modeling and layered architectures simplify device management and allow simultaneous progress of network operator approvals and application code development for a shorter time to market. The LTE Cat.1 module delivers long product lifespans of up to seven years, efficient bandwidth and power utilization, and a feature set that meets the rigorous requirements of M2M IoT solutions, including extended operating temperatures. The LTE Cat.1-US Click ensures easy integration and a fast time to market for innovative solutions, and it also provides a dependable connectivity platform with the support needed for a fast time to market and a value you can trust. Given these features' possibilities, the LTE Cat.1-US Click can be used for various applications such as metering, tracking and tracing, remote surveillance, connected signs, fleet management, and mHealth.

LTE Cat.1-US Click (for United States) hardware overview image

Features overview

Development board

Nucleo-144 with STM32F413ZH MCU board offers an accessible and adaptable avenue for users to explore new ideas and construct prototypes. It allows users to tailor their experience by selecting from a range of performance and power consumption features offered by the STM32 microcontroller. With compatible boards, the

internal or external SMPS dramatically decreases power usage in Run mode. Including the ST Zio connector, expanding ARDUINO Uno V3 connectivity, and ST morpho headers facilitate easy expansion of the Nucleo open development platform. The integrated ST-LINK debugger/programmer enhances convenience by

eliminating the need for a separate probe. Moreover, the board is accompanied by comprehensive free software libraries and examples within the STM32Cube MCU Package, further enhancing its utility and value.

Nucleo 144 with STM32F413ZH MCU double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

ARM Cortex-M4

MCU Memory (KB)

1536

Silicon Vendor

STMicroelectronics

Pin count

144

RAM (Bytes)

327680

You complete me!

Accessories

Click Shield for Nucleo-144 comes equipped with four mikroBUS™ sockets, with one in the form of a Shuttle connector, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-144 board with no effort. This way, MIKROE allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. Featuring an ARM Cortex-M microcontroller, 144 pins, and Arduino™ compatibility, the STM32 Nucleo-144 board offers limitless possibilities for prototyping and creating diverse applications. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-144 board out of the box, with an additional USB cable connected to the USB mini port on the board. Simplify your project development with the integrated ST-Link debugger and unleash creativity using the extensive I/O options and expansion capabilities. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-144 board with our Click Shield for Nucleo-144, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Nucleo-144 accessories 1 image

LTE Flat Rotation Antenna is a versatile choice for boosting the performance of 3G/4G LTE devices. With a wide frequency range of 700-2700MHz, it ensures optimal connectivity on major cellular bands worldwide. This flat antenna features an SMA male connector, making it easy to attach directly to your device or SMA module connector. One of its standout features is its adjustable angle, which can be set in 45⁰ increments (0⁰/45⁰/90⁰), allowing you to fine-tune the antenna's orientation for maximum signal reception. With an impedance of 50Ω and a VSW Ratio of <2.0:1, this antenna ensures a reliable and efficient connection. Its 5dB gain, vertical polarization, and omnidirectional radiation pattern enhance signal strength, making it suitable for various applications. Measuring 196mm in length and 38mm in width, this antenna offers a compact yet effective solution for improving your connectivity. With a maximum input power of 50W, it can handle the demands of various devices.

LTE Cat.1-US Click accessories image

This multiband LTE Rubber Antenna with adjustable angle is an excellent choice for all 3G/4G LTE-based click boards from our offer, as well as other devices that require excellent throughput on all major cellular bands worldwide. The antenna has an SMA male connector, which allows it to be mounted directly on the Click board™ or the female SMA module connector. The antenna position can be adjusted in 45⁰ increments (0⁰/45⁰/90⁰).

LTE Cat.1-US Click accessories 2 image

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset
PA13
RST
UART CTS
PA4
CS
SPI Clock
PB3
SCK
SPI Data OUT
PB4
MISO
SPI Data IN
PB5
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
SPI Chip Select
PC6
PWM
UART RTS
PF13
INT
UART TX
PA9
TX
UART RX
PA10
RX
I2C Clock
PF1
SCL
I2C Data
PF0
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

LTE Cat.1-US Click (for United States) Schematic schematic

Step by step

Project assembly

Click Shield for Nucleo-144 accessories 1 image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo 144 with STM32F413ZH MCU as your development board.

Click Shield for Nucleo-144 accessories 1 image hardware assembly
Nucleo 144 with STM32F446ZE MCU front image hardware assembly
Charger 27 Click front image hardware assembly
Prog-cut hardware assembly
Charger 27 Click complete accessories setup image hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
STM32F413ZH Nucleo MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for LTE Cat.1-US Click driver.

Key functions:

  • ltecat1eu_send_cmd - This function sends the specified command to the click module

  • ltecat1eu_send_cmd_with_parameter - This function sends commands to the click module

  • ltecat1eu_send_text_message - This function sends text message to a phone number.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief LTE Cat.1-US Click Example.
 *
 * # Description
 * This example reads and processes data from LTE Cat.1-US Clicks.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes driver and wake-up module and sets default configuration for connecting device to network.
 *
 * ## Application Task
 * Waits for device to connect to network and then sends SMS to selected phone number.
 *
 * ## Additional Function
 * - static void ltecat1us_clear_app_buf ( void )
 * - static void ltecat1us_error_check( err_t error_flag )
 * - static void ltecat1us_log_app_buf ( void )
 * - static void ltecat1us_check_connection( void )
 * - static err_t ltecat1us_rsp_check ( void )
 * - static err_t ltecat1us_process ( void )
 *
 * @note
 * In order for the example to work,
   user needs to set the phone number and sim apn to which he wants to send an SMS
 * Enter valid data for the following macros: SIM_APN and PHONE_NUMBER_TO_MESSAGE.
 * E.g.
    SIM_APN "vipmobile"
    PHONE_NUMBER_TO_MESSAGE "+381659999999"
 *
 * @author Stefan Ilic
 *
 */

#include "board.h"
#include "log.h"
#include "ltecat1us.h"

#define APP_OK                      0
#define APP_ERROR_DRIVER           -1
#define APP_ERROR_OVERFLOW         -2
#define APP_ERROR_TIMEOUT          -3

#define RSP_OK                     "OK"
#define RSP_SYSSTART               "^SYSSTART"
#define RSP_ERROR                  "ERROR"

#define SIM_APN                    ""  // Set valid SIM APN
#define PHONE_NUMBER_TO_MESSAGE    ""  // Set Phone number to message
#define MESSAGE_CONTENT            "LTE Cat.1-US Click"   // Messege content

#define PROCESS_BUFFER_SIZE        500

#define WAIT_FOR_CONNECTION        0
#define CONNECTED_TO_NETWORK       1

static ltecat1us_t ltecat1us;
static log_t logger;

static char app_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;
static int32_t app_buf_cnt = 0;

static uint8_t app_connection_status        = WAIT_FOR_CONNECTION;

static err_t app_error_flag;

/**
 * @brief LTE Cat.1-US clearing application buffer.
 * @details This function clears memory of application buffer and reset it's length and counter.
 * @note None.
 */
static void ltecat1us_clear_app_buf ( void );

/**
 * @brief LTE Cat.1-US data reading function.
 * @details This function reads data from device and concats data to application buffer.
 *
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 *         @li @c -2 - Application buffer overflow.
 *
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t ltecat1us_process ( void );

/**
 * @brief LTE Cat.1-US check for errors.
 * @details This function checks for different types of errors and logs them on UART.
 * @note None.
 */
static void ltecat1us_error_check( err_t error_flag );

/**
 * @brief LTE Cat.1-US logs application buffer.
 * @details This function logs data from application buffer.
 * @note None.
 */
static void ltecat1us_log_app_buf ( void );

/**
 * @brief LTE Cat.1-US response check.
 * @details This function checks for response and returns the status of response.
 * @param[in] response : Expected response.
 *
 * @return application status.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t ltecat1us_rsp_check ( char * response );

/**
 * @brief LTE Cat.1-US chek connection.
 * @details This function checks connection to the network and
 *          logs that status to UART.
 *
 * @note None.
 */
static void ltecat1us_check_connection( void );

void application_init ( void ) {
    log_cfg_t log_cfg;  /**< Logger config object. */
    ltecat1us_cfg_t ltecat1us_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );
    Delay_ms ( 1000 );

    // Click initialization.
    ltecat1us_cfg_setup( &ltecat1us_cfg );
    LTECAT1US_MAP_MIKROBUS( ltecat1us_cfg, MIKROBUS_1 );
    err_t init_flag  = ltecat1us_init( &ltecat1us, &ltecat1us_cfg );
    if ( init_flag == UART_ERROR ) {
        log_error( &logger, " Application Init Error. " );
        log_info( &logger, " Please, run program again... " );

        for ( ; ; );
    }

    log_info( &logger, " Power on device... " );

    ltecat1us_power_on( &ltecat1us );

    // CFUN - restart ME
    ltecat1us_send_cmd_with_parameter( &ltecat1us, LTECAT1US_CMD_CFUN, "0" );
    app_error_flag = ltecat1us_rsp_check( RSP_SYSSTART );
    ltecat1us_error_check( app_error_flag );

    // AT
    ltecat1us_send_cmd( &ltecat1us, LTECAT1US_CMD_AT );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // ATI - product information
    ltecat1us_send_cmd( &ltecat1us, LTECAT1US_CMD_ATI );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // CGMR - firmware version
    ltecat1us_send_cmd( &ltecat1us, LTECAT1US_CMD_CGMR );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // COPS - deregister from network
    ltecat1us_send_cmd_with_parameter( &ltecat1us, LTECAT1US_CMD_COPS, "2" );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // CGDCONT - set sim apn
    ltecat1us_set_sim_apn( &ltecat1us, SIM_APN );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // CFUN - full funtionality
    ltecat1us_send_cmd_with_parameter( &ltecat1us, LTECAT1US_CMD_CFUN, "1" );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // COPS - automatic mode
    ltecat1us_send_cmd_with_parameter( &ltecat1us, LTECAT1US_CMD_COPS, "0" );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );

    // CEREG - network registration status
    ltecat1us_send_cmd_with_parameter( &ltecat1us, LTECAT1US_CMD_CEREG, "2" );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    // CIMI - request IMSI
    ltecat1us_send_cmd( &ltecat1us, LTECAT1US_CMD_CIMI );
    app_error_flag = ltecat1us_rsp_check( RSP_OK );
    ltecat1us_error_check( app_error_flag );
    Delay_ms ( 500 );

    app_buf_len = 0;
    app_buf_cnt = 0;
    app_connection_status = WAIT_FOR_CONNECTION;
    log_info( &logger, " Application Task " );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

void application_task ( void ) {
    if ( app_connection_status == WAIT_FOR_CONNECTION ) {
        // CGATT - request IMSI
        ltecat1us_send_cmd_check( &ltecat1us, LTECAT1US_CMD_CGATT );
        app_error_flag = ltecat1us_rsp_check( RSP_OK );
        ltecat1us_error_check( app_error_flag );
        Delay_ms ( 500 );

        // CEREG - network registration status
        ltecat1us_send_cmd_check( &ltecat1us, LTECAT1US_CMD_CEREG );
        app_error_flag = ltecat1us_rsp_check( RSP_OK );
        ltecat1us_error_check( app_error_flag );
        Delay_ms ( 500 );

        // CSQ - signal quality
        ltecat1us_send_cmd( &ltecat1us, LTECAT1US_CMD_CSQ );
        app_error_flag = ltecat1us_rsp_check( RSP_OK );
        ltecat1us_error_check( app_error_flag );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
    } else {
        log_info( &logger, "CONNECTED TO NETWORK" );

        // SMS message format - text mode
        ltecat1us_send_cmd_with_parameter( &ltecat1us, "AT+CMGF", "1" );
        app_error_flag = ltecat1us_rsp_check( RSP_OK );
        ltecat1us_error_check( app_error_flag );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );

        for( ; ; ) {
            log_printf( &logger, "> Sending message to phone number...\r\n" );
            ltecat1us_send_text_message( &ltecat1us, PHONE_NUMBER_TO_MESSAGE, MESSAGE_CONTENT );
            app_error_flag = ltecat1us_rsp_check( RSP_OK );
            ltecat1us_error_check( app_error_flag );
            // 30 seconds delay
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void ltecat1us_clear_app_buf ( void ) {
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
    app_buf_cnt = 0;
}

static err_t ltecat1us_process ( void ) {
    err_t return_flag = APP_ERROR_DRIVER;
    int32_t rx_size;
    char rx_buff[ PROCESS_BUFFER_SIZE ] = { 0 };

    rx_size = ltecat1us_generic_read( &ltecat1us, rx_buff, PROCESS_BUFFER_SIZE );

    if ( rx_size > 0 ) {
        int32_t buf_cnt = 0;
        return_flag = APP_OK;

        if ( app_buf_len + rx_size >= PROCESS_BUFFER_SIZE ) {
            ltecat1us_clear_app_buf(  );
            return_flag = APP_ERROR_OVERFLOW;
        } else {
            buf_cnt = app_buf_len;
            app_buf_len += rx_size;
        }

        for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ ) {
            if ( rx_buff[ rx_cnt ] != 0 ) {
                app_buf[ ( buf_cnt + rx_cnt ) ] = rx_buff[ rx_cnt ];
            } else {
                app_buf_len--;
                buf_cnt--;
            }
        }
    }

    return return_flag;
}


static err_t ltecat1us_rsp_check ( char * response ) {
    uint16_t timeout_cnt = 0;
    uint16_t timeout = 50000;

    err_t error_flag = ltecat1us_process(  );
    if ( ( error_flag != 0 ) && ( error_flag != -1 ) ) {
        return error_flag;
    }

    while ( ( strstr( app_buf, response ) == 0 ) && ( strstr( app_buf, RSP_ERROR ) == 0 ) ) {
        error_flag = ltecat1us_process(  );
        if ( ( error_flag != 0 ) && ( error_flag != -1 ) ) {
            return error_flag;
        }

        timeout_cnt++;
        if ( timeout_cnt > timeout ) {
            while ( ( strstr( app_buf, response ) == 0 ) && ( strstr( app_buf, RSP_ERROR ) == 0 ) ) {
                ltecat1us_send_cmd( &ltecat1us, LTECAT1US_CMD_AT );
                ltecat1us_process(  );
                Delay_ms ( 100 );
            }
            ltecat1us_clear_app_buf(  );
            return APP_ERROR_TIMEOUT;
        }

        Delay_ms ( 1 );
    }

    ltecat1us_check_connection();

    ltecat1us_log_app_buf();

    log_printf( &logger, "-----------------------------------\r\n" );

    return APP_OK;
}

static void ltecat1us_error_check( err_t error_flag ) {
    if ( ( error_flag != 0 ) && ( error_flag != -1 ) ) {
        switch ( error_flag ) {
            case -2: {
                log_error( &logger, " Overflow!" );
                break;
            }
            case -3: {
                log_error( &logger, " Timeout!" );
                break;
            }
            default: {
                break;
            }
        }
    }
}

static void ltecat1us_log_app_buf ( void ) {
    for ( int32_t buf_cnt = 0; buf_cnt < app_buf_len; buf_cnt++ ) {
        log_printf( &logger, "%c", app_buf[ buf_cnt ] );
    }
    log_printf( &logger, "\r\n" );
    ltecat1us_clear_app_buf(  );
}

static void ltecat1us_check_connection( void ) {
    #define CONNECTED "+CGATT: 1"

    if ( strstr( app_buf, CONNECTED ) != 0 ) {
        app_connection_status = CONNECTED_TO_NETWORK;
    }
}

// ------------------------------------------------------------------------ END

Additional Support

Resources

Love this project?

'Buy This Kit' button takes you directly to the shopping cart where you can easily add or remove products.
