LR IoT represents the future of connectivity, a long-range revolution that opens doors to new possibilities in IoT communication
A
A
Hardware Overview
How does it work?
LR IoT Click is based on the LR1110, a long-range, ultra-low power transceiver from Semtech Corporation designed to enhance LoRa®-based geolocation applications. This platform solution supports LoRa® and (G)FSK modulations for LPWAN use cases over the active 868/915MHz ISM band antenna, which Mikroe also offers. The LR1110 also features a low-power multi-band front-end that can acquire several signals of opportunity for geolocation purposes (802.11b/g/n WiFi AP MAC addresses, GNSS (GPS, BeiDou) satellites signals) and then transmit them using LPWAN network to a geolocation server, which computes the position of the object. This Click board™ is optimized for low-power applications requiring indoor and outdoor geolocation, such as asset location, traceability, loss and theft prevention, asset recovery, and inventory management. The LR1110 uses three operating modes: WiFi passive scanning and two GNSS modes for outdoor geolocation, such as GNSS autonomous and assisted modes. With WiFi passive scanning, the LR1110 can discover the WiFi b/g/n access points available near the device and extract MAC addresses to geolocate them. The objective is to
obtain at least 2 MAC addresses and position the device after being sent to an online WiFi lookup service. The WiFi passive scanning implemented in LR1110 can also extract the country code information of an access point contained in the beacon or probe response. In addition to WiFi, there is a fast and low-power GNSS scanner, which, with an active GNSS antenna from our offer, captures a short portion of the signal broadcast by the GNSS satellites and extracts the information required to calculate the device position. This information is then aggregated into an NAV message, which can be sent to a back-end system to compute the device position. As mentioned before, the GNSS scanner has two modes of operation: autonomous and assisted. In autonomous mode, which does not require any assistance data, the LR1110 searches and decodes the signal from the strong satellites for indoor/outdoor detection, while in the assisted mode, allows searching for all the visible satellites and also requires connectivity with the geolocation server for calculation of the device position. This Click board™ communicates with an MCU through a standard SPI interface supporting
the most common SPI mode, SPI Mode 0, with a maximum frequency of 16MHz. It also possesses an interrupt pin, routed to the INT pin of the mikroBUS™ socket, allowing the host MCU to react to special events in the LR1110 system without register-poll. A “BUSY” indicator, labeled as BSY and routed to the PWM pin of the mikroBUS™ socket, indicating that the internal MCU can’t receive any commands from the host MCU, and general reset function routed on the RST pin of the mikroBUS™ socket as well as on the onboard RESET button. It also uses two LED indicators labeled STAT1 and STAT2 for optional GNSS and WiFi network-activity status visual indications. Still, they can also be configured according to the wishes and needs of the user himself. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.
Features overview
Development board
Nucleo-64 with STM32F091RC MCU offers a cost-effective and adaptable platform for developers to explore new ideas and prototype their designs. This board harnesses the versatility of the STM32 microcontroller, enabling users to select the optimal balance of performance and power consumption for their projects. It accommodates the STM32 microcontroller in the LQFP64 package and includes essential components such as a user LED, which doubles as an ARDUINO® signal, alongside user and reset push-buttons, and a 32.768kHz crystal oscillator for precise timing operations. Designed with expansion and flexibility in mind, the Nucleo-64 board features an ARDUINO® Uno V3 expansion connector and ST morpho extension pin
headers, granting complete access to the STM32's I/Os for comprehensive project integration. Power supply options are adaptable, supporting ST-LINK USB VBUS or external power sources, ensuring adaptability in various development environments. The board also has an on-board ST-LINK debugger/programmer with USB re-enumeration capability, simplifying the programming and debugging process. Moreover, the board is designed to simplify advanced development with its external SMPS for efficient Vcore logic supply, support for USB Device full speed or USB SNK/UFP full speed, and built-in cryptographic features, enhancing both the power efficiency and security of projects. Additional connectivity is
provided through dedicated connectors for external SMPS experimentation, a USB connector for the ST-LINK, and a MIPI® debug connector, expanding the possibilities for hardware interfacing and experimentation. Developers will find extensive support through comprehensive free software libraries and examples, courtesy of the STM32Cube MCU Package. This, combined with compatibility with a wide array of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE, ensures a smooth and efficient development experience, allowing users to fully leverage the capabilities of the Nucleo-64 board in their projects.
Microcontroller Overview
MCU Card / MCU

Architecture
ARM Cortex-M0
MCU Memory (KB)
256
Silicon Vendor
STMicroelectronics
Pin count
64
RAM (Bytes)
32768
You complete me!
Accessories
Click Shield for Nucleo-64 comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-64 board with no effort. This way, Mikroe allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. More than 1537 Click boards™, which can be stacked and integrated, are at your disposal. The STM32 Nucleo-64 boards are based on the microcontrollers in 64-pin packages, a 32-bit MCU with an ARM Cortex M4 processor operating at 84MHz, 512Kb Flash, and 96KB SRAM, divided into two regions where the top section represents the ST-Link/V2 debugger and programmer while the bottom section of the board is an actual development board. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-64 board out of the box, with an additional USB cable connected to the USB mini port on the board. Most of the STM32 microcontroller pins are brought to the IO pins on the left and right edge of the board, which are then connected to two existing mikroBUS™ sockets. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-64 board with our Click Shield for Nucleo-64, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.
868MHz right-angle rubber antenna is a compact and versatile solution for wireless communication. Operating within the frequency range of 868-915MHz, it ensures optimal signal reception and transmission. With a 50-ohm impedance, it's compatible with various devices and systems. This antenna boasts a 2dB gain, enhancing signal strength and extending communication range. Its vertical polarization further contributes to signal clarity. Designed to handle up to 50W of input power, it's a robust choice for various applications. Measuring just 48mm in length, this antenna is both discreet and practical. Its SMA male connector ensures a secure and reliable connection to your equipment. Whether you're working with IoT devices, remote sensors, or other wireless technologies, the 868MHz right-angle antenna offers the performance and flexibility you need for seamless communication.
This GPS Active Embedded Antenna is an excellent choice for all GPS/GNSS Click boards™ from our offer. With its high gain and active band filtering, it is a perfect choice when reinforced positioning is required. It can be mounted on the PCB directly. The GPS/GNSS module features a small cable with 10cm in length, allowing it to be positioned away from a small IPEX connector.
WiFi Rubber 2.4GHz Antenna is a versatile accessory designed for Click board™ applications featuring WiFi modules. This antenna is tailor-made to enhance wireless connectivity, making it an essential choice for developers and engineers. Featuring a right-angle SMA male connector at its tip, the antenna offers seamless integration with Click boards™ or female SMA module connectors. This user-friendly design simplifies installation and ensures flexibility in various setups. Operating within the 2400-2500MHz frequency range, this antenna guarantees reliable connectivity across a broad spectrum of WiFi networks. Its 50-Ohm impedance facilitates efficient signal transfer, while the 2dB gain significantly enhances signal strength and range. With a 100MHz bandwidth, it easily accommodates data transfer and communication stability. Vertical polarization further improves signal reception capabilities. The antenna can handle a maximum input power of 50W, making it suitable for high-power applications without compromising performance. Its compact 50mm length ensures a discreet and unobtrusive presence. Whether you're designing IoT devices, smart home applications, or industrial equipment, the WiFi Rubber Antenna, with its SMA male connector, is the ideal choice to ensure optimal wireless connectivity. It's a powerful tool that keeps your devices reliably connected and communicating effectively in wireless technology.
IPEX-SMA cable is a type of RF (radio frequency) cable assembly. "IPEX" refers to the IPEX connector, a miniature coaxial connector commonly used in small electronic devices. "SMA" stands for SubMiniature Version A and is another coaxial connector commonly used in RF applications. An IPEX-SMA cable assembly has an IPEX connector on one end and an SMA connector on the other, allowing it to connect devices or components that use these specific connectors. These cables are often used in applications like WiFi or cellular antennas, GPS modules, and other RF communication systems where a reliable and low-loss connection is required.
Used MCU Pins
mikroBUS™ mapper
Take a closer look
Click board™ Schematic

Step by step

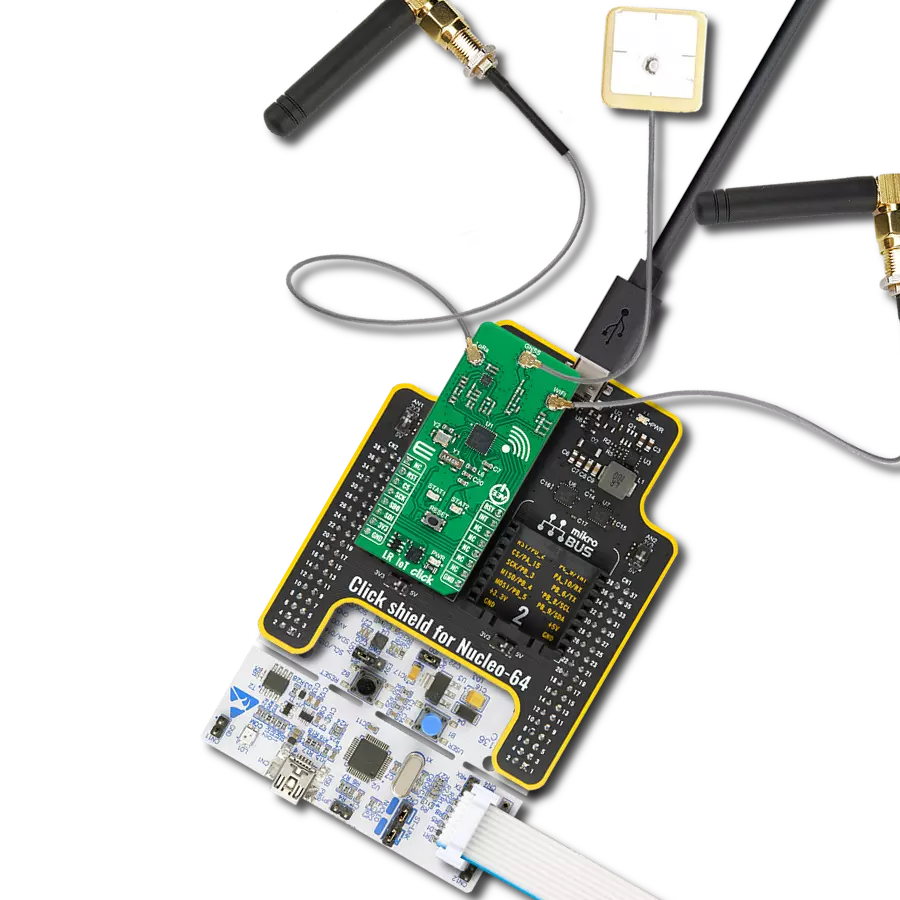

Project assembly
Track your results in real time
Application Output
1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support
Library Description
This library contains API for LR IoT Click driver.
Key functions:
lriot_get_wifi_scan_results
- This function performs a WiFi scanning and reads the resultslriot_get_gnss_scan_results
- This function performs a GNSS scanning and reads the resultslriot_send_lora_message
- This function sends a LoRa message to the receiver
Open Source
Code example
The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
/*!
* @file main.c
* @brief LR IoT Click example
*
* # Description
* This example demonstrates the use of LR IoT click board by reading a GNSS and WiFi
* scanning results and displaying it on the USB UART. In the case of a tranceive firmware
* the communication between two devices over LoRa will be demonstrated as well.
*
* The demo application is composed of two sections :
*
* ## Application Init
* Initializes the driver, performs the click default configuration, and after that reads
* and displays the chip's firmware information. In the case you need to update or change the default
* firmware refer to the @b LRIOT_UPDATE_FIRMWARE and @b LRIOT_FIRMWARE_SELECTOR macro definition.
*
* ## Application Task
* There are 3 types of the example:
* 1. Modem firmware: reads a GNSS and WiFi scanning results and displays them on the USB UART.
* 2. Transcever firmware (application mode transmitter ): reads a GNSS and WiFi scanning results
* as well as the chip internal temperature and sends specific LoRa messages containing that information
* to the LoRa receiver.
* 3. Transcever firmware (application mode receiver): reads all incoming LoRa packets and displays them
* on the USB UART.
*
* @author Stefan Filipovic
*
*/
#include "board.h"
#include "log.h"
#include "lriot.h"
#include "conversions.h"
static lriot_t lriot;
static log_t logger;
#if ( LRIOT_FIRMWARE_SELECTOR == LRIOT_TRANSCEIVE_FIRMWARE )
// Comment out the line below in order to switch the application mode to receiver
#define DEMO_APP_TRANSMITTER
#endif
/**
* @brief LR IoT display gnss scan results function.
* @details This function parses a GNSS scan results object and displays it on the USB UART.
* @param[in] results : GNSS scan results object.
* See #lriot_gnss_scan_results_t object definition for detailed explanation.
* @return None.
* @note None.
*/
static void lriot_display_gnss_scan_results ( lriot_gnss_scan_results_t results );
/**
* @brief LR IoT display wifi scan results function.
* @details This function parses a WiFi scan results object and displays it on the USB UART.
* @param[in] results : WiFi scan results object.
* See #lriot_wifi_scan_results_t object definition for detailed explanation.
* @return None.
* @note None.
*/
static void lriot_display_wifi_scan_results ( lriot_wifi_scan_results_t results );
/**
* @brief LR IoT display chip info function.
* @details This function parses a chip firmware information object and displays it on the USB UART.
* @param[in] info : Chip information object.
* See #lriot_chip_info_t object definition for detailed explanation.
* @return None.
* @note None.
*/
static void lriot_display_chip_info ( lriot_chip_info_t info );
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
lriot_cfg_t lriot_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, " Application Init " );
// Click initialization.
lriot_cfg_setup( &lriot_cfg );
LRIOT_MAP_MIKROBUS( lriot_cfg, MIKROBUS_1 );
if ( SPI_MASTER_ERROR == lriot_init( &lriot, &lriot_cfg ) )
{
log_error( &logger, " Communication init." );
for ( ; ; );
}
if ( LRIOT_ERROR == lriot_default_cfg ( &lriot ) )
{
log_error( &logger, " Default configuration." );
for ( ; ; );
}
lriot_chip_info_t chip_info;
if ( LRIOT_OK == lriot_get_chip_info ( &lriot, &chip_info ) )
{
lriot_display_chip_info ( chip_info );
}
log_info( &logger, " Application Task " );
}
void application_task ( void )
{
#if ( LRIOT_FIRMWARE_SELECTOR == LRIOT_TRANSCEIVE_FIRMWARE )
uint8_t lora_buffer[ LRIOT_LORA_PKT_PAYLOAD_LEN ] = { 0 };
#ifdef DEMO_APP_TRANSMITTER
lriot_gnss_scan_results_t gnss_results = { 0 };
lriot_wifi_scan_results_t wifi_results = { 0 };
uint8_t tmp_buf[ 30 ] = { 0 };
float temperature = 0;
if ( LRIOT_OK == lriot_get_gnss_scan_results ( &lriot, &gnss_results ) )
{
lriot_display_gnss_scan_results ( gnss_results );
}
memset( lora_buffer, 0, sizeof ( lora_buffer ) );
strcpy( lora_buffer, "Number of sattelites found is " );
uint16_to_str ( gnss_results.num_satellites, tmp_buf );
l_trim ( tmp_buf );
strcat( lora_buffer, tmp_buf );
if ( LRIOT_OK == lriot_send_lora_message ( &lriot, lora_buffer ) )
{
log_printf( &logger, "Send LoRa message - done\r\n" );
}
if ( LRIOT_OK == lriot_get_wifi_scan_results ( &lriot, &wifi_results ) )
{
lriot_display_wifi_scan_results ( wifi_results );
}
memset( lora_buffer, 0, sizeof ( lora_buffer ) );
strcpy( lora_buffer, "Number of WiFi scan results is " );
uint16_to_str ( wifi_results.num_wifi_results, tmp_buf );
l_trim ( tmp_buf );
strcat( lora_buffer, tmp_buf );
if ( LRIOT_OK == lriot_send_lora_message ( &lriot, lora_buffer ) )
{
log_printf( &logger, "Send LoRa message - done\r\n" );
}
log_printf ( &logger, "**************************************************************\r\n" );
if ( LRIOT_OK == lriot_get_temperature ( &lriot, &temperature ) )
{
log_printf ( &logger, "Temperature : %.2f degC\r\n", temperature );
}
memset( lora_buffer, 0, sizeof ( lora_buffer ) );
strcpy( lora_buffer, "My temperature is " );
float_to_str ( temperature, tmp_buf );
l_trim ( tmp_buf );
tmp_buf[ 5 ] = 0;
strcat( lora_buffer, tmp_buf );
strcat( lora_buffer, " degC" );
if ( LRIOT_OK == lriot_send_lora_message ( &lriot, lora_buffer ) )
{
log_printf( &logger, "Send LoRa message - done\r\n" );
}
#else
lriot_lora_packet_status_t pkt_status;
if ( LRIOT_OK == lriot_read_lora_message ( &lriot, &pkt_status, lora_buffer ) )
{
log_printf ( &logger, "**************************************************************\r\n" );
log_printf ( &logger, "* RECEIVED LORA PACKET *\r\n" );
log_printf ( &logger, "**************************************************************\r\n" );
log_printf ( &logger, " RSSI : %d dBm\r\n", ( uint16_t ) pkt_status.rssi_pkt_in_dbm );
log_printf ( &logger, " Signal RSSI : %d dBm\r\n", ( uint16_t ) pkt_status.signal_rssi_pkt_in_dbm );
log_printf ( &logger, " SNR : %d dB\r\n", ( uint16_t ) pkt_status.snr_pkt_in_db );
log_printf ( &logger, " Message : \"%s\"\r\n\n", lora_buffer );
}
#endif
#else
lriot_gnss_scan_results_t gnss_results = { 0 };
lriot_wifi_scan_results_t wifi_results = { 0 };
if ( LRIOT_OK == lriot_get_gnss_scan_results ( &lriot, &gnss_results ) )
{
lriot_display_gnss_scan_results ( gnss_results );
}
if ( LRIOT_OK == lriot_get_wifi_scan_results ( &lriot, &wifi_results ) )
{
lriot_display_wifi_scan_results ( wifi_results );
}
#endif
}
void main ( void )
{
application_init( );
for ( ; ; )
{
application_task( );
}
}
static void lriot_display_gnss_scan_results ( lriot_gnss_scan_results_t results )
{
log_printf ( &logger, "**************************************************************\r\n" );
log_printf ( &logger, "* GNSS SCAN RESULTS *\r\n" );
log_printf ( &logger, "**************************************************************\r\n" );
log_printf ( &logger, "Number of satellites found: %u\r\n", ( uint16_t ) results.num_satellites );
#if ( LRIOT_FIRMWARE_SELECTOR == LRIOT_TRANSCEIVE_FIRMWARE )
for ( uint8_t cnt = 0; cnt < results.num_satellites; cnt++ )
{
log_printf ( &logger, "{\r\n\tSatellite ID : %u", results.satellite_id_cnr_doppler[ cnt ].satellite_id );
log_printf ( &logger, "\r\n\tC/N0 : %d dB-Hz", results.satellite_id_cnr_doppler[ cnt ].cnr );
log_printf ( &logger, "\r\n\tSV doppler : %d Hz\r\n},\r\n", results.satellite_id_cnr_doppler[ cnt ].doppler );
}
#else
for ( uint8_t cnt = 0; cnt < results.num_satellites; cnt++ )
{
log_printf ( &logger, "{\r\n\tSatellite ID : %u", results.satellite_id_cnr[ cnt ].satellite_id );
log_printf ( &logger, "\r\n\tC/N0 : %d dB-Hz\r\n},\r\n", results.satellite_id_cnr[ cnt ].cnr );
}
#endif
if ( ( results.scan_results_len > 0 ) &&
( LR1110_GNSS_DESTINATION_SOLVER == results.destination_id ) )
{
log_printf ( &logger, "NAV message : " );
for ( uint16_t cnt = 0; cnt < results.scan_results_len; cnt++ )
{
log_printf ( &logger, "%.2X", results.scan_results[ cnt ] );
}
log_printf ( &logger, "\r\n" );
}
}
static void lriot_display_wifi_scan_results ( lriot_wifi_scan_results_t results )
{
log_printf ( &logger, "**************************************************************\r\n" );
log_printf ( &logger, "* WiFi SCAN RESULTS *\r\n" );
log_printf ( &logger, "**************************************************************\r\n" );
log_printf ( &logger, "Number of WiFi results: %u\r\n", ( uint16_t ) results.num_wifi_results );
for ( uint8_t i = 0; i < results.num_wifi_results; i++ )
{
log_printf ( &logger, "{\r\n\tSSID : \"%s\",\r\n\tMAC : \"", results.scan_results[ i ].ssid_bytes );
for ( uint16_t j = 0; j < LR1110_WIFI_MAC_ADDRESS_LENGTH; j++ )
{
log_printf ( &logger, "%.2x", ( uint16_t ) results.scan_results[ i ].mac_address_2[ j ] );
if ( j < ( LR1110_WIFI_MAC_ADDRESS_LENGTH - 1 ) )
{
log_printf ( &logger, ":" );
}
}
log_printf ( &logger, "\",\r\n\tChannel: %u,\r\n", ( int16_t ) results.scan_results[ i ].current_channel );
log_printf ( &logger, "\tType : %u,\r\n", ( int16_t ) results.scan_results[ i ].data_rate_info_byte );
log_printf ( &logger, "\tRSSI : %d dBm\r\n},\r\n", ( int16_t ) results.scan_results[ i ].rssi );
}
log_printf ( &logger, "Scanning time : %d ms\r\n",
( results.timings.demodulation_us + results.timings.rx_capture_us +
results.timings.rx_correlation_us + results.timings.rx_detection_us ) / 1000 );
}
static void lriot_display_chip_info ( lriot_chip_info_t info )
{
log_printf ( &logger, "**************************************************************\r\n");
log_printf ( &logger, "* CHIP INFO *\r\n");
log_printf ( &logger, "**************************************************************\r\n");
#if ( LRIOT_FIRMWARE_SELECTOR == LRIOT_TRANSCEIVE_FIRMWARE )
log_printf ( &logger, "HARDWARE : 0x%.2X\r\n", ( uint16_t ) info.version.hw );
log_printf ( &logger, "TYPE : 0x%.2X\r\n", ( uint16_t ) info.version.type );
log_printf ( &logger, "FIRMWARE : 0x%.4X\r\n", info.version.fw );
log_printf ( &logger, "UID : " );
for ( uint8_t cnt = 0; cnt < ( LR1110_SYSTEM_UID_LENGTH - 1 ); cnt++ )
{
log_printf ( &logger, "%.2X-", ( uint16_t ) info.uid[ cnt ] );
}
log_printf ( &logger, "%.2X\r\n", ( uint16_t ) info.uid[ LR1110_SYSTEM_UID_LENGTH - 1 ] );
log_printf ( &logger, "JOIN EUI : " );
for ( uint8_t cnt = 0; cnt < ( LR1110_SYSTEM_JOIN_EUI_LENGTH - 1 ); cnt++ )
{
log_printf ( &logger, "%.2X-", ( uint16_t ) info.join_eui[ cnt ] );
}
log_printf ( &logger, "%.2X\r\n", ( uint16_t ) info.join_eui[ LR1110_SYSTEM_JOIN_EUI_LENGTH - 1 ] );
log_printf ( &logger, "PIN : " );
for ( uint8_t cnt = 0; cnt < LR1110_SYSTEM_PIN_LENGTH; cnt++ )
{
log_printf ( &logger, "%.2X", ( uint16_t ) info.pin[ cnt ] );
}
log_printf ( &logger, "\r\n\n" );
#else
log_printf ( &logger, "BOOTLOADER : 0x%.8LX\r\n", info.version.bootloader );
log_printf ( &logger, "FIRMWARE : 0x%.8LX\r\n", info.version.firmware );
log_printf ( &logger, "LORAWAN : 0x%.4X\r\n", info.version.lorawan );
log_printf ( &logger, "CHIP EUI : " );
for ( uint8_t cnt = 0; cnt < ( LR1110_MODEM_CHIP_EUI_LENGTH - 1 ); cnt++ )
{
log_printf ( &logger, "%.2X-", ( uint16_t ) info.chip_eui[ cnt ] );
}
log_printf ( &logger, "%.2X\r\n", ( uint16_t ) info.chip_eui[ LR1110_MODEM_CHIP_EUI_LENGTH - 1 ] );
log_printf ( &logger, "DEV EUI : " );
for ( uint8_t cnt = 0; cnt < ( LR1110_MODEM_DEV_EUI_LENGTH - 1 ); cnt++ )
{
log_printf ( &logger, "%.2X-", ( uint16_t ) info.dev_eui[ cnt ] );
}
log_printf ( &logger, "%.2X\r\n", ( uint16_t ) info.dev_eui[ LR1110_MODEM_DEV_EUI_LENGTH - 1 ] );
log_printf ( &logger, "JOIN EUI : " );
for ( uint8_t cnt = 0; cnt < ( LR1110_MODEM_JOIN_EUI_LENGTH - 1 ); cnt++ )
{
log_printf ( &logger, "%.2X-", ( uint16_t ) info.join_eui[ cnt ] );
}
log_printf ( &logger, "%.2X\r\n", ( uint16_t ) info.join_eui[ LR1110_MODEM_JOIN_EUI_LENGTH - 1 ] );
log_printf ( &logger, "PIN : %.8LX\r\n\n", info.pin );
#endif
}
// ------------------------------------------------------------------------ END
