Enable RFID-based identification and tracking with Pepper C1 (000600) and STM32G474RE
Advanced RFID, Wi-Fi, and WPAN connectivity solution for smart embedded applications
Published May 30, 2025
Click board™
Smart NFC Click
Dev. board
Nucleo 64 with STM32G474RE MCU
Compiler
NECTO Studio
MCU
STM32G474RE
Integrate advanced RFID, Wi-Fi, and WPAN capabilities with OTA updates perfect for contactless service systems
A
A
Hardware Overview
How does it work?

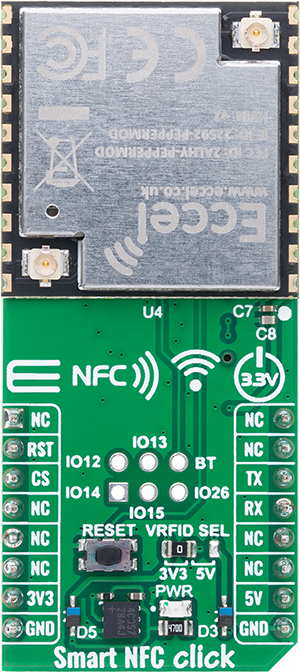

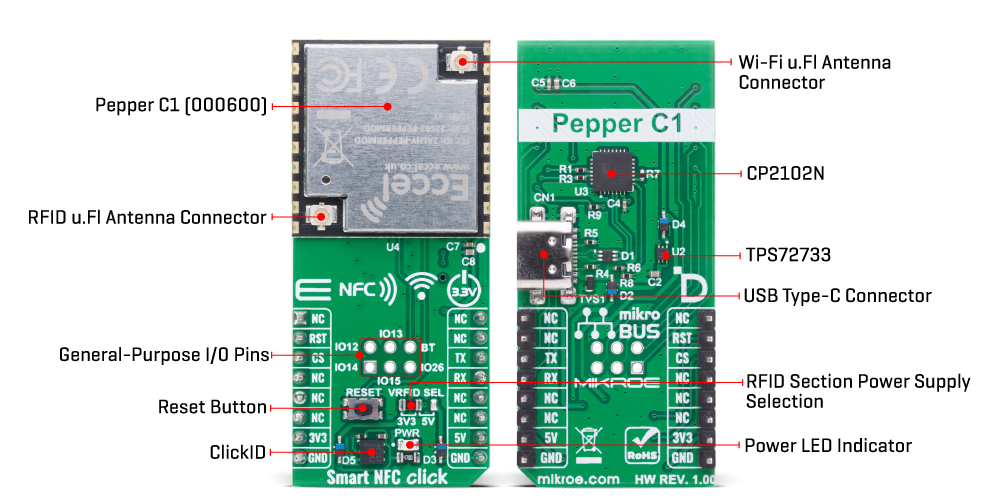

Smart NFC Click is based on the Pepper C1 (000600) module from Eccel Technology that supports both Wi-Fi 802.11 b/g/n and 2.4GHz WPAN connectivity, which can be disabled if needed, offering flexibility in various deployment scenarios. Thanks to its built-in wireless capabilities, the module allows for free lifetime Over-the-Air (OTA) firmware updates, and supports communication over TCP in addition to the traditional UART interface, making it suitable for modern connected systems. The Pepper C1 (000600) module also supports numerous RFID tag technologies, including MIFARE® Classic® 1K and 4K, MIFARE Ultralight®, MIFARE DESFire® EV1/EV2, MIFARE Plus®, and ICODE, giving users the freedom to implement a variety of contactless systems without deep RFID or embedded software knowledge. What sets Smart NFC Click apart is its ability to operate in standalone mode, enabling integration into IoT ecosystems without the need for additional processing or control. It supports a wide range of popular IoT communication protocols such as MQTT, REST API, and TCP sockets, allowing developers to build secure and efficient RFID-enabled solutions. At the heart of the Pepper C1 (000600) module is a powerful 32-bit microcontroller that manages RFID operations and simplifies configuration through a robust command
interface, providing fast and straightforward read/write access to supported transponders. Thanks to all features, the Smart NFC Click is an excellent choice for a range of applications such as access control, goods tracking, consumables monitoring, pre-paid systems, resource management, contactless data storage, and the development and evaluation of RFID solutions. Smart NFC Click communicates with the host MCU through a UART interface using the standard UART RX and TX pins. The default communication speed is set at 115200bps, ensuring efficient data exchange. Along with the communication and control pins, this Click board™ also includes a reset pin (RST) and a RESET button, enabling easy module resetting. This board also includes a USB Type-C connector for USB 2.0 Full Speed capability, allowing for configuration via a PC. This functionality is enabled by the CP2102N, a USB-to-UART bridge. The board also includes an unsoldered header featuring six user-configurable GPIO pins, offering additional flexibility for integration with external peripherals or custom functions. Among these pins, one is specifically designated as the BT pin, intended for use as a Button input, enabling interactive control or triggering of specific module actions based on user input. The module features two onboard u.FL

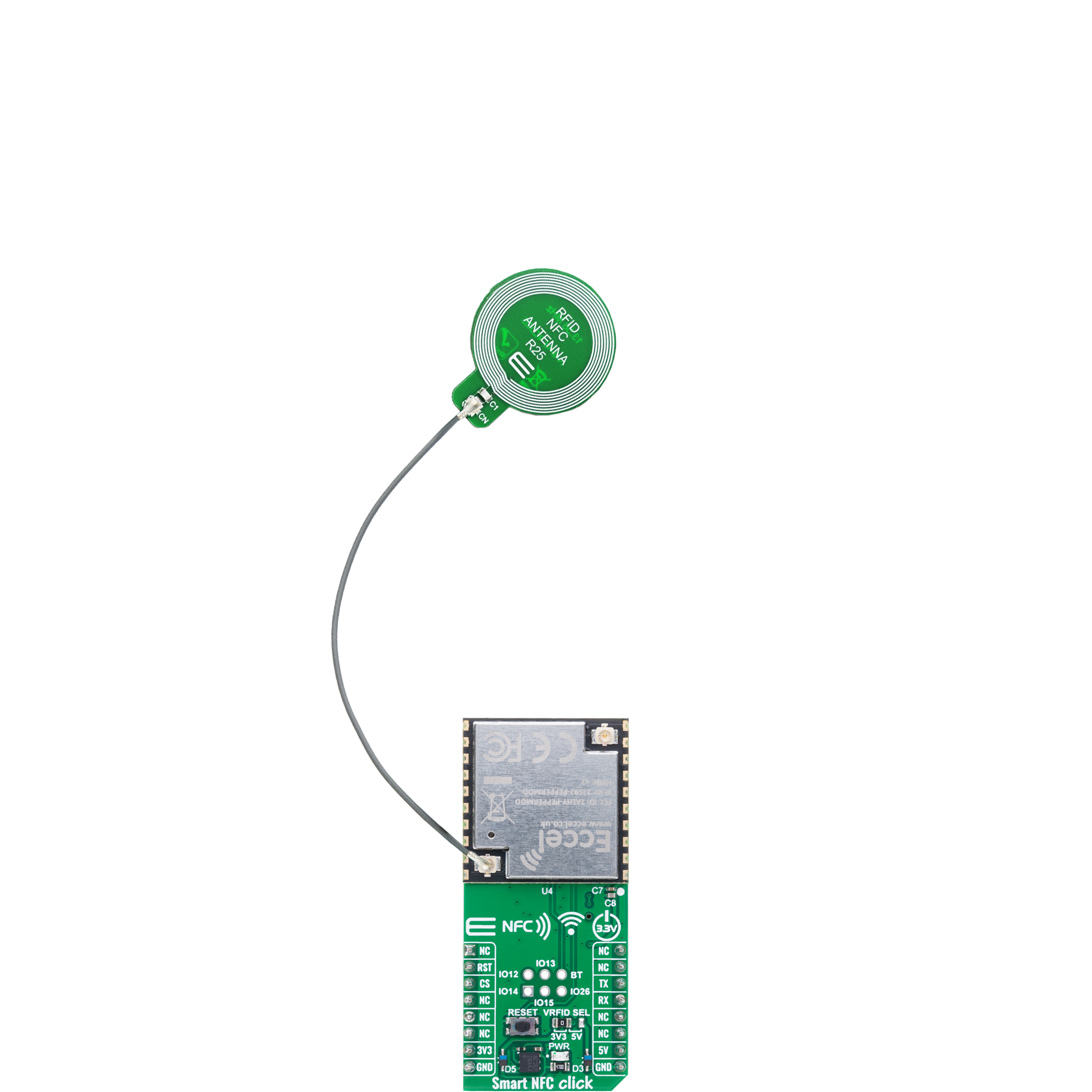

connectors, one dedicated to the Wi-Fi antenna and the other to the RFID antenna, ensuring optimal wireless performance in both communication domains. For RFID applications, users can take advantage of MIKROE’s own Circular NFC R25 Antenna, which is fully compatible with the module, along with 13.56MHz RFID tags that adhere to the ISO14443-A standard, also available from the MIKROE product range. This combination allows for reliable and efficient contactless communication in various embedded and IoT applications. Smart NFC Click supports both 3.3V and 5V power rails, ensuring compatibility with a wide range of development systems. However, the module itself is primarily powered by the 3.3V rail, which serves as the main supply for its core operation. For the RFID section specifically, the board includes a VRFID SEL jumper that allows the user to select between 3.3V and 5V as the power supply, providing additional flexibility when working with different types of RFID transponders or adapting to system-level voltage requirements. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.
Features overview
Development board
Nucleo-64 with STM32G474R MCU offers a cost-effective and adaptable platform for developers to explore new ideas and prototype their designs. This board harnesses the versatility of the STM32 microcontroller, enabling users to select the optimal balance of performance and power consumption for their projects. It accommodates the STM32 microcontroller in the LQFP64 package and includes essential components such as a user LED, which doubles as an ARDUINO® signal, alongside user and reset push-buttons, and a 32.768kHz crystal oscillator for precise timing operations. Designed with expansion and flexibility in mind, the Nucleo-64 board features an ARDUINO® Uno V3 expansion connector and ST morpho extension pin
headers, granting complete access to the STM32's I/Os for comprehensive project integration. Power supply options are adaptable, supporting ST-LINK USB VBUS or external power sources, ensuring adaptability in various development environments. The board also has an on-board ST-LINK debugger/programmer with USB re-enumeration capability, simplifying the programming and debugging process. Moreover, the board is designed to simplify advanced development with its external SMPS for efficient Vcore logic supply, support for USB Device full speed or USB SNK/UFP full speed, and built-in cryptographic features, enhancing both the power efficiency and security of projects. Additional connectivity is
provided through dedicated connectors for external SMPS experimentation, a USB connector for the ST-LINK, and a MIPI® debug connector, expanding the possibilities for hardware interfacing and experimentation. Developers will find extensive support through comprehensive free software libraries and examples, courtesy of the STM32Cube MCU Package. This, combined with compatibility with a wide array of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE, ensures a smooth and efficient development experience, allowing users to fully leverage the capabilities of the Nucleo-64 board in their projects.
Microcontroller Overview
MCU Card / MCU
Architecture
ARM Cortex-M4
MCU Memory (KB)
512
Silicon Vendor
STMicroelectronics
Pin count
64
RAM (Bytes)
128k
You complete me!
Accessories
Click Shield for Nucleo-64 comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-64 board with no effort. This way, Mikroe allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. More than 1537 Click boards™, which can be stacked and integrated, are at your disposal. The STM32 Nucleo-64 boards are based on the microcontrollers in 64-pin packages, a 32-bit MCU with an ARM Cortex M4 processor operating at 84MHz, 512Kb Flash, and 96KB SRAM, divided into two regions where the top section represents the ST-Link/V2 debugger and programmer while the bottom section of the board is an actual development board. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-64 board out of the box, with an additional USB cable connected to the USB mini port on the board. Most of the STM32 microcontroller pins are brought to the IO pins on the left and right edge of the board, which are then connected to two existing mikroBUS™ sockets. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-64 board with our Click Shield for Nucleo-64, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.
Circular NFC R25 Antenna is PCB antenna designed with the intention to be used as extension of development boards and placed remotely on desired place such as plastic casing, existing products, or even under displays. Antenna is designed in circular shape with diameter of 25mm. Its important to mention that this antenna can be used for NFC and RFID applications that works on 13.56MHz frequency.

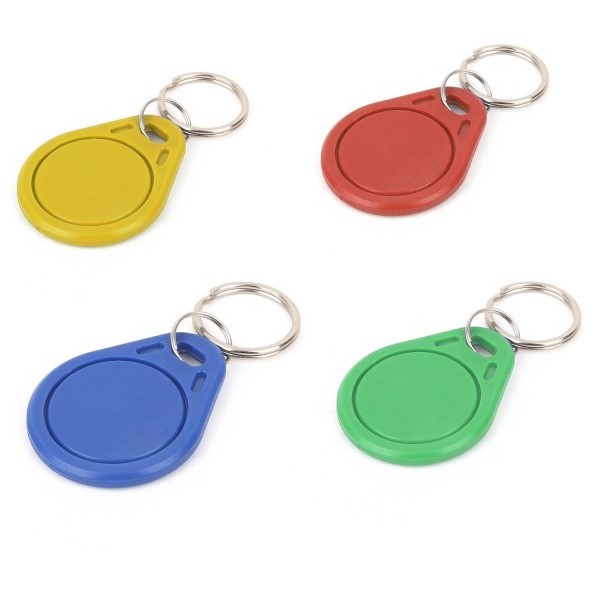

RFID tag operating at 13.56MHz adheres to the ISO14443-A standard, ensuring high-frequency communication. This proximity card technology, often exemplified by MIFARE cards, facilitates secure and contactless interactions in applications like access control, public transport, and payment systems. The ISO14443-A standard defines the communication protocol, incorporating anti-collision mechanisms for simultaneous card handling. These RFID tags possess variable memory capacities, ranging from a few bytes to kilobytes, catering to diverse application needs. Ensuring data security, the standard integrates features such as encryption and authentication. These tags, exemplified by MIFARE technology, are widely used for their efficiency and are vital in enhancing convenience and security in diverse identification and access scenarios.
Used MCU Pins
mikroBUS™ mapper
Take a closer look

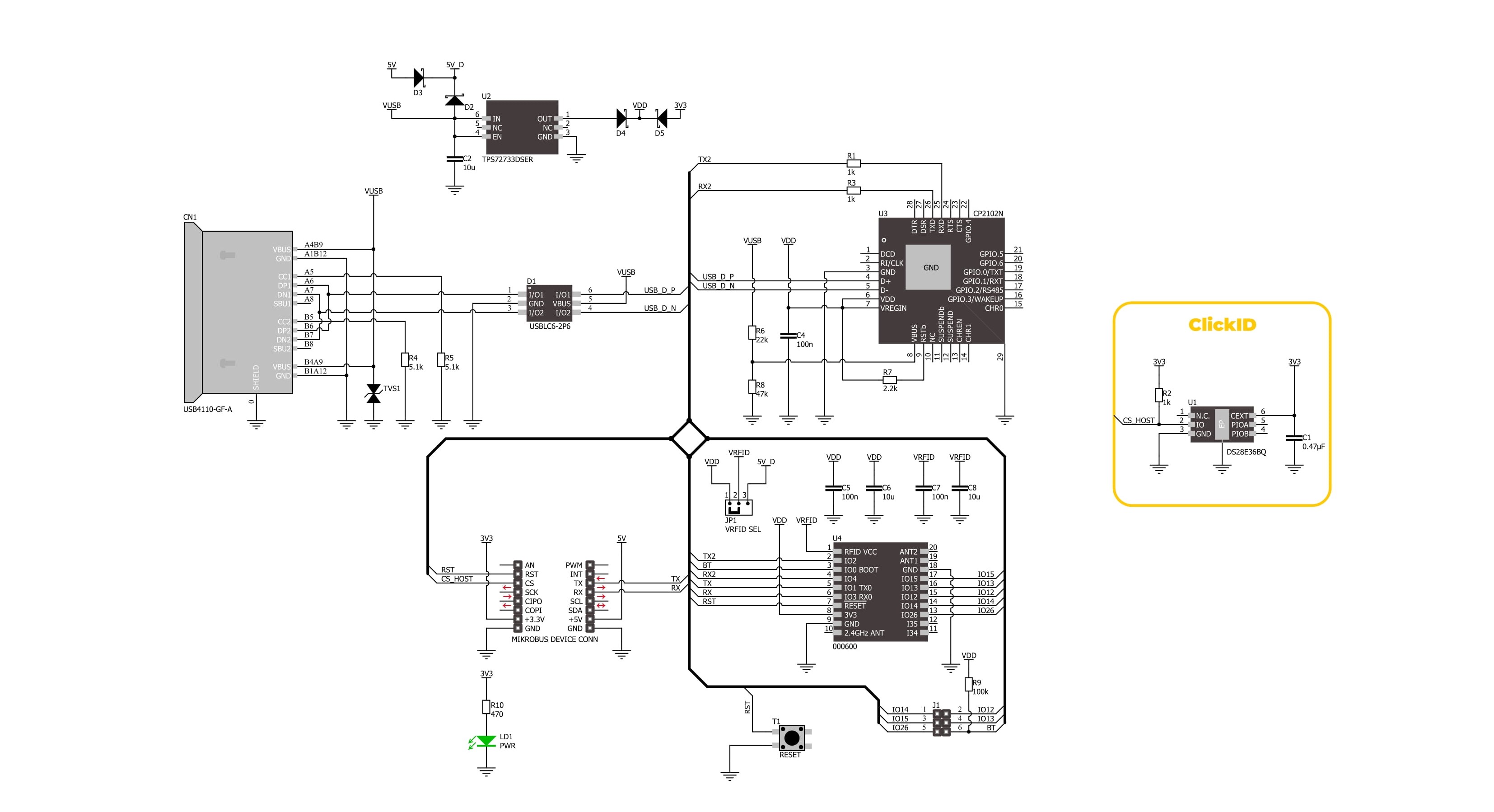

Click board™ Schematic
Step by step
Project assembly

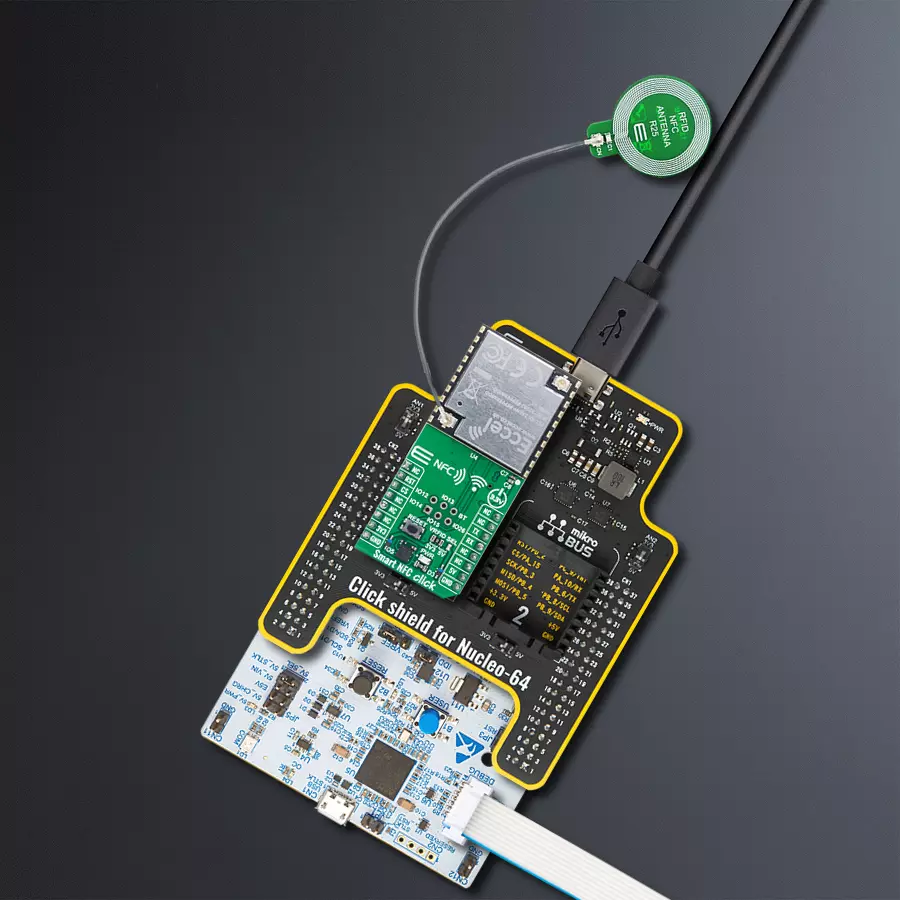

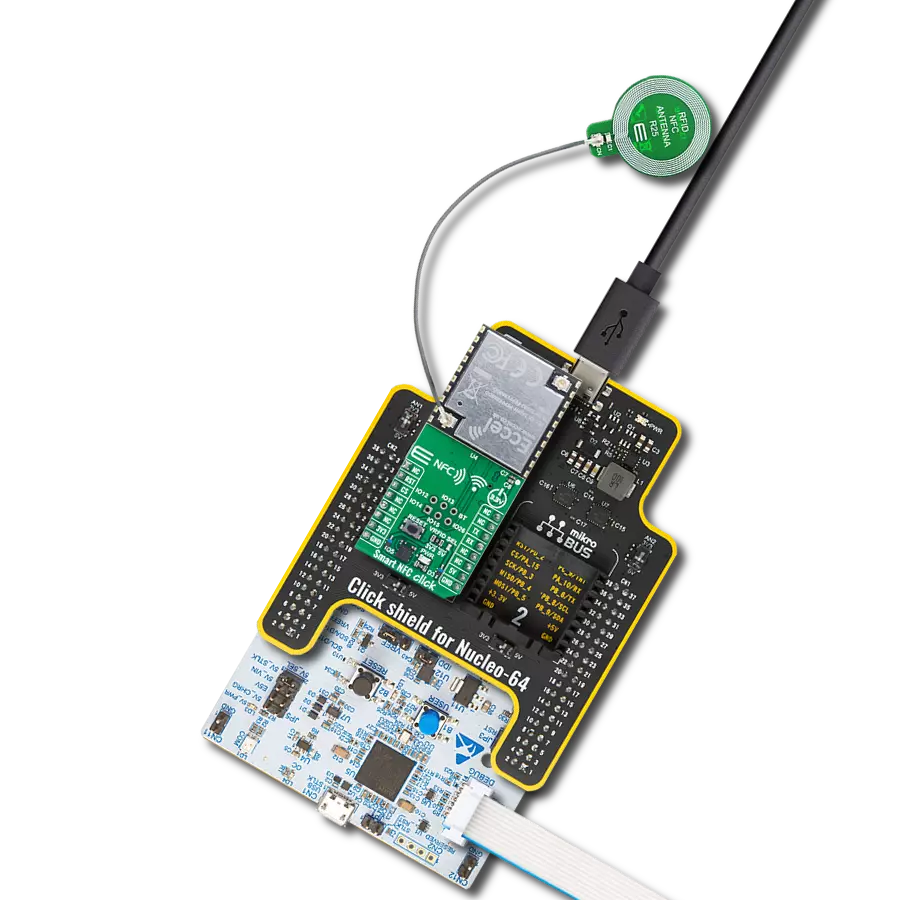

Start by selecting your development board and Click board™. Begin with the Nucleo 64 with STM32G474RE MCU as your development board.
Track your results in real time
Application Output
1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.
2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.
3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.
Software Support
Library Description
Smart NFC Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.
Example Description
This example demonstrates the use of the Smart NFC Click board for detecting and reading NFC tags. The application resets the NFC module, retrieves the firmware version, and continuously scans for nearby NFC tags, displaying their UID and type.
Key functions:
smartnfc_cfg_setup- This function initializes Click configuration structure to initial values.smartnfc_init- This function initializes all necessary pins and peripherals used for this Click board.smartnfc_send_frame- This function sends a desired command frame from the Click context object.smartnfc_read_frame- This function reads response frame from the ring buffer and stores it in the Click context object.smartnfc_read_ack_frame- This function waits for the desired acknowledge frame to arrive and stores it in the Click context object.
Application Init
Initializes the logger and configures the Smart NFC Click board. It establishes UART communication, resets the NFC module, and retrieves the firmware version to verify proper operation.
Application Task
Continuously scans for NFC tags and retrieves their unique identifiers (UID). If tags are detected, it logs their type, parameters, and UID values. The process repeats at 1-second intervals.
Open Source
Code example
The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.
/*!
* @file main.c
* @brief Smart NFC Click Example.
*
* # Description
* This example demonstrates the use of the Smart NFC Click board for detecting and
* reading NFC tags. The application resets the NFC module, retrieves the firmware
* version, and continuously scans for nearby NFC tags, displaying their UID and type.
*
* The demo application is composed of two sections:
*
* ## Application Init
* Initializes the logger and configures the Smart NFC Click board. It establishes
* UART communication, resets the NFC module, and retrieves the firmware version
* to verify proper operation.
*
* ## Application Task
* Continuously scans for NFC tags and retrieves their unique identifiers (UID).
* If tags are detected, it logs their type, parameters, and UID values. The process
* repeats at 1-second intervals.
*
* @note
* A proper 13.56 MHz PCB NFC antenna must be attached to the Click board module
* for optimal tag detection.
*
* @author Stefan Filipovic
*
*/
#include "board.h"
#include "log.h"
#include "smartnfc.h"
static smartnfc_t smartnfc;
static log_t logger;
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
smartnfc_cfg_t smartnfc_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, " Application Init " );
// Click initialization.
smartnfc_cfg_setup( &smartnfc_cfg );
SMARTNFC_MAP_MIKROBUS( smartnfc_cfg, MIKROBUS_1 );
if ( UART_ERROR == smartnfc_init( &smartnfc, &smartnfc_cfg ) )
{
log_error( &logger, " Communication init." );
for ( ; ; );
}
log_printf( &logger, ">> Reset Device\r\n" );
if ( SMARTNFC_OK == smartnfc_reset_device ( &smartnfc ) )
{
log_printf( &logger, "--------------------------------\r\n" );
}
log_printf( &logger, ">> Get Version\r\n" );
smartnfc.cmd_frame.cmd = SMARTNFC_CMD_GET_VERSION;
smartnfc.cmd_frame.payload_len = 0;
smartnfc_send_frame ( &smartnfc );
if ( SMARTNFC_OK == smartnfc_read_ack_frame ( &smartnfc, SMARTNFC_CMD_GET_VERSION ) )
{
log_printf ( &logger, "%s\r\n", &smartnfc.rsp_frame.payload[ 1 ] );
log_printf( &logger, "--------------------------------\r\n" );
}
log_info( &logger, " Application Task " );
}
void application_task ( void )
{
uint8_t num_tags_found = 0;
log_printf( &logger, ">> Get Tag Count\r\n" );
smartnfc.cmd_frame.cmd = SMARTNFC_CMD_GET_TAG_COUNT;
smartnfc.cmd_frame.payload_len = 0;
smartnfc_send_frame ( &smartnfc );
if ( SMARTNFC_OK == smartnfc_read_ack_frame ( &smartnfc, SMARTNFC_CMD_GET_TAG_COUNT ) )
{
log_printf ( &logger, "Number of tags found: %u\r\n", ( uint16_t ) smartnfc.rsp_frame.payload[ 1 ] );
log_printf( &logger, "--------------------------------\r\n" );
num_tags_found = smartnfc.rsp_frame.payload[ 1 ];
for ( uint8_t tag_idx = 0; tag_idx < num_tags_found; tag_idx++ )
{
log_printf( &logger, ">> Get Tag UID\r\n" );
smartnfc.cmd_frame.cmd = SMARTNFC_CMD_GET_TAG_UID;
smartnfc.cmd_frame.payload[ 0 ] = tag_idx;
smartnfc.cmd_frame.payload_len = 1;
smartnfc_send_frame ( &smartnfc );
if ( SMARTNFC_OK == smartnfc_read_ack_frame ( &smartnfc, SMARTNFC_CMD_GET_TAG_UID ) )
{
log_printf ( &logger, "Tag Type: 0x%.2X\r\n", ( uint16_t ) smartnfc.rsp_frame.payload[ 1 ] );
log_printf ( &logger, "Tag Parameter: 0x%.2X\r\n", ( uint16_t ) smartnfc.rsp_frame.payload[ 2 ] );
log_printf ( &logger, "UID:" );
for ( uint8_t cnt_uid = 0; cnt_uid < ( smartnfc.rsp_frame.payload_len - 3 ); cnt_uid++ )
{
log_printf ( &logger, " %.2X", ( uint16_t ) smartnfc.rsp_frame.payload[ 3 + cnt_uid ] );
}
log_printf( &logger, "\r\n--------------------------------\r\n" );
}
}
}
Delay_ms ( 1000 );
}
int main ( void )
{
/* Do not remove this line or clock might not be set correctly. */
#ifdef PREINIT_SUPPORTED
preinit();
#endif
application_init( );
for ( ; ; )
{
application_task( );
}
return 0;
}
// ------------------------------------------------------------------------ END
