Connect and control various types of sensors and actuators with AD74115H, ADP1034 and STM32L496AG

From analog signals to digital commands: AD-SWIO shapes your control

AD-SWIO 3 Click with Discovery kit with STM32L496AG MCU

Published Jul 22, 2025

Click board™

AD-SWIO 3 Click

Dev. board

Discovery kit with STM32L496AG MCU

Compiler

NECTO Studio

MCU

STM32L496AG

Manage and control different devices in industrial and automation setups, ensuring safety and flexibility in the process

A

A

Hardware Overview

How does it work?

AD-SWIO 3 Click is based on the AD74115H, a single-channel, software-configurable input and output with HART mode, and ADP1034, a 3-channel isolated micropower management unit with seven digital isolators and programmable power control both from Analog Devices. The AD74115H has a single-channel input and output, which can be configured as voltage input, current input, voltage output, current output, digital input, digital output, 2/3/4-wire RTD measurement, or thermocouple measurement input. It features a 16-bit, Σ-Δ analog-to-digital converter (ADC) and a 14-bit digital-to-analog converter (DAC), with a high accuracy 2.5V on-chip reference that can be used both for ADC and DAC. You can connect the desired load to terminals labeled I/OP and I/ON for analog output, analog input, and digital input functions. To apply a stimulus to the two auxiliary high-voltage sense pins, use I/O EXT1 and I/O

EXT2 terminals. The resistance measurements can be made between those four terminals, depending on the number of wires RTD. For instance, take 2-wire resistance measurements between the I/OP and I/ON terminals. The integrated HART modem can transmit and receive signals to and from the I/OP terminal. For more info, check the datasheet. Four LEDs (GPIOA, GPIOB, GPIOC, GPIOD) can be configured in several ways to represent digital input, digital output, external or internal conditions, and more. An onboard thermistor is connected to the AD74115H, which can measure the board's temperature. The ADP1034 provides power and isolation to the AD74115H. A flyback regulator supply voltage of 24V can be applied over the VINP terminal. You can control the flyback regulator slew rate over the SLEW jumper between the slowest and normal as default. You can also choose the highest by leaving the SLEW pin open. The

ZA9644-AED, a flyback transformer from Coilcraft, is used for flyback regulator operation. AD-SWIO 3 Click uses a standard 4-wire SPI serial interface of the AD74115H through the isolation that provides the ADP1034 to communicate with the host MCU. You can reset the AD74115H over the RST pin. When a new sequence of ADC conversion is ready to be read, the RDY will be asserted. Also, the alert ALR pin will be asserted when the alert condition is met. All those lines pass through an isolation barrier of the ADP1034 on its way to the host MCU. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used for further development.

AD-SWIO 3 Click hardware overview image

Features overview

Development board

The 32L496GDISCOVERY Discovery kit serves as a comprehensive demonstration and development platform for the STM32L496AG microcontroller, featuring an Arm® Cortex®-M4 core. Designed for applications that demand a balance of high performance, advanced graphics, and ultra-low power consumption, this kit enables seamless prototyping for a wide range of embedded solutions. With its innovative energy-efficient

architecture, the STM32L496AG integrates extended RAM and the Chrom-ART Accelerator, enhancing graphics performance while maintaining low power consumption. This makes the kit particularly well-suited for applications involving audio processing, graphical user interfaces, and real-time data acquisition, where energy efficiency is a key requirement. For ease of development, the board includes an onboard ST-LINK/V2-1

debugger/programmer, providing a seamless out-of-the-box experience for loading, debugging, and testing applications without requiring additional hardware. The combination of low power features, enhanced memory capabilities, and built-in debugging tools makes the 32L496GDISCOVERY kit an ideal choice for prototyping advanced embedded systems with state-of-the-art energy efficiency.

Discovery kit with STM32L496AG MCU double side image

Microcontroller Overview

MCU Card / MCU

STM32L496AG Image

Architecture

ARM Cortex-M4

MCU Memory (KB)

1024

Silicon Vendor

STMicroelectronics

Pin count

169

RAM (Bytes)

327680

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset / ID SEL
PB2
RST
SPI Select / ID COMM
PG11
CS
SPI Clock
PI1
SCK
SPI Data OUT
PD3
MISO
SPI Data IN
PI3
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Ready Output
PA0
PWM
Alert Interrupt
PH2
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

AD-SWIO 3 Click Schematic schematic

Step by step

Project assembly

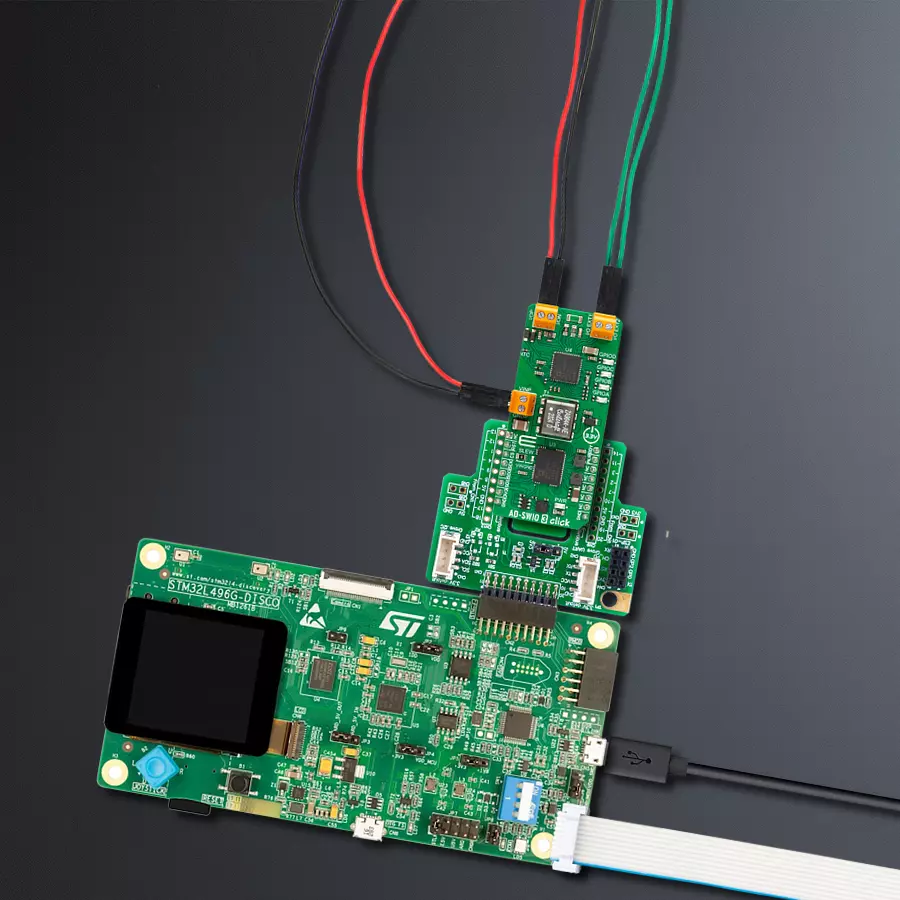

Discovery kit with STM32H750XB MCU front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Discovery kit with STM32L496AG MCU as your development board.

Discovery kit with STM32H750XB MCU front image hardware assembly
Thermo 21 Click front image hardware assembly
Prog-cut hardware assembly
Thermo 21 Click complete accessories setup image hardware assembly
Board mapper by product7 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Discovery kit with STM32H750XB MCU NECTO MCU Selection Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto image step 11 hardware assembly

Software Support

Library Description

This library contains API for AD-SWIO 3 Click driver.

Key functions:

  • adswio3_get_voltage_input - This function reads the raw ADC value and converts them to a proportional voltage level measured by the voltage between the I/OP and I/ON screw terminals.

  • adswio3_get_diag_res - This function is used to read the desired diagnostic conversion results.

  • adswio3_set_adc_cnv - This function is used to control the ADC conversions that must be performed.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief AD-SWIO 3 Click example
 *
 * # Description
 * This library contains API for the AD-SWIO 3 Click driver
 * for measurements of the analog output, analog input, digital input,
 * resistance temperature detector (RTD), and thermocouple measurements.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization of SPI and log UART.
 * After driver initialization, the app executes a default configuration
 * that enables and sets it to measure IOP/ION voltage input from 0V to 12V,
 * with 4.8k SPS and enabled four diagnostics measurements (AVDD, VASS, VACC and LVIN).
 *
 * ## Application Task
 * This example demonstrates the use of the AD-SWIO 3 Click board.
 * The demo application reads and displays the voltage level input,
 * measured by the voltage between the I/OP and I/ON screw terminals
 * and NTC thermistor temperature in degrees Celsius.
 * Results are being sent to the UART Terminal, where you can track their changes.
 *
 * @author Nenad Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "adswio3.h"

static adswio3_t adswio3;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    adswio3_cfg_t adswio3_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    adswio3_cfg_setup( &adswio3_cfg );
    ADSWIO3_MAP_MIKROBUS( adswio3_cfg, MIKROBUS_1 );
    if ( SPI_MASTER_ERROR == adswio3_init( &adswio3, &adswio3_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( ADSWIO3_ERROR == adswio3_default_cfg ( &adswio3 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }
    Delay_ms ( 100 );

    for ( uint8_t n_cnt = ADSWIO3_GPIO_CONFIG_SEL_A; n_cnt <= ADSWIO3_GPIO_CONFIG_SEL_D; n_cnt ++ )
    {
        if ( ADSWIO3_ERROR == adswio3_set_gpio_config( &adswio3, n_cnt,
                                                              ADSWIO3_GPIO_CONFIG_GPO_DATA_HIGH,
                                                              ADSWIO3_GPIO_CONFIG_GP_WK_PD_DIS,
                                                              ADSWIO3_GPIO_CONFIG_MODE_OUT ) )
        {
            log_error( &logger, " Set GPIO configuration. " );
            for ( ; ; );
        }
        Delay_ms ( 100 );
    }

    float diag_vtg = 0;
    log_printf( &logger, "_________________________\r\n" );
    log_printf( &logger, " > Diagnostic Voltages <\r\n" );
    if ( ADSWIO3_OK == adswio3_get_diag_vtg( &adswio3, ADSWIO3_DIAG_RESULT_SEL_0, &diag_vtg ) )
    {
        log_printf( &logger, " AVDD: %.2f V\r\n", diag_vtg );
        Delay_ms ( 100 );
    }

    if ( ADSWIO3_OK == adswio3_get_diag_vtg( &adswio3, ADSWIO3_DIAG_RESULT_SEL_1, &diag_vtg ) )
    {
        log_printf( &logger, " VASS: %.2f V\r\n", diag_vtg );
        Delay_ms ( 100 );
    }

    if ( ADSWIO3_OK == adswio3_get_diag_vtg( &adswio3, ADSWIO3_DIAG_RESULT_SEL_2, &diag_vtg ) )
    {
        log_printf( &logger, " VACC: %.2f V\r\n", diag_vtg );
        Delay_ms ( 100 );
    }

    if ( ADSWIO3_OK == adswio3_get_diag_vtg( &adswio3, ADSWIO3_DIAG_RESULT_SEL_3, &diag_vtg ) )
    {
        log_printf( &logger, " LVIN: %.2f V\r\n", diag_vtg );
        Delay_ms ( 100 );
    }
    log_printf( &logger, "_________________________\r\n" );
    Delay_ms ( 1000 );
}

void application_task ( void )
{
    float ntc_temp = 0, iop_ion_vtg = 0;
    if ( ADSWIO3_OK == adswio3_get_ntc_temp( &adswio3, ADSWIO3_DIAG_RESULT_SEL_3, &ntc_temp ) )
    {
        log_printf( &logger, " NTC Temperature: %.2f degC\r\n", ntc_temp );

        Delay_ms ( 100 );
    }

    if ( ADSWIO3_OK == adswio3_get_voltage_input( &adswio3, 0, &iop_ion_vtg ) )
    {
        log_printf( &logger, "IOP/ION Voltage: %.3f V\r\n", iop_ion_vtg );
        Delay_ms ( 100 );
    }
    log_printf( &logger, "_________________________\r\n" );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
