Experience a seamless expansion of I/O pins with TPIC6A595 and STM32L496AG

Expand, Connect, Innovate!

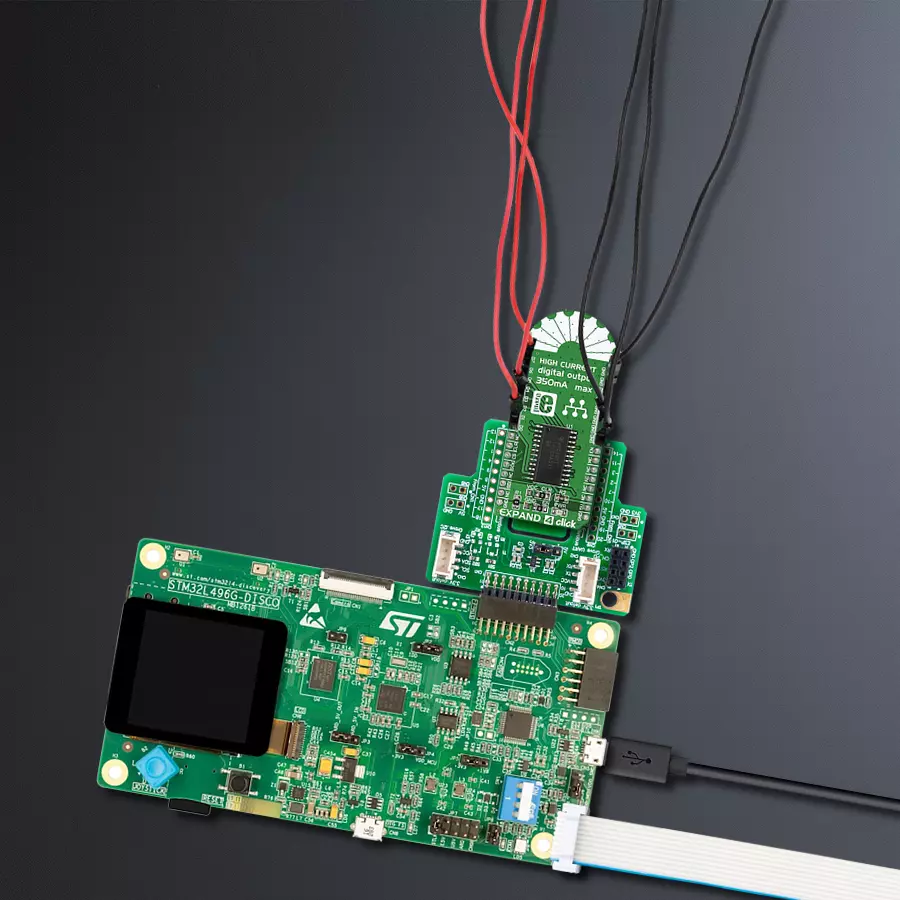

EXPAND 4 Click with Discovery kit with STM32L496AG MCU

Published Jul 22, 2025

Click board™

EXPAND 4 Click

Dev. board

Discovery kit with STM32L496AG MCU

Compiler

NECTO Studio

MCU

STM32L496AG

Unlock new levels of connectivity and control as our port expander technology provides you with the tools to expand your I/O capabilities, effortlessly manage data flow, and improve the efficiency of your electronic systems

A

A

Hardware Overview

How does it work?

Expand 4 Click is based on the TPIC6A595, a monolithic, high-voltage, high-current power logic 8-bit shift register from Texas Instruments. The TPIC6A595 contains a built-in voltage clamp on the outputs for inductive transient protection. Each output is a low-side, open-drain DMOS transistor with output ratings of 50V and a 350mA continuous sink current capability, featuring an independent chopping current-limiting circuit to prevent damage in the case of a short circuit. This Click board™ is designed for use in systems that require relatively high load power, such as relays, solenoids, and other medium-current or high-voltage loads. This TPIC6A595 contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit, D-type storage register. Data transfers through the shift and storage register on the rising edge

of the shift register clock (SPI clock pin on the mikroBUS™ socket) and the register clock (CS clock pin on the mikroBUS™ socket), respectively. The storage register transfers data to the output buffer when the shift register clear pin is set to a high logic state. This function can be done via the existing CLR jumper by placing it in the appropriate VCC or CLR position. In this way, it is possible to permanently bind this function so that the storage register always transfers data to the output buffer by setting the jumper to the VCC position or controlled digitally by setting the jumper to the CLR position. This way, controlling the shift-register-clear via the RST pin of the mikroBUS™ socket marked as CLR is possible. The input shift register is cleared when CLR is in a low logic state. In the same way, it is possible to

manage the outputs of the port expander, eight pins above the mikroBUS™ socket (D0-D7), using EN jumper, more precisely define the output management mode, constantly ON or digital control over them through PWM pin of the mikroBUS™ socket marked as EN. When the EN pin is held in a high logic state, all data in the output buffers is kept low, and all drain outputs are OFF. When EN is LOW, data from the storage register is transparent to the output buffers. This Click board™ can be operated only with a 5V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

EXPAND 4 Click hardware overview image

Features overview

Development board

The 32L496GDISCOVERY Discovery kit serves as a comprehensive demonstration and development platform for the STM32L496AG microcontroller, featuring an Arm® Cortex®-M4 core. Designed for applications that demand a balance of high performance, advanced graphics, and ultra-low power consumption, this kit enables seamless prototyping for a wide range of embedded solutions. With its innovative energy-efficient

architecture, the STM32L496AG integrates extended RAM and the Chrom-ART Accelerator, enhancing graphics performance while maintaining low power consumption. This makes the kit particularly well-suited for applications involving audio processing, graphical user interfaces, and real-time data acquisition, where energy efficiency is a key requirement. For ease of development, the board includes an onboard ST-LINK/V2-1

debugger/programmer, providing a seamless out-of-the-box experience for loading, debugging, and testing applications without requiring additional hardware. The combination of low power features, enhanced memory capabilities, and built-in debugging tools makes the 32L496GDISCOVERY kit an ideal choice for prototyping advanced embedded systems with state-of-the-art energy efficiency.

Discovery kit with STM32L496AG MCU double side image

Microcontroller Overview

MCU Card / MCU

STM32L496AG Image

Architecture

ARM Cortex-M4

MCU Memory (KB)

1024

Silicon Vendor

STMicroelectronics

Pin count

169

RAM (Bytes)

327680

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Shift Register Clear Control
PB2
RST
SPI Chip Select
PG11
CS
SPI Clock
PI1
SCK
NC
NC
MISO
SPI Data IN
PI3
MOSI
NC
NC
3.3V
Ground
GND
GND
Output Enable
PA0
PWM
NC
NC
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

EXPAND 4 Click Schematic schematic

Step by step

Project assembly

Discovery kit with STM32H750XB MCU front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Discovery kit with STM32L496AG MCU as your development board.

Discovery kit with STM32H750XB MCU front image hardware assembly
Thermo 21 Click front image hardware assembly
Prog-cut hardware assembly
Thermo 21 Click complete accessories setup image hardware assembly
Board mapper by product7 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Discovery kit with STM32H750XB MCU NECTO MCU Selection Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto image step 11 hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for EXPAND 4 Click driver.

Key functions:

  • expand4_write_data - Function write 8-bit data function to TPIC6A595 shift register

  • expand4_enable_output - Function turn on output buffers - set PWM pin low

  • expand4_reset - Function clear input TPIC6A595 shift register.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file
 * \brief Expand4 Click example
 *
 * # Description
 * Example demonstrates use of Expand 4 Click board.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization driver enable's - Clear TPIC6A595 register and start write log.
 *
 * ## Application Task
 * This is a example which demonstrates the use of Expand 4 Click board.
 * In this example, the LED pin mask is transferred via SPI bus,
 * LEDs connected to D0-D7 pins are lit accordingly by turning ON LEDs from D0 to D7 for 3 sec.
 * Results are being sent to the Usart Terminal where you can track their changes.
 * All data logs on usb uart for aproximetly every 3 sec. when the change pin who is connected.
 *
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "expand4.h"

// ------------------------------------------------------------------ VARIABLES

static expand4_t expand4;
static log_t logger;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    expand4_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    expand4_cfg_setup( &cfg );
    EXPAND4_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    expand4_init( &expand4, &cfg );
    expand4_reset( &expand4 );
}

void application_task ( void )
{
    uint8_t pin_position;

    for ( pin_position = 0; pin_position < 8; pin_position++ )
    {
        expand4_disable_output( &expand4 );
        Delay_ms ( 100 );

        expand4_turn_on_by_position( &expand4, pin_position );
        Delay_ms ( 100 );

        log_printf( &logger, " D%d", pin_position );

        expand4_enable_output( &expand4 );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
        Delay_ms ( 1000 );
    }

    log_printf( &logger, "\n----------------------------------\n");
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
