Experience the convenience of wireless networking with ATWINC3400-MR210CA and MK64FN1M0VDC12

/*!
 * @file main.c
 * @brief WiFi8 Click example
 *
 * # Description

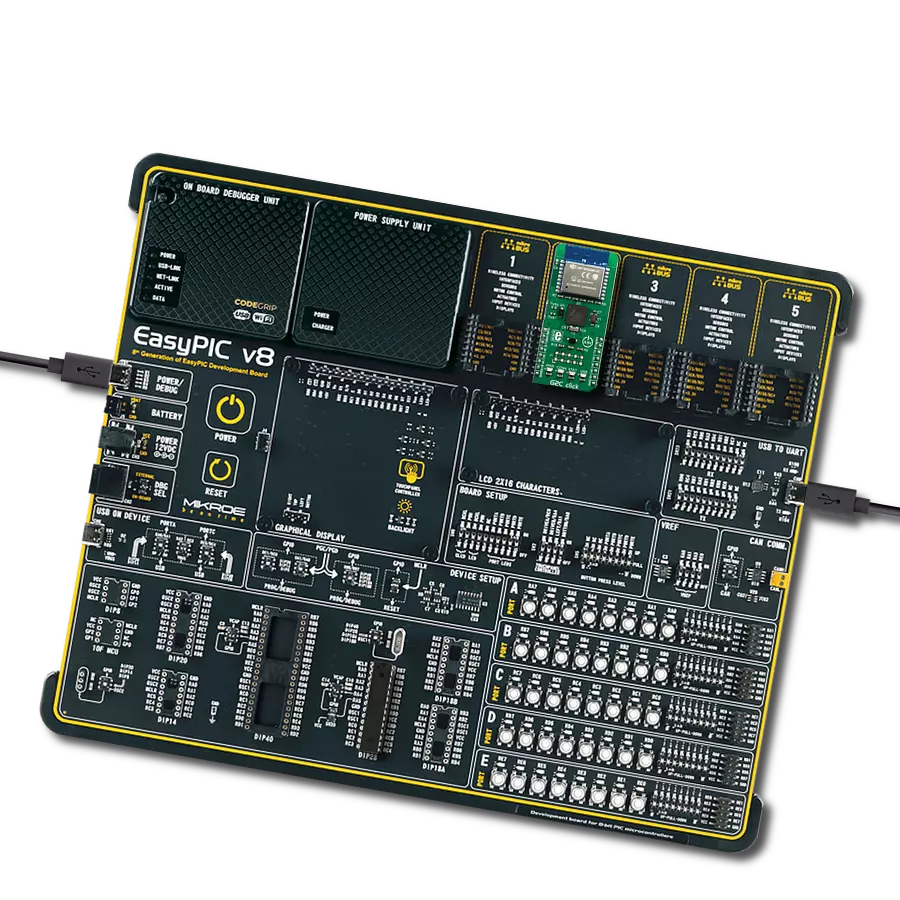

 * This application showcases capability of the WiFi 8 Click board.
 * It initializes device, connects to local WiFi. Creates TCP, waits for connection
 * and logs every message it receives for clients when it receives CR or LF flag
 * it returns message back to Client.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes Host logger, and communication module and pins.
 * Then resets device and initializes devices firmware. If no error
 * occurred it sets callback functions for WiFi and TCP socket, and checks
 * current firmware version. After firmware is read it connects to local WiFi network
 * set by user. When connected it initializes and creates socket.
 *
 * ## Application Task
 * It loops function for handling events. Should notify and log messages when Client
 * is connected/disconnected to TCP server and returns back when receives CR or LF flag.
 *
 * @note
 * User should set @b MAIN_WLAN_SSID and @b MAIN_WLAN_PSK for connecting to local network.
 * When devices connects to network it will log its IP that user need to connect to.
 * After user connects it should get notification and it can send data to server.
 * Server will return message "WiFi 8 Click" when Client sends CR or LF character in message.
 *
 * @author Luka Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "wifi8.h"

static wifi8_t wifi8;
static log_t logger;

/** Wi-Fi Settings */
#define MAIN_WLAN_SSID      "MikroE Public"         /**< Destination SSID */
#define MAIN_WLAN_AUTH       M2M_WIFI_SEC_WPA_PSK   /**< Security type */
#define MAIN_WLAN_PSK        "mikroe.guest"         /**< Password for Destination SSID */
#define MAIN_TCP_SERVER_PORT 8080                   /**< TCP Server port for client connection */

typedef struct s_msg_wifi_product
{
    uint8_t name[30];

} t_msg_wifi_product;

static t_msg_wifi_product msg_wifi_product =
{
    .name = "WiFi 8 Click"
};

static uint8_t gau8_socket_test_buffer[1024] = {0};

static int8_t tcp_server_socket = -1;
static int8_t tcp_client_socket = -1;
wifi8_sockaddr_in_t addr;

static uint8_t wifi_connected;

static uint8_t scan_request_index = 0;

static uint8_t num_found_ap = 0;

static void wifi_cb(uint8_t u8_msg_type, void *pv_msg);

static void socket_cb(int8_t sock, uint8_t u8_msg, void *pv_msg);

void application_init(void)
{
    log_cfg_t log_cfg;
    wifi8_cfg_t wifi8_cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info(&logger, " Application Init ");

    Delay_ms ( 1000 );

    wifi8_cfg_setup(&wifi8_cfg);
    WIFI8_MAP_MIKROBUS(wifi8_cfg, MIKROBUS_1);
    err_t init_flag = wifi8_init(&wifi8, &wifi8_cfg);
    if (init_flag == SPI_MASTER_ERROR)
    {
        log_error(&logger, " Application Init Error. ");
        log_info(&logger, " Please, run program again... ");
        for (;;);
    }

    if (WIFI8_OK != wifi8_default_cfg(&wifi8))
    {
        log_error(&logger, " Default configuartion. ");
        for (;;);
    }
    //Set callback functions for WiFi and TCP socket
    wifi8.app_wifi_cb = wifi_cb;
    wifi8.app_socket_cb = socket_cb;
    wifi_connected = M2M_WIFI_DISCONNECTED;

    wifi8_m2m_rev_t fw_version;
    if (WIFI8_OK == wifi8_get_full_firmware_version(&wifi8, &fw_version))
    {
        log_printf(&logger, "Firmware HIF (%u) : %u.%u \n",
                   ((uint16_t)(((fw_version.u16_firmware_hif_info) >> (14)) & (0x3))),
                   ((uint16_t)(((fw_version.u16_firmware_hif_info) >> (8)) & (0x3f))),
                   ((uint16_t)(((fw_version.u16_firmware_hif_info) >> (0)) & (0xff))));
        log_printf(&logger, "Firmware ver   : %u.%u.%u \n",
                   (uint16_t)fw_version.u8_firmware_major,
                   (uint16_t)fw_version.u8_firmware_minor,
                   (uint16_t)fw_version.u8_firmware_patch);
        log_printf(&logger, "Firmware Build %s Time %s\n", fw_version.build_date, fw_version.build_time);
    }
    else
    {
        log_error(&logger, " reading full firmware version ");
        for (;;);
    }

    if (wifi_connected == M2M_WIFI_DISCONNECTED)
    {
        if (WIFI8_OK != wifi8_connect(&wifi8, MAIN_WLAN_SSID, sizeof(MAIN_WLAN_SSID),
                                      MAIN_WLAN_AUTH, MAIN_WLAN_PSK, M2M_WIFI_CH_ALL))
        {
            log_error(&logger, " Connection");
            for (;;);
        }
        else
        {
            log_info(&logger, " Connecting... ");
        }
    }

    while (wifi_connected != M2M_WIFI_CONNECTED)
    {
        wifi8_handle_events(&wifi8);
    }

    wifi8_socket_init(&wifi8);
    addr.sin_family = 2;
    addr.sin_port = (uint16_t)((((uint16_t)((MAIN_TCP_SERVER_PORT))) << 8) | (((uint16_t)((MAIN_TCP_SERVER_PORT))) >> 8));
    addr.sin_addr.s_addr = 0;

    log_info(&logger, " Application Task ");
}

void application_task(void)
{
    wifi8_handle_events(&wifi8);

    if (tcp_server_socket < 0)
    {

        if ((tcp_server_socket = wifi8_socket_create(&wifi8, 2, 1, 0)) < 0)
        {
            log_printf(&logger, "main: failed to create TCP server socket error!\r\n");
        }
        else
        {
            wifi8_socket_bind(&wifi8, tcp_server_socket, (wifi8_sockaddr_t *)&addr,
                              sizeof(wifi8_sockaddr_in_t));
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void wifi_cb(uint8_t u8_msg_type, void *pv_msg)
{
    switch (u8_msg_type)
    {
        case M2M_WIFI_RESP_SCAN_DONE:
        {
            wifi8_m2m_scan_done_t *pstr_info = (wifi8_m2m_scan_done_t *)pv_msg;
            scan_request_index = 0;
            if (pstr_info->u8_numof_ch >= 1)
            {
                wifi8_req_scan_result(&wifi8, scan_request_index);
                scan_request_index++;
            }
            else
            {
                wifi8_request_scan(&wifi8, M2M_WIFI_CH_ALL);
            }

            break;
        }
        case M2M_WIFI_RESP_SCAN_RESULT:
        {
            wifi8_m2m_wifiscan_result_t *pstr_scan_result = (wifi8_m2m_wifiscan_result_t *)pv_msg;
            uint16_t demo_ssid_len;
            uint16_t scan_ssid_len = strlen((char *)pstr_scan_result->au8ssid);

            log_printf(&logger, "wifi_cb: [%d] SSID:%s\r\n", (uint16_t)scan_request_index, pstr_scan_result->au8ssid);

            num_found_ap = wifi8.ch_num;
            if (scan_ssid_len)
            {
                demo_ssid_len = strlen((const char *)MAIN_WLAN_SSID);
                if ((demo_ssid_len == scan_ssid_len) &&
                    (!memcmp(pstr_scan_result->au8ssid, (uint8_t *)MAIN_WLAN_SSID, demo_ssid_len)))
                {
                    log_printf(&logger, "wifi_cb: found %s \r\n", MAIN_WLAN_SSID);
                    wifi8_connect(&wifi8, MAIN_WLAN_SSID, sizeof(MAIN_WLAN_SSID),
                                M2M_WIFI_SEC_WPA_PSK, MAIN_WLAN_PSK, M2M_WIFI_CH_ALL);
                    break;
                }
            }

            if (scan_request_index < num_found_ap)
            {
                wifi8_req_scan_result(&wifi8, scan_request_index);
                scan_request_index++;
            }
            else
            {
                log_printf(&logger, "wifi_cb: can not find AP %s\r\n", MAIN_WLAN_SSID);
                wifi8_request_scan(&wifi8, M2M_WIFI_CH_ALL);
            }

            break;
        }
        case M2M_WIFI_RESP_CON_STATE_CHANGED:
        {
            wifi8_m2m_wifi_state_changed_t *pstr_wifi_state = (wifi8_m2m_wifi_state_changed_t *)pv_msg;
            if (pstr_wifi_state->u8_curr_state == M2M_WIFI_CONNECTED)
            {
                log_printf(&logger, "wifi_cb: connected\r\n");
            }
            else if (pstr_wifi_state->u8_curr_state == M2M_WIFI_DISCONNECTED)
            {
                log_printf(&logger, "wifi_cb: disconnected\r\n");
                wifi_connected = M2M_WIFI_DISCONNECTED;

                wifi8_request_scan(&wifi8, M2M_WIFI_CH_ALL);
            }

            break;
        }
        case M2M_WIFI_REQ_DHCP_CONF:
        {
            volatile uint8_t *pu8ip_address = (uint8_t *)pv_msg;

            log_printf(&logger, "wifi_cb: IP: %u.%u.%u.%u\r\n",
                    (uint16_t)pu8ip_address[0], (uint16_t)pu8ip_address[1],
                    (uint16_t)pu8ip_address[2], (uint16_t)pu8ip_address[3]);

            wifi_connected = M2M_WIFI_CONNECTED;
            break;
        }
        default:
        {
            break;
        }
    }
}

static void socket_cb(int8_t sock, uint8_t u8_msg, void *pv_msg)
{
    switch (u8_msg)
    {
        case SOCKET_MSG_BIND:
        {
            wifi8_socket_bind_msg_t *pstr_bind = (wifi8_socket_bind_msg_t *)pv_msg;
            if (pstr_bind && pstr_bind->status == 0)
            {
                log_printf(&logger, "socket_cb: bind success!\r\n");
                Delay_ms ( 500 );
                wifi8_socket_listen(&wifi8, tcp_server_socket, 0);
            }
            else
            {
                log_printf(&logger, "socket_cb: bind error!\r\n");
                wifi8_socket_close(&wifi8, tcp_server_socket);
                tcp_server_socket = -1;
            }
        }
        break;
        case SOCKET_MSG_LISTEN:
        {
            wifi8_socket_listen_msg_t *pstr_listen = (wifi8_socket_listen_msg_t *)pv_msg;
            if (pstr_listen && pstr_listen->status == 0)
            {
                log_printf(&logger, "socket_cb: listen success!\r\n");
            }
            else
            {
                log_printf(&logger, "socket_cb: listen error!\r\n");
                wifi8_socket_close(&wifi8, tcp_server_socket);
                tcp_server_socket = -1;
            }
        }
        break;
        case SOCKET_MSG_ACCEPT:
        {
            wifi8_socket_accept_msg_t *pstr_accept = (wifi8_socket_accept_msg_t *)pv_msg;
            if (pstr_accept)
            {
                log_printf(&logger, "socket_cb: accept success!\r\n");
                tcp_client_socket = pstr_accept->sock;
                wifi8_socket_receive(&wifi8, tcp_client_socket, gau8_socket_test_buffer, sizeof(gau8_socket_test_buffer), 0);
            }
            else
            {
                log_printf(&logger, "socket_cb: accept error!\r\n");
                wifi8_socket_close(&wifi8, tcp_server_socket);
                tcp_server_socket = -1;
            }
        }
        break;
        case SOCKET_MSG_SEND:
        {
            log_printf(&logger, "socket_cb: send success!\r\n");
            wifi8_socket_receive(&wifi8, tcp_client_socket, gau8_socket_test_buffer, sizeof(gau8_socket_test_buffer), 0);
        }
        break;
        case SOCKET_MSG_RECV:
        {
            wifi8_socket_recv_msg_t *pstr_recv = (wifi8_socket_recv_msg_t *)pv_msg;
            if (pstr_recv && pstr_recv->s16_buffer_size > 0)
            {
                log_printf(&logger, "%s", pstr_recv->pu8_buffer);
                if ((strchr(pstr_recv->pu8_buffer, 13) != 0) || (strchr(pstr_recv->pu8_buffer, 10) != 0))
                {
                    wifi8_socket_send(&wifi8, tcp_client_socket, &msg_wifi_product, sizeof(t_msg_wifi_product));
                }
                else
                {
                    wifi8_socket_receive(&wifi8, tcp_client_socket, gau8_socket_test_buffer, sizeof(gau8_socket_test_buffer), 0);
                }
                memset(pstr_recv->pu8_buffer, 0, pstr_recv->s16_buffer_size);
            }
            else
            {
                log_printf(&logger, "socket_cb: close socket!\r\n");
                wifi8_socket_close(&wifi8, tcp_server_socket);
                tcp_server_socket = -1;
            }
        }
        break;
        default:
        {
            break;
        }
    }
}

// ------------------------------------------------------------------------ END
