Custom-crafted control for unrivaled BLDC motor performance based on TC78B009FTG and PIC18F47Q10

Effortless power at your command

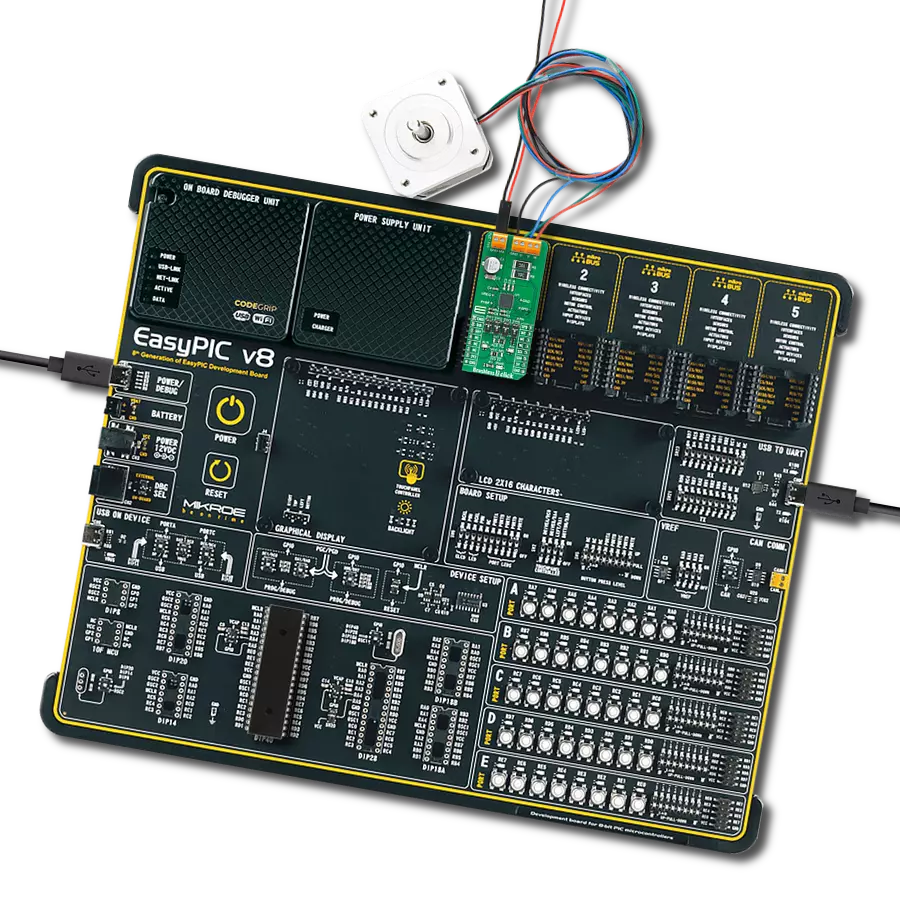

Brushless 7 Click with EasyPIC v8

Published Nov 01, 2023

Click board™

Brushless 7 Click

Development board

EasyPIC v8

Compiler

NECTO Studio

MCU

PIC18F47Q10

Stay ahead of the competition with our brushless motor control solution, offering cutting-edge features and capabilities for superior industrial performance

A

A

Hardware Overview

How does it work?

Brushless 7 Click is based on the TC78B009FTG, a three-phase sensorless PWM pre-driver capable of driving Delta or Wye-configured motors from Toshiba Semiconductor. Motor rotation is controlled without Hall sensors by detecting the rotational position from the induced voltage. The TC78B009FTG has a built-in closed-loop speed control function, which regulates and maintains the motor rotational speed under dynamic power fluctuations and load variations. This function has an internal non-volatile memory (NVM) for speed profile setting. The TC78B009FTG also has protection features such as thermal shutdown, under-voltage, over-current protection, lock detection, and more. The TC78B009FTG has a speed control command that controls the motor's start, stop, and rotation count. This signal type is determined by the position of an onboard SW2 switch and register setting, allowing the selection among PWM, analog voltage signal, and standard I2C 2-Wire interface to read data and configure settings with a maximum frequency of 400kHz. The TC78B009FTG also allows choosing its I2C slave address by positioning SMD switches labeled SW3 and SW4 to an appropriate position. In the case of a PWM signal or analog voltage signal, the TC78B009FTG is controlled through the mikroBUS™ PWM signal marked as SPD.

This Click board™ has several operational modes: Standby, Idle, Brake, and Error Mode. Standby mode is available to reduce the power consumption, controlled by the SBY pin routed to the CS pin of the mikroBUS™ socket, together with register settings. After Power-on, with the SBY pin disabled, the TC78B009FTG reads parameters from NVM and stores them in the registers. After that, IC goes to the Brake sequence, controlled via the SW1 switch, and then moves to Idle mode. Whit the speed control command set, the TC78B009FTG starts the motor by Start-Up sequence. When an abnormal condition is detected, IC moves to Error mode and automatically restarts after restart time. In Error mode with Stop as a speed control command, the TC78B009FTG will move to Idle mode. Alongside I2C communication, several signals connected to the mikroBUS™ socket pins are also used to forward the information to the MCU. The DIR pin routed on the RST pin of the mikroBUS™ socket, is used to select the direction of motor rotation (clockwise/counterclockwise), while the CMO pin, routed on the AN pin of the mikroBUS™ socket, serves as the motor's output current monitoring. Also, the TC78B009FTG provides selectable interrupts chosen via the INT SEL jumper routed on the INT pin of the mikroBUS™ socket by

positioning the SMD jumper to an appropriate position marked as ALR or FG. The default position of this jumper is the FG position which serves as a rotation speed indicator, while the ALR position represents an abnormality detection feature. Both features have visual indicators; a red LED marked as ALR and a blue LED labeled as FG. Brushless 7 Click is realized using six N-channel MOSFETs, the SSM6K513NU also from Toshiba Semiconductor, two for each of the three phases. Using these FETs, capable of handling 15A, allows low power dissipation when driving 5A BLDC before hitting the output current limit threshold, which is used to restrain the current flowing to the motor. It also supports an external power supply for the motor, which can be connected to the input terminal labeled as VM and should be within the range of 11V to 27V, while the BLDC motor coils can be connected to the terminals labeled as U, V, and W. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. This Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.

Brushless 7 Click hardware overview image

Features overview

Development board

EasyPIC v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports many high pin count 8-bit PIC microcontrollers from Microchip, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, EasyPIC v8 provides a fluid and immersive working experience, allowing access anywhere and under any

circumstances at any time. Each part of the EasyPIC v8 development board contains the components necessary for the most efficient operation of the same board. In addition to the advanced integrated CODEGRIP programmer/debugger module, which offers many valuable programming/debugging options and seamless integration with the Mikroe software environment, the board also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.

Communication options such as USB-UART, USB DEVICE, and CAN are also included, including the well-established mikroBUS™ standard, two display options (graphical and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from the smallest PIC MCU devices with only eight up to forty pins. EasyPIC v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

EasyPIC v8 horizontal image

Microcontroller Overview

MCU Card / MCU

PIC18F47Q10

Architecture

PIC

MCU Memory (KB)

128

Silicon Vendor

Microchip

Pin count

40

RAM (Bytes)

3615

You complete me!

Accessories

Brushless DC (BLDC) Motor with a Hall sensor represents a high-performance motor from the 42BLF motor series. This motor, wired in a star configuration, boasts a Hall Effect angle of 120°, ensuring precise and reliable performance. With a compact motor length of 47mm and a lightweight design tipping the scales at just 0.29kg, this BLDC motor is engineered to meet your needs. Operating flawlessly at a voltage rating of 24VDC and a speed range of 4000 ± 10% RPM, this motor offers consistent and dependable power. It excels in a normal operational temperature range from -20 to +50°C, maintaining efficiency with a rated current of 1.9A. Also, this product seamlessly integrates with all Brushless Click boards™ and those that require BLDC motors with Hall sensors.

Brushless 7 Click accessories image

Used MCU Pins

mikroBUS™ mapper

Current Monitor
RA2
AN
Rotation Direction
RE1
RST
Standby
RE0
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Speed Control
RC0
PWM
Interrupt
RB0
INT
NC
NC
TX
NC
NC
RX
I2C Clock
RC3
SCL
I2C Data
RC4
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Schematic

Brushless 7 Click Schematic schematic

Step by step

Project assembly

EasyPIC v8 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyPIC v8 as your development board.

EasyPIC v8 front image hardware assembly
GNSS2 Click front image hardware assembly
MCU DIP 40 hardware assembly
GNSS2 Click complete accessories setup image hardware assembly
EasyPIC v8 Access DIPMB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto DIP image step 7 hardware assembly
Necto image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

After pressing the "FLASH" button on the left-side panel, it is necessary to open the UART terminal to display the achieved results. By clicking on the Tools icon in the right-hand panel, multiple different functions are displayed, among which is the UART Terminal. Click on the offered "UART Terminal" icon.

UART Application Output Step 1

Once the UART terminal is opened, the window takes on a new form. At the top of the tab are two buttons, one for adjusting the parameters of the UART terminal and the other for connecting the UART terminal. The tab's lower part is reserved for displaying the achieved results. Before connecting, the terminal has a Disconnected status, indicating that the terminal is not yet active. Before connecting, it is necessary to check the set parameters of the UART terminal. Click on the "OPTIONS" button.

UART Application Output Step 2

In the newly opened UART Terminal Options field, we check if the terminal settings are correct, such as the set port and the Baud rate of UART communication. If the data is not displayed properly, it is possible that the Baud rate value is not set correctly and needs to be adjusted to 115200. If all the parameters are set correctly, click on "CONFIGURE".

UART Application Output Step 3

The next step is to click on the "CONNECT" button, after which the terminal status changes from Disconnected to Connected in green, and the data is displayed in the Received data field.

UART Application Output Step 4

Software Support

Library Description

This library contains API for Brushless 7 Click driver.

Key functions:

  • brushless7_change_duty - Function for changeing duty of device

  • brushless7_max_speed_rpm - Function for setting max rpm parameter of device

  • brushless7_control_mode_set - Function for setting type of device control

Open Source

Code example

This example can be found in NECTO Studio. Feel free to download the code, or you can copy the code below.

/*!
 * \file
 * \brief Brushless7 Click example
 *
 * # Description
 * This example demonstrates the use of Brushless 7 Click board.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Sets the default configuration and then configures the click board for the selected mode.
 *
 * ## Application Task
 * Increases and decreases the speed of the motor rotation by setting the duty cycle or
 * rpm values depending on which mode is previously selected.
 * It also switches the direction of rotation at the beginning of each cycle.
 * All data is being logged on the USB UART where you can track their changes.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "brushless7.h"

// ------------------------------------------------------------------ VARIABLES

static brushless7_t brushless7;
static log_t logger;

uint8_t demo_type_data = 0;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    brushless7_cfg_t cfg;
    uint8_t error_flag = 0;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    brushless7_cfg_setup( &cfg );
    BRUSHLESS7_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    brushless7_init( &brushless7, &cfg );
    Delay_ms( 100 );

    brushless7_default_cfg( &brushless7 );
    Delay_ms( 100 );

    demo_type_data = BRUSHLESS7_CTRL_TYPE_DUTY;

    if ( BRUSHLESS7_CTRL_TYPE_DUTY == demo_type_data )
    {
        error_flag |= brushless7_max_duty( &brushless7, 95.0 );
        error_flag |= brushless7_start_duty( &brushless7, 5.0 );
        error_flag |= brushless7_stop_duty( &brushless7, 2.0 );
        log_printf( &logger, " ----- DUTY CONTROL ----- \r\n" );
    }
    else if ( BRUSHLESS7_CTRL_TYPE_RPM == demo_type_data )
    {
        error_flag |= brushless7_max_speed_rpm( &brushless7, BRUSHLESS7_MAX_SPEED_4096 );
        log_printf( &logger, " ----- RPM CONTROL ----- \r\n" );
    }

    if ( BRUSHLESS7_DEV_ERROR == error_flag )
    {
        log_printf( &logger, " ----- ERROR ----- \r\n" );
        for( ; ; );
    }
}

void application_task ( void )
{
    brushless7_control_mode_set( &brushless7, BRUSHLESS7_CTRL_TYPE_STOP );
    brushless7_toggle_dir_pin_state ( &brushless7 );
    Delay_ms( 2000 );
    brushless7_control_mode_set( &brushless7, demo_type_data );
    if ( BRUSHLESS7_CTRL_TYPE_DUTY == demo_type_data )
    {
        log_printf( &logger, " The motor is accelerating...\r\n" );
        log_printf( &logger, "------------------------------\r\n" );
        brushless7_change_duty( &brushless7, 70.0 );
        Delay_ms( 20000 );

        log_printf( &logger, " The motor is slowing down...\r\n" );
        log_printf( &logger, "------------------------------\r\n" );
        brushless7_change_duty( &brushless7, 8.0 );
        Delay_ms( 20000 );
    }
    else if ( BRUSHLESS7_CTRL_TYPE_RPM == demo_type_data )
    {
        log_printf( &logger, " The motor is accelerating...\r\n" );
        log_printf( &logger, "------------------------------\r\n" );
        brushless7_start_rpm( &brushless7, 1000 );
        Delay_ms( 20000 );

        log_printf( &logger, " The motor is slowing down...\r\n" );
        log_printf( &logger, "------------------------------\r\n" );
        brushless7_start_rpm( &brushless7, 100 );
        Delay_ms( 20000 );
    }
}

void main ( void )
{
    application_init( );

    for ( ; ; )
    {
        application_task( );
    }
}

// ------------------------------------------------------------------------ END
