Intermediate
30 min

Make a wireless connection without any trouble with XB8X-DMUS-001 and ATmega2560

Ready, set, connect!

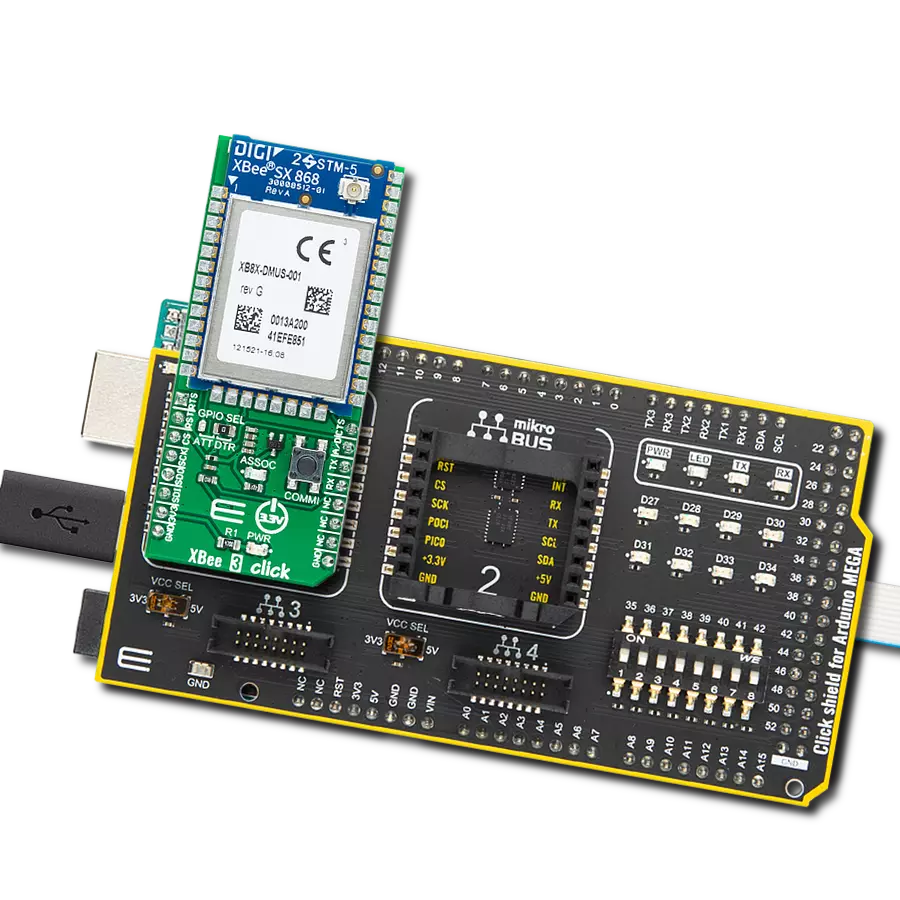

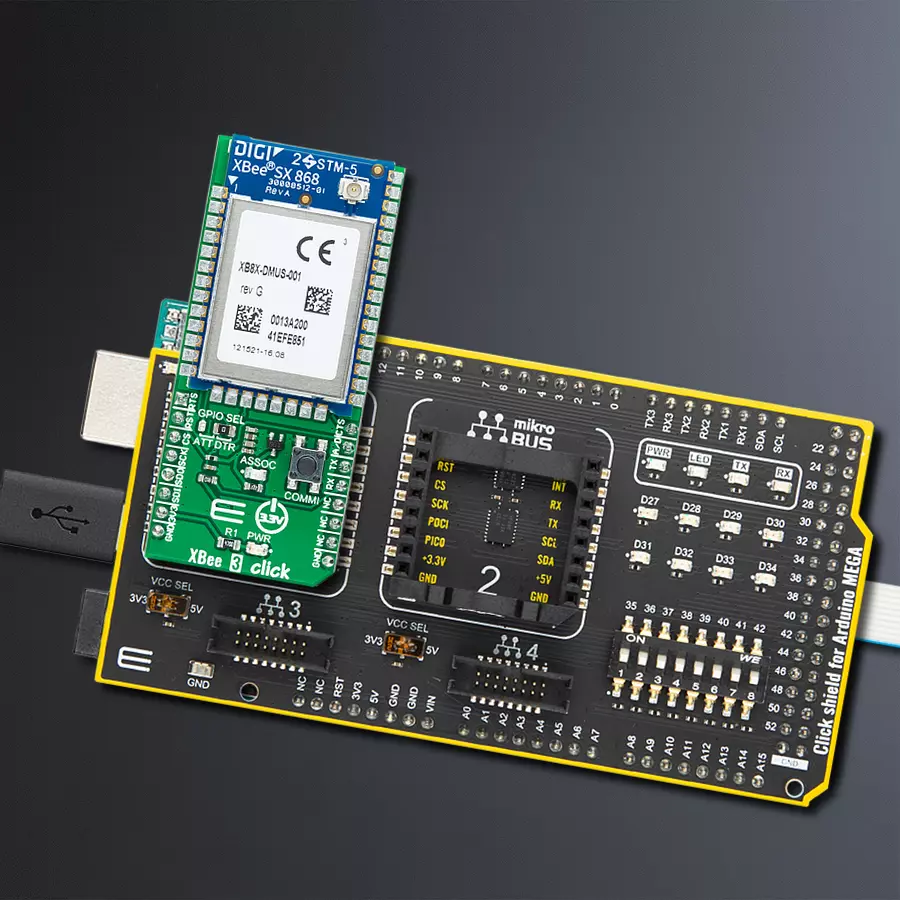

XBee 3 Click with Arduino Mega 2560 Rev3

Published Feb 14, 2024

Click board™

XBee 3 Click

Dev. board

Arduino Mega 2560 Rev3

Compiler

NECTO Studio

MCU

ATmega2560

Secure and reliable wireless connectivity for various M2M and IoT devices

A

A

Hardware Overview

How does it work?

XBee 3 Click is based on the XB8X-DMUS-001, a Digi XBee® CE/RED certified RF module suitable for mission-critical wireless applications from Digi International. The XB8X-DMUS-001 can run a proprietary DigiMesh® or point-to-multipoint networking protocol utilizing a low-power Silicon Labs MCU and an ADF7023 transceiver with an integrated SAW filter offering industry-leading interference blocking. It also supports low-power sleeping nodes and has an RF line-of-sight range of up to 14km (rural range line of sight) in a combination of coverage, data redundancy, and data reliability. The XB8X-DMUS-001 module is pre-certified for use in European countries. Operating between 863MHz and 870MHz (868MHz), it allows use in several regions, including approved European countries. It also leverages surrounding frequencies for LBT+AFA (Listen-Before-Talk and Adaptive-Frequency-Agility), significantly reducing interference by listening to the radio environment before any transmission starts and automatically shifting to a new channel when interference is

detected. This Click board™ comes with a configurable host interface allowing communication with MCU using the chosen interface. The XB8X-DMUS-001 can communicate with MCU using the UART interface with commonly used UART RX, TX, and hardware flow control pins UART CTS and RTS (Clear to Send and Ready to Send) or using the SPI interface (XBee module will work as an SPI-slave only). In the case of the SPI interface, the users can use it to configure the module and write the library by themselves. The XBee 3 Click is associated with many other features, such as the reset function and the possibility of visual and digital indicators. An active-low reset signal routed on the RST pin of the mikroBUS™ socket activates a hardware reset of the system, while a yellow LED indicator marked as ASSOC represents a visual indication of the module's connection to the network. If the LED is constantly on, it means that the module is not connected to the mobile network, while the standard flashing of the LED represents the normal operating mode. The A/D pin of the mikroBUS™ socket

represents a type of interrupt whose function can be selected by positioning an onboard SMD jumper to an appropriate position labeled as DTR or ATT. DTR position is a "Data terminal ready" function used to tell the XBee module that the host MCU is ready to communicate, while the ATT position (SPI Attention) represents an indicator for the SPI interface whenever the XBee module has data for the host MCU. In addition, the board also has a commissioning pushbutton marked as COMMI, which, combined with an ASSOC LED, provides various simple functions to aid in deploying devices in a network. This Click board™ can only be operated from a 3.3V logic voltage level. Therefore, the board must perform appropriate logic voltage conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

xbee-3-click-hardware-overview

Features overview

Development board

Arduino Mega 2560 is a robust microcontroller platform built around the ATmega 2560 chip. It has extensive capabilities and boasts 54 digital input/output pins, including 15 PWM outputs, 16 analog inputs, and 4 UARTs. With a 16MHz crystal

oscillator ensuring precise timing, it offers seamless connectivity via USB, a convenient power jack, an ICSP header, and a reset button. This all-inclusive board simplifies microcontroller projects; connect it to your computer via USB or power it up

using an AC-to-DC adapter or battery. Notably, the Mega 2560 maintains compatibility with a wide range of shields crafted for the Uno, Duemilanove, or Diecimila boards, ensuring versatility and ease of integration.

Arduino Mega 2560 Rev3 double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

AVR

MCU Memory (KB)

256

Silicon Vendor

Microchip

Pin count

100

RAM (Bytes)

8192

You complete me!

Accessories

Click Shield for Arduino Mega comes equipped with four mikroBUS™ sockets, with two in the form of a Shuttle connector, allowing all the Click board™ devices to be interfaced with the Arduino Mega board with no effort. Featuring an AVR 8-bit microcontroller with advanced RISC architecture, 54 digital I/O pins, and Arduino™ compatibility, the Arduino Mega board offers limitless possibilities for prototyping and creating diverse applications. This board is controlled and powered conveniently through a USB connection to program and debug the Arduino Mega board efficiently out of the box, with an additional USB cable connected to the USB B port on the board. Simplify your project development with the integrated ATmega16U2 programmer and unleash creativity using the extensive I/O options and expansion capabilities. There are eight switches, which you can use as inputs, and eight LEDs, which can be used as outputs of the MEGA2560. In addition, the shield features the MCP1501, a high-precision buffered voltage reference from Microchip. This reference is selected by default over the EXT REF jumper at the bottom of the board. You can choose an external one, as you would usually do with an Arduino Mega board. There is also a GND hook for testing purposes. Four additional LEDs are PWR, LED (standard pin D13), RX, and TX LEDs connected to UART1 (mikroBUS™ 1 socket). This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the Arduino Mega board with Click Shield for Arduino Mega, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Arduino Mega accessories 1 image

Used MCU Pins

mikroBUS™ mapper

UART RTS
PF1
AN
Reset
PL1
RST
SPI Chip Select
PL4
CS
SPI Clock
PB1
SCK
SPI Data OUT
PB3
MISO
SPI Data IN
PB2
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
UART CTS
PE4
PWM
Data Ready Indicator
PB6
INT
UART TX
PE0
TX
UART RX
PE1
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

XBee 3 Click Schematic schematic

Step by step

Project assembly

Click Shield for Arduino Mega front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Arduino Mega 2560 Rev3 as your development board.

Click Shield for Arduino Mega front image hardware assembly
Arduino Mega 2560 Rev3 front image hardware assembly
Charger 27 Click front image hardware assembly
Prog-cut hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Arduino MEGA MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for XBee 3 Click driver.

Key functions:

  • xbee3_get_serial_number This function sends a get serial number command.

  • xbee3_set_device_name This function sets the device name (node identifier).

  • xbee3_set_destination_address This function sets the destination address high and low bytes.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief XBEE 3 Click Example.
 *
 * # Description
 * This example demonstrates the use of an XBEE 3 Click board by showing
 * the communication between the two Click boards configured in transparent mode.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and configures the Click board by performing a factory reset,
 * and setting the device name, destination address, and api mode to transparent.
 *
 * ## Application Task
 * Depending on the selected application mode, it reads all the received data or
 * sends the desired message every 3 seconds.
 *
 * ## Additional Function
 * - static void xbee3_clear_app_buf ( void )
 * - static err_t xbee3_process ( void )
 * - static err_t xbee3_display_rsp ( uint16_t timeout )
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "xbee3.h"

// Device name (Node identifier).
#define DEVICE_NAME                 "XBEE 3 Click"

// Enter here the specific serial number high and low bytes of the remote device as a hex string or
// leave it set to broadcast addresses for forwarding messages to all devices
#define DESTINATION_ADDRESS_HIGH    XBEE3_BROADCAST_DEST_ADDRESS_HIGH
#define DESTINATION_ADDRESS_LOW     XBEE3_BROADCAST_DEST_ADDRESS_LOW

// Comment out the line below in order to switch the application mode to receiver
#define DEMO_APP_TRANSMITTER

// Text message to send in the transmitter application mode
#define DEMO_TEXT_MESSAGE           "MikroE - XBEE 3 Click board\r\n"

// Application process buffer size
#define PROCESS_BUFFER_SIZE         200

static xbee3_t xbee3;
static log_t logger;

static char app_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;
static int32_t app_buf_cnt = 0;

/**
 * @brief XBEE 3 clearing application buffer.
 * @details This function clears memory of application buffer and reset its length and counter.
 * @note None.
 */
static void xbee3_clear_app_buf ( void );

/**
 * @brief XBEE 3 data reading function.
 * @details This function reads data from device and concatenates data to application buffer.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 *         @li @c -2 - Application buffer overflow.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t xbee3_process ( void );

/**
 * @brief XBEE 3 display response function.
 * @details This function reads data from device until it sends OK or ERROR message or until
 * it exceeds the timeout value.
 * @param[in] timeout : Timeout value in miliseconds.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t xbee3_display_rsp ( uint16_t timeout );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    xbee3_cfg_t xbee3_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    xbee3_cfg_setup( &xbee3_cfg );
    XBEE3_MAP_MIKROBUS( xbee3_cfg, MIKROBUS_1 );
    if ( UART_ERROR == xbee3_init( &xbee3, &xbee3_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    xbee3_hw_reset ( &xbee3 );
    xbee3_process( );
    xbee3_clear_app_buf( );

    log_printf( &logger, " - Enter command mode -\r\n" );
    xbee3_enter_command_mode ( &xbee3 );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Factory Reset -\r\n" );
    xbee3_factory_reset ( &xbee3 );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Get serial number -\r\n" );
    xbee3_get_serial_number ( &xbee3 );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Set Device Name -\r\n" );
    xbee3_set_device_name ( &xbee3, DEVICE_NAME );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Set Destination Address -\r\n" );
    xbee3_set_destination_address ( &xbee3, DESTINATION_ADDRESS_HIGH, DESTINATION_ADDRESS_LOW );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Set API mode -\r\n" );
    xbee3_set_api_mode ( &xbee3, XBEE3_MODE_TRANSPARENT );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Apply changes -\r\n" );
    xbee3_apply_changes ( &xbee3 );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Save changes -\r\n" );
    xbee3_save_changes ( &xbee3 );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    log_printf( &logger, " - Exit command mode -\r\n" );
    xbee3_exit_command_mode ( &xbee3 );
    Delay_ms ( 100 );
    xbee3_display_rsp ( 1000 );

    app_buf_len = 0;
    app_buf_cnt = 0;

#ifdef DEMO_APP_TRANSMITTER
    log_printf( &logger, " Application Mode: Transmitter\r\n" );
#else
    log_printf( &logger, " Application Mode: Receiver\r\n" );
#endif

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
#ifdef DEMO_APP_TRANSMITTER
    xbee3_generic_write( &xbee3, DEMO_TEXT_MESSAGE, strlen( DEMO_TEXT_MESSAGE ) );
    log_printf( &logger, "%s", ( char * ) DEMO_TEXT_MESSAGE );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
#else
    xbee3_process( );
    if ( app_buf_len > 0 )
    {
        log_printf( &logger, "%s", app_buf );
        xbee3_clear_app_buf(  );
    }
#endif
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void xbee3_clear_app_buf ( void )
{
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
    app_buf_cnt = 0;
}

static err_t xbee3_process ( void )
{
    int32_t rx_size;
    char rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
    rx_size = xbee3_generic_read( &xbee3, rx_buf, PROCESS_BUFFER_SIZE );
    if ( rx_size > 0 )
    {
        int32_t buf_cnt = 0;
        if ( ( app_buf_len + rx_size ) > PROCESS_BUFFER_SIZE )
        {
            xbee3_clear_app_buf(  );
            return XBEE3_ERROR;
        }
        else
        {
            buf_cnt = app_buf_len;
            app_buf_len += rx_size;
        }
        for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
        {
            if ( rx_buf[ rx_cnt ] != 0 )
            {
                app_buf[ ( buf_cnt + rx_cnt ) ] = rx_buf[ rx_cnt ];
            }
            else
            {
                app_buf_len--;
                buf_cnt--;
            }
        }
        return XBEE3_OK;
    }
    return XBEE3_ERROR;
}

static err_t xbee3_display_rsp ( uint16_t timeout )
{
    uint16_t timeout_cnt = 0;
    xbee3_process ( );
    while ( ( 0 == strstr( app_buf, XBEE3_RSP_OK ) ) &&
            ( 0 == strstr( app_buf, XBEE3_RSP_ERROR ) ) &&
            ( timeout_cnt++ < timeout ) )
    {
        xbee3_process ( );
        Delay_ms ( 1 );
    }
    if ( app_buf_len > 0 )
    {
        for ( int32_t buf_cnt = 0; buf_cnt < app_buf_len; buf_cnt++ )
        {
            log_printf( &logger, "%c", app_buf[ buf_cnt ] );
        }
        xbee3_clear_app_buf ( );
        log_printf( &logger, "--------------------------------\r\n" );
        return XBEE3_OK;
    }
    return XBEE3_ERROR;
}

// ------------------------------------------------------------------------ END
