Control any common DC motor using Discovery kit with STM32F407VG MCU and STM32F407VGT6

What drives you these days?

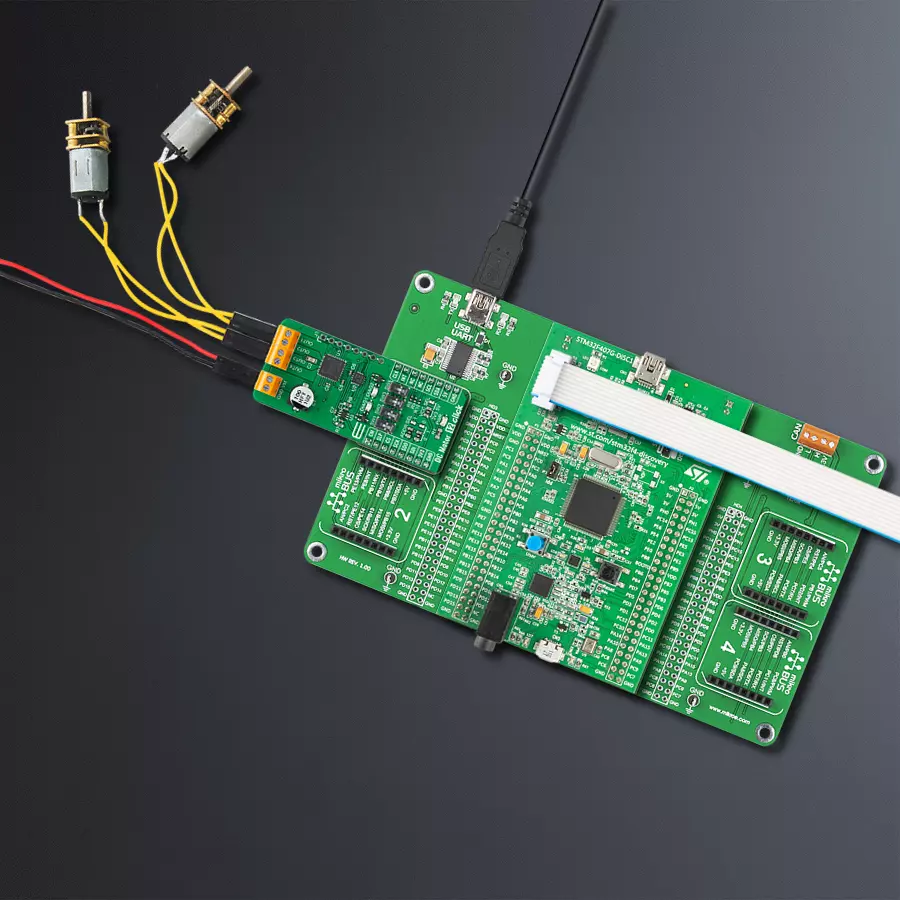

DC Motor 12 Click with Discovery kit with STM32F407VG MCU

Published Feb 14, 2024

Click board™

DC Motor 12 Click

Dev. board

Discovery kit with STM32F407VG MCU

Compiler

NECTO Studio

MCU

STM32F407VGT6

The ultimate DC motor driving solution
