Determine precise location coordinates based on satellite signals using the M20071 and STM32F030R8

Precise and reliable global navigation and positioning solution

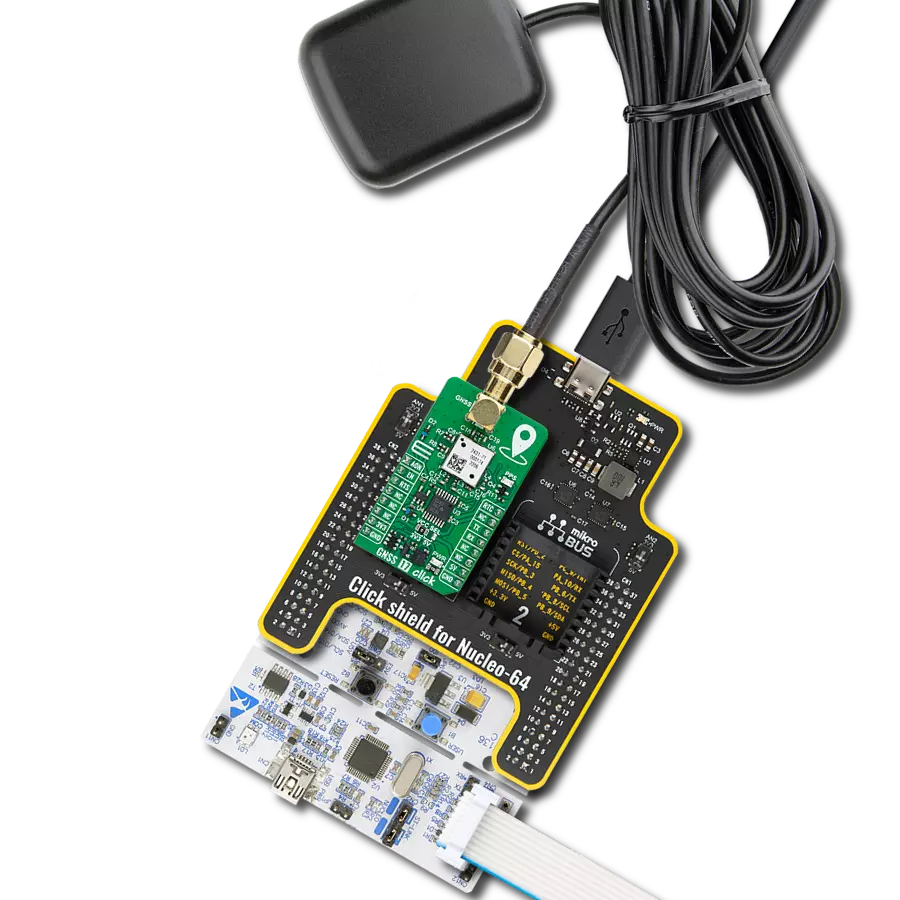

GNSS 17 Click with Nucleo-64 with STM32F030R8 MCU

Published Aug 15, 2024

Click board™

GNSS 17 Click

Dev. board

Nucleo-64 with STM32F030R8 MCU

Compiler

NECTO Studio

MCU

STM32F030R8

Track GPS, GLONASS, Galileo, BeiDou, QZSS satellites simultaneously for enhanced position accuracy, especially in urban environments

A

A

Hardware Overview

How does it work?

GNSS 17 Click is based on the M20071, an integrated full-function GNSS receiver module from Antenova. This module includes the MediaTek AG3335MN flash chip, enabling concurrently tracking multiple GNSS constellations, such as GPS, GLONASS, GALILEO, BEIDOU, and QZSS. The M20071's advanced multi-path algorithms enhance position accuracy, especially in dense urban environments. Additionally, the onboard LNA ensures excellent performance in weak-signal scenarios, making it ideal for wearable devices. This Click board™ is perfect for various applications, including portable devices, asset tracking, personal safety, sports electronics, and navigation systems, providing reliable and precise location services. The M20071 also carries several significant features that enhance this board's functionality. The EPO (Extended Prediction Orbit) fast fix capability allows the module to use up to 30-day orbit predictions, enabling an instant fix solution. The EASY (Self-Generated Orbit Prediction) feature also accelerates the TTFF (time-to-first-fix) performance by providing up to 3 days of GPS orbit predictions without needing an internet connection or software on a host processor. Furthermore, the AIC (Active Interference Cancellation) feature offers effective narrow-band interference cancellation, ensuring reliable and accurate GNSS performance even in

challenging environments. The M20071 also offers three power-saving modes: OFF, RTC, and periodic. In OFF mode, controlled via the EN pin of the mikroBUS™ socket, the module only keeps the power management logic active, with all other logic powered down when the EN pin is in a LOW logic state. RTC mode, a low-power state managed through the RTC pin of the mikroBUS™ socket, shuts down the system core. The module cannot send commands or provide position-related information in this mode, but it saves navigation data to RTC-RAM. Upon waking, the module uses this saved data to regain a position fix quickly. The periodic mode is a user-configurable state where the module alternates between running and sleeping, reducing current consumption while maintaining updated data. This flexibility allows users to tailor the module's operation according to specific power and performance needs. The M20071 module and the host MCU are communicated through a UART interface using the standard UART RX and TX pins. The default communication speed is set at 115200bps, ensuring efficient data exchange. In addition to the UART TX and RX pins, the board uses an RTS pin for handshaking with the host MCU to prevent missed commands. Furthermore, GNSS 17 Click includes a green PPS LED indicator, which emits a synchronized pulse signal from the M20071 once

per second. This pulse signal has a default width of 100 ms but can be configured between 50 ms and 999 ms. The PPS function is enabled by default, and the module will output the PPS signal once a 3D fix is achieved. The M20071 does not require a specific power-up sequence, but it does need a voltage of 1.8V for its system core to function correctly. To achieve this, two small AP2112 LDO regulators provide the necessary 1.8V voltage from the mikroBUS™ power rails, supplying power to both the M20071 and its GNSS antenna supply. Besides mikroBUS™ power rails, this board also supports a backup supply from an attached coin battery at the back of the board. The regulator responsible for the GNSS antenna supply can be activated via the AON pin of the mikroBUS™ socket. This Click board™ can operate with both 3.3V and 5V logic voltage levels selected via the VCC SEL jumper. Given that the M20071 module operates at 1.8V, a logic-level translator, the TXB0106, is also used for proper operation and an accurate signal-level translation. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

GNSS 17 Click hardware overview image

Features overview

Development board

Nucleo-64 with STM32F030R8 MCU offers a cost-effective and adaptable platform for developers to explore new ideas and prototype their designs. This board harnesses the versatility of the STM32 microcontroller, enabling users to select the optimal balance of performance and power consumption for their projects. It accommodates the STM32 microcontroller in the LQFP64 package and includes essential components such as a user LED, which doubles as an ARDUINO® signal, alongside user and reset push-buttons, and a 32.768kHz crystal oscillator for precise timing operations. Designed with expansion and flexibility in mind, the Nucleo-64 board features an ARDUINO® Uno V3 expansion connector and ST morpho extension pin

headers, granting complete access to the STM32's I/Os for comprehensive project integration. Power supply options are adaptable, supporting ST-LINK USB VBUS or external power sources, ensuring adaptability in various development environments. The board also has an on-board ST-LINK debugger/programmer with USB re-enumeration capability, simplifying the programming and debugging process. Moreover, the board is designed to simplify advanced development with its external SMPS for efficient Vcore logic supply, support for USB Device full speed or USB SNK/UFP full speed, and built-in cryptographic features, enhancing both the power efficiency and security of projects. Additional connectivity is

provided through dedicated connectors for external SMPS experimentation, a USB connector for the ST-LINK, and a MIPI® debug connector, expanding the possibilities for hardware interfacing and experimentation. Developers will find extensive support through comprehensive free software libraries and examples, courtesy of the STM32Cube MCU Package. This, combined with compatibility with a wide array of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE, ensures a smooth and efficient development experience, allowing users to fully leverage the capabilities of the Nucleo-64 board in their projects.

Nucleo 64 with STM32F030R8 MCU double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

ARM Cortex-M0

MCU Memory (KB)

64

Silicon Vendor

STMicroelectronics

Pin count

64

RAM (Bytes)

8192

You complete me!

Accessories

Click Shield for Nucleo-64 comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-64 board with no effort. This way, Mikroe allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. More than 1537 Click boards™, which can be stacked and integrated, are at your disposal. The STM32 Nucleo-64 boards are based on the microcontrollers in 64-pin packages, a 32-bit MCU with an ARM Cortex M4 processor operating at 84MHz, 512Kb Flash, and 96KB SRAM, divided into two regions where the top section represents the ST-Link/V2 debugger and programmer while the bottom section of the board is an actual development board. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-64 board out of the box, with an additional USB cable connected to the USB mini port on the board. Most of the STM32 microcontroller pins are brought to the IO pins on the left and right edge of the board, which are then connected to two existing mikroBUS™ sockets. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-64 board with our Click Shield for Nucleo-64, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Nucleo-64 accessories 1 image

Active GPS antenna is designed to enhance the performance of your GPS and GNSS Click boards™. This external antenna boasts a robust construction, making it ideal for various weather conditions. With a frequency range of 1575.42MHz and a 50Ohm impedance, it ensures reliable signal reception. The antenna delivers a gain of greater than -4dBic within a wide angular range, securing over 75% coverage. The bandwidth of +/- 5MHz further guarantees precise data acquisition. Featuring a Right-Hand Circular Polarization (RHCP), this antenna offers stable signal reception. Its compact dimensions of 48.53915mm and a 2-meter cable make it easy to install. The magnetic antenna type with an SMA male connector ensures a secure and convenient connection. If you require a dependable external antenna for your locator device, our active GPS antenna is the perfect solution.

GNSS 17 Click accessories 1 image

Used MCU Pins

mikroBUS™ mapper

GNSS Antenna Regulator Enable
PC0
AN
Device Enable / ID SEL
PC12
RST
UART RTS / ID COMM
PB12
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
RTC Mode
PC8
PWM
NC
NC
INT
UART TX
PA2
TX
UART RX
PA3
RX
NC
NC
SCL
NC
NC
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

GNSS 17 Click Schematic schematic

Step by step

Project assembly

Click Shield for Nucleo-64 accessories 1 image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo-64 with STM32F030R8 MCU as your development board.

Click Shield for Nucleo-64 accessories 1 image hardware assembly
Nucleo 64 with STM32F401RE MCU front image hardware assembly
LTE IoT 5 Click front image hardware assembly
Prog-cut hardware assembly
LTE IoT 5 Click complete accessories setup image hardware assembly

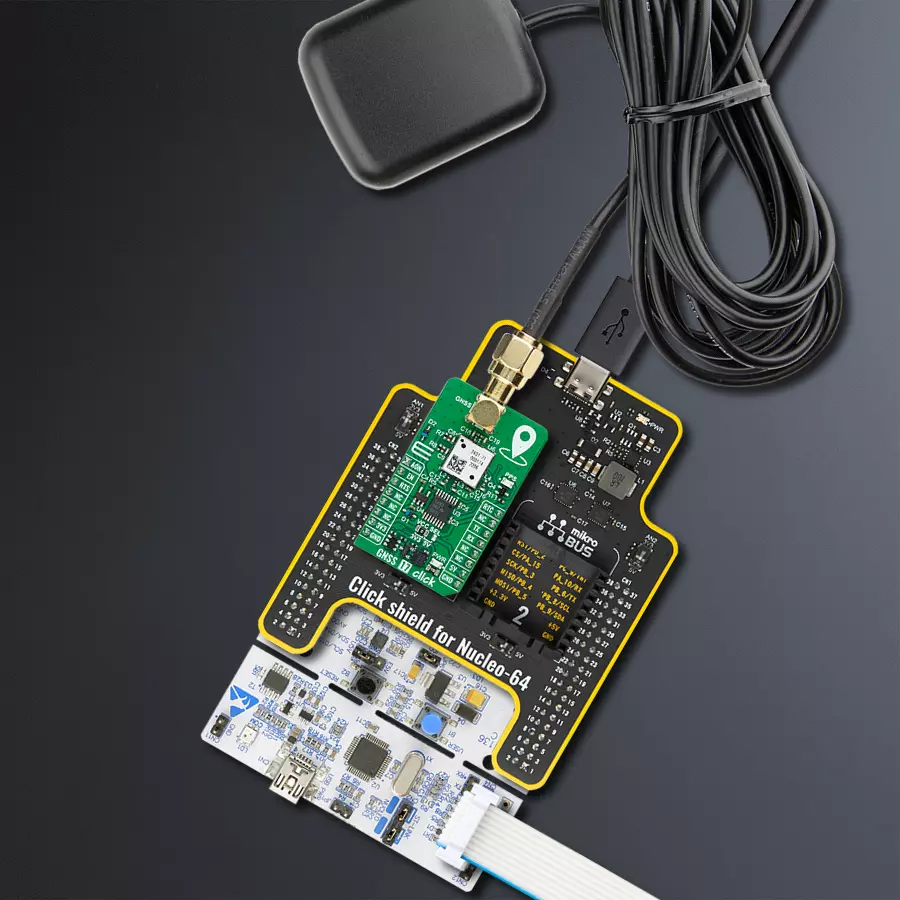

Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Clicker 4 for STM32F4 HA MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Software Support

Library Description

This library contains API for GNSS 17 Click driver.

Key functions:

  • gnss17_generic_read - This function reads a desired number of data bytes by using UART serial interface.

  • gnss17_parse_gga - This function parses the GGA data from the read response buffer.

  • gnss17_reset_device - This function resets the device by toggling the EN and AON pins.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief GNSS 17 Click Example.
 *
 * # Description
 * This example demonstrates the use of GNSS 17 Click by reading and displaying
 * the GNSS coordinates.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and resets the Click board.
 *
 * ## Application Task
 * Reads the received data, parses the NMEA GGA info from it, and once it receives
 * the position fix it will start displaying the coordinates on the USB UART.
 *
 * ## Additional Function
 * - static void gnss17_clear_app_buf ( void )
 * - static void gnss17_log_app_buf ( void )
 * - static err_t gnss17_process ( gnss17_t *ctx )
 * - static void gnss17_parser_application ( uint8_t *rsp )
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "gnss17.h"

// Application buffer size
#define APP_BUFFER_SIZE             500
#define PROCESS_BUFFER_SIZE         200

static gnss17_t gnss17;
static log_t logger;

static uint8_t app_buf[ APP_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;

/**
 * @brief GNSS 17 clearing application buffer.
 * @details This function clears memory of application buffer and reset its length.
 * @note None.
 */
static void gnss17_clear_app_buf ( void );

/**
 * @brief GNSS 17 log application buffer.
 * @details This function logs data from application buffer to USB UART.
 * @note None.
 */
static void gnss17_log_app_buf ( void );

/**
 * @brief GNSS 17 data reading function.
 * @details This function reads data from device and concatenates data to application buffer.
 * @param[in] ctx : Click context object.
 * See #gnss17_t object definition for detailed explanation.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t gnss17_process ( gnss17_t *ctx );

/**
 * @brief GNSS 17 parser application.
 * @param[in] rsp Response buffer.
 * @details This function logs GNSS data on the USB UART.
 * @return None.
 * @note None.
 */
static void gnss17_parser_application ( uint8_t *rsp );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    gnss17_cfg_t gnss17_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    gnss17_cfg_setup( &gnss17_cfg );
    GNSS17_MAP_MIKROBUS( gnss17_cfg, MIKROBUS_1 );
    if ( UART_ERROR == gnss17_init( &gnss17, &gnss17_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    if ( GNSS17_OK == gnss17_process( &gnss17 ) )
    {
        if ( app_buf_len > ( sizeof ( GNSS17_RSP_GGA ) + GNSS17_GGA_ELEMENT_SIZE ) )
        {
            gnss17_parser_application( app_buf );
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void gnss17_clear_app_buf ( void )
{
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
}

static void gnss17_log_app_buf ( void )
{
    for ( int32_t buf_cnt = 0; buf_cnt < app_buf_len; buf_cnt++ )
    {
        log_printf( &logger, "%c", app_buf[ buf_cnt ] );
    }
}

static err_t gnss17_process ( gnss17_t *ctx )
{
    uint8_t rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
    int32_t overflow_bytes = 0;
    int32_t rx_cnt = 0;
    int32_t rx_size = gnss17_generic_read( ctx, rx_buf, PROCESS_BUFFER_SIZE );
    if ( ( rx_size > 0 ) && ( rx_size <= APP_BUFFER_SIZE ) )
    {
        if ( ( app_buf_len + rx_size ) > APP_BUFFER_SIZE )
        {
            overflow_bytes = ( app_buf_len + rx_size ) - APP_BUFFER_SIZE;
            app_buf_len = APP_BUFFER_SIZE - rx_size;
            memmove ( app_buf, &app_buf[ overflow_bytes ], app_buf_len );
            memset ( &app_buf[ app_buf_len ], 0, overflow_bytes );
        }
        for ( rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
        {
            if ( rx_buf[ rx_cnt ] )
            {
                app_buf[ app_buf_len++ ] = rx_buf[ rx_cnt ];
            }
        }
        return GNSS17_OK;
    }
    return GNSS17_ERROR;
}

static void gnss17_parser_application ( uint8_t *rsp )
{
    uint8_t element_buf[ 200 ] = { 0 };
    if ( GNSS17_OK == gnss17_parse_gga( rsp, GNSS17_GGA_LATITUDE, element_buf ) )
    {
        static uint8_t wait_for_fix_cnt = 0;
        if ( strlen( element_buf ) > 0 )
        {
            log_printf( &logger, "\r\n Latitude: %.2s degrees, %s minutes \r\n", element_buf, &element_buf[ 2 ] );
            memset( element_buf, 0, sizeof( element_buf ) );
            gnss17_parse_gga( rsp, GNSS17_GGA_LONGITUDE, element_buf );
            log_printf( &logger, " Longitude: %.3s degrees, %s minutes \r\n", element_buf, &element_buf[ 3 ] );
            memset( element_buf, 0, sizeof( element_buf ) );
            gnss17_parse_gga( rsp, GNSS17_GGA_ALTITUDE, element_buf );
            log_printf( &logger, " Altitude: %s m \r\n", element_buf );
            wait_for_fix_cnt = 0;
        }
        else
        {
            if ( wait_for_fix_cnt % 5 == 0 )
            {
                log_printf( &logger, " Waiting for the position fix...\r\n\n" );
                wait_for_fix_cnt = 0;
            }
            wait_for_fix_cnt++;
        }
        gnss17_clear_app_buf(  );
    }
}

// ------------------------------------------------------------------------ END
