Ensure your data remains secure with the PN7120 and STM32F091RC combo

Discover the 'Near' in Near Field Communication - NFC at your fingertips

NFC Click with Nucleo-64 with STM32F091RC MCU

Published Feb 26, 2024

Click board™

NFC Click

Dev. board

Nucleo-64 with STM32F091RC MCU

Compiler

NECTO Studio

MCU

STM32F091RC

With NFC, your world is just a touch away, and we invite you to embrace the NFC experience for a more connected and convenient lifestyle

A

A

Hardware Overview

How does it work?

NFC Click is based on the PN7120, a full NFC forum-compliant controller with integrated firmware and NCI interface from NXP Semiconductors. The PN7120 implements the RF and all the low-level functionality, like an antenna driving and receiver circuitry, to realize an NFC Forum-compliant reader. It utilizes an outstanding modulation and demodulation concept for different contactless communication methods and protocols. The PN7120 fully complies with many Reader/Writer standards like ISO 14443A/B up to 848 kBit/s in under 25% of ASK modulation. The NFC Click fully complies with the NFC Forum specifications, meaning it can behave as an NFC reader, a tag, or to establish a two-way connection with another NFC device. For this purpose, the NFC Click can work in several modes. In card emulation mode, it behaves like a smart card or a

tag. It does not initiate communication; it only responds to an NFC reader. The Read/Write mode makes the NFC Click behave as an NFC reader, where it can communicate with a passive tag, smart card, or an NFC device that operates in a card emulation mode. Peer-to-Peer mode establishes a two-way communication channel between a pair of NFC-enabled devices. The NFC Click uses a standard 2-Wire I2C interface to communicate with the host MCU and supports standard mode (100MHz), fast mode (400KHz), and high-speed mode (3.4MHz). The I2C address can be selected via the ADDR SEL jumper with 0 set by default. The PN7120 has two types of integrated memory: RAM and EEPROM. Internal registers of the PN7120 store configuration data, while the RF configuration for dedicated RF protocols is defined by EEPROM data,

copied by a command issued from the host MCU. This allows users to achieve maximum RF performance from a given antenna design. In addition to the I2C interface signals, this board uses several other signals from the mikroBUS™ socket. The reset pin routed on the RST pin of the mikroBUS™ socket provides the general reset ability, while the IRT pin of the mikroBUS™ socket represents an interrupt request to inform the host controller of various events. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

NFC Click top side image
NFC Click bottom side image

Features overview

Development board

Nucleo-64 with STM32F091RC MCU offers a cost-effective and adaptable platform for developers to explore new ideas and prototype their designs. This board harnesses the versatility of the STM32 microcontroller, enabling users to select the optimal balance of performance and power consumption for their projects. It accommodates the STM32 microcontroller in the LQFP64 package and includes essential components such as a user LED, which doubles as an ARDUINO® signal, alongside user and reset push-buttons, and a 32.768kHz crystal oscillator for precise timing operations. Designed with expansion and flexibility in mind, the Nucleo-64 board features an ARDUINO® Uno V3 expansion connector and ST morpho extension pin

headers, granting complete access to the STM32's I/Os for comprehensive project integration. Power supply options are adaptable, supporting ST-LINK USB VBUS or external power sources, ensuring adaptability in various development environments. The board also has an on-board ST-LINK debugger/programmer with USB re-enumeration capability, simplifying the programming and debugging process. Moreover, the board is designed to simplify advanced development with its external SMPS for efficient Vcore logic supply, support for USB Device full speed or USB SNK/UFP full speed, and built-in cryptographic features, enhancing both the power efficiency and security of projects. Additional connectivity is

provided through dedicated connectors for external SMPS experimentation, a USB connector for the ST-LINK, and a MIPI® debug connector, expanding the possibilities for hardware interfacing and experimentation. Developers will find extensive support through comprehensive free software libraries and examples, courtesy of the STM32Cube MCU Package. This, combined with compatibility with a wide array of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE, ensures a smooth and efficient development experience, allowing users to fully leverage the capabilities of the Nucleo-64 board in their projects.

Nucleo 64 with STM32F091RC MCU double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

ARM Cortex-M0

MCU Memory (KB)

256

Silicon Vendor

STMicroelectronics

Pin count

64

RAM (Bytes)

32768

You complete me!

Accessories

Click Shield for Nucleo-64 comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-64 board with no effort. This way, Mikroe allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. More than 1537 Click boards™, which can be stacked and integrated, are at your disposal. The STM32 Nucleo-64 boards are based on the microcontrollers in 64-pin packages, a 32-bit MCU with an ARM Cortex M4 processor operating at 84MHz, 512Kb Flash, and 96KB SRAM, divided into two regions where the top section represents the ST-Link/V2 debugger and programmer while the bottom section of the board is an actual development board. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-64 board out of the box, with an additional USB cable connected to the USB mini port on the board. Most of the STM32 microcontroller pins are brought to the IO pins on the left and right edge of the board, which are then connected to two existing mikroBUS™ sockets. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-64 board with our Click Shield for Nucleo-64, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Nucleo-64 accessories 1 image

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset
PC12
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
Interrupt
PC14
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB8
SCL
I2C Data
PB9
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

NFC Click Schematic schematic

Step by step

Project assembly

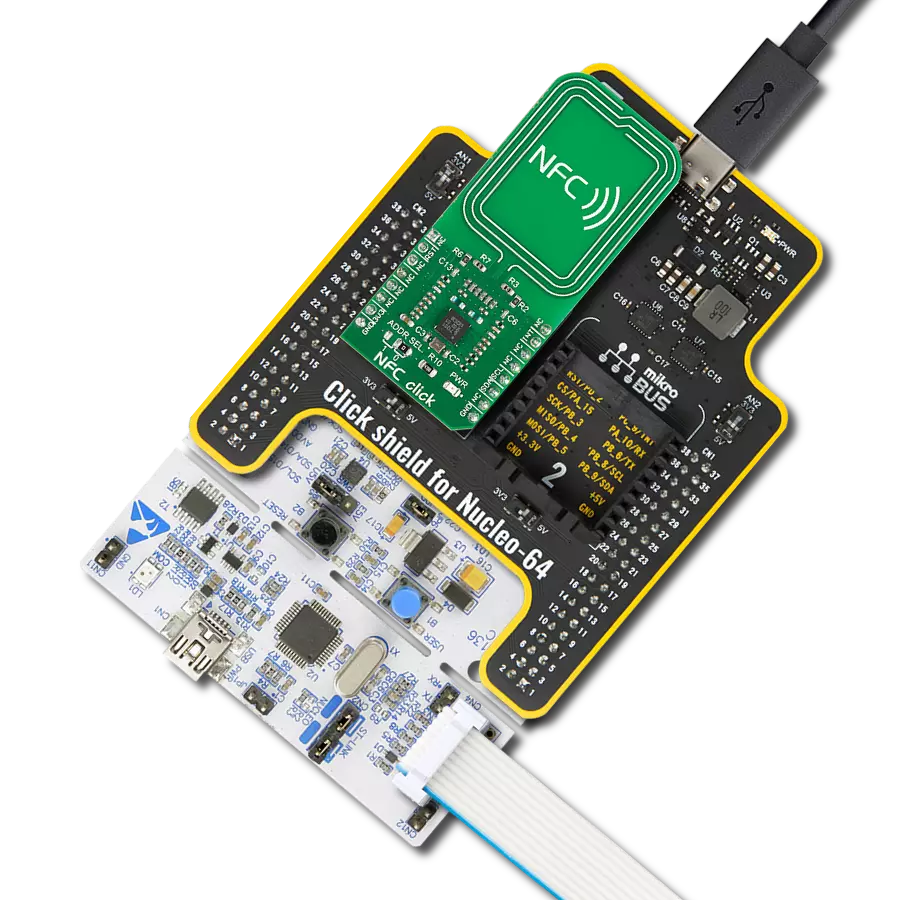

Click Shield for Nucleo-64 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo-64 with STM32F091RC MCU as your development board.

Click Shield for Nucleo-64 front image hardware assembly
Nucleo 64 with STM32F401RE MCU front image hardware assembly
EEPROM 13 Click front image hardware assembly
Prog-cut hardware assembly
Nucleo-64 with STM32XXX MCU MB 1 Mini B Conn - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Clicker 4 for STM32F4 HA MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for NFC Click driver.

Key functions:

  • nfc_hw_reset - HW reset function.

  • nfc_get_data - Get data function.

  • nfc_cmd_disable_standby_mode - Disable standby mode command function.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief NFC Click example
 *
 * # Description
 * This is an example which demonstrates the usage of NFC Click board.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes driver and logger, then performs hardware reset, puts the device in operating mode by
 * disabling standby mode, performs test procedure, and configures the device to start discovery.
 *
 * ## Application Task
 * NFC Click board can be used for detection of RFiD tag
 * and displays it's value via USART terminal.
 * All data logs write on USB uart changes for every 1 sec.
 *
 * Additional Functions :
 *  -void display_packet ( control_packet_t *ctrl_pck ) - Display packet log data.
 *  -void display_nfc_data ( control_packet_t *ctrl_pck ) - Display packet log data.
 *  -void nfc_read_nfc_data ( nfc_t *ctx, control_packet_t *ctrl_pck ) - Read nfc data function.
 *  -void nfc_test_antenna ( nfc_t *ctx, control_packet_t *ctrl_pck ) - Testing Antenna function.
 *
 * @author Stefan Ilic
 *
 */

#include "board.h"
#include "log.h"
#include "nfc.h"

static nfc_t nfc;
static log_t logger;
uint8_t n_cnt;

control_packet_t ctrl_pck_data;

/**
 * @brief NFC display packet function.
 * @details This function displays data values.
 */
void display_packet ( control_packet_t *ctrl_pck );

/**
 * @brief NFC display tag info.
 * @details This function displays tag info data.
 */
void nfc_print_info (  control_packet_t *ctrl_pck );

/**
 * @brief NFC display nfc data function.
 * @details This function displays nfc data values.
 */
void display_nfc_data ( control_packet_t *ctrl_pck );

/**
 * @brief NFC read nfc data function.
 * @details This function reads nfc data and displays data.
 */
void nfc_read_nfc_data ( nfc_t *ctx, control_packet_t *ctrl_pck );

/**
 * @brief NFC test antena function.
 * @details This function tests antenna and displays data.
 */
void nfc_test_antenna ( nfc_t *ctx, control_packet_t *ctrl_pck );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    nfc_cfg_t nfc_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    nfc_cfg_setup( &nfc_cfg );
    NFC_MAP_MIKROBUS( nfc_cfg, MIKROBUS_1 );
    err_t init_flag = nfc_init( &nfc, &nfc_cfg );
    if ( I2C_MASTER_ERROR == init_flag )
    {
        log_error( &logger, " Application Init Error. " );
        log_info( &logger, " Please, run program again... " );

        for ( ; ; );
    }

    log_printf( &logger, "        HW Reset       \r\n" );
    nfc_hw_reset( &nfc );
    Delay_ms( 100 );

    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, " Reset and Init. Core  \r\n" );
    nfc_cmd_core_reset( &nfc );
    Delay_ms( 100 );

    nfc_read_ctrl_packet_data( &nfc, &ctrl_pck_data );
    Delay_ms( 100 );

    nfc_cmd_core_init( &nfc );
    Delay_ms( 100 );

    nfc_read_ctrl_packet_data( &nfc, &ctrl_pck_data );
    Delay_ms( 100 );
    display_packet( &ctrl_pck_data );

    while ( nfc_check_irq( &nfc ) == NFC_IRQ_STATE_HIGH );

    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, " Disabling Standby Mode \r\n" );
    nfc_cmd_disable_standby_mode( &nfc );
    Delay_ms( 100 );

    nfc_read_ctrl_packet_data( &nfc, &ctrl_pck_data );
    Delay_ms( 100 );
    display_packet( &ctrl_pck_data );

    nfc_test_antenna( &nfc, &ctrl_pck_data );

    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, "Starting Test Procedure\r\n" );
    nfc_cmd_test_procedure( &nfc );
    Delay_ms( 100 );

    nfc_read_ctrl_packet_data( &nfc, &ctrl_pck_data );
    Delay_ms( 100 );
    display_packet( &ctrl_pck_data );

    nfc_hw_reset( &nfc );
    Delay_ms( 100 );

    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, "       NFC Config.     \r\n" );
    nfc_default_cfg ( &nfc, &ctrl_pck_data );

    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, "     Discovery Start   \r\n" );
    nfc_cmd_start_discovery( &nfc );
    Delay_ms( 100 );

    nfc_read_ctrl_packet_data( &nfc, &ctrl_pck_data );
    Delay_ms( 100 );
    display_packet( &ctrl_pck_data );

    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, "-------- START --------\r\n" );
    log_printf( &logger, "-----------------------\r\n" );
    Delay_ms( 500 );

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    while ( nfc_check_irq( &nfc ) == NFC_IRQ_STATE_HIGH )
    {
        nfc_read_nfc_data ( &nfc, &ctrl_pck_data );
    }

    while ( nfc_check_irq( &nfc ) == NFC_IRQ_STATE_LOW );

    log_printf( &logger, "-----------------------\r\n" );
    Delay_ms( 1000 );
}

void main ( void )
{
    application_init( );

    for ( ; ; )
    {
        application_task( );
    }
}

void display_packet ( control_packet_t *ctrl_pck )
{
    log_printf( &logger, "- - - - - - - - - - - -\r\n" );
    log_printf( &logger, " Message Type   = %d\r\n", ( uint16_t ) ctrl_pck->message_type );
    log_printf( &logger, " Pck Bound Flag = %d\r\n", ( uint16_t ) ctrl_pck->pck_bound_flag );
    log_printf( &logger, " Group Ident    = %d\r\n", ( uint16_t ) ctrl_pck->group_ident );
    log_printf( &logger, " Opcode Ident   = %d\r\n", ( uint16_t ) ctrl_pck->opcode_ident );
    log_printf( &logger, " Payload Length = %d\r\n", ( uint16_t ) ctrl_pck->payload_length );
    log_printf( &logger, "- - - - - - - - - - - -\r\n" );

    for ( n_cnt = 0; n_cnt < ctrl_pck_data.payload_length; n_cnt++ )
    {
        log_printf( &logger, " Payload[ %.2d ]  = 0x%.2X\r\n", ( uint16_t ) n_cnt, ( uint16_t ) ctrl_pck_data.payload[ n_cnt ]  );
    }

    log_printf( &logger, "- - - - - - - - - - - -\r\n" );
    memset( ctrl_pck_data.payload, 0x00, 255 );
}

void nfc_print_info ( control_packet_t *ctrl_pck )
{
    log_printf( &logger, "    NFC Tag info    \r\n" );
    log_printf( &logger, "- - - - - - - - - - - -\r\n" );
    log_printf( &logger, " Serial number = %.2X:%.2X:%.2X:%.2X\r\n",
                ( uint16_t ) ctrl_pck_data.payload[ 10 ], ( uint16_t ) ctrl_pck_data.payload[ 11 ],
                ( uint16_t ) ctrl_pck_data.payload[ 12 ], ( uint16_t ) ctrl_pck_data.payload[ 13 ] );
    log_printf( &logger, " ATQA = 0x%.2X%.2X\r\n",  ( uint16_t ) ctrl_pck_data.payload[ 8 ],
                ( uint16_t ) ctrl_pck_data.payload[ 9 ]  );
    log_printf( &logger, " SAK = 0x%.2X\r\n",  ( uint16_t ) ctrl_pck_data.payload[ 15 ]  );

}

void display_nfc_data ( control_packet_t *ctrl_pck )
{
    log_printf( &logger, "- - - - - - - - - - - -\r\n");
    log_printf( &logger, " Read Block:\r\n");

    for ( n_cnt = 0; n_cnt < ctrl_pck->payload_length; n_cnt++ )
    {
        log_printf( &logger, "\t 0x%.2X \r\n", ( uint16_t ) ctrl_pck->payload[ n_cnt ] );
    }
    log_printf( &logger, "\t 0x%.2X \r\n", ( uint16_t ) ctrl_pck->payload[ ctrl_pck->payload_length - 2 ] );

    log_printf( &logger, "- - - - - - - - - - - -\r\n" );
    memset( ctrl_pck->payload, 0x00, 255 );
}

void nfc_read_nfc_data ( nfc_t *ctx, control_packet_t *ctrl_pck )
{
    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    nfc_print_info( ctrl_pck );
    Delay_ms( 100 );

    nfc_activate_rmt_mifare_card( ctx );
    Delay_ms( 100 );
    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 10 );

    while ( nfc_check_irq( ctx ) == NFC_IRQ_STATE_LOW );

    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    nfc_cmd_authenticate_sector( ctx, 0x30 );
    Delay_ms( 100 );
    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 10 );

    while ( nfc_check_irq( ctx ) == NFC_IRQ_STATE_LOW );

    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    display_nfc_data( ctrl_pck );
    log_printf( &logger, "    Disconnect Card    \r\n" );
    nfc_cmd_card_disconnected( ctx );
    Delay_ms( 10 );
    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 10 );

    while ( nfc_check_irq( ctx ) == NFC_IRQ_STATE_LOW );

    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 100 );
}

void nfc_test_antenna ( nfc_t *ctx, control_packet_t *ctrl_pck )
{
    log_printf( &logger, "-----------------------\r\n" );
    log_printf( &logger, "    Testing Antenna    " );
    nfc_cmd_antenna_test( ctx, 0x01 );
    Delay_ms( 100 );

    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 100 );

    nfc_cmd_antenna_test( ctx, 0x07 );
    Delay_ms( 100 );
    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 100 );

    nfc_cmd_antenna_test( ctx, 0x0F );
    Delay_ms( 100 );
    nfc_read_ctrl_packet_data( ctx, ctrl_pck );
    Delay_ms( 100 );
    display_packet( ctrl_pck );
}
// ------------------------------------------------------------------------ END

Additional Support

Resources

Love this project?

'Buy This Kit' button takes you directly to the shopping cart where you can easily add or remove products.
