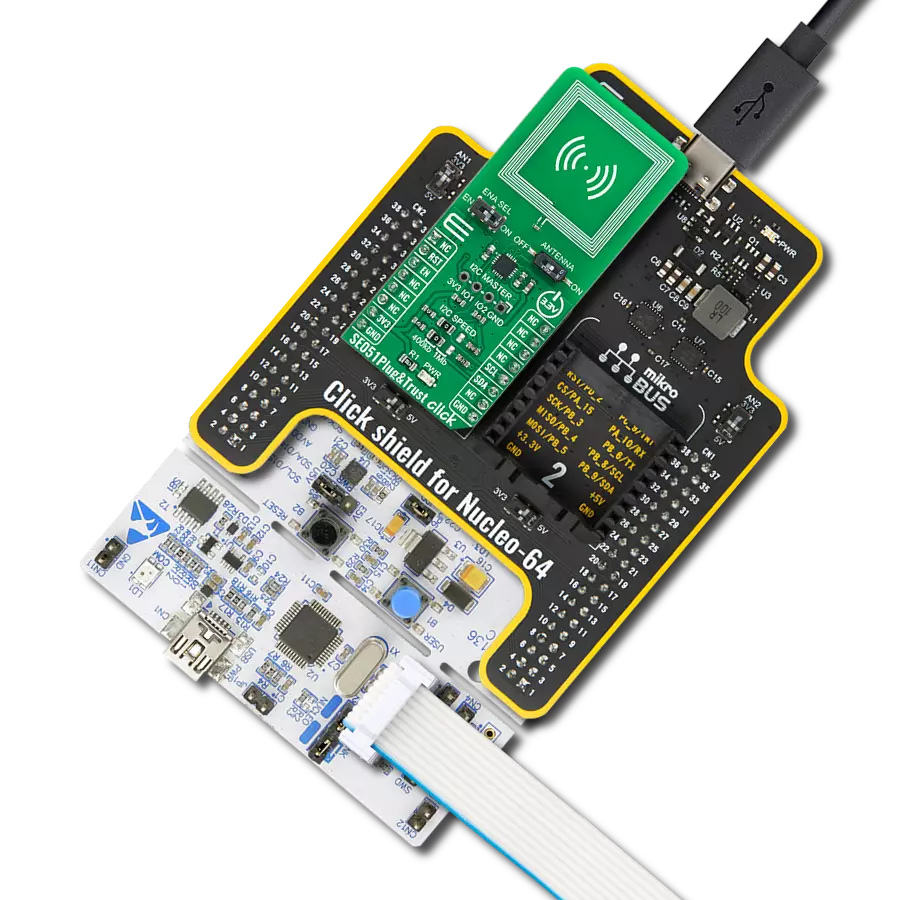

SE051 Plug&Trust Click

Development board

UNI-DS v8

Compiler

NECTO Studio

MCU

STM32F415RG

Edge-to-cloud security capability for your IoT system

A

A

Hardware Overview

How does it work?

SE051 Plug&Trust Click is based on the SE051C2, a ready-to-use IoT secure element solution from NXP Semiconductor, providing a root of trust at the IC level and giving an IoT system state-of-the-art, edge-to-cloud security capability right out of the box. It has an independent Common Criteria EAL 6+ security certification up to OS level and supports both RSA & ECC asymmetric cryptographic algorithms with high key length and future-proof ECC curves. Designed for the latest IoT security requirements, it allows for securely storing, provisioning credentials, and performing cryptographic operations for security-critical communication and control functions. The SE051C2 represents a turnkey solution with a Java Card operating system and an updatable pre-installed applet optimized for IoT security use cases. Alongside the updatable IoT applet, it also possesses SEMS Lite and a PERSO applet that provides upgradability of the IoT applet while preserving on-device credentials and the possibility to reconfigure the SE051 device. The SEMS Lite represents a

capability based on a subset of GlobalPlatform’s Secure Element Management Service (SEMS), optimized for IoT use cases. This Click board™ communicates with MCU using the standard I2C 2-Wire interface. Besides the mandatory connection to the host controller, this Click board™ can optionally be connected to a sensor node or similar element through separate I2C interface pins on the 1x4 male header labeled I2C Master. In this case, the SE051C2 device is the Controller device, and the sensor node represents the Target. This board also allows users to select the appropriate I2C communication speed by onboard SMD jumpers labeled as I2C SPEED to a proper position marked as 400Kb and 1Mb. Note that all the jumpers must be lined to the same side, or the Click board™ may become unresponsive. Besides, the SE051C2 provides a special power-saving mode offering maximum power saving. The way of activation of this mode is realized with the onboard switch marked as ENA SEL. In this way, Power-Saving Mode can be activated via the EN pin of the

mikroBUS™ socket, primarily by placing the switch to the EN position and then pulling the EN pin to a logic zero level. By placing the switch in the second position marked as ON, the SE051C2 is in normal operation mode. The RST pin has no functionality in I2C Mode. It can only be used as an external reset source if the ISO7816 interface is enabled (unenabled in generic SE051 configurations). Also, the SE051 Plug&Trust Click has an onboard antenna (providing a wireless interface (ISO14443) to an external device like a smartphone) connected via a switch labeled as ANTENNA with SE051C2 allowing the activation of the antenna itself by setting it to the appropriate ON or OFF position. This Click board™ can only be operated from a 3.3V logic voltage level. Therefore, the board must perform appropriate logic voltage conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

se051-plug-and-trust-click-hardware-overview

Features overview

Development board

UNI-DS v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports a wide range of microcontrollers, such as different STM32, Kinetis, TIVA, CEC, MSP, PIC, dsPIC, PIC32, and AVR MCUs regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer over WiFi. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, UNI-DS v8 provides a fluid and immersive working experience, allowing access anywhere and under any

circumstances at any time. Each part of the UNI-DS v8 development board contains the components necessary for the most efficient operation of the same board. An advanced integrated CODEGRIP programmer/debugger module offers many valuable programming/debugging options, including support for JTAG, SWD, and SWO Trace (Single Wire Output)), and seamless integration with the Mikroe software environment. Besides, it also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector. Communication options such as USB-UART, USB

HOST/DEVICE, CAN (on the MCU card, if supported), and Ethernet is also included. In addition, it also has the well-established mikroBUS™ standard, a standardized socket for the MCU card (SiBRAIN standard), and two display options for the TFT board line of products and character-based LCD. UNI-DS v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

UNI-DS v8 horizontal image

Microcontroller Overview

MCU Card / MCU

default

Type

8th Generation

Architecture

ARM Cortex-M4

MCU Memory (KB)

1024

Silicon Vendor

STMicroelectronics

Pin count

64

RAM (Bytes)

196608

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
ISO7816 Reset
PC13
RST
Deep Power-Down Mode
PA4
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
NC
NC
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB6
SCL
I2C Data
PB7
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Schematic

SE051 Plug&Trust Click Schematic schematic

Step by step

Project assembly

Fusion for PIC v8 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the UNI-DS v8 as your development board.

Fusion for PIC v8 front image hardware assembly
Buck 22 Click front image hardware assembly
SiBRAIN for PIC32MZ1024EFK144 front image hardware assembly
v8 SiBRAIN MB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto image step 7 hardware assembly
Necto image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

After pressing the "FLASH" button on the left-side panel, it is necessary to open the UART terminal to display the achieved results. By clicking on the Tools icon in the right-hand panel, multiple different functions are displayed, among which is the UART Terminal. Click on the offered "UART Terminal" icon.

UART Application Output Step 1

Once the UART terminal is opened, the window takes on a new form. At the top of the tab are two buttons, one for adjusting the parameters of the UART terminal and the other for connecting the UART terminal. The tab's lower part is reserved for displaying the achieved results. Before connecting, the terminal has a Disconnected status, indicating that the terminal is not yet active. Before connecting, it is necessary to check the set parameters of the UART terminal. Click on the "OPTIONS" button.

UART Application Output Step 2

In the newly opened UART Terminal Options field, we check if the terminal settings are correct, such as the set port and the Baud rate of UART communication. If the data is not displayed properly, it is possible that the Baud rate value is not set correctly and needs to be adjusted to 115200. If all the parameters are set correctly, click on "CONFIGURE".

UART Application Output Step 3

The next step is to click on the "CONNECT" button, after which the terminal status changes from Disconnected to Connected in green, and the data is displayed in the Received data field.

UART Application Output Step 4

Software Support

Library Description

This library contains API for SE051 Plug & Trust Click driver.

Key functions:

  • se051plugntrust_apdu_write This function writes a @b frame_data to device.

  • se051plugntrust_apdu_read This function reads a @b frame_data from device.

  • se051plugntrust_apdu_transfer This function writes a @b frame_data, reads return data from the device, and stores it in @b frame_data.

Open Source

Code example

This example can be found in NECTO Studio. Feel free to download the code, or you can copy the code below.

/*!
 * @file main.c
 * @brief SE051 Plug n Trust Click example
 *
 * # Description
 * This application is showcasing basic functionality of SE051 Plug&Trust click board.
 * It gets identify data from device, selects card manager and applet.
 * Then checks free memory, reads all objects and deletes not reserved ones.
 * After that showcases a few of functionality:
 *      - Generating random data,
 *      - Creating, reading and deleting binary objects,
 *      - Creating AES symmetrical key and cipher with it;
 * In the end it is showcasing funcionality in the endless loop.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * At the start it sets comunication interface to I2C and resets the chip,
 * reads identifying data from device, and then selects card manager and applet.
 * After that it reads free persistent memory, reads all objects and deletes
 * objects that are not reserved by the Applet. Then it generates 2 byte of
 * random data, and gets the version information from the Applet. That's
 * followed up with creating binary object with 'MikroE' data inside. Then it checks
 * if object is created and reads data back. After that, the object is deleted and
 * it's checked if it still exists. Finally it creates 128AES key (16bytes), encrypts it
 * and then decrypts data with that key, and in the end it deletes that key object.
 *
 * ## Application Task
 * It generates 16bytes of data, writes it in binary object and then reads it back and displays
 * on the USB UART. Then creates AES key and encrypts that generated data with it, and then decrypts it.
 * In the end it deletes both AES key object and binary object that's created at the start of the task.
 *
 * @note
 * For more information refer to documents from NXP: AN12413 and UM11225.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "se051plugntrust.h"

// Library and log objects
static se051plugntrust_t se051plugntrust;
static log_t logger;

// Communication objects
static se051plugntrust_apdu_t apdu_data;
static se051plugntrust_frame_data_t frame_data;

// Parsing parameters
#define PARSE_BUF_LEN 0xFF
static uint32_t parse_index = 0;
static uint32_t parse_len = PARSE_BUF_LEN;
static uint8_t parse_data[ PARSE_BUF_LEN ] = { 0 };

/**
 * @brief Reset parse data.
 * @details Clears parse index, buffer and resets @b parse_len.
 * @return Nothing.
 * @note None.
 */
static void reset_parse ( void );

/**
 * @brief Log buffer data to .
 * @details Logs buffer data to UART Terminal
 * @param[in] buf : Buffer to log.
 * @param[in] buf_len : Length of buffer to log.
 * @return Nothing.
 * @note None.
 */
static void log_buf_hex ( uint8_t *buf, uint8_t buf_len );

/**
 * @brief Log status data.
 * @details Log status data from @b apdu_data.
 * @return Nothing.
 * @note None.
 */
static void log_status ( void );

/**
 * @brief Log frame data.
 * @details Logs data from @b frame_data.
 * @return Nothing.
 * @note None.
 */
static void log_rsp_data_default ( void );

/**
 * @brief End APDU session.
 * @details Sends request to end APDU session.
 * @return Nothing.
 * @note None.
 */
static void end_apdu_session ( void );

/**
 * @brief Send request to reset device.
 * @details Sends request to reset device and logs ATR data.
 * @return Nothing.
 * @note None.
 */
static void soft_reset( void );

/**
 * @brief Check presistant free memory.
 * @details Sends request to check presistant free
 * memory from Applet, and logs it.
 * @return Nothing.
 * @note None.
 */
static void check_free_memory ( void );

/**
 * @brief Reads 2 bytes of random data from Applet.
 * @details Sends request to Applet to get 2 bytes of
 * random data, and logs it.
 * @return Nothing.
 * @note None.
 */
static void get_random ( void );

/**
 * @brief Read Object with UID.
 * @details Checks if Object with UID exists and then
 * reads its data, and logs it.
 * @return Nothing.
 * @note None.
 */
static void read_uid_object ( void );

/**
 * @brief Checks the current version of the Applet.
 * @details Send request to check the current version
 * of Applet and logs return data.
 * @return Nothing.
 * @note None.
 */
static void get_version ( void );

/**
 * @brief Get identify data from device.
 * @details Sends request to get identification data
 * from device, and logs data.
 * @return Nothing.
 * @note None.
 */
static void get_data_identify ( void );

/**
 * @brief Create, write, read, and delete binary object.
 * @details Creates and writes data to binary object.
 * Checks if that object exists. Reads that binary object,
 * and then delets it, and checks if its deleted.
 * Every step and status will be logged.
 * @return Nothing.
 * @note None.
 */
static void create_check_delete ( void );

/**
 * @brief List of all Applet objects and delete if not reserved.
 * @details Create one random object and then lists all objects
 * and delete ones that are not reserved.
 * @return Nothing.
 * @note None.
 */
static void list_and_delete_objects ( void );

/**
 * @brief Select Applet.
 * @details Select applet and log version info.
 * @return Nothing.
 * @note None.
 */
static void select_applet ( void );

/**
 * @brief Create AES key, Encrypt and Decrypt data, and delete AES key.
 * @details Creates 128AES Symmetrical key.
 * Encrypts data with it. Decrypt data with that key.
 * and in the end delete that AES key. Logs every status in the process.
 * @return Nothing.
 * @note None.
 */
static void aes_cipher ( void );

/**
 * @brief Select Card manager.
 * @details Select Card manager without return value request
 * @return Nothing.
 * @note None.
 */
static void select_card_manger ( void );

/**
 * @brief Create 128 AES symmetrical key.
 * @details Create 128 AES symetrical key and sets its value.
 * @param[in] aes_id : Object ID.
 * @param[in] aes_key : AES key value.
 * @return Nothing.
 * @note AES key value because it's 128 key should be 16 bytes of data.
 */
static void create_128_aes_key ( uint32_t aes_id, uint8_t *aes_key );

/**
 * @brief Encrypt or decrypt data with AES key.
 * @details Encrypt or decrypt data with AES key.
 * @param[in] aes_id : Object ID.
 * @param[in] cipher_type : Encrypt or decrypt macro @b[SE051PLUGNTRUST_P2_ENCRYPT_ONESHOT] || @b[SE051PLUGNTRUST_P2_DECRYPT_ONESHOT].
 * @param[in] data_in : Input buffer.
 * @param[out] data_out : Output buffer.
 * @return @li @c  0 - Success,
 *         @li @c -1 - Error.
 * @note None.
 */
static err_t cipher_data_with_aes_key ( uint32_t aes_id, uint8_t cipher_type, uint8_t *data_in, uint8_t *data_out );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    se051plugntrust_cfg_t se051plugntrust_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    se051plugntrust_cfg_setup( &se051plugntrust_cfg );
    SE051PLUGNTRUST_MAP_MIKROBUS( se051plugntrust_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == se051plugntrust_init( &se051plugntrust, &se051plugntrust_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    frame_data.apdu = &apdu_data;

    se051plugntrust.interface = SE051PLUGNTRUST_INTERFACE_I2C;
    se051plugntrust_reset( &se051plugntrust );
    if ( SE051PLUGNTRUST_INTERFACE_ISO14443 == se051plugntrust.interface )
    {
        log_info( &logger, " ISO14443 Interface active..." );
        for ( ; ; );
    }

    soft_reset( );
    Delay_ms( 2000 );
    get_data_identify( );
    Delay_ms( 2000 );
    select_card_manger( );
    Delay_ms( 2000 );
    select_applet( );
    Delay_ms( 2000 );
    check_free_memory( );
    Delay_ms( 2000 );
    list_and_delete_objects( );
    Delay_ms( 2000 );
    get_random( );
    Delay_ms( 2000 );
    read_uid_object( );
    Delay_ms( 2000 );
    get_version(  );
    Delay_ms( 2000 );
    create_check_delete( );
    Delay_ms( 2000 );
    aes_cipher( );

    log_info( &logger, " Application Task " );
    Delay_ms( 5000 );
}

void application_task ( void )
{
    #define DATA_LEN 16
    static uint8_t aes_value[ DATA_LEN ]    = { 0x40, 0x41, 0x42, 0x43,0x44, 0x45, 0x46, 0x47,
                                                0x48, 0x49, 0x4A, 0x4B,0x4C, 0x4D, 0x4E, 0x4F };
    static uint32_t binary_id               = 0xBBBBBBBB;
    static uint32_t aes_id                  = 0xCCCCCCCC;
    uint8_t random_data[ DATA_LEN ]         = { 0 };
    uint8_t read_data[ DATA_LEN ]           = { 0 };
    uint8_t encrypted_data[ DATA_LEN ]      = { 0 };
    uint32_t read_len = DATA_LEN;

    if ( SE051PLUGNTRUST_OK == se051plugntrust_get_random_numbers( &se051plugntrust, random_data, DATA_LEN ) )
    {
        log_printf( &logger, " > Generated random data: 0x" );
        log_buf_hex( random_data, DATA_LEN );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Random" );
    }
    Delay_ms( 2000 );
    if ( SE051PLUGNTRUST_OBJECT_DOESNT_EXIST == se051plugntrust_check_object_exist( &se051plugntrust, binary_id ) )
    {
        log_printf( &logger, " Write random data to binary object...\r\n" );
        if ( SE051PLUGNTRUST_OK != se051plugntrust_write_binary_object( &se051plugntrust, binary_id,
                                                                        0, DATA_LEN, random_data ) )
        {
            log_error( &logger, " Write Binary" );
        }
        else
        {
            log_info( &logger, " Status OK" );
        }
    }
    else
    {
        log_error( &logger, " Binary object already exist" );
    }
    Delay_ms( 2000 );
    if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust, binary_id ) )
    {
        if ( SE051PLUGNTRUST_OK == se051plugntrust_read_object( &se051plugntrust, binary_id, 0, 0,
                                                                read_data, &read_len ) )
        {
            log_printf( &logger, " > Read data from binary object: 0x" );
            log_buf_hex( read_data, read_len );
            log_printf( &logger, "\r\n" );
        }
        else
        {
            log_error( &logger, " Read binray object" );
        }
    }
    else
    {
        log_error( &logger, " Binary object doesn't exist" );
    }
    Delay_ms( 2000 );
    log_printf( &logger, " Create AES key...\r\n" );
    create_128_aes_key( aes_id, aes_value );
    Delay_ms( 2000 );
    if ( SE051PLUGNTRUST_OK == cipher_data_with_aes_key( aes_id, SE051PLUGNTRUST_P2_ENCRYPT_ONESHOT,
                                                         read_data, encrypted_data ) )
    {
        log_printf( &logger, " > Encrypted data: 0x" );
        log_buf_hex( encrypted_data, DATA_LEN );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Encrypting data" );
    }
    Delay_ms( 2000 );
    if ( SE051PLUGNTRUST_OK == cipher_data_with_aes_key( aes_id, SE051PLUGNTRUST_P2_DECRYPT_ONESHOT,
                                                         encrypted_data, read_data ) )
    {
        log_printf( &logger, " > Decrypted data: 0x" );
        log_buf_hex( read_data, DATA_LEN );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Decrypting data" );
    }
    Delay_ms( 2000 );
    log_printf( &logger, " Delete Binary and AES object...\r\n" );
    if ( ( SE051PLUGNTRUST_OK != se051plugntrust_delete_object( &se051plugntrust, binary_id ) ) ||
         ( SE051PLUGNTRUST_OK != se051plugntrust_delete_object( &se051plugntrust, aes_id ) ) )
    {
        log_error( &logger, " Deleting objects" );
    }
    log_printf( &logger, "*****************************************************************************\r\n" );
    Delay_ms( 5000 );
}

void main ( void )
{
    application_init( );

    for ( ; ; )
    {
        application_task( );
    }
}

static void reset_parse ( void )
{
    parse_index = 0;
    parse_len = PARSE_BUF_LEN;
    memset( parse_data, 0, parse_len );
}

static void log_buf_hex ( uint8_t *buf, uint8_t buf_len )
{
    for ( uint8_t i = 0; i < buf_len; i++ )
    {
        log_printf( &logger, "%0.2X", ( uint16_t ) buf[ i ] );
    }
}

static void log_status ( void )
{
    if ( ( ( frame_data.pcb & SE051PLUGNTRUST_PCB_BLOCK_R ) != SE051PLUGNTRUST_PCB_BLOCK_R ) &&
         ( ( frame_data.pcb & SE051PLUGNTRUST_PCB_BLOCK_S ) != SE051PLUGNTRUST_PCB_BLOCK_S ) )
    {
        switch ( frame_data.apdu->status )
        {
            case SE051PLUGNTRUST_SW_NOERROR:
            {
                log_info( &logger, " Status OK" );
                break;
            }
            default:
            {
                log_error( &logger, " Status: 0x%.4X", frame_data.apdu->status );
            }
        }
    }
}

static void log_rsp_data_default ( void )
{
    log_printf( &logger, " >NAD: 0x%0.2X \r\n", ( uint16_t ) frame_data.nad );
    log_printf( &logger, " >PCB: 0x%0.2X \r\n", ( uint16_t ) frame_data.pcb );
    log_printf( &logger, " >LEN: 0x%0.2X \r\n", ( uint16_t ) frame_data.len );
    if ( frame_data.len > 0 )
    {
        log_printf( &logger, " >APDU: 0x" );
    }
    log_buf_hex( frame_data.apdu->payload, frame_data.len );
    if ( frame_data.len > 0 )
    {
        log_printf( &logger, " \r\n" );
    }
    log_printf( &logger, " >CRC: 0x%0.4X \r\n", frame_data.crc16 );
    log_printf( &logger, "************************************************************************\r\n" );
}

static void soft_reset( void )
{
    log_info( &logger, " Resetting device..." );
    se051plugntrust_atr_t atr_data;
    if ( SE051PLUGNTRUST_OK == se051plugntrust_sw_reset( &se051plugntrust, &atr_data ) )
    {
        log_printf( &logger, " > Protocol version: %d\r\n", ( uint16_t ) atr_data.protocol_version );
        log_printf( &logger, " > Length of Data Link Layer Parameters value: %d\r\n",
                    ( uint16_t ) atr_data.data_link_layer_parameters_len );
        log_printf( &logger, " > Data Link Layer Parameters: 0x" );
        log_buf_hex( atr_data.data_link_layer_parameters, atr_data.data_link_layer_parameters_len );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Physical Layer ID: %d\r\n", ( uint16_t ) atr_data.physical_layer_id );
        log_printf( &logger, " > Length of Physical Layer Parameters value: %d\r\n",
                    ( uint16_t ) atr_data.physical_layer_parameters_len );
        log_printf( &logger, " > Physical Layer Parameters: 0x" );
        log_buf_hex( atr_data.physical_layer_parameters, atr_data.physical_layer_parameters_len );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Length of Historical Bytes value: %d\r\n", ( uint16_t ) atr_data.historical_len );
        log_printf( &logger, " > Historical Bytes: 0x" );
        log_buf_hex( atr_data.historical, atr_data.historical_len );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Resetting..." );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void check_free_memory ( void )
{
    log_info( &logger, " Check free memory" );
    uint16_t free_memory = 0;
    if ( SE051PLUGNTRUST_OK == se051plugntrust_get_free_memory( &se051plugntrust,
                                                                SE051PLUGNTRUST_MEM_TRANSIENT_DESELECT, &free_memory ) )
    {
        log_printf( &logger, " > Free Memory: %d\r\n", free_memory );
    }
    else
    {
        log_error( &logger, " Reading Memory" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void get_random ( void )
{
    log_info( &logger, " Get Random" );
    if ( SE051PLUGNTRUST_OK == se051plugntrust_get_random_numbers( &se051plugntrust, parse_data, 2 ) )
    {
        log_printf( &logger, " > Random data: 0x" );
        log_buf_hex( parse_data, 2 );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Random" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void read_uid_object ( void )
{
    if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust,
                                                                                   SE051PLUGNTRUST_APPLET_RES_ID_UNIQUE_ID ) )
    {
        log_info( &logger, " Read object with Unique ID" );

        if ( SE051PLUGNTRUST_OK == se051plugntrust_read_object( &se051plugntrust, SE051PLUGNTRUST_APPLET_RES_ID_UNIQUE_ID,
                                                                0, 0, parse_data, &parse_len ) )
        {
            log_printf( &logger, " > Object data: 0x" );
            log_buf_hex( parse_data, parse_len );
            log_printf( &logger, "\r\n" );
        }
        else
        {
            log_error( &logger, " Read object with Unique ID" );
        }
        log_printf( &logger, "************************************************************************\r\n" );
    }
}

static void get_version ( void )
{
    log_info( &logger, " Get Version" );
    se051plugntrust_version_info_t ver_info;
    if ( SE051PLUGNTRUST_OK == se051plugntrust_get_applet_info( &se051plugntrust, &ver_info ) )
    {
        log_printf( &logger, " > Applet Version = %d.%d.%d\r\n", ( uint16_t ) ver_info.major_version,
                                                                 ( uint16_t ) ver_info.minor_version,
                                                                 ( uint16_t ) ver_info.patch_version );
        log_printf( &logger, " > AppletConfig = 0x%0.4X\r\n", ver_info.applet_config );
        log_printf( &logger, " > SecureBox = 0x%0.4X\r\n", ver_info.secure_box );
    }
    else
    {
        log_error( &logger, " Version Info" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void get_data_identify ( void )
{
    // select card
    select_card_manger( );
    end_apdu_session( );
    // get data identify
    typedef struct
    {
        uint8_t tag_value_proprietary_data; // 0xFE Tag value - proprietary data Only present if class byte is 0x80
        uint8_t length_of_following_data; // 0x49 / 0x45 Length of following data Only present if class byte is 0x80
        uint8_t tag_card_identification_data[ 0x02 ]; // 0xDF28 Tag card identification data Only present if class byte is 0x80
        uint8_t length_of_card_identification_data; // 0x46 Length of card identification data Only present if class byte is 0x80

        uint8_t tag_configuration_id; // 0x01 Tag configuration ID Identifies the configuration content
        uint8_t length_configuration_id; // 0x0C Length configuration ID
        uint8_t configuration_id[ 0x0C ];  // var Configuration ID

        uint8_t tag_patch_id;    // 0x02 Tag patch ID Identifies the patch level
        uint8_t length_patch_id; // 0x08 Length patch ID
        uint8_t patch_id[ 0x08 ];  // var Patch ID

        uint8_t tag_platform_build_id1; // 0x03 Tag platform build ID1 Identifies the JCOP platform
        uint8_t length_platform_build_id; // 0x18 Length platform build ID
        uint8_t platform_build_id[ 0x18 ]; // var Platform build ID

        uint8_t tag_fips_mode;    // 0x052 Tag FIPS mode FIPS mode active
        uint8_t length_fips_mode; // 0x01 Length FIPS mode
        uint8_t fips_mode; // var FIPS mode 0x00 - FIPS mode not active, 0x01 - FIPS mode active

        uint8_t tag_pre_perso_state; // 0x07 Tag pre-perso state Lists pre-perso state
        uint8_t length_pre_perso_state; // 0x01 Length pre-perso state
        // var Bit mask of pre-perso state bit0 = 1 = config module available,
        // bit1 = 1 = transport state is active.
        // Unused bits are set to 0x0.
        uint8_t bit_mask_of_pre_perso_state;

        uint8_t tag_rom_id;    // '08' Tag ROM ID Indentifies the ROM content
        uint8_t length_rom_id; // '08' Length ROM ID Normal ending
        uint8_t rom_id[ 0x08 ]; // var ROM ID
        uint8_t status_word_sw[ 0x02 ]; // 9000h Status Word (SW)
    } identify_rsp_t;

    identify_rsp_t identify_rsp = { 0 };
    uint32_t prsp_len = sizeof ( identify_rsp_t );
    log_info( &logger, " Get data identify" );
    frame_data.pcb = SE051PLUGNTRUST_PCB_BLOCK_I;
    frame_data.len = 8;
    frame_data.apdu->cla = SE051PLUGNTRUST_CLA_NOT_SECURE;
    frame_data.apdu->ins = 0xCA;
    frame_data.apdu->p1 = 0x00;
    frame_data.apdu->p2 = 0xFE;
    frame_data.apdu->payload_len = 0x02;
    frame_data.apdu->rsp_len = 0x00;
    uint8_t df28[ 2 ] = { 0xDF, 0x28 };
    memcpy( frame_data.apdu->payload, df28, 2 );
    se051plugntrust_apdu_transfer( &se051plugntrust, &frame_data );
    if ( frame_data.len == prsp_len )
    {
        memcpy( ( uint8_t * )&identify_rsp, frame_data.apdu->payload, prsp_len );
        log_printf( &logger, " > Tag value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_value_proprietary_data );
        log_printf( &logger, " > Length value: %d\r\n", ( uint16_t ) identify_rsp.length_of_following_data );
        log_printf( &logger, " > Tag Card ID value: 0x" );
        log_buf_hex( identify_rsp.tag_card_identification_data, 2 );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Length of Card ID value: %d\r\n", ( uint16_t ) identify_rsp.length_of_card_identification_data );
        log_printf( &logger, " > Tag of Configuration ID value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_configuration_id );
        log_printf( &logger, " > Length of Configuration ID value: %d\r\n", ( uint16_t ) identify_rsp.length_configuration_id );
        log_printf( &logger, " > Configuration ID: 0x" );
        log_buf_hex( identify_rsp.configuration_id, identify_rsp.length_configuration_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of Patch ID value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_patch_id );
        log_printf( &logger, " > Length of Patch ID value: %d\r\n", ( uint16_t ) identify_rsp.length_patch_id );
        log_printf( &logger, " > Patch ID: 0x" );
        log_buf_hex( identify_rsp.patch_id, identify_rsp.length_patch_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of Platform Build ID1 value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_platform_build_id1 );
        log_printf( &logger, " > Length of Platform Build ID1 value: %d\r\n", ( uint16_t ) identify_rsp.length_platform_build_id );
        log_printf( &logger, " > Platform Build ID1: 0x" );
        log_buf_hex( identify_rsp.platform_build_id, identify_rsp.length_platform_build_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of FIPS Mode value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_fips_mode );
        log_printf( &logger, " > Length of FIPS Mode value: %d\r\n", ( uint16_t ) identify_rsp.length_fips_mode );
        log_printf( &logger, " > FIPS Mode: 0x" );
        log_buf_hex( &identify_rsp.fips_mode, identify_rsp.length_fips_mode );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of Pre-Preso State value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_pre_perso_state );
        log_printf( &logger, " > Length of Pre-Preso State value: %d\r\n", ( uint16_t ) identify_rsp.length_pre_perso_state );
        log_printf( &logger, " > Pre-Preso State: 0x" );
        log_buf_hex( &identify_rsp.bit_mask_of_pre_perso_state, identify_rsp.length_pre_perso_state );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Tag of ROM ID value: 0x%0.2X\r\n", ( uint16_t ) identify_rsp.tag_rom_id );
        log_printf( &logger, " > Length of ROM ID value: %d\r\n", ( uint16_t ) identify_rsp.length_rom_id );
        log_printf( &logger, " > ROM ID: 0x" );
        log_buf_hex( identify_rsp.rom_id, identify_rsp.length_rom_id );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Status Word: 0x" );
        log_buf_hex( identify_rsp.status_word_sw, 2 );
        log_printf( &logger, "\r\n" );
    }
    else
    {
        log_error( &logger, " Size Error" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
    end_apdu_session( );
}

static void end_apdu_session ( void )
{
    if ( SE051PLUGNTRUST_OK != se051plugntrust_end_apdu_session( &se051plugntrust ) )
    {
        log_error( &logger, " End APDU session" );
    }
}

static void create_check_delete ( void )
{
    // create binary object
    log_info( &logger, " Write Binary" );
    uint8_t data_buf[ 7 ] = "MikroE";
    uint32_t binary_id = 0xAAAAAAAAul;

    if ( SE051PLUGNTRUST_OK != se051plugntrust_write_binary_object( &se051plugntrust, binary_id, 0, 6, data_buf ) )
    {
        log_error( &logger, " Write Binary" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    // check if object exists
    log_info( &logger, " Check object exists" );
    if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust, binary_id ) )
    {
        log_printf( &logger, " > Object exist\r\n" );
    }
    else
    {
        log_printf( &logger, " > Object doesn't exist\r\n" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    // read binary object
    log_info( &logger, " Read object" );
    reset_parse();
    if ( SE051PLUGNTRUST_OK == se051plugntrust_read_object( &se051plugntrust, binary_id, 0, 0, parse_data, &parse_len ) )
    {
        log_printf( &logger, " > Object data: %s\r\n", parse_data );
    }
    else
    {
        log_error( &logger, " Read binary object" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
    // delete object
    log_info( &logger, " Delete Secure Object" );
    if ( SE051PLUGNTRUST_OK == se051plugntrust_delete_object( &se051plugntrust, binary_id ) )
    {
        log_printf( &logger, " Object 0x%0.8LX deleted\r\n", binary_id );
    }
    else
    {
        log_error( &logger, " Delete Object"  );
    }
    log_printf( &logger, "************************************************************************\r\n" );
    // check if object exists
    log_info( &logger, " Check object exists" );
    if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust, binary_id ) )
    {
        log_printf( &logger, " > Object exist\r\n" );
    }
    else
    {
        log_printf( &logger, " > Object doesn't exist\r\n" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void list_and_delete_objects( void )
{
    se051plugntrust_write_binary_object( &se051plugntrust, 0xAABBCCDDul, 0, 4, "Data" );

    log_info( &logger, " Get Object list" );
    uint32_t ids[ 30 ] = { 0 };
    uint8_t len = 0;
    if ( SE051PLUGNTRUST_OK == se051plugntrust_object_id_list( &se051plugntrust, ids, &len ) )
    {
        log_info( &logger, " List len: %d", ( uint16_t )len );
        for ( uint8_t cnt = 0; cnt < len; cnt++ )
        {   // if not NXP defined objectect delete that object
            if ( ( SE051PLUGNTRUST_OBJID_SE05X_APPLET_RES_START != ( SE051PLUGNTRUST_OBJID_APPLET_MASK & ids[ cnt ] ) ) &&
                 ( SE051PLUGNTRUST_SSS_OBJID_DEMO_AUTH_START != ( SE051PLUGNTRUST_OBJID_APPLET_MASK & ids[ cnt ] ) ) &&
                 ( SE051PLUGNTRUST_SSS_OBJID_IOT_HUB_A_START != ( SE051PLUGNTRUST_OBJID_IOT_MASK & ids[ cnt ] ) ) )
            {
                if ( SE051PLUGNTRUST_OK == se051plugntrust_delete_object( &se051plugntrust, ids[ cnt ] ) )
                {
                    log_printf( &logger, " > Object Deleted 0x%.8LX\r\n", ids[ cnt ] );
                }
                else
                {
                    log_error( &logger, " Delecte Object  0x%.8LX", ids[ cnt ] );
                }
            }
            else
            {
                log_printf( &logger, " > Object ID: 0x%.8LX\r\n", ids[ cnt ] );
            }
        }
    }
    else
    {
        log_error( &logger, " Object ID List" );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void select_applet ( void )
{
    log_info( &logger, " Select SE050 Applet" );
    se051plugntrust_version_info_t ver_info;
    se051plugntrust_select_applet( &se051plugntrust, SE051PLUGNTRUST_PCB_BLOCK_I_NS_ENCODE, &ver_info );
    log_printf( &logger, " > Applet Version = %d.%d.%d\r\n", ( uint16_t ) ver_info.major_version,
                                                             ( uint16_t ) ver_info.minor_version,
                                                             ( uint16_t ) ver_info.patch_version );
    log_printf( &logger, " > AppletConfig = 0x%0.4X\r\n", ver_info.applet_config );
    log_printf( &logger, " > SecureBox = 0x%0.4X\r\n", ver_info.secure_box );
    log_printf( &logger, "************************************************************************\r\n" );
}

static void aes_cipher ( void )
{
    // Create AES Key
    log_info( &logger, " Write AES Key" );
    #define AES_DATA_SIZE 16
    uint8_t aes_value[ AES_DATA_SIZE ] = { 0x40, 0x41, 0x42, 0x43,0x44, 0x45, 0x46, 0x47,
                                           0x48, 0x49, 0x4A, 0x4B,0x4C, 0x4D, 0x4E, 0x4F };
    uint32_t symm_id = 0x12345678ul;
    create_128_aes_key( symm_id, aes_value );

    // Encrypt Data
    if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust, symm_id ) )
    {
        log_info( &logger, " Encrypt Data" );
        uint8_t data_value[ 16 ] = { ' ', '>', 'P', 'l', 'u', 'g', ' ', '&', ' ', 'T', 'r', 'u', 's', 't', '<', ' ' };
        reset_parse( );
        if ( SE051PLUGNTRUST_OK == cipher_data_with_aes_key( symm_id, SE051PLUGNTRUST_P2_ENCRYPT_ONESHOT,
                                                             data_value, parse_data ) )
        {
            log_printf( &logger, " > Encrypted data hex: 0x" );
            log_buf_hex( parse_data, AES_DATA_SIZE );
            log_printf( &logger, "\r\n" );
            log_printf( &logger, " > Encrypted data string: %s\r\n", parse_data );
        }
        else
        {
            log_error( &logger, " Parse error" );
        }
    }
    else
    {
        log_printf( &logger, " > Object doesn't exist\r\n" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    // Decrypt Data
    log_info( &logger, " Decrypt Data" );
    if ( SE051PLUGNTRUST_OK == cipher_data_with_aes_key( symm_id, SE051PLUGNTRUST_P2_DECRYPT_ONESHOT,
                                                         parse_data, parse_data ) )
    {
        log_printf( &logger, " > Decrypted data hex: 0x" );
        log_buf_hex( parse_data, parse_len );
        log_printf( &logger, "\r\n" );
        log_printf( &logger, " > Decrypted data string: %s\r\n", parse_data );
    }
    else
    {
        log_error( &logger, " Parse error" );
    }
    log_printf( &logger, "************************************************************************\r\n" );

    // Delete Object
    log_info( &logger, " Delete Secure Object" );
    if ( SE051PLUGNTRUST_OK == se051plugntrust_delete_object( &se051plugntrust, symm_id ) )
    {
        log_printf( &logger, " Object 0x%0.8LX deleted\r\n", symm_id );
    }
    else
    {
        log_error( &logger, " Delete Object"  );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void select_card_manger ( void )
{
    log_info( &logger, " Select the card manager " );
    if ( SE051PLUGNTRUST_OK != se051plugntrust_select_card_manager( &se051plugntrust,
                                                                    SE051PLUGNTRUST_CARD_MANAGER_WITHOUT_RSP, 0, 0 ) )
    {
        log_error( &logger, " Card manager"  );
    }
    log_printf( &logger, "************************************************************************\r\n" );
}

static void create_128_aes_key ( uint32_t aes_id, uint8_t *aes_key )
{
    #define AES_KEY_SIZE 16
    frame_data.pcb = SE051PLUGNTRUST_PCB_BLOCK_I;
    frame_data.apdu->cla = SE051PLUGNTRUST_CLA_NOT_SECURE;
    frame_data.apdu->ins = SE051PLUGNTRUST_INS_WRITE | SE051PLUGNTRUST_INS_TRANSIENT;
    frame_data.apdu->p1 = SE051PLUGNTRUST_P1_AES;
    frame_data.apdu->p2 = SE051PLUGNTRUST_P2_DEFAULT;
    frame_data.apdu->payload_len = 0;// reset apdu payload_len
    frame_data.apdu->rsp_len = 0;// reset apdu le value
    se051plugntrust_set_tlv_u32( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                 SE051PLUGNTRUST_TLV_TAG_1, aes_id ); // AES key ID
    se051plugntrust_set_tlv_u8buf( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                   SE051PLUGNTRUST_TLV_TAG_3, aes_key, AES_KEY_SIZE ); // AES key value
    frame_data.len = se051plugntrust_calculate_apdu_size( frame_data.apdu ); // calculate apdu size
    se051plugntrust_apdu_transfer( &se051plugntrust, &frame_data );
    log_status( );
    end_apdu_session( );
}

static err_t cipher_data_with_aes_key ( uint32_t aes_id, uint8_t cipher_type, uint8_t *data_in, uint8_t *data_out )
{
    // check if object with aes_id exists
    if ( SE051PLUGNTRUST_OBJECT_DOES_EXISTS == se051plugntrust_check_object_exist( &se051plugntrust, aes_id ) )
    {
        frame_data.pcb = SE051PLUGNTRUST_PCB_BLOCK_I;
        frame_data.apdu->cla = SE051PLUGNTRUST_CLA_NOT_SECURE;
        frame_data.apdu->ins = SE051PLUGNTRUST_INS_CRYPTO;
        frame_data.apdu->p1 = SE051PLUGNTRUST_P1_CIPHER;
        frame_data.apdu->p2 = cipher_type; // SE051PLUGNTRUST_P2_ENCRYPT_ONESHOT || SE051PLUGNTRUST_P2_DECRYPT_ONESHOT
        frame_data.apdu->payload_len = 0;
        frame_data.apdu->rsp_len = 0;
        frame_data.len = 0;
        se051plugntrust_set_tlv_u32( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                     SE051PLUGNTRUST_TLV_TAG_1, aes_id ); // set aes key to be used
        se051plugntrust_set_tlv_u8( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                    SE051PLUGNTRUST_TLV_TAG_2, SE051PLUGNTRUST_CIPHER_AES_CTR ); // set ae cipher type to be used
        se051plugntrust_set_tlv_u8buf( frame_data.apdu->payload, &frame_data.apdu->payload_len,
                                       SE051PLUGNTRUST_TLV_TAG_3, data_in, 16 ); // set data to encrypt/decrypt
        frame_data.len = se051plugntrust_calculate_apdu_size( frame_data.apdu ); // calculate apdu data
        frame_data.len++; // increment data
        se051plugntrust_apdu_transfer( &se051plugntrust, &frame_data );
        reset_parse( ); // reset prase data
        // get encryted/decrypted data
        if ( SE051PLUGNTRUST_OK == se051plugntrust_get_tlv_u8buf( frame_data.apdu->payload, &parse_index, frame_data.len,
                                                                  SE051PLUGNTRUST_TLV_TAG_1, data_out, &parse_len ) )
        {
            end_apdu_session( );
            return SE051PLUGNTRUST_OK;
        }
        else
        {
            end_apdu_session( );
            return SE051PLUGNTRUST_ERROR;
        }
    }
    else
    {
        return SE051PLUGNTRUST_ERROR;
    }
}

// ------------------------------------------------------------------------ END

Additional Support

Resources
