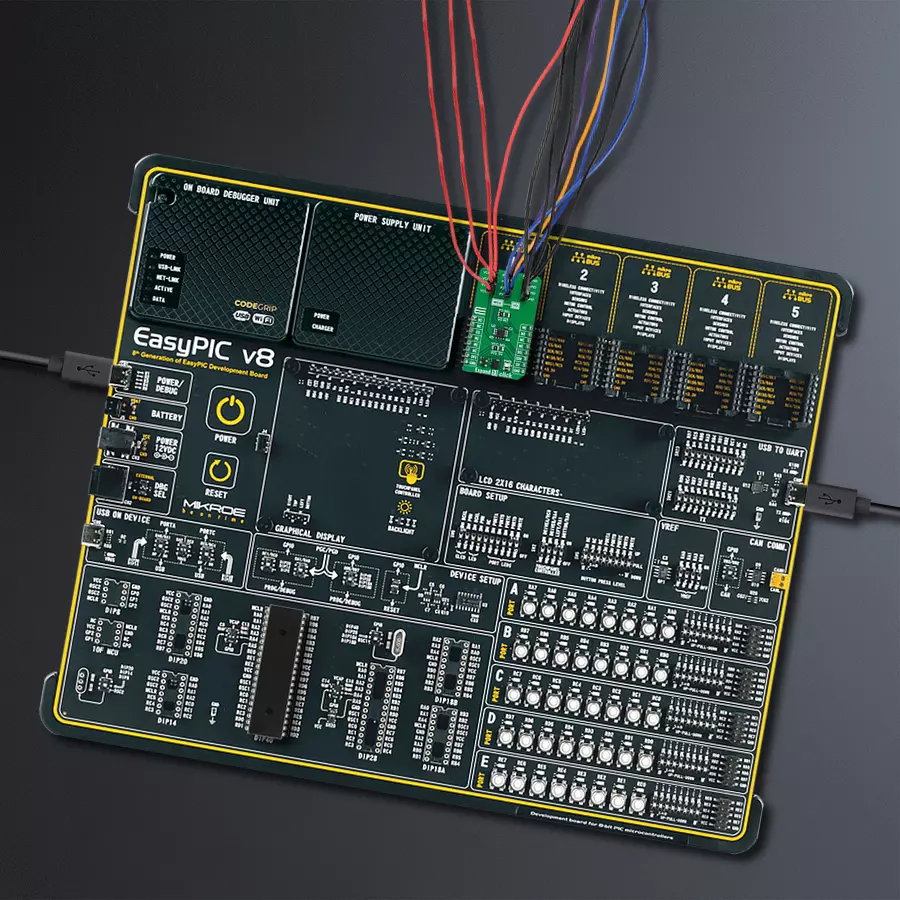

使用TCA9536和PIC18F47Q10简化信号路由和控制

/*!
 * @file main.c
 * @brief Expand 11 Click example
 *
 * # Description
 * This example demonstrates the use of Expand 11 Click board by setting and
 * reading the port state.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and performs the Click default configuration which sets
 * the pins P0-P1 as output and P2-P3 as input.
 *
 * ## Application Task
 * Toggles all output pins and then reads the status of the whole port and
 * displays the results on the USB UART approximately once per second.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "expand11.h"

static expand11_t expand11;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    expand11_cfg_t expand11_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    expand11_cfg_setup( &expand11_cfg );
    EXPAND11_MAP_MIKROBUS( expand11_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == expand11_init( &expand11, &expand11_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( EXPAND11_ERROR == expand11_default_cfg ( &expand11 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    static uint16_t pin_num = EXPAND11_PIN_0_MASK;
    uint8_t port_value = 0;
    if ( EXPAND11_OK == expand11_set_all_pins_value( &expand11, pin_num ) )
    {
        if ( EXPAND11_OK == expand11_read_port_value( &expand11, &port_value ) )
        {
            log_printf( &logger, " PORT STATUS \r\n" );
            log_printf( &logger, "  P0: %u\r\n", ( uint16_t ) ( port_value & EXPAND11_PIN_0_MASK ) );
            log_printf( &logger, "  P1: %u\r\n", ( uint16_t ) ( ( port_value & EXPAND11_PIN_1_MASK ) >> 1 ) );
            log_printf( &logger, "  P2: %u\r\n", ( uint16_t ) ( ( port_value & EXPAND11_PIN_2_MASK ) >> 2 ) );
            log_printf( &logger, "  P3: %u\r\n\n", ( uint16_t ) ( ( port_value & EXPAND11_PIN_3_MASK ) >> 3 ) );
            pin_num = ( ~pin_num ) & EXPAND11_ALL_PINS_MASK;
        }
    }
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
