Beginner
10 min

Utilize energy from the environment with TCM310 and TM4C129ENCPDT, and keep your devices connected on the go

Empower your devices with energy from anywhere!

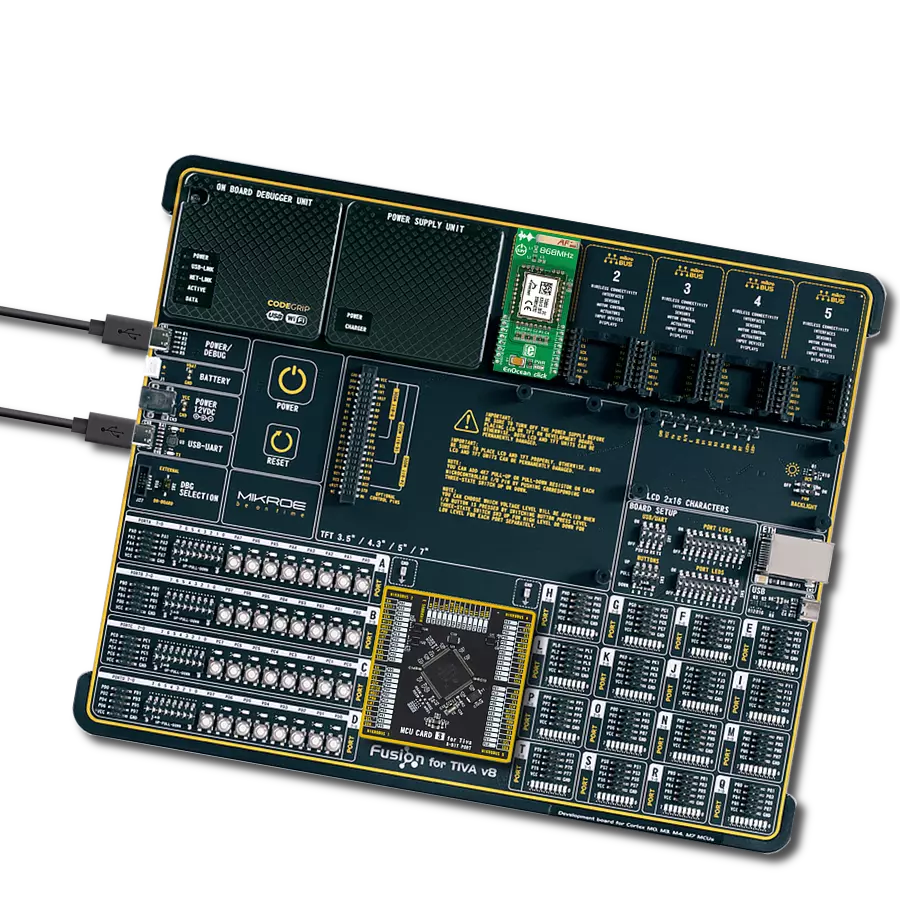

EnOcean Click with Fusion for Tiva v8

Published Nov 02, 2023

Click board™

EnOcean Click

Dev. board

Fusion for Tiva v8

Compiler

NECTO Studio

MCU

TM4C129ENCPDT

Our energy harvesting solution offers a green and sustainable power solution by extracting energy from the environment, including motion, light, and temperature differences, allowing for reliable and continuous wireless signal transmission anytime and anywhere

A

A

Hardware Overview

How does it work?

EnOcean Click is based on the TCM310, a bidirectional transceiver gateway module from EnOcean. It enables the realization of gateways for the EnOcean 868MHz radio systems by providing a bidirectional radio interface at the one end and a serial interface at the other end, with an ASK modulation type and data rate of 125Kbps. The module has low current consumption for receiving and transmitting modes with a receiving sensitivity of -96dBm over the onboard 868MHz chip antenna. It generates its electrical energy by

converting electromagnetic, solar, and thermoelectric energy to work as a battery-free self-powered device. The TCM310 module can act as a postmaster for up to 15 bidirectional sensors using Smart Ack technology. The EnOcean module uses the UART interface with commonly used UART RX and TX pins as its default communication protocol for communication with the host microcontroller. In addition, this Click board™ also features read and operating modes, which can be activated using the EN pin of the

mikroBUS™ socket. The operating mode is set by default with a pull-down resistor. The reset pin routed on the RST pin of the mikroBUS™ socket provides the general module-reset ability. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

EnOcean Click hardware overview image

Features overview

Development board

Fusion for TIVA v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports a wide range of microcontrollers, such as different 32-bit ARM® Cortex®-M based MCUs from Texas Instruments, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer over a WiFi network. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, Fusion for TIVA v8 provides a fluid and immersive working experience, allowing access

anywhere and under any circumstances at any time. Each part of the Fusion for TIVA v8 development board contains the components necessary for the most efficient operation of the same board. An advanced integrated CODEGRIP programmer/debugger module offers many valuable programming/debugging options, including support for JTAG, SWD, and SWO Trace (Single Wire Output)), and seamless integration with the Mikroe software environment. Besides, it also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.

Communication options such as USB-UART, USB HOST/DEVICE, CAN (on the MCU card, if supported), and Ethernet is also included. In addition, it also has the well-established mikroBUS™ standard, a standardized socket for the MCU card (SiBRAIN standard), and two display options for the TFT board line of products and character-based LCD. Fusion for TIVA v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

Fusion for Tiva v8 horizontal image

Microcontroller Overview

MCU Card / MCU

default

Type

8th Generation

Architecture

ARM Cortex-M4

MCU Memory (KB)

1024

Silicon Vendor

Texas Instruments

Pin count

128

RAM (Bytes)

262144

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset
PK3
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Operational Mode Enable
PL4
PWM
NC
NC
INT
UART TX
PK1
TX
UART RX
PK0
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

EnOcean Click Schematic schematic

Step by step

Project assembly

Fusion for PIC v8 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Fusion for Tiva v8 as your development board.

Fusion for PIC v8 front image hardware assembly
GNSS2 Click front image hardware assembly
SiBRAIN for PIC32MZ1024EFK144 front image hardware assembly

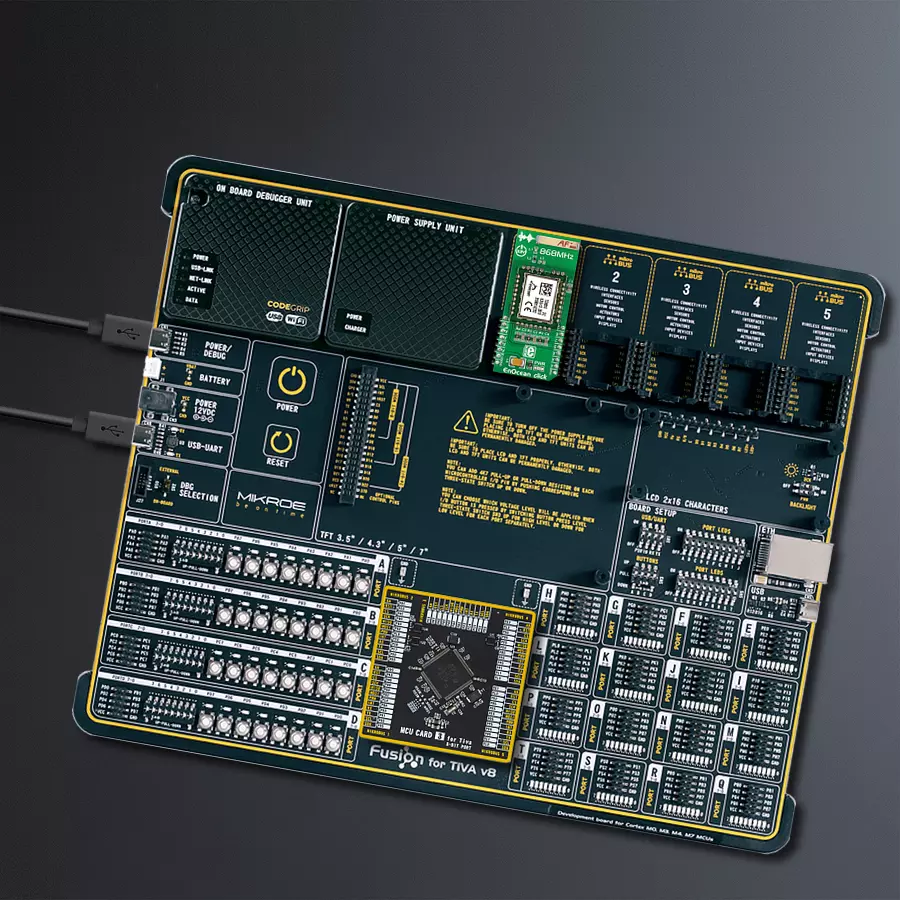

Board mapper by product7 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto image step 7 hardware assembly
Necto image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Software Support

Library Description

This library contains API for EnOcean Click driver.

Key functions:

  • enocean_response_ready - Response Ready function.

  • enocean_uart_isr - UART Interrupt Routine function.

  • enocean_send_packet - Packet Send function.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file
 * \brief Enocean Click example
 *
 * # Description
 * This example reads and processes data from EnOcean Clicks.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and sets the driver handler.
 *
 * ## Application Task
 * Reads the received data and parses it on the USB UART if the response buffer is ready.
 *
 * ## Additional Function
 * - enocean_process - The general process of collecting data the module sends.
 * - make_response - Driver handler function which stores data in the response buffer.
 * - log_response - Logs the module response on the USB UART.
 * - log_example - Logs button events on the USB UART.
 * - check_response - Checks if the response is ready and logs button events.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "enocean.h"
#include "string.h"

// ------------------------------------------------------------------ VARIABLES

static enocean_t enocean;
static log_t logger;

enocean_packet_t response;
uint16_t response_size_cnt;
uint8_t rsp_check = 1;

// ------------------------------------------------------- ADDITIONAL FUNCTIONS

void make_response( enocean_packet_t *rsp, uint16_t *rsp_length_size )
{
    uint16_t rsp_cnt;

    for ( rsp_cnt = 0; rsp_cnt < rsp->data_length; rsp_cnt++ )
    {
        response.data_buff[ rsp_cnt ] = rsp->data_buff[ rsp_cnt ];
    }

    response.data_length = rsp->data_length;
    response.opt_length  = rsp->opt_length;
    response.packet_type = rsp->packet_type;
    response_size_cnt    = *rsp_length_size;
}

void log_response( )
{
    uint16_t rsp_cnt;

    if ( rsp_check == 1 )
    {
        log_printf( &logger, "OPCODE + PARAM : ", rsp_check );
        rsp_check = 0;
    }

    for ( rsp_cnt = 0; rsp_cnt < response.data_length; rsp_cnt++ )
    {
        log_printf( &logger, "0x%.2X ", ( uint16_t ) response.data_buff[ rsp_cnt ] );
    }

    if ( response_size_cnt == 1 )
    {
        log_printf( &logger, "\r\n" );
        rsp_check = 1;
    }
}

void log_example( )
{
    switch ( response.data_buff[ 1 ] )
    {
        case 0x00:
        {
            log_printf( &logger, "* Button is released *\r\n" );
            break;
        }
        case 0x10 :
        {
            log_printf( &logger, "* Button 1 is pressed *\r\n" );
            break;
        }
        case 0x30 :
        {
            log_printf( &logger, "* Button 3 is pressed *\r\n" );
            break;
        }
        case 0x50 :
        {
            log_printf( &logger, "* Button 5 is pressed *\r\n" );
            break;
        }
        case 0x70 :
        {
            log_printf( &logger, "* Button 7 is pressed *\r\n" );
            break;
        }
        case 0x15 :
        {
            log_printf( &logger, "* Buttons 1 and 5 are pressed *\r\n" );
            break;
        }
        case 0x17 :
        {
            log_printf( &logger, "* Buttons 1 and 7 are pressed *\r\n" );
            break;
        }
        case 0x35 :
        {
            log_printf( &logger, "* Buttons 3 and 5 are pressed *\r\n" );
            break;
        }
        case 0x37 :
        {
            log_printf( &logger, "* Buttons 3 and 7 are pressed *\r\n" );
            break;
        }
        default :
        {
            break;
        }
    }
}

void check_response( )
{
    uint8_t response_ready;

    response_ready = enocean_response_ready( &enocean );

    if ( response_ready == ENOCEAN_RESPONSE_READY )
    {
        log_example( );
    }
}

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    enocean_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    enocean_cfg_setup( &cfg );
    ENOCEAN_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    enocean_init( &enocean, &cfg );

    Delay_ms ( 500 );

    enocean_response_handler_set( &enocean, &make_response );
}

void application_task ( void )
{
    enocean_uart_isr ( &enocean );
    check_response ( );
    Delay_1ms( );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}


// ------------------------------------------------------------------------ END
