Experience groundbreaking UWB technology with DWM1000 and PIC32MZ1024EFH064

Where every centimeter counts

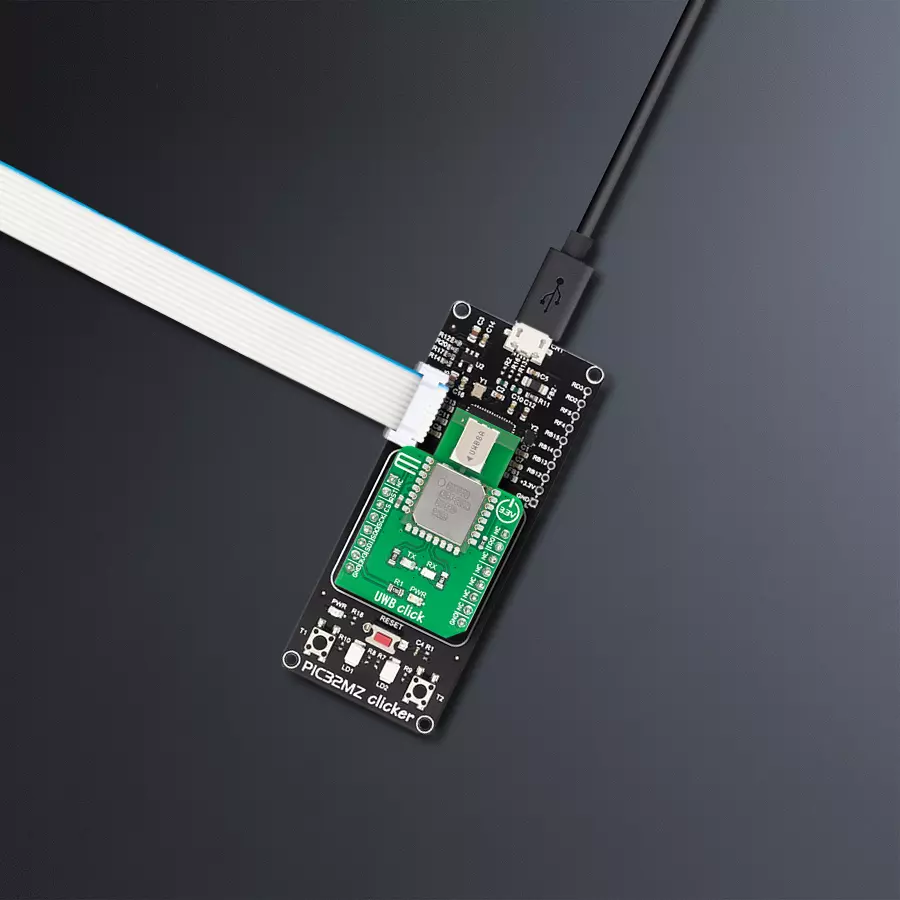

UWB Click with PIC32MZ clicker

Published Nov 08, 2023

Click board™

UWB Click

Dev. board

PIC32MZ clicker

Compiler

NECTO Studio

MCU

PIC32MZ1024EFH064

Our UWB transceiver sets a new standard in 2-way ranging and TDOA systems, ensuring 10cm accuracy for applications such as indoor positioning, asset management, and beyond.

A

A

Hardware Overview

How does it work?

UWB Click is based on the DWM1000, UWB-compliant wireless transceiver module from Qorvo. RF components, Qorvo UWB transceiver, and other components reside on-module. DWM1000 enables cost-effective and reduced complexity integration of UWB communications and ranging features, greatly accelerating design implementation. This module enables the location of objects in real-time location systems (RTLS) to a precision of 10cm indoors, high data rate communications up to 6.8 Mbps, and excellent communications range of up to 300m thanks to coherent receiver techniques. The module contains an on-board 38.4 MHz reference crystal, which has been trimmed in production to reduce the initial frequency error to approximately 2 ppm, using the transceiver’s internal on-chip crystal trimming circuit. The DWM1000 module communicates with MCU using the standard SPI serial interface with a maximum SPI frequency of 20 MHz. This module also has several GPIO pins, while in this case

two of them are used to drive LED indicators that notify the user which configuration of the transceiver is used (TX or RX). Also, it possesses Reset and Interrupt pins routed to the INT and RST pin of the mikroBUS™. When power is applied to the DWM1000, the RST pin is driven low by internal circuitry as part of its power-up sequence. RST remains low until the on-module crystal oscillator has powered up and its output is suitable for use by the rest of the device, at which time RST is stated high. RST pin may also be used as an output to reset external circuitry as part of system bring-up as power is applied. Always-On (AON) memory can be used to retain DWM1000 configuration data during the lowest power operational states when the on-chip voltage regulators are disabled. Depending on the end-use applications and the system design, DWM1000 settings may need to be tuned. To help with this tuning several built-in functions such as continuous wave TX and continuous packet transmission can be enabled. To maximize range,

DWM1000 transmit power spectral density (PSD) should be set to the maximum allowable for the geographic region in which it will be used. As the module contains an integrated antenna, the transmit power can only be measured over the air. The DWM1000 provides the facility to adjust the transmit power, and these adjustments can be used to maximize transmit power whilst meeting the regulatory spectral mask. This Click board™ uses the SPI communication interface. It is designed to be operated only with 3.3V logic levels. A proper logic voltage level conversion should be performed before the Click board™ is used with MCUs with logic levels of 5V. More information about the DWM1000’s functionality, electrical specifications, and typical performance can be found in the attached datasheet. However, the Click board™ comes equipped with a library that contains easy to use functions and a usage example that may be used as a reference for the development.

UWB Click hardware overview image

Features overview

Development board

PIC32MZ Clicker is a compact starter development board that brings the flexibility of add-on Click boards™ to your favorite microcontroller, making it a perfect starter kit for implementing your ideas. It comes with an onboard 32-bit PIC32MZ microcontroller with FPU from Microchip, a USB connector, LED indicators, buttons, a mikroProg connector, and a header for interfacing with external electronics. Thanks to its compact design with clear and easy-recognizable silkscreen markings, it provides a fluid and immersive working experience, allowing access anywhere and under

any circumstances. Each part of the PIC32MZ Clicker development kit contains the components necessary for the most efficient operation of the same board. In addition to the possibility of choosing the PIC32MZ Clicker programming method, using USB HID mikroBootloader, or through an external mikroProg connector for PIC, dsPIC, or PIC32 programmer, the Clicker board also includes a clean and regulated power supply module for the development kit. The USB Micro-B connection can provide up to 500mA of current, which is more than enough to operate all onboard

and additional modules. All communication methods that mikroBUS™ itself supports are on this board, including the well-established mikroBUS™ socket, reset button, and several buttons and LED indicators. PIC32MZ Clicker is an integral part of the Mikroe ecosystem, allowing you to create a new application in minutes. Natively supported by Mikroe software tools, it covers many aspects of prototyping thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

PIC32MZ clicker double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

PIC32

MCU Memory (KB)

1024

Silicon Vendor

Microchip

Pin count

64

RAM (Bytes)

524288

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset
RE5
RST
SPI Chip Select
RG9
CS
SPI Clock
RG6
SCK
SPI Data OUT
RG7
MISO
SPI Data IN
RG8
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
Interrupt
RB5
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

UWB Click Schematic schematic

Step by step

Project assembly

PIC32MZ clicker front image hardware assembly

Start by selecting your development board and Click board™. Begin with the PIC32MZ clicker as your development board.

PIC32MZ clicker front image hardware assembly
GNSS2 Click front image hardware assembly
Prog-cut hardware assembly
Board mapper by product7 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Flip&Click PIC32MZ MCU step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Software Support

Library Description

This library contains API for UWB Click driver.

Key functions:

  • uwb_set_mode - This function set device working mode.

  • uwb_get_transmit_status - This function get transmit status.

  • uwb_start_transceiver - This function start communication of device.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file
 * \brief Uwb Click example
 *
 * # Description
 * UWB Click sends and receive data, depending on the selected device mode.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and configures the Click board for the selected mode.
 *
 * ## Application Task
 * Depending on the selected mode, it reads all the received data or sends the desired message
 * every 2 seconds.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "uwb.h"

// ------------------------------------------------------------------ VARIABLES

static uwb_t uwb;
static log_t logger;

// Device mode setter - selects the module working mode RX(receiver)/TX(transmitter)
static uint8_t dev_mode = UWB_MODE_TX;

// Transmit buffers
static uint8_t data_tx_1[ 7 ] = "MikroE";
static uint8_t data_tx_2[ 10 ] = "UWB Click";

// Transmit length read var
static uint16_t temp_len = 0;

// Recieved data buffer
static uint8_t transmit_data[ 256 ] = { 0 };

// Dev_status var
static uint8_t dev_status = { 0 };

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    uwb_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    // Click initialization.
    uwb_cfg_setup( &cfg );
    UWB_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    uwb_init( &uwb, &cfg );
    Delay_ms ( 100 );

    uwb_enable ( &uwb );
    Delay_ms ( 100 );

    uint8_t id_raw[ 4 ] = { 0 };
    uwb.offset = UWB_SUB_NO;
    uwb_generic_read( &uwb, UWB_REG_DEV_ID, &id_raw[ 0 ], 4 );

    uint16_t tag_data = ( ( uint16_t ) id_raw[ 3 ] << 8 ) | id_raw[ 2 ];

    if ( UWB_TAG != tag_data )
    {
        log_printf( &logger, " ***** ERROR ***** \r\n" );
        for ( ; ; );
    }

    uwb_set_mode( &uwb, UWB_MODE_IDLE );

    //-----------------------------------------------------

    // Setting device mode and interrupt for that mode as well as clearing dev_status reg.
    uwb_set_mode( &uwb, dev_mode );
    uwb_int_mask_set( &uwb );
    uwb_clear_status( &uwb );

    // Setting device address and network ID
    log_printf( &logger, " ******************** \r\n" );
    if ( UWB_MODE_RX == dev_mode )
    {
        uwb_set_dev_adr_n_network_id( &uwb, 6, 10 );
        log_printf( &logger, " ***** RECEIVER ***** \r\n" );
    }
    else if ( UWB_MODE_TX == dev_mode )
    {
        uwb_set_dev_adr_n_network_id( &uwb, 5, 10 );
        log_printf( &logger, " **** TRANSMITER **** \r\n" );
    }
    log_printf( &logger, " ******************** \r\n" );

    Delay_ms ( 100 );

    // Setting default configuartion and tuning device for that configuration
    uwb_use_smart_power( &uwb, UWB_LOW );
    uwb_frame_check( UWB_LOW );
    uwb_frame_filter( &uwb, UWB_LOW );
    uwb_set_transmit_type( &uwb, &UWB_TMODE_LONGDATA_RANGE_LOWPOWER[ 0 ] );
    uwb_set_channel( &uwb, UWB_CHANNEL_5 );
    uwb_tune_config( &uwb );

    Delay_ms ( 100 );

    if ( UWB_MODE_RX == dev_mode )
    {
        // Setup for first receive
        uwb_set_mode( &uwb, UWB_MODE_IDLE );
        uwb_set_bit ( &uwb, UWB_REG_SYS_CFG, 29, UWB_HIGH );
        uwb_set_bit ( &uwb, UWB_REG_SYS_CFG, 30, UWB_HIGH );
        uwb_set_bit ( &uwb, UWB_REG_SYS_CFG, 31, UWB_HIGH );
        uwb_set_mode( &uwb, UWB_MODE_RX );
        uwb_clear_status( &uwb );
        uwb_start_transceiver( &uwb );
    }
    else if ( UWB_MODE_TX == dev_mode )
    {
        // Setup for first transmit
        uwb_set_mode( &uwb, UWB_MODE_IDLE );
        uwb_clear_status( &uwb );
        uwb_set_transmit( &uwb, &data_tx_1[ 0 ], 6 );
        uwb_set_mode( &uwb, UWB_MODE_TX );
        uwb_start_transceiver( &uwb );
        log_printf( &logger, " - Transmit 1 done - \r\n" );
    }

    log_printf( &logger, " ***** APP TASK ***** \r\n" );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

void application_task ( void )
{
    dev_status = uwb_get_qint_pin_status( &uwb );

    if ( UWB_MODE_RX == dev_mode )
    {
        if ( dev_status )
        {
            // Reading transmitted data, logs it and resetting to receive mode
            uwb_set_mode( &uwb, UWB_MODE_IDLE );
            uwb_clear_status( &uwb );
            temp_len = uwb_get_transmit_len( &uwb );
            uwb_get_transmit( &uwb, &transmit_data[ 0 ], temp_len );
            log_printf( &logger, "Received data: %s\r\n", transmit_data );
            log_printf( &logger, " - Receive done - \r\n" );
            uwb_set_mode( &uwb, UWB_MODE_RX );
            uwb_start_transceiver( &uwb );
        }
    }
    else if ( UWB_MODE_TX == dev_mode )
    {
        if ( dev_status )
        {
            // Transmits data, resetting to transmit mode and sets 2sec delay
            uwb_set_mode( &uwb, UWB_MODE_IDLE );
            uwb_clear_status( &uwb );
            uwb_set_transmit( &uwb, &data_tx_2[ 0 ], 9 );
            uwb_set_mode( &uwb, UWB_MODE_TX );
            uwb_start_transceiver( &uwb );
            log_printf( &logger, " - Transmit 2 done - \r\n" );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
            uwb_set_mode( &uwb, UWB_MODE_IDLE );
            uwb_clear_status( &uwb );
            uwb_set_transmit( &uwb, &data_tx_1[ 0 ], 6 );
            uwb_set_mode( &uwb, UWB_MODE_TX );
            uwb_start_transceiver( &uwb );
            log_printf( &logger, " - Transmit 1 done - \r\n" );
            Delay_ms ( 1000 );
            Delay_ms ( 1000 );
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}


// ------------------------------------------------------------------------ END
