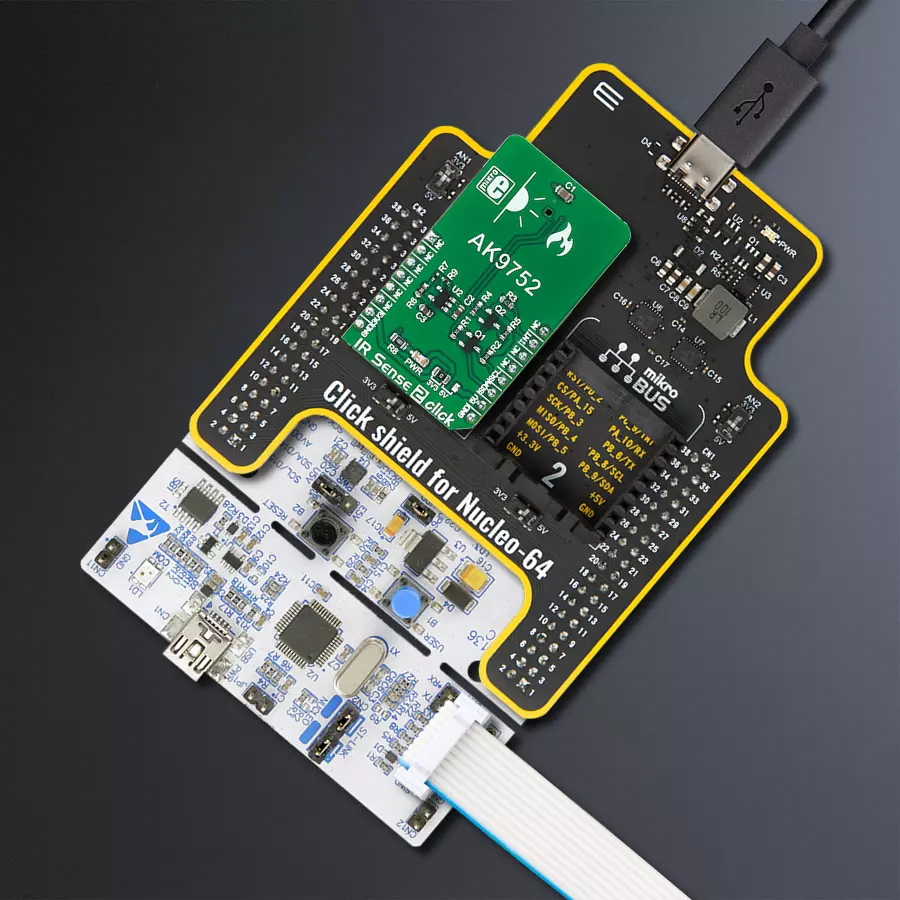

使用 AK9752 和 STM32G071RB 实时监测物体和人的温度。

/*!
 * \file
 * \brief IrSense2 Click example
 *
 * # Description
 * This application enables usage of IR sensor for presence detection.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Driver initialization.
 *
 * ## Application Task
 * Fetches IR and temperature sensor data and prints them on terminal.
 *
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "irsense2.h"

// ------------------------------------------------------------------ VARIABLES

static irsense2_t irsense2;
static log_t logger;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    irsense2_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    irsense2_cfg_setup( &cfg );
    IRSENSE2_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    irsense2_init( &irsense2, &cfg );

    Delay_us( 100 );

    irsense2_default_cfg ( &irsense2 );
}

void application_task ( void )
{
    //  Task implementation.

    float temperature;
    float ir_data;
    uint8_t flag;

    Delay_ms ( 400 );

    irsense2_data_read( &irsense2, &ir_data, &temperature );

    flag = irsense_human_detected( &irsense2, ir_data );

    if ( flag == 1 )
    {   log_printf( &logger, " \r\n----------------------------- \r\n");
        log_printf( &logger, "\r\n Person detected!!! \r\n" );
        log_printf( &logger, " \r\n----------------------------- \r\n");
        Delay_ms ( 300 );
    }

    log_printf( &logger, "\r\n\r\nIR Value:       %.2f  pA ", ir_data );
    log_printf( &logger, " \r\n----------------------------- \r\n");
    log_printf( &logger, "Temperature: %.8f  C \r\n", temperature );

    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
