Enhance your design with NFC Tag technology by using M24LR64E-R and ATmega644

Quick exchange of a digitized information

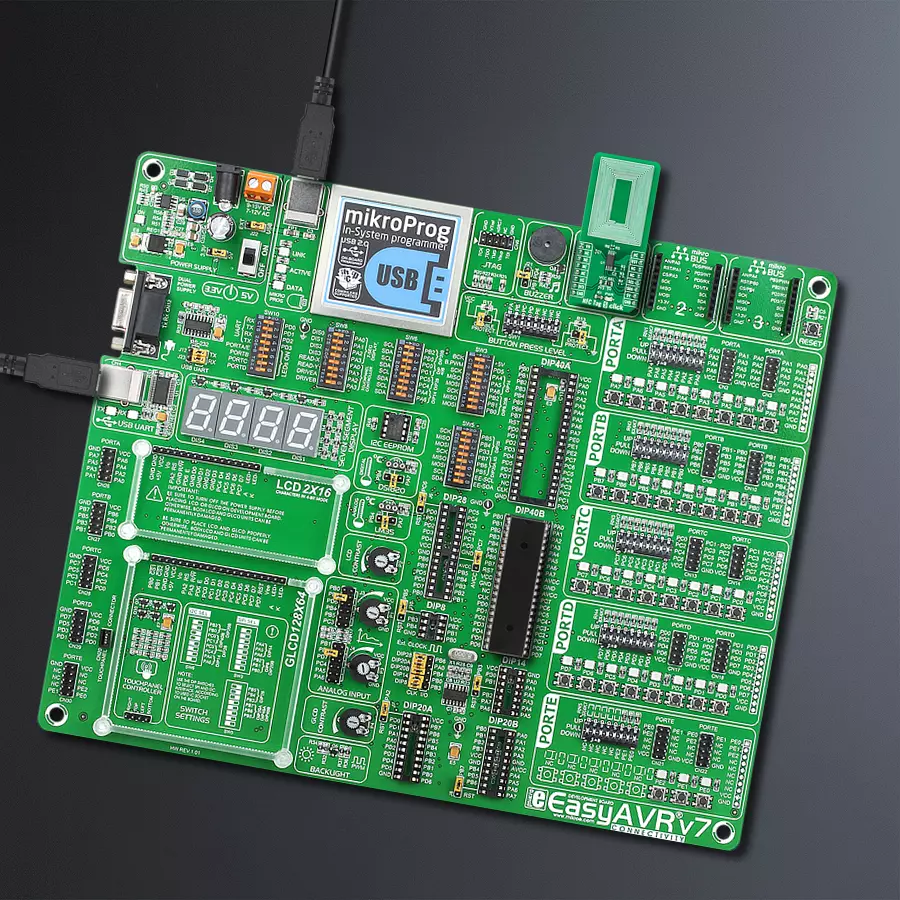

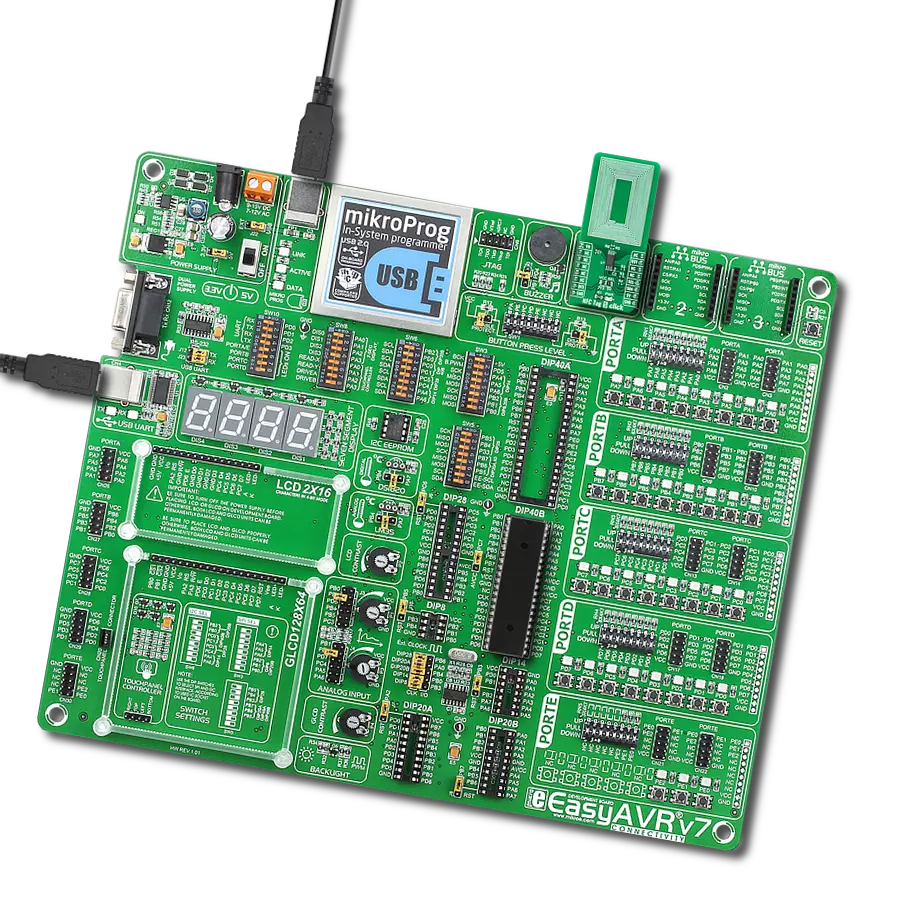

NFC Tag 5 Click with EasyAVR v7

Published Mar 03, 2023

Click board™

NFC Tag 5 Click

Dev. board

EasyAVR v7

Compiler

NECTO Studio

MCU

ATmega644

Transfer data using short-range RF communication

A

A

Hardware Overview

How does it work?

NFC Tag 5 Click is based on the M24LR64E-R, a 64-Kbit dynamic NFC/RFID tag with password protection, energy harvesting, and RF status functions from STMicroelectronics. This highly integrated Near Field Communication tag module comes with a dual-interface electrically erasable programmable memory (EEPROM), an I2C interface alongside an RF contactless interface operating at 13.56MHz, organized as 8192×8 bits in the I2C mode and 2048×32 bits in the ISO 15693 and ISO 18000-3 mode 1 RF mode. This Click board™ contains the properly tuned integrated trace antenna on the PCB to power and access the device using the ISO/IEC 15693 and ISO 18000-3 mode one protocol. Power is transferred to the M24LR64E-R by radio frequency at 13.56MHz via

coupling antennas. As mentioned, this Click board™ communicates with MCU using the standard I2C 2-Wire interface with a maximum clock frequency of 400kHz, fully adjustable through software registers. It also provides an Energy harvesting mode on the analog pin of the mikroBUS™ socket marked as VH. When the Energy harvesting mode is activated, the M24LR64E-R can output the excess energy from the RF field on the VH pin. If the RF field strength is insufficient or when the Energy harvesting mode is disabled, the VH pin goes into a high-Z state, and the Energy harvesting mode is automatically stopped. Besides, it also features a user-configurable pin marked as BSY, routed to the AN analog pin of the mikroBUS™ socket, used either to indicate that the

M24LR64E-R is executing an internal write cycle from the RF channel or that an RF command is in progress. When configured in the RF write in progress mode, the BSY pin is driven low for the entire RF internal write operation duration. When configured in the RF busy mode, this pin is driven low for the whole period of the RF command progress. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.

NFC Tag 5 Click top side image
NFC Tag 5 Click lateral side image
NFC Tag 5 Click bottom side image

Features overview

Development board

EasyAVR v7 is the seventh generation of AVR development boards specially designed for the needs of rapid development of embedded applications. It supports a wide range of 16-bit AVR microcontrollers from Microchip and has a broad set of unique functions, such as a powerful onboard mikroProg programmer and In-Circuit debugger over USB. The development board is well organized and designed so that the end-user has all the necessary elements in one place, such as switches, buttons, indicators, connectors, and others. With four different connectors for each port, EasyAVR v7 allows you to connect accessory boards, sensors, and custom electronics more

efficiently than ever. Each part of the EasyAVR v7 development board contains the components necessary for the most efficient operation of the same board. An integrated mikroProg, a fast USB 2.0 programmer with mikroICD hardware In-Circuit Debugger, offers many valuable programming/debugging options and seamless integration with the Mikroe software environment. Besides it also includes a clean and regulated power supply block for the development board. It can use a wide range of external power sources, including an external 12V power supply, 7-12V AC or 9-15V DC via DC connector/screw terminals, and a power source via the USB Type-B (USB-B)

connector. Communication options such as USB-UART and RS-232 are also included, alongside the well-established mikroBUS™ standard, three display options (7-segment, graphical, and character-based LCD), and several different DIP sockets which cover a wide range of 16-bit AVR MCUs. EasyAVR v7 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

EasyAVR v7 horizontal image

Microcontroller Overview

MCU Card / MCU

ATmega644

Architecture

AVR

MCU Memory (KB)

64

Silicon Vendor

Microchip

Pin count

40

RAM (Bytes)

4096

Used MCU Pins

mikroBUS™ mapper

Energy Harvest
PA7
AN
NC
NC
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
RF Status
PD2
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PC0
SCL
I2C Data
PC1
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

NFC Tag 5 Click Schematic schematic

Step by step

Project assembly

EasyAVR v7 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyAVR v7 as your development board.

EasyAVR v7 front image hardware assembly
Buck 22 Click front image hardware assembly
MCU DIP 40 hardware assembly
EasyAVR v7 MB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto DIP image step 7 hardware assembly
EasyPIC PRO v7a Display Selection Necto Step hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for NFC Tag 5 Click driver.

Key functions:

  • nfctag5_write_ndef_uri_record This function writes specific NDEF URI record to the memory address specified with NTAG5LINK_NDEF_MESSAGE_START_ADDRESS macro.

  • nfctag5_write_message_to_memory This function writes specified number of data bytes to the user memory starting from @b block_addr.

  • nfctag5_read_message_from_memory This function reads specified number of data bytes from the user memory starting from @b block_addr.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief NFCTag5 Click example
 *
 * # Description
 * This example demonstrates the use of NFC Tag 5 Click board by programming the
 * specified NDEF URI record to the memory, and showing the memory read/write feature.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and logger and performs the Click default configuration which
 * formats its user memory. After that it programs the specified NDEF URI record to the memory.
 *
 * ## Application Task
 * Writes a desired number of data bytes to the memory and verifies that it is written
 * correctly by reading from the same memory location and displaying the memory content
 * on the USB UART approximately every 5 seconds.
 *
 * @note
 * Trying to write/read in RF mode (for example, processing NDEF URI record with a smartphone)
 * while writing to memory over I2C is in progress can interrupt and block the I2C communication.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "nfctag5.h"

/**
 * URL to store to memory as NDEF URI record
 */
#define URI_DATA                "www.mikroe.com/nfc-tag-5-click"

/**
 * Starting block address to where the text message will be stored
 * Must be > ( NFCTAG5_NDEF_MESSAGE_START_ADDRESS + sizeof ( URI_DATA ) / NFCTAG5_MEMORY_BLOCK_SIZE + 3 )
 * to avoid overwriting NDEF URI record.
 */
#define TEXT_MESSAGE_ADDRESS    0x0100

/**
 * Text message content that will be stored to memory
 */
#define TEXT_MESSAGE            "MikroE - NFC Tag 5 Click"

static nfctag5_t nfctag5;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    nfctag5_cfg_t nfctag5_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    nfctag5_cfg_setup( &nfctag5_cfg );
    NFCTAG5_MAP_MIKROBUS( nfctag5_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == nfctag5_init( &nfctag5, &nfctag5_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( NFCTAG5_ERROR == nfctag5_default_cfg ( &nfctag5 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    if ( NFCTAG5_OK == nfctag5_write_ndef_uri_record ( &nfctag5, NFCTAG5_URI_PREFIX_4,
                                                       URI_DATA, strlen ( URI_DATA ) ) )
    {
        log_printf( &logger, " NDEF URI record \"https://%s\" has been written\r\n", ( char * ) URI_DATA );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    uint8_t message_buf[ 100 ] = { 0 };
    if ( NFCTAG5_OK == nfctag5_write_message_to_memory ( &nfctag5,
                                                         TEXT_MESSAGE_ADDRESS,
                                                         TEXT_MESSAGE,
                                                         strlen ( TEXT_MESSAGE ) ) )
    {
        log_printf( &logger, " \"%s\" has been written to memory address 0x%.4X \r\n",
                    ( char * ) TEXT_MESSAGE, ( uint16_t ) TEXT_MESSAGE_ADDRESS );
    }
    if ( NFCTAG5_OK == nfctag5_read_message_from_memory ( &nfctag5,
                                                          TEXT_MESSAGE_ADDRESS,
                                                          message_buf,
                                                          strlen ( TEXT_MESSAGE ) ) )
    {
        log_printf( &logger, " \"%s\" has been read from memory address 0x%.4X \r\n\n",
                    message_buf, ( uint16_t ) TEXT_MESSAGE_ADDRESS );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
