Elevate your positioning accuracy to unparalleled heights with LC29H(DA/EA) and PIC18LF46K40

Ensure your position is always on point, no matter the terrain or challenge

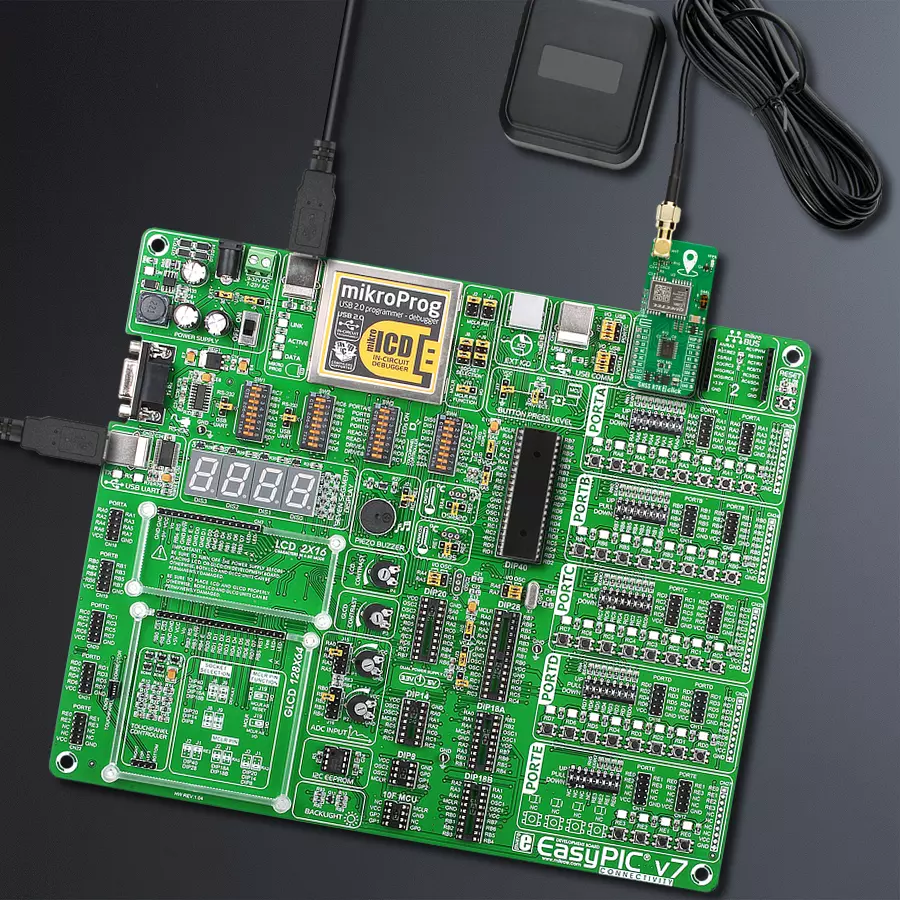

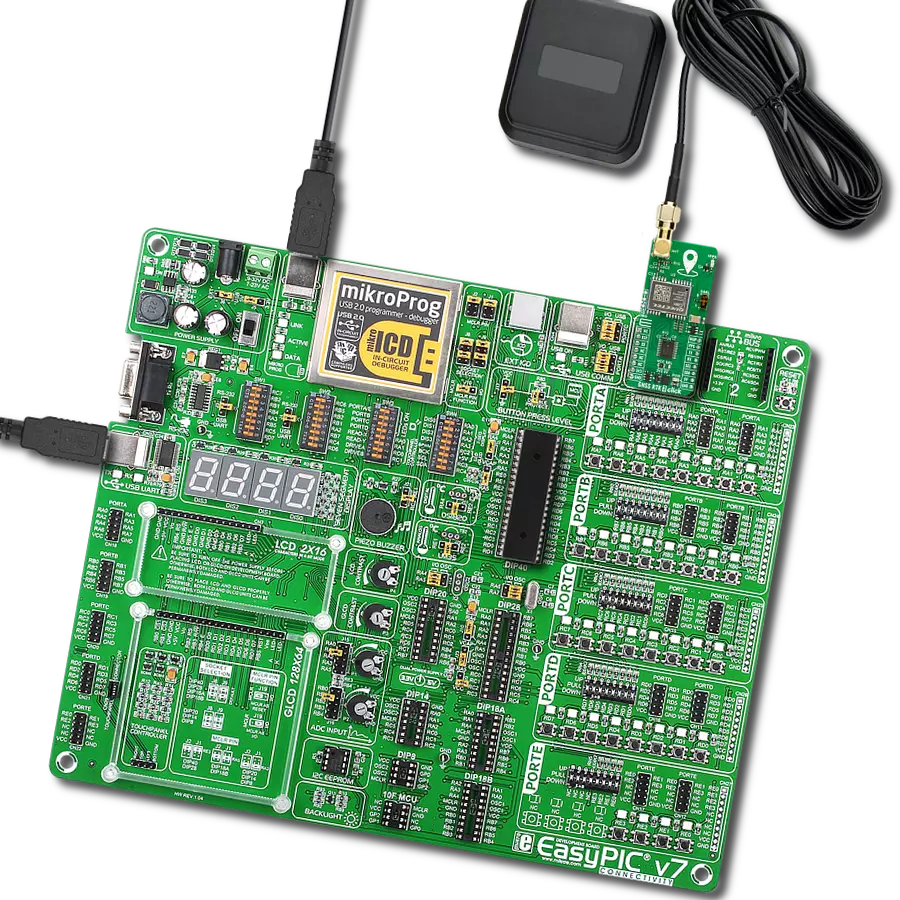

GNSS RTK 3 Click with EasyPIC v7

Published Nov 15, 2023

Click board™

GNSS RTK 3 Click

Dev. board

EasyPIC v7

Compiler

NECTO Studio

MCU

PIC18LF46K40

Experience the future of positioning with our GNSS RTK solution, where real-time kinematic capabilities meet cutting-edge innovation to deliver pinpoint accuracy.

A

A

Hardware Overview

How does it work?

GNSS RTK 3 Click is based on the LC29H(DA/EA), a dual-band, multi-castellation GNSS module from Quectel. With internal LNA and SAW filters, the module achieves better sensitivity and anti-interference capability. Dual frequency support helps the module deliver CEP accuracy values of 1m in autonomous mode and centimeter levels while using the RTK functionality. Integrated RTK (Real-Time Kinetic) position engine provides a sub-meter accuracy with fast convergence time and outstanding performance. This module supports the RTK Rover technique. Before implementing the RTK navigation technique, the module must receive the RTK differential data via its UART port. After validating the differential correction data, the module will enter differential or RTK float mode. The expected accuracy at RTK fixed mode is lower than 20cm. The LC29H(DA/EA) module features an integrated AGNSS, integrated AIC, and jamming function and can receive L1 and L5 GNSS band signals concurrently. The receiver chip is built using 12nm technology and provides advanced power management, which enables low-power GNSS sensing and position fix, which in turn

makes the module ideal for power-sensitive and battery-powered systems. There is a DSEL switch with 0 and 1 positions. By setting it to a 0 position, the UART interface can be used for communication and downloading, while the I2C can only be used for communication. The 1 position sets UART for downloading only, while the I2C interface can be used for communication and downloading. The GNSS RTK 3 Click has an SMA antenna connector for connecting an appropriate antenna, also offered by MIKROE. You can also control the antenna by deactivating it in power-saving mode, lowering power consumption. To interface different voltage levels of the host MCU, GNSS RTK 3 Click is equipped with the TXS0108E, an 8-bit bi-directional level-shifting voltage translator from Texas Instruments. In case of a mains supply failure, the module can use a backup supply voltage from a connected battery. Backup voltage supplies the real-time clock and battery-backed RAM and saves all relevant data in the backup RAM to allow a hot or warm start later. If no battery is present, the backup is powered over the 3.3V rail of the mikroBUS™ socket. As

mentioned, the GNSS RTK 3 Click uses a standard 2-Wire UART interface to communicate with the host MCU with commonly used UART RX and TX pins. The UART 2 interface pins are exposed on a 1.8V DBG header for debugging purposes. The module supports baud rates 9600 up to 3Mbps, while the 115200bps is the default. Besides the UART interface, you can also use a standard 2-Wire I2C interface to communicate with the host MCU with a data rate of up to 400kbps. In both cases, the module will use the NMEA 0183/RTCM 3.x protocols. You can update the LC29H(DA/EA) firmware using any of those interfaces. Using the RST pin, you can reset the module or wake it up using the WUP pin. Besides the 1PPS LED, the one pulse per second can be monitored over the PPS pin. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

GNSS RTK 3 Click hardware overview image

Features overview

Development board

EasyPIC v7 is the seventh generation of PIC development boards specially designed to develop embedded applications rapidly. It supports a wide range of 8-bit PIC microcontrollers from Microchip and has a broad set of unique functions, such as a powerful onboard mikroProg programmer and In-Circuit debugger over USB-B. The development board is well organized and designed so that the end-user has all the necessary elements in one place, such as switches, buttons, indicators, connectors, and others. With four different connectors for each port, EasyPIC v7 allows you to connect accessory boards, sensors, and custom electronics more efficiently than ever. Each part of

the EasyPIC v7 development board contains the components necessary for the most efficient operation of the same board. An integrated mikroProg, a fast USB 2.0 programmer with mikroICD hardware In-Circuit Debugger, offers many valuable programming/debugging options and seamless integration with the Mikroe software environment. Besides it also includes a clean and regulated power supply block for the development board. It can use various external power sources, including an external 12V power supply, 7-23V AC or 9-32V DC via DC connector/screw terminals, and a power source via the USB Type-B (USB-B) connector. Communication options such as

USB-UART and RS-232 are also included, alongside the well-established mikroBUS™ standard, three display options (7-segment, graphical, and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from PIC10F, PIC12F, PIC16F, PIC16Enh, PIC18F, PIC18FJ, and PIC18FK families. EasyPIC v7 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

EasyPIC v7 horizontal image

Microcontroller Overview

MCU Card / MCU

PIC18LF46K40

Architecture

PIC

MCU Memory (KB)

64

Silicon Vendor

Microchip

Pin count

40

RAM (Bytes)

3728

You complete me!

Accessories

GNSS L1/L5 Active External Antenna (YB0017AA) is an active patch antenna from Quectel that supports GNSS L1/L5 BD B1/B2 GLONASS L1, offering excellent performance with its high gain and efficiency for fleet management, navigation, RTK, and many other tracking applications. The magnetic-mounting antenna, with dimensions of 61.5×56.5×23mm, is designed to work with various ground plane sizes or in free space and is connected to the device by a 3m cable with an SMA male connector.

 GNSS RTK 3 Click accessories image

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset / ID SEL
RE1
RST
SPI Select / ID COMM
RE0
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
External sync
RC0
PWM
Timepulse Output
RB0
INT
UART TX
RC6
TX
UART RX
RC7
RX
I2C Clock
RC3
SCL
I2C Data
RC4
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

GNSS RTK 3 Click Schematic schematic

Step by step

Project assembly

EasyPIC v7 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyPIC v7 as your development board.

EasyPIC v7 front image hardware assembly
GNSS2 Click front image hardware assembly
MCU DIP 40 hardware assembly
GNSS2 Click complete accessories setup image hardware assembly
EasyPIC v7 Access MB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto DIP image step 7 hardware assembly
EasyPIC PRO v7a Display Selection Necto Step hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for GNSS RTK 3 Click driver.

Key functions:

  • gnssrtk3_enable_device - This function enables the device by setting the CEN pin to high logic state.

  • gnssrtk3_generic_read - This function reads a desired number of data bytes by using UART or I2C serial interface.

  • gnssrtk3_parse_gga - This function parses the GGA data from the read response buffer.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief GNSS RTK 3 DA Click Example.
 *
 * # Description
 * This example demonstrates the use of GNSS RTK 3 DA Click by reading and displaying
 * the GNSS coordinates.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and enables the Click board.
 *
 * ## Application Task
 * Reads the received data, parses the NMEA GGA info from it, and once it receives
 * the position fix it will start displaying the coordinates on the USB UART.
 *
 * ## Additional Function
 * - static void gnssrtk3da_clear_app_buf ( void )
 * - static void gnssrtk3da_log_app_buf ( void )
 * - static err_t gnssrtk3da_process ( gnssrtk3da_t *ctx )
 * - static void gnssrtk3da_parser_application ( uint8_t *rsp )
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "gnssrtk3da.h"

// Application buffer size
#define APP_BUFFER_SIZE             800
#define PROCESS_BUFFER_SIZE         200

static gnssrtk3da_t gnssrtk3da;
static log_t logger;

static uint8_t app_buf[ APP_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;
static uint8_t i2c_data_ready = 0;

/**
 * @brief GNSS RTK 3 DA clearing application buffer.
 * @details This function clears memory of application buffer and reset its length.
 * @note None.
 */
static void gnssrtk3da_clear_app_buf ( void );

/**
 * @brief GNSS RTK 3 DA log application buffer.
 * @details This function logs data from application buffer to USB UART.
 * @note None.
 */
static void gnssrtk3da_log_app_buf ( void );

/**
 * @brief GNSS RTK 3 DA data reading function.
 * @details This function reads data from device and concatenates data to application buffer.
 * @param[in] ctx : Click context object.
 * See #gnssrtk3da_t object definition for detailed explanation.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t gnssrtk3da_process ( gnssrtk3da_t *ctx );

/**
 * @brief GNSS RTK 3 DA parser application.
 * @param[in] rsp Response buffer.
 * @details This function logs GNSS data on the USB UART.
 * @return None.
 * @note None.
 */
static void gnssrtk3da_parser_application ( uint8_t *rsp );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    gnssrtk3da_cfg_t gnssrtk3da_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    gnssrtk3da_cfg_setup( &gnssrtk3da_cfg );
    GNSSRTK3DA_MAP_MIKROBUS( gnssrtk3da_cfg, MIKROBUS_1 );
    if ( GNSSRTK3DA_OK != gnssrtk3da_init( &gnssrtk3da, &gnssrtk3da_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    gnssrtk3da_enable_device ( &gnssrtk3da );

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    if ( GNSSRTK3DA_OK == gnssrtk3da_process( &gnssrtk3da ) )
    {
        gnssrtk3da_parser_application( app_buf );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void gnssrtk3da_clear_app_buf ( void )
{
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
}

static void gnssrtk3da_log_app_buf ( void )
{
    for ( int32_t buf_cnt = 0; buf_cnt < app_buf_len; buf_cnt++ )
    {
        log_printf( &logger, "%c", app_buf[ buf_cnt ] );
    }
}

static err_t gnssrtk3da_process ( gnssrtk3da_t *ctx )
{
    uint8_t rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
    int32_t overflow_bytes = 0;
    int32_t rx_cnt = 0;
    int32_t rx_size = 0;

    if ( ( GNSSRTK3DA_DRV_SEL_I2C == ctx->drv_sel ) && ( !i2c_data_ready ) )
    {
        uint16_t pps_wait_log_cnt = 0;
        while ( !gnssrtk3da_get_pps_pin ( ctx ) )
        {
            if ( ++pps_wait_log_cnt > 5000 )
            {
                log_printf( &logger, " Waiting for the position fix (PPS signal)...\r\n\n" );
                pps_wait_log_cnt = 0;
            }
            Delay_ms ( 1 );
        }
        i2c_data_ready = 1;
        Delay_ms ( 200 );
    }
    rx_size = gnssrtk3da_generic_read( ctx, rx_buf, PROCESS_BUFFER_SIZE );
    if ( ( rx_size > 0 ) && ( rx_size <= APP_BUFFER_SIZE ) )
    {
        if ( ( app_buf_len + rx_size ) > APP_BUFFER_SIZE )
        {
            overflow_bytes = ( app_buf_len + rx_size ) - APP_BUFFER_SIZE;
            app_buf_len = APP_BUFFER_SIZE - rx_size;
            memmove ( app_buf, &app_buf[ overflow_bytes ], app_buf_len );
            memset ( &app_buf[ app_buf_len ], 0, overflow_bytes );
        }
        for ( rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
        {
            if ( rx_buf[ rx_cnt ] )
            {
                app_buf[ app_buf_len++ ] = rx_buf[ rx_cnt ];
            }
        }
        return GNSSRTK3DA_OK;
    }
    return GNSSRTK3DA_ERROR;
}

static void gnssrtk3da_parser_application ( uint8_t *rsp )
{
    uint8_t element_buf[ 100 ] = { 0 };
    if ( GNSSRTK3DA_OK == gnssrtk3da_parse_gga( rsp, GNSSRTK3DA_GGA_LATITUDE, element_buf ) )
    {
        static uint8_t wait_for_fix_cnt = 0;
        if ( strlen( element_buf ) > 0 )
        {
            log_printf( &logger, "\r\n Latitude: %.2s degrees, %s minutes \r\n", element_buf, &element_buf[ 2 ] );
            memset( element_buf, 0, sizeof( element_buf ) );
            gnssrtk3da_parse_gga( rsp, GNSSRTK3DA_GGA_LONGITUDE, element_buf );
            log_printf( &logger, " Longitude: %.3s degrees, %s minutes \r\n", element_buf, &element_buf[ 3 ] );
            memset( element_buf, 0, sizeof( element_buf ) );
            gnssrtk3da_parse_gga( rsp, GNSSRTK3DA_GGA_ALTITUDE, element_buf );
            log_printf( &logger, " Altitude: %s m \r\n", element_buf );
            wait_for_fix_cnt = 0;
        }
        else
        {
            if ( wait_for_fix_cnt % 5 == 0 )
            {
                log_printf( &logger, " Waiting for the position fix...\r\n\n" );
                wait_for_fix_cnt = 0;
            }
            wait_for_fix_cnt++;
        }
        gnssrtk3da_clear_app_buf(  );
        i2c_data_ready = 0;
    }
}

// ------------------------------------------------------------------------ END
