Convert multiple analog signals into digital data with MCP3204 and ATmega644P

4-channel 12-bit ADC with SPI interface

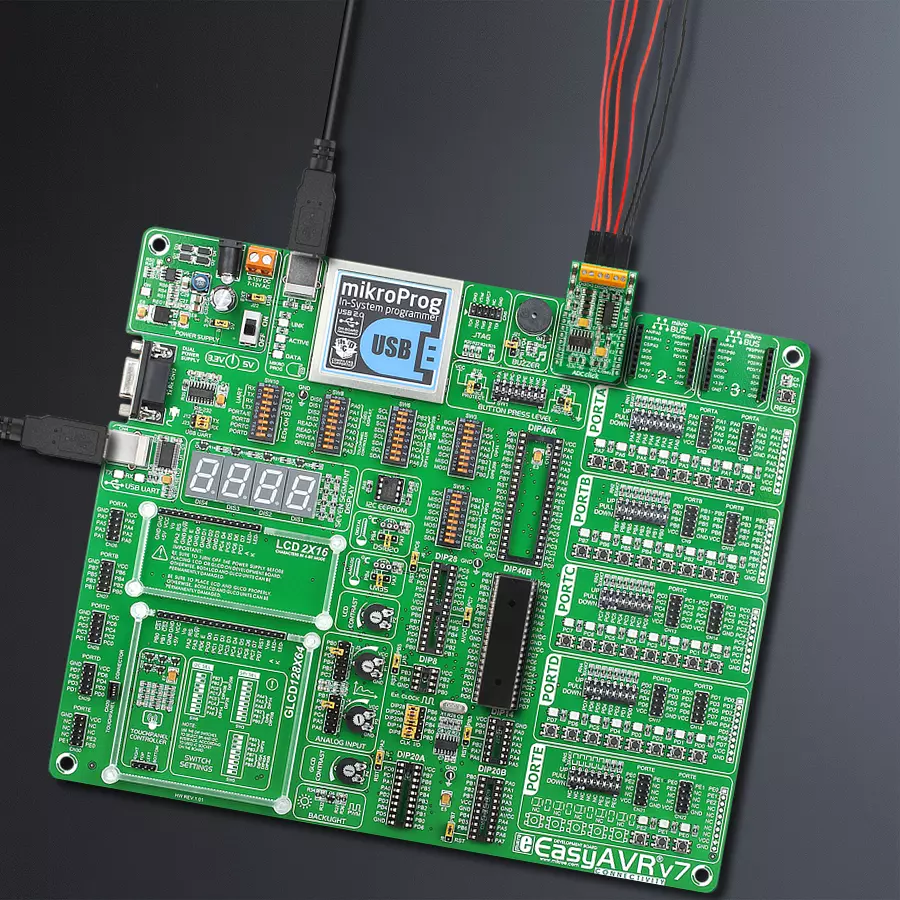

ADC Click with EasyAVR v7

Published Jul 01, 2023

Click board™

ADC Click

Dev. board

EasyAVR v7

Compiler

NECTO Studio

MCU

ATmega644P

Help electronics understand and work with information from the real world

A

A

Hardware Overview

How does it work?

ADC Click is based on the MCP3204, a 4-channel 12-bit A/D converter with SPI serial interface from Microchip. The MCP3204 contains an input channel selection multiplexer (CH0, CH1, CH2, CH3) which for reference can use the VCC (3.3V or 5V) or a 4.096V of the MCP1541 voltage reference from Microchip. The voltage reference determines the analog voltage range and can be selected via REFERENCE onboard jumper. To connect the

analog voltages to the ADC Click, utilize the four labeled terminals CH0-3 along with two GND terminals for referencing the ground. Each analog input pin goes through the MCP6284, a 5MHz rail-to-rail OpAmp from Microchip. The ADC Click uses a standard 4-Wire SPI serial interface to communicate with the host MCU, supporting both 0 and 3 of the SPI modes and operating at clock rates of up to 2MHz. Communication with the ADC

Click is initiated by bringing the CS line LOW. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the PWR SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. However, the Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used, as a reference, for further development.

ADC Click hardware overview image

Features overview

Development board

EasyAVR v7 is the seventh generation of AVR development boards specially designed for the needs of rapid development of embedded applications. It supports a wide range of 16-bit AVR microcontrollers from Microchip and has a broad set of unique functions, such as a powerful onboard mikroProg programmer and In-Circuit debugger over USB. The development board is well organized and designed so that the end-user has all the necessary elements in one place, such as switches, buttons, indicators, connectors, and others. With four different connectors for each port, EasyAVR v7 allows you to connect accessory boards, sensors, and custom electronics more

efficiently than ever. Each part of the EasyAVR v7 development board contains the components necessary for the most efficient operation of the same board. An integrated mikroProg, a fast USB 2.0 programmer with mikroICD hardware In-Circuit Debugger, offers many valuable programming/debugging options and seamless integration with the Mikroe software environment. Besides it also includes a clean and regulated power supply block for the development board. It can use a wide range of external power sources, including an external 12V power supply, 7-12V AC or 9-15V DC via DC connector/screw terminals, and a power source via the USB Type-B (USB-B)

connector. Communication options such as USB-UART and RS-232 are also included, alongside the well-established mikroBUS™ standard, three display options (7-segment, graphical, and character-based LCD), and several different DIP sockets which cover a wide range of 16-bit AVR MCUs. EasyAVR v7 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

EasyAVR v7 horizontal image

Microcontroller Overview

MCU Card / MCU

Architecture

AVR

MCU Memory (KB)

64

Silicon Vendor

Microchip

Pin count

40

RAM (Bytes)

4096

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
NC
NC
RST
SPI Chip Select
PA5
CS
SPI Clock
PB7
SCK
SPI Data OUT
PB6
MISO
SPI Data IN
PB5
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
NC
NC
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

ADC Click Schematic schematic

Step by step

Project assembly

EasyAVR v7 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyAVR v7 as your development board.

EasyAVR v7 front image hardware assembly
GNSS2 Click front image hardware assembly
GNSS2 Click complete accessories setup image hardware assembly
EasyAVR v7 Access DIP MB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto DIP image step 7 hardware assembly
EasyPIC PRO v7a Display Selection Necto Step hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for ADC Click driver.

Key functions:

  • adc_get_single_ended_ch - Get Single-Ended Channel function

  • adc_get_differential_ch - Get Pseudo-Differential Pair function

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file main.c
 * \brief ADC Click example
 *
 * # Description
 * This example demonstrates the use of ADC Click board.
 * The all channels can be configured as single-ended or pseudo-differential
 * pair.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes SPI driver, performs the reference voltage selection and
 * initializes UART console for results logging.
 *
 * ## Application Task
 * Reads voltage level of channels 0 and 1 in the both configurations,
 * single-ended and pseudo-differential pair, every 1 second.
 * All channels results will be calculated to millivolts [mV].
 *
 * *note:*
 * In single-ended mode the all channels must be in the range from Vss (GND)
 * to Vref (3V3 by default).
 * In pseudo-differential mode the IN- channel must be in the range from
 * (Vss - 100mV) to (Vss + 100mV). The IN+ channel must be in the range from
 * IN- to (Vref + IN-).
 * If any of conditions are not fullfilled, the device will return 0 or Vref
 * voltage level, and measurements are not valid.
 *
 * \author Nemanja Medakovic
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "adc.h"


// ------------------------------------------------------------------ VARIABLES

static adc_t adc;
static log_t logger;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init( void )
{
    log_cfg_t log_cfg;
    adc_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    adc_cfg_setup( &cfg );
    ADC_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    adc_init( &adc, &cfg );
}

void application_task( void )
{
    adc_get_single_ended_ch( &adc, ADC_CH0_OR_CH01 );
    adc_get_single_ended_ch( &adc, ADC_CH1_OR_CH10 );
    adc_get_single_ended_ch( &adc, ADC_CH2_OR_CH23 );
    adc_get_single_ended_ch( &adc, ADC_CH3_OR_CH32 );
    adc_get_differential_ch( &adc, ADC_CH0_OR_CH01 );

    log_printf( &logger, "* CH0 = %u mV\r\n", adc.ch0 );
    log_printf( &logger, "* CH1 = %u mV\r\n", adc.ch1 );
    log_printf( &logger, "* CH2 = %u mV\r\n", adc.ch2 );
    log_printf( &logger, "* CH3 = %u mV\r\n", adc.ch3 );
    log_printf( &logger, "* CH0 - CH1 = %d mV\r\n", adc.ch01 );
    log_printf( &logger, "-----------------------------\r\n" );

    Delay_ms( 1000 );
}

void main( void )
{
    application_init( );

    for ( ; ; )
    {
        application_task( );
    }
}


// ------------------------------------------------------------------------ END
