Integrate BLE functionality into IoT systems seamlessly and create advanced connected devices, targeting the forefront of the connected consumer, medical, smart home, and appliance applications
A
A
Hardware Overview
How does it work?
BLE TINY Click is based on the DA14531MOD, SmartBond TINY™ module based on the world's smallest and lowest power Bluetooth 5.1 System-on-Chip (SoC) from Dialog Semiconductor. The DA14531 is based on the powerful 32-bit Arm Cortex-M0+ with integrated memories and analog and digital peripherals. It comes with next-generation Codeless software that allows the design of Bluetooth applications without Bluetooth knowledge or advanced programming skills, using a comprehensive set of AT commands. This module is supported with software to lower the threshold of using BLE technology. The DA14531 has configurable DSPS (serial port service) and next-generation Codeless software to design Bluetooth applications without Bluetooth knowledge or advanced programming skills. It is specifically optimized to significantly reduce the cost of adding Bluetooth low-energy functionality to an IoT system. The SmartBond TINY module is certified worldwide, with Federal Communications
Commission (FCC) certification for the Americas and CE certification for Europe. BLE TINY Click communicates with MCU using the Single-Wire UART interface as its default communication protocol for exchanging AT commands with the host and data transfer. A switch labeled as 1WIRE EN is used to activate this communication, which allows the module to establish communication via the Single-Wire UART Receive and Transmit pin or only via the standard UART TX pin. This Click board™ uses the 74LVC1G3157 multiplexer to avoid conflict with other functions driven by the same GPIOs. In this way, the user can use the P0_6 pin, which carries a dual function, a UART TX pin or a pin to be used for the ADC's analog pin. The function of this pin is selected by populating the appropriate jumper labeled as P0_6 SEL. The DA14531 comes in with a predefined default configuration. However, due to the low GPIO pin count, several functions are multiplexed and can be enabled as needed through onboard jumpers.
The users can also use other interfaces, such as SPI or I2C, to configure the module and write the library by themselves by populating the appropriate jumpers (P0_11 and P0_9 SEL). BLE TINY Click also provides a JTAG interface with SWDIO data and SWCLK clock signals on header J1. This way, the user can program a particular version of the CodeLess software via the JTAG interface, which is required by the DA14531 module itself. Also, this Click board™ can be reset through the Hardware Reset pin, labeled as RST on the mikroBUS™ socket, by setting this pin to a high logic state. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
Features overview
Development board

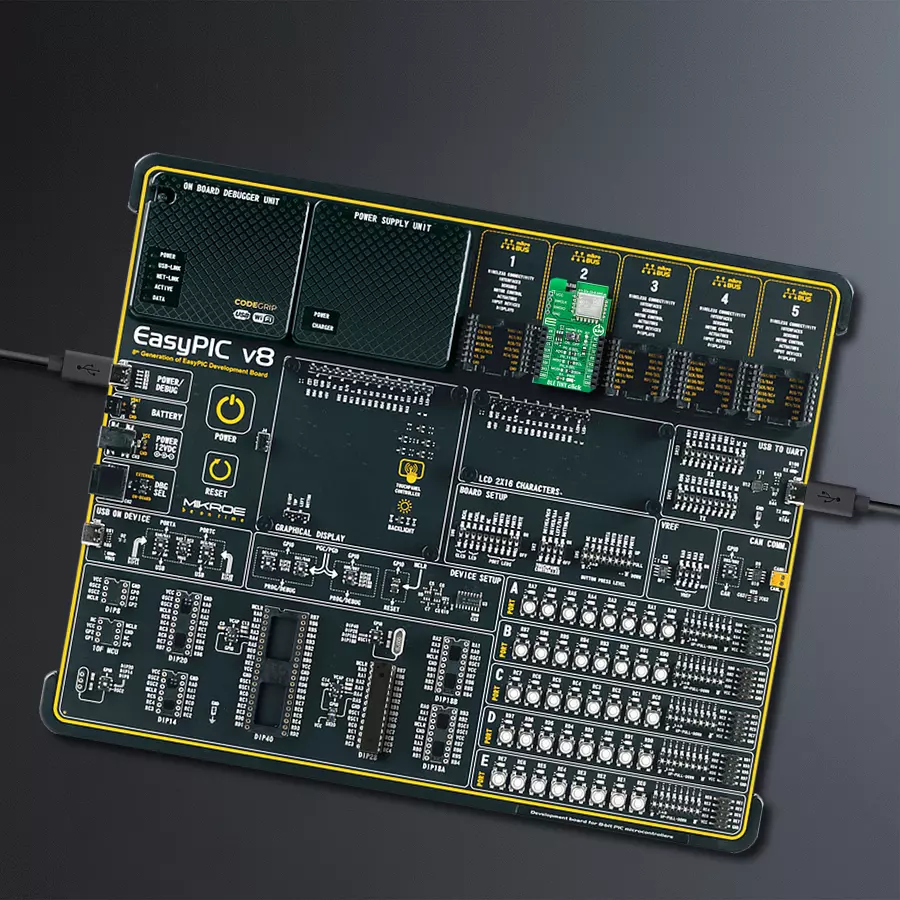

EasyPIC v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports many high pin count 8-bit PIC microcontrollers from Microchip, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, EasyPIC v8 provides a fluid and immersive working experience, allowing access anywhere and under any
circumstances at any time. Each part of the EasyPIC v8 development board contains the components necessary for the most efficient operation of the same board. In addition to the advanced integrated CODEGRIP programmer/debugger module, which offers many valuable programming/debugging options and seamless integration with the Mikroe software environment, the board also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.
Communication options such as USB-UART, USB DEVICE, and CAN are also included, including the well-established mikroBUS™ standard, two display options (graphical and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from the smallest PIC MCU devices with only eight up to forty pins. EasyPIC v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.
Microcontroller Overview
MCU Card / MCU
![default](https://dbp-cdn.mikroe.com/catalog/mcus/resources/PIC18F26K42.jpeg)
Architecture
PIC
MCU Memory (KB)
64
Silicon Vendor
Microchip
Pin count
28
RAM (Bytes)
4096
Used MCU Pins
mikroBUS™ mapper
Take a closer look
Schematic
![BLE TINY click Schematic schematic](https://dbp-cdn.mikroe.com/catalog/click-boards/resources/1ee790ca-9450-6d84-8cd2-0242ac120009/schematic.webp)
Step by step
Project assembly
Track your results in real time
Application Output
After pressing the "FLASH" button on the left-side panel, it is necessary to open the UART terminal to display the achieved results. By clicking on the Tools icon in the right-hand panel, multiple different functions are displayed, among which is the UART Terminal. Click on the offered "UART Terminal" icon.
![UART Application Output Step 1](https://dbp-cdn.mikroe.com/cms/shared-resources/1eed703a-40a0-6b58-88de-02420a00029a/UART-AO-Step-1.jpg)
Once the UART terminal is opened, the window takes on a new form. At the top of the tab are two buttons, one for adjusting the parameters of the UART terminal and the other for connecting the UART terminal. The tab's lower part is reserved for displaying the achieved results. Before connecting, the terminal has a Disconnected status, indicating that the terminal is not yet active. Before connecting, it is necessary to check the set parameters of the UART terminal. Click on the "OPTIONS" button.
![UART Application Output Step 2](https://dbp-cdn.mikroe.com/cms/shared-resources/1eed703a-eb29-62fa-ba91-02420a00029a/UART-AO-Step-2.jpg)
In the newly opened UART Terminal Options field, we check if the terminal settings are correct, such as the set port and the Baud rate of UART communication. If the data is not displayed properly, it is possible that the Baud rate value is not set correctly and needs to be adjusted to 115200. If all the parameters are set correctly, click on "CONFIGURE".
![UART Application Output Step 3](https://dbp-cdn.mikroe.com/cms/shared-resources/1eed703b-7543-6fbc-9c69-0242ac120003/UART-AO-Step-3.jpg)
The next step is to click on the "CONNECT" button, after which the terminal status changes from Disconnected to Connected in green, and the data is displayed in the Received data field.
![UART Application Output Step 4](https://dbp-cdn.mikroe.com/cms/shared-resources/1eed703c-068c-66a4-a4fc-0242ac120003/UART-AO-Step-4.jpg)
Software Support
Library Description
This library contains API for BLE TINY Click driver.
Key functions:
bletiny_send_cmd
- Send command functionbletiny_i2c_config
- Configure Click board for I2C master communicationbletiny_i2c_write
- Send command to write data to reg address of slave device via I2C communication
Open Source
Code example
This example can be found in NECTO Studio. Feel free to download the code, or you can copy the code below.
/*!
* @file main.c
* @brief BLE TINY Click Example.
*
* # Description
* This example reads and processes data from BLE TINY clicks.
* Application waits for connection with Click board with phone.
* Then checks its Coadless FW version and checks connected device.
* Then waits for command to be stored in it's memory on 0 slot.
* After that depending on the command stored it executes that type of example.
*
* The demo application is composed of two sections :
*
* ## Application Init
* Initializes driver and resets device and seds Disconnect and Reset IO commands.
* Then it waits for the connection to device. When connected it sends commands to
* check Coadless FW, connected device, its BLE address and signal quality of
* connection. In the end it waits for command from its memory. After valid
* command is stored in memory on 0 slot it contines to Application Task.
*
* ## Application Task
* Executes one of thre application task selected in Application Init:I2C, SPI, APP.
* I2C example uses EEPROM Click board to write and read data of its memory.
* SPI example uses EEPROM 2 Click board to write and read data of its memory.
* APP example just reads UART data and logs it to UART Terminal.
*
* ## Additional Function
* - static void bletiny_clear_app_buf ( void )
* - static err_t bletiny_process ( void )
* - static void bletiny_error_check( err_t error_flag );
* - static void bletiny_log_app_buf ( void );
* - static err_t bletiny_rsp_check ( void );
* - static void bletiny_example_init ( void );
* - static void bletiny_application_example ( void );
* - static void bletiny_i2c_example ( void );
* - static void bletiny_spi_example ( void );
*
* @note
* For this application you need to install Dialog's mobile application SmartConsole.
* This application I2C example is created using EEPROM Click board, and for SPI
* example EEPROM 2 Click board is used.
*
* @author Luka Filipovic
*
*/
#include "board.h"
#include "log.h"
#include "bletiny.h"
#include "conversions.h"
/**
* @brief Application receiver buffer size
* @details Specified size of application receiver buffer.
*/
#define PROCESS_BUFFER_SIZE 200
/**
* @brief Application example type.
* @details Specified application example type.
*/
typedef enum
{
BLETINY_APP_CTRL,
BLETINY_I2C_EXAMPLE,
BLETINY_SPI_EXAMPLE
}bletiny_example_type_t;
/**
* @brief Application example state.
* @details Specified application example state.
*/
typedef enum
{
BLETINY_CONFIGURE_MASTER,
BLETINY_CONFIGURE_SLAVE,
BLETINY_EXAMPLE
}bletiny_example_state_t;
static bletiny_t bletiny;
static log_t logger;
/**
* @brief Application @b app_buf and its @b app_buf_cnt and @b app_buf_len.
* @details Application receiver buffer and its counter and current length.
*/
static char app_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;
static int32_t app_buf_cnt = 0;
/**
* @brief Application example type and state.
* @details Application example type and state variables.
*/
static bletiny_example_type_t example_type;
static bletiny_example_state_t example_state;
/**
* @brief Clearing application buffer.
* @details This function clears memory of application buffer and reset it's length and counter.
*/
static void bletiny_clear_app_buf ( void );
/**
* @brief Data reading function.
* @details This function reads data from device and concatenates data to application buffer.
*
* @return @li @c 0 - Read some data.
* @li @c -1 - Nothing is read.
* @li @c -2 - Application buffer overflow.
*
* See #err_t definition for detailed explanation.
*/
static err_t bletiny_process ( void );
/**
* @brief Parse errors.
* @details This function checks for different types of errors and logs them on UART.
*/
static void bletiny_error_check( err_t error_flag );
/**
* @brief Logs application buffer.
* @details This function logs data from application buffer.
*/
static void bletiny_log_app_buf ( void );
/**
* @brief Response check.
* @details This function checks for response and returns the status of response.
*
* @return @li @c >=0 - Success,
* @li @c <0 - Error.
*
* See #err_t definition for detailed explanation.
*/
static err_t bletiny_rsp_check ( void );
/**
* @brief Selecting application task.
* @details This function selects application task that will be executed.
* @note Select task by sending command for sending string in memory(0 slot)
* with phone application. Example of command: AT+MEM=0,I2C. If memory is
* not empty the string detected will be shown on UART Terminal.
*/
static void bletiny_example_init ( void );
/**
* @brief Application example.
* @details This function executes task for using phone application.
* @note Example logs if any data is read from Click board. This example
* should be selected if you want to control device with phone application.
*/
static void bletiny_application_example ( void );
/**
* @brief I2C example.
* @details This function executes task for using EEPROM Click board.
* @note Example configures IO pins for I2C communication and configures I2C.
* Then writes "MikroE" to memory of EEPROM Click board and then reads it
* back and logs it to UART Terminal.
*/
static void bletiny_i2c_example ( void );
/**
* @brief SPI example.
* @details This function executes task for using EEPROM 2 Click board.
* @note Example configures IO pins for SPI communication and configures SPI.
* When configured, it sends command for enableing write to Click board memory.
* Then writes "MikroE" to memory of EEPROM 2 Click board and then reads it
* back and logs it to UART Terminal.
*/
static void bletiny_spi_example ( void );
/**
* @brief Clear every @b chr from @b str.
* @details This function clears every occurance of @b chr from @b str.
*/
static void bletiny_clear_char( uint8_t *str, char chr );
void application_init ( void )
{
log_cfg_t log_cfg; /**< Logger config object. */
bletiny_cfg_t bletiny_cfg; /**< Click config object. */
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_printf( &logger, "\r\nApplication Init\r\n" );
Delay_ms( 1000 );
// Click initialization.
bletiny_cfg_setup( &bletiny_cfg );
BLETINY_MAP_MIKROBUS( bletiny_cfg, MIKROBUS_1 );
err_t init_flag = bletiny_init( &bletiny, &bletiny_cfg );
if ( init_flag == UART_ERROR )
{
log_error( &logger, " Application Init Error. " );
log_info( &logger, " Please, run program again... " );
for ( ; ; );
}
bletiny_default_cfg ( &bletiny );
bletiny_send_cmd( &bletiny, BLETINY_CMD_ATR );
bletiny_send_cmd( &bletiny, BLETINY_CMD_ATZ );
bletiny_send_cmd( &bletiny, BLETINY_CMD_GAPDISCONNECT );
bletiny_process( );
bletiny_clear_app_buf( );
app_buf_len = 0;
app_buf_cnt = 0;
//wait for connection
log_printf( &logger, " Waiting for phone to connect\r\n" );
while ( 0 == strstr( app_buf, BLETINY_CONNECTED ) )
{
bletiny_process( );
}
log_printf( &logger, " Connected\r\n" );
bletiny_clear_app_buf( );
//send ATI command to check Codless FW
bletiny_send_cmd( &bletiny, BLETINY_CMD_ATI );
volatile err_t app_error_flag = bletiny_rsp_check();
if ( BLETINY_OK == app_error_flag )
{
bletiny_log_app_buf();
log_printf( &logger, "-----------------------------------\r\n" );
}
else
{
bletiny_error_check( app_error_flag );
}
Delay_ms( 1000 );
//send command to check ble address
bletiny_send_cmd( &bletiny, BLETINY_CMD_BDADDR );
app_error_flag = bletiny_rsp_check();
if ( BLETINY_OK == app_error_flag )
{
bletiny_log_app_buf();
log_printf( &logger, "-----------------------------------\r\n" );
}
else
{
bletiny_error_check( app_error_flag );
}
Delay_ms( 1000 );
//send ATrI command to check remote connected device
bletiny_send_cmd( &bletiny, BLETINY_CMD_ATRI );
app_error_flag = bletiny_rsp_check();
if ( BLETINY_OK == app_error_flag )
{
bletiny_log_app_buf();
log_printf( &logger, "-----------------------------------\r\n" );
}
else
{
bletiny_error_check( app_error_flag );
}
Delay_ms( 1000 );
//send RSSI command to check signal quality
bletiny_send_cmd( &bletiny, BLETINY_CMD_RSSI );
app_error_flag = bletiny_rsp_check();
if ( BLETINY_OK == app_error_flag )
{
bletiny_log_app_buf();
log_printf( &logger, "-----------------------------------\r\n" );
}
else
{
bletiny_error_check( app_error_flag );
}
//select example to execute
bletiny_example_init( );
bletiny_clear_app_buf( );
log_printf( &logger, " Application Task \r\n" );
}
void application_task ( void )
{
static uint8_t info = 0;
switch ( example_type )
{
case BLETINY_I2C_EXAMPLE:
{
if (!info)
{
info++;
log_printf( &logger, " I2C example\r\n" );
bletiny_process( );
bletiny_clear_app_buf( );
}
bletiny_i2c_example( );
break;
}
case BLETINY_SPI_EXAMPLE:
{
if (!info)
{
info++;
log_printf( &logger, " SPI example\r\n" );
bletiny_process( );
bletiny_clear_app_buf( );
}
bletiny_spi_example( );
break;
}
case BLETINY_APP_CTRL:
{
if (!info)
{
info++;
log_printf( &logger, " Application example\r\n" );
bletiny_process( );
bletiny_clear_app_buf( );
}
bletiny_application_example( );
break;
}
default:
{
break;
}
}
}
void main ( void )
{
application_init( );
for ( ; ; )
{
application_task( );
}
}
static void bletiny_clear_app_buf ( void )
{
memset( app_buf, 0, app_buf_len );
app_buf_len = 0;
app_buf_cnt = 0;
}
static err_t bletiny_process ( void )
{
int32_t rx_size;
char rx_buff[ PROCESS_BUFFER_SIZE ] = { 0 };
rx_size = bletiny_generic_read( &bletiny, rx_buff, PROCESS_BUFFER_SIZE );
if ( rx_size > 0 )
{
int32_t buf_cnt = 0;
if ( app_buf_len + rx_size >= PROCESS_BUFFER_SIZE )
{
bletiny_clear_app_buf( );
return BLETINY_ERROR;
}
else
{
buf_cnt = app_buf_len;
app_buf_len += rx_size;
}
for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
{
if ( rx_buff[ rx_cnt ] != 0 )
{
app_buf[ ( buf_cnt + rx_cnt ) ] = rx_buff[ rx_cnt ];
}
else
{
app_buf_len--;
buf_cnt--;
}
}
return BLETINY_OK;
}
return BLETINY_ERROR;
}
static err_t bletiny_rsp_check ( void )
{
uint16_t timeout_cnt = 0;
uint16_t timeout = 10000;
err_t error_flag = bletiny_process( );
if ( ( error_flag != 0 ) && ( error_flag != -1 ) )
{
return error_flag;
}
while ( ( strstr( app_buf, BLETINY_RSP_OK ) == 0 ) &&
( strstr( app_buf, BLETINY_RSP_ERROR ) == 0 ) )
{
error_flag = bletiny_process( );
if ( ( error_flag != 0 ) && ( error_flag != -1 ) )
{
return error_flag;
}
timeout_cnt++;
if ( timeout_cnt > timeout )
{
bletiny_clear_app_buf( );
return BLETINY_ERROR_TIMEOUT;
}
Delay_ms( 1 );
}
if ( strstr( app_buf, BLETINY_RSP_OK ) )
return BLETINY_OK;
else if ( strstr( app_buf, BLETINY_RSP_ERROR ) )
return BLETINY_ERROR_RETURN;
else
return BLETINY_ERROR_UNKNOWN;
}
static void bletiny_error_check( err_t error_flag )
{
if ( ( error_flag != 0 ) && ( error_flag != -1 ) )
{
switch ( error_flag )
{
case -2:
log_error( &logger, " Overflow!" );
break;
case -3:
log_error( &logger, " Timeout!" );
break;
default:
break;
}
}
}
static void bletiny_log_app_buf ( void )
{
for ( int32_t buf_cnt = 0; buf_cnt < app_buf_len; buf_cnt++ )
{
log_printf( &logger, "%c", app_buf[ buf_cnt ] );
}
bletiny_clear_app_buf( );
}
static void bletiny_example_init ( void )
{
#define EXAMPLE_CMD_LEN 6
char EXAMPLE_CMD[ EXAMPLE_CMD_LEN ][ 4 ] = { "I2C", "i2c", "SPI", "spi", "APP", "app" };
log_info( &logger, " Send value to 0 memory index via phone app to select example type." );
log_info( &logger, " Example of command is: AT+MEM=0,I2C" );
log_info( &logger, " Types:\r\n > SPI\r\n > I2C \r\n > APP" );
for ( ; ; )
{
bletiny_send_cmd( &bletiny, BLETINY_CMD_CHECK_MEM );
if ( BLETINY_OK == bletiny_rsp_check() )
{
bletiny_clear_char(app_buf, 13);
bletiny_clear_char(app_buf, 10);
volatile char *__generic_ptr ok_rsp = strstr( app_buf, BLETINY_RSP_OK );
if ( ok_rsp )
{
for ( uint8_t index = 0; index < EXAMPLE_CMD_LEN; index++ )
{
if ( 0 != strstr(app_buf, EXAMPLE_CMD[ index ]) )
{
log_printf( &logger, " cmd foud: %s\r\n", EXAMPLE_CMD[ index ] );
bletiny_clear_app_buf( );
bletiny_send_cmd( &bletiny, BLETINY_CMD_CLEAR_MEM );
Delay_ms( 500 );
bletiny_process( );
bletiny_clear_app_buf( );
if ( index < 2 )
{
example_type = BLETINY_I2C_EXAMPLE;
example_state = BLETINY_CONFIGURE_MASTER;
return;
}
else if ( index < 4 )
{
example_type = BLETINY_SPI_EXAMPLE;
example_state = BLETINY_CONFIGURE_MASTER;
return;
}
else
{
example_type = BLETINY_APP_CTRL;
return;
}
}
}
char *__generic_ptr echo_rsp = strstr( app_buf, BLETINY_CMD_CHECK_MEM );
if (echo_rsp)
{
echo_rsp += sizeof(BLETINY_CMD_CHECK_MEM);
}
else
{
echo_rsp = app_buf;
}
if ( strcmp(echo_rsp, ok_rsp) )
{
log_printf( &logger, " cmd not found but found: " );
while (echo_rsp != ok_rsp)
{
log_printf( &logger, "%c", *echo_rsp );
echo_rsp++;
}
log_printf( &logger, "\r\n" );
}
}
bletiny_clear_app_buf( );
}
Delay_ms( 2000 );
}
Delay_ms( 1000 );
}
static void bletiny_application_example ( void )
{
bletiny_process( );
if ( app_buf_len > 0 )
{
log_printf( &logger, "%s", app_buf );
bletiny_clear_app_buf( );
}
}
static void bletiny_i2c_example ( void )
{
switch ( example_state )
{
case BLETINY_CONFIGURE_MASTER:
{
log_printf( &logger, " Configure master for I2C communication\r\n" );
bletiny_i2c_config( &bletiny, BLETINY_I2C_CFG_SPEED_100KHZ, BLETINY_I2C_CFG_REG_LEN_1BYTE );
example_state = BLETINY_EXAMPLE;
break;
}
case BLETINY_EXAMPLE:
{
char mem_value[ 16 ] = "MikroE";
log_printf ( &logger, "Writing Mikroe to EEPROM click\r\n" );
for ( uint8_t cnt = 0; cnt < 6; cnt++ )
{
bletiny_i2c_write( &bletiny, 0x50, cnt + 1, mem_value[ cnt ] );
Delay_ms( 100 );
}
if ( BLETINY_OK == bletiny_i2c_read ( &bletiny, 0x50, 0x01 , mem_value, 6 ) )
{
log_printf ( &logger, "Data read: %s\r\n", mem_value );
}
break;
}
default:
{
break;
}
}
Delay_ms( 2000 );
}
static void bletiny_spi_example ( void )
{
switch ( example_state )
{
case BLETINY_CONFIGURE_MASTER:
{
log_printf( &logger, " Configure master for SPI communication\r\n" );
bletiny_spi_config( &bletiny, BLETINY_SPI_CFG_SPEED_2MHZ, BLETINY_SPI_CFG_MODE0 );
example_state = BLETINY_CONFIGURE_SLAVE;
break;
}
case BLETINY_CONFIGURE_SLAVE:
{
uint8_t write_enable = 0x06;
bletiny_spi_write( &bletiny, &write_enable, 1 );
example_state = BLETINY_EXAMPLE;
break;
}
case BLETINY_EXAMPLE:
{
uint8_t buf[ 10 ] = { 0x02, 0x00, 0x00, 0x01, 'M', 'i', 'k', 'r', 'o', 'E' };
bletiny_spi_write ( &bletiny, buf, 10 );
log_printf ( &logger, "Writing Mikroe to EEPROM 2 click\r\n" );
Delay_ms( 1000 );
uint8_t data_in[ 4 ] = { 0x03, 0x00, 0x00, 0x01 };
uint8_t read_data[ 7 ] = { 0 };
bletiny_spi_write_then_read( &bletiny, data_in, 4, read_data, 6 );
log_printf ( &logger, "Data read: %s\r\n", read_data );
break;
}
default:
{
break;
}
}
Delay_ms( 1000 );
}
static void bletiny_clear_char( uint8_t *str, char chr )
{
while ( 0 != strchr( str, chr ) )
{
str_cut_chr( str, chr );
}
}
// ------------------------------------------------------------------------ END
