Provide a stable frequency reference for various electronic systems with Si5351A and PIC18F2455
Sync, Lock, and Rock
Published Dec 29, 2023
Click board™
Clock Gen Click
Dev Board
EasyPIC v7a
Compiler
NECTO Studio
MCU
PIC18F2455
Experience unmatched timing precision by integrating a reliable clock generator into your solution
A
A
Hardware Overview
How does it work?
Clock Gen Click is based on the Si5351A, a versatile I2C programmable clock generator ideally suited for replacing crystals, crystal oscillators, VCXOs, PLLs, and buffers. The Si5351A consists of an input, two syntheses, and an output stage. The input stage accepts an external crystal (XTAL on XA and XB pins). The first stage of synthesis multiplies the input frequencies to a high-frequency intermediate clock, while the second stage of synthesis uses high-resolution MultiSynth fractional dividers to generate the desired output frequencies. Additional integer division is provided at the output stage for generating output frequencies as low as 2.5 kHz. Crosspoint switches at each synthesis stage allow total flexibility in routing any of the inputs to any of the outputs. Because of this high resolution and flexible synthesis architecture, the Si5351A can generate synchronous or free-running non-integer related clock frequencies at each output, enabling one device to synthesize clocks for multiple clock domains in a design. The Si5351A uses a fixed-frequency standard AT-cut crystal to reference the internal oscillator. The oscillator's output can
provide a free-running reference to one or both PLLs for generating asynchronous clocks. The oscillator's output frequency operates at the crystal frequency of 25 MHz. Internal load capacitors are provided to eliminate the need for external components when connecting a crystal to the Si5351A. The total internal XTAL load capacitance (CL) can be selected as 0, 6, 8, or 10 pF. The Si5351A uses two stages of synthesis to generate its final output clocks. The first stage uses PLLs to multiply the lower-frequency input references to a high-frequency intermediate clock. The second stage uses high-resolution MultiSynth fractional dividers to generate the required output frequencies. Only two unique frequencies above 112.5 MHz can be simultaneously output. For example, 125 MHz (CLK0), 130 MHz (CLK1), and 150 MHz (CLK2) are not allowed. Both PLLs are locked to the same source (XTAL). The crosspoint switch at the input of the second stage allows any of the MultiSynth dividers to connect to PLLA or PLLB. This flexible synthesis architecture allows any of the outputs to generate synchronous or non-synchronous clocks, with spread spectrum or
without spread spectrum, and with the flexibility of generating non-integer-related clock frequencies at each output. Frequencies down to 2.5 kHz can be generated by applying the R divider at the output of the Multisynth. All output drivers generate CMOS level outputs with a single output voltage supply pin (VDDO), allowing a different voltage signal level (1.8, 2.5, or 3.3 V) at the output banks. The output voltage level selection can be chosen by moving an SMD jumper labeled VDDO SEL to an appropriate position (3V3 or EXT). If 3V3 is chosen, the VDDO is supplied by the board. Otherwise, an external supply must be connected to the voltage level supply pin. This Click board™ uses the I2C communication interface and can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.
Features overview
Development board

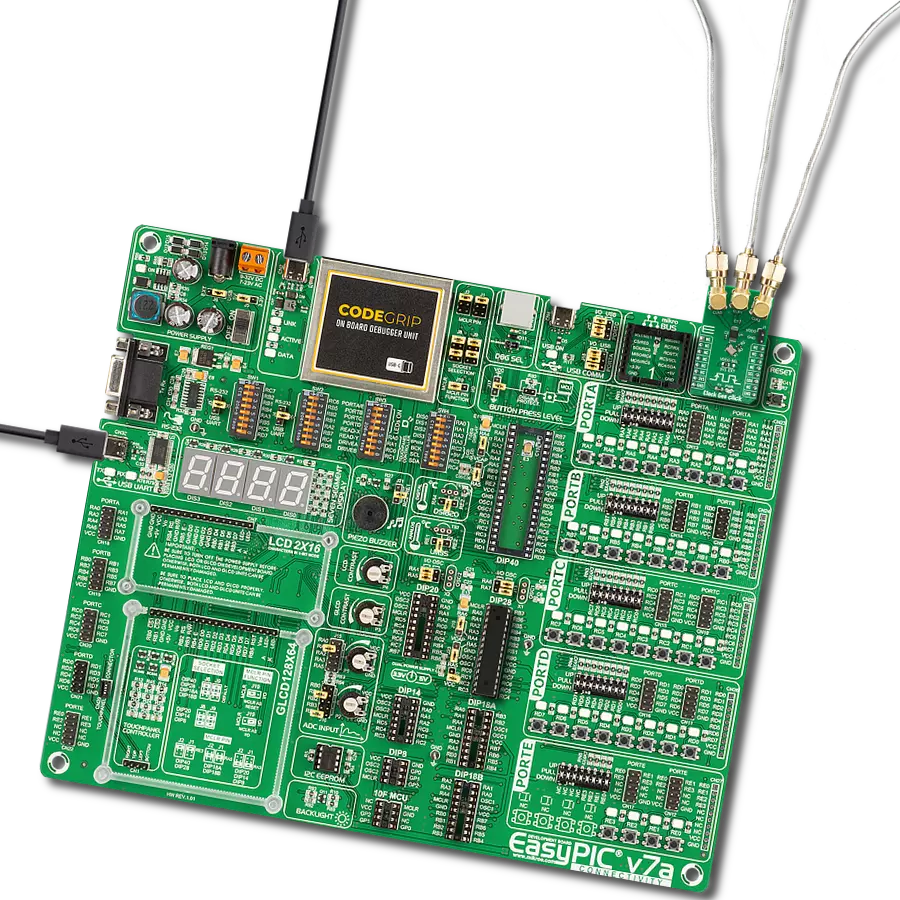

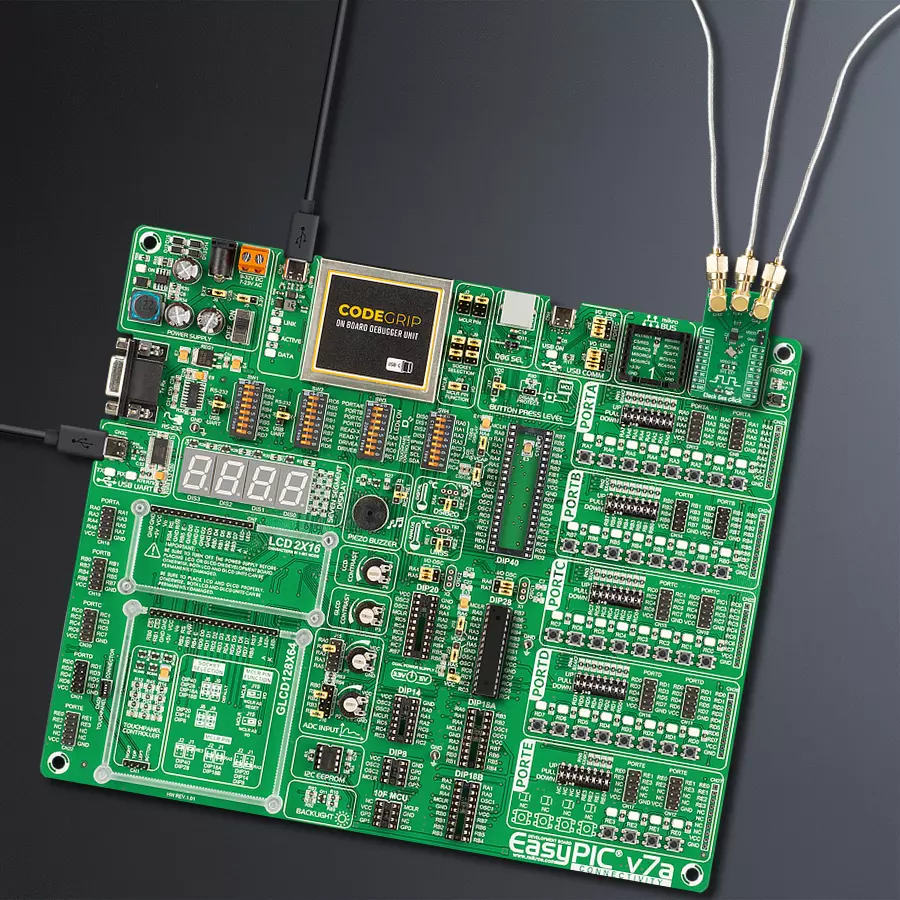

EasyPIC v7a is the seventh generation of PIC development boards specially designed for the needs of rapid development of embedded applications. It supports a wide range of 8-bit PIC microcontrollers from Microchip and has a broad set of unique functions, such as the first-ever embedded debugger/programmer over USB-C. The development board is well organized and designed so that the end-user has all the necessary elements in one place, such as switches, buttons, indicators, connectors, and others. With four different connectors for each port, EasyPIC v7a allows you to connect accessory boards, sensors, and custom electronics more efficiently than ever. Each part of the EasyPIC v7a development board
contains the components necessary for the most efficient operation of the same board. In addition to the advanced integrated CODEGRIP programmer/debugger module, which offers many valuable programming/debugging options and seamless integration with the Mikroe software environment, the board also includes a clean and regulated power supply module for the development board. It can use various external power sources, including an external 12V power supply, 7-23V AC or 9-32V DC via DC connector/screw terminals, and a power source via the USB Type-C (USB-C) connector. Communication options such as USB-UART and RS-232 are also included, alongside the well-
established mikroBUS™ standard, three display options (7-segment, graphical, and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from PIC10F, PIC12F, PIC16F, PIC16Enh, PIC18F, PIC18FJ, and PIC18FK families. EasyPIC v7a is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.
Microcontroller Overview
MCU Card / MCU
Architecture
PIC
MCU Memory (KB)
24
Silicon Vendor
Microchip
Pin count
28
RAM (Bytes)
2048
Used MCU Pins
mikroBUS™ mapper
Take a closer look
Schematic
Step by step
Project assembly
Start by selecting your development board and Click board™. Begin with the EasyPIC v7a as your development board.
Track your results in real time
Application Output via UART Mode
1. Once the code example is loaded, pressing the "FLASH" button initiates the build process, and programs it on the created setup.
2. After the programming is completed, click on the Tools icon in the upper-right panel, and select the UART Terminal.
3. After opening the UART Terminal tab, first check the baud rate setting in the Options menu (default is 115200). If this parameter is correct, activate the terminal by clicking the "CONNECT" button.
4. Now terminal status changes from Disconnected to Connected in green, and the data is displayed in the Received data field.
Software Support
Library Description
This library contains API for Clock Gen Click driver.
Key functions:
clockgen_set_frequency- This function sets clock dividerclockgen_setup_pll- This function sets pllclockgen_setup_multisyinth- This function sets clock frequency on specific clock
Open Source
Code example
This example can be found in NECTO Studio. Feel free to download the code, or you can copy the code below.
/*!
* \file
* \brief ClockGen Click example
*
* # Description
* Clock Gen Click represent a replacement for crystals, crystal oscillators, VCXOs, phase-locked
* loops (PLLs), and fanout buffers. This click features an I2C configurable clock generator
* based on a PLL + high resolution MultiSynth fractional divider architecture which can generate
* any frequency up to 200 MHz with 0 ppm error. The chip on click is capable of generating
* synchronous or free-running non-integer related clock frequencies at each of its outputs
* (CLK0, CLK1, and CLK2), enabling one device to synthesize clocks for multiple clock domains in a design.
*
* The demo application is composed of two sections :
*
* ## Application Init
* Configures device to default function that enables clock 0 and disables all others.
*
* ## Application Task
* Changes 4 different frequency in span of 5 seconds.
*
*
* \author MikroE Team
*
*/
// ------------------------------------------------------------------- INCLUDES
#include "board.h"
#include "log.h"
#include "clockgen.h"
// ------------------------------------------------------------------ VARIABLES
static clockgen_t clockgen;
static log_t logger;
// ------------------------------------------------------ APPLICATION FUNCTIONS
void application_init ( void )
{
log_cfg_t log_cfg;
clockgen_cfg_t cfg;
/**
* Logger initialization.
* Default baud rate: 115200
* Default log level: LOG_LEVEL_DEBUG
* @note If USB_UART_RX and USB_UART_TX
* are defined as HAL_PIN_NC, you will
* need to define them manually for log to work.
* See @b LOG_MAP_USB_UART macro definition for detailed explanation.
*/
LOG_MAP_USB_UART( log_cfg );
log_init( &logger, &log_cfg );
log_info( &logger, "---- Application Init ----" );
// Click initialization.
clockgen_cfg_setup( &cfg );
CLOCKGEN_MAP_MIKROBUS( cfg, MIKROBUS_1 );
clockgen_init( &clockgen, &cfg );
clockgen_default_cfg( &clockgen );
Delay_ms( 500 );
}
void application_task ( void )
{
clockgen_set_frequency( &clockgen, CLOCKGEN_CLOCK_0, CLOCKGEN_PLLA, 1 );
Delay_ms( 5000 );
clockgen_set_frequency( &clockgen, CLOCKGEN_CLOCK_0, CLOCKGEN_PLLA, 3 );
Delay_ms( 5000 );
clockgen_set_frequency( &clockgen, CLOCKGEN_CLOCK_0, CLOCKGEN_PLLA, 10 );
Delay_ms( 5000 );
clockgen_set_frequency( &clockgen, CLOCKGEN_CLOCK_0, CLOCKGEN_PLLA, 5 );
Delay_ms( 5000 );
}
void main ( void )
{
application_init( );
for ( ; ; )
{
application_task( );
}
}
// ------------------------------------------------------------------------ END
