Experience the power of touch with CAP1114 and PIC18F57Q43

Say goodbye to clunky buttons and switches

CapSense 2 Click with Curiosity Nano with PIC18F57Q43

Published Feb 13, 2024

Click board™

CapSense 2 Click

Dev. board

Curiosity Nano with PIC18F57Q43

Compiler

NECTO Studio

MCU

PIC18F57Q43

Take control of your touch-sensing applications with a slide switch and touch buttons that offers high sensitivity and responsiveness

A

A

Hardware Overview

How does it work?

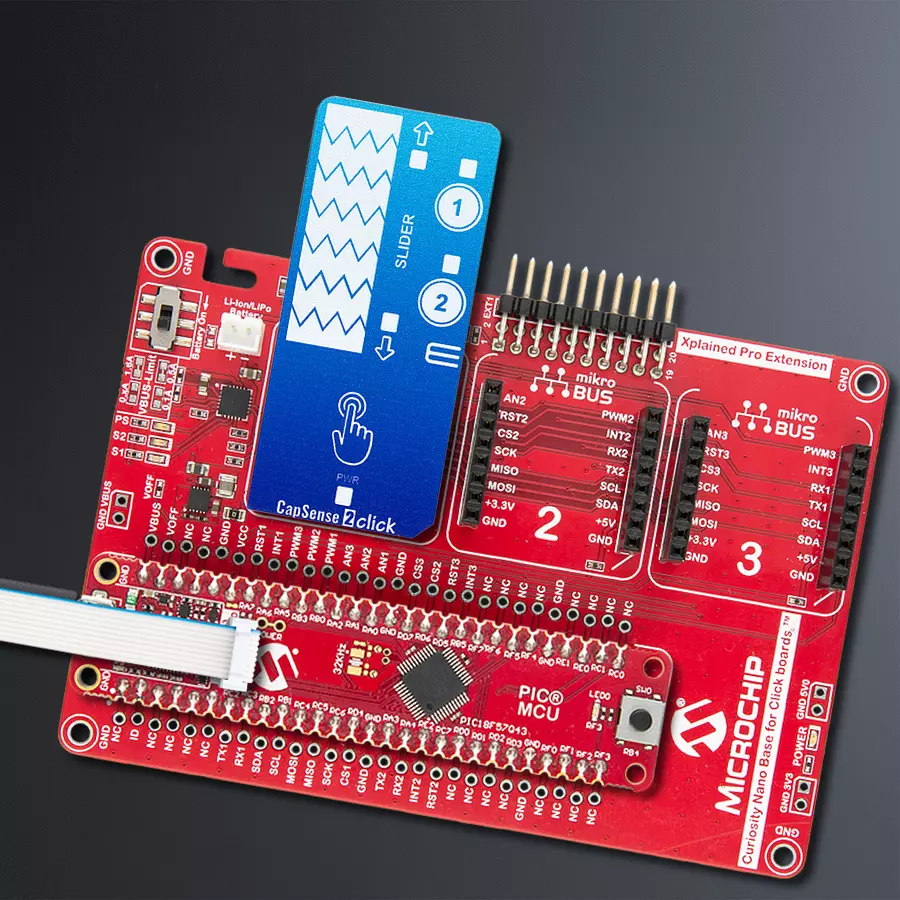

CapSense 2 Click is based on the CAP1114, a multi-channel capacitive touch sensor from Microchip. The CAP1114 takes human body capacitance as an input and directly provides real-time sensor information via a serial interface. It also comes with programmable sensitivity for touch buttons and slider switch applications. The CAP1114 contains multiple power states, including several low-power operating states. It has four operational states: Fully Active, Sleep, Deep Sleep, and Inactive depending on the status of the SLEEP, DEACT, and DSLEEP register bits. When the device transitions between power states, previously detected touches (for deactivated channels) are cleared, and the status bits reset.

As mentioned earlier, this board contains a 7-segment capacitive sensing slider that can detect a slide in either the UP or DOWN direction, as well as two touch buttons. These pads are the only elements on the top side of the board, allowing the protective acrylic plexiglass layer placement. Each feature has an LED indicator representing the activity in that field. If a touch event is detected on one of these onboard pads, the state of the corresponding LED will be changed, indicating an activated channel; more precisely, touch has been detected on that specific field. CapSense 2 Click communicates with MCU using the standard I2C 2-Wire interface to read data and configure settings. It also possesses an additional alert interrupt signal,

routed on the INT pin of the mikroBUS™ socket labeled as ALT, indicating when a specific interrupt event occurs (touch detection), and the Reset pin routed to the RST pin of the mikroBUS™ socket used to hold all internal blocks of the CAP1114 in a reset state. This Click board™ can only be operated with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

capsense-2-click-hardware-overview

Features overview

Development board

PIC18F57Q43 Curiosity Nano evaluation kit is a cutting-edge hardware platform designed to evaluate microcontrollers within the PIC18-Q43 family. Central to its design is the inclusion of the powerful PIC18F57Q43 microcontroller (MCU), offering advanced functionalities and robust performance. Key features of this evaluation kit include a yellow user LED and a responsive

mechanical user switch, providing seamless interaction and testing. The provision for a 32.768kHz crystal footprint ensures precision timing capabilities. With an onboard debugger boasting a green power and status LED, programming and debugging become intuitive and efficient. Further enhancing its utility is the Virtual serial port (CDC) and a debug GPIO channel (DGI

GPIO), offering extensive connectivity options. Powered via USB, this kit boasts an adjustable target voltage feature facilitated by the MIC5353 LDO regulator, ensuring stable operation with an output voltage ranging from 1.8V to 5.1V, with a maximum output current of 500mA, subject to ambient temperature and voltage constraints.

PIC18F57Q43 Curiosity Nano double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

PIC

MCU Memory (KB)

128

Silicon Vendor

Microchip

Pin count

48

RAM (Bytes)

8196

You complete me!

Accessories

Curiosity Nano Base for Click boards is a versatile hardware extension platform created to streamline the integration between Curiosity Nano kits and extension boards, tailored explicitly for the mikroBUS™-standardized Click boards and Xplained Pro extension boards. This innovative base board (shield) offers seamless connectivity and expansion possibilities, simplifying experimentation and development. Key features include USB power compatibility from the Curiosity Nano kit, alongside an alternative external power input option for enhanced flexibility. The onboard Li-Ion/LiPo charger and management circuit ensure smooth operation for battery-powered applications, simplifying usage and management. Moreover, the base incorporates a fixed 3.3V PSU dedicated to target and mikroBUS™ power rails, alongside a fixed 5.0V boost converter catering to 5V power rails of mikroBUS™ sockets, providing stable power delivery for various connected devices.

Curiosity Nano Base for Click boards accessories 1 image

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset
PA7
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
Interrupt
PA6
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB2
SCL
I2C Data
PB1
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

CapSense 2 Click Schematic schematic

Step by step

Project assembly

Curiosity Nano Base for Click boards front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Curiosity Nano with PIC18F57Q43 as your development board.

Curiosity Nano Base for Click boards front image hardware assembly
Charger 27 Click front image hardware assembly
PIC18F47Q10 Curiosity Nano front image hardware assembly
Prog-cut hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
PIC18F57Q43 Curiosity MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for CapSense 2 Click driver.

Key functions:

  • capsense2_read_register This function reads a data byte from the selected register by using I2C serial interface.

  • capsense2_get_alert_pin This function returns the alert pin logic state.

  • capsense2_clear_interrupt This function clears the INT bit of the main status register if the interrupt pin is asserted.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief CapSense2 Click example
 *
 * # Description
 * This example demonstrates the use of CapSense 2 Click board by reading
 * and displaying the sensor's events.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and performs the Click default configuration
 * which resets the Click board and links the desired LEDs to buttons and swipe sensors.
 *
 * ## Application Task
 * Waits for an event interrupt and displays the event on the USB UART.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "capsense2.h"

static capsense2_t capsense2;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    capsense2_cfg_t capsense2_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    capsense2_cfg_setup( &capsense2_cfg );
    CAPSENSE2_MAP_MIKROBUS( capsense2_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == capsense2_init( &capsense2, &capsense2_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( CAPSENSE2_ERROR == capsense2_default_cfg ( &capsense2 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    if ( capsense2_get_alert_pin ( &capsense2 ) )
    {
        uint8_t button_status = 0;
        if ( CAPSENSE2_OK == capsense2_read_register ( &capsense2, CAPSENSE2_REG_BUTTON_STATUS_1, &button_status ) )
        {
            static uint8_t button_press_state = 0;
            static uint8_t swipe_state = 0;
            if ( button_status & CAPSENSE2_BUTTON_STATUS_1_UP_SLIDER )
            {
                if ( CAPSENSE2_BUTTON_STATUS_1_UP_SLIDER != swipe_state )
                {
                    log_printf ( &logger, " Swipe UP \r\n\n" );
                    swipe_state = CAPSENSE2_BUTTON_STATUS_1_UP_SLIDER;
                }
            }
            if ( button_status & CAPSENSE2_BUTTON_STATUS_1_DOWN_SLIDER )
            {
                if ( CAPSENSE2_BUTTON_STATUS_1_DOWN_SLIDER != swipe_state )
                {
                    log_printf ( &logger, " Swipe DOWN \r\n\n" );
                    swipe_state = CAPSENSE2_BUTTON_STATUS_1_DOWN_SLIDER;
                }
            }
            if ( button_status & CAPSENSE2_BUTTON_STATUS_1_BUTTON_1 )
            {
                if ( !( button_press_state & CAPSENSE2_BUTTON_STATUS_1_BUTTON_1 ) )
                {
                    log_printf ( &logger, " Button 1 pressed \r\n\n" );
                    button_press_state |= CAPSENSE2_BUTTON_STATUS_1_BUTTON_1;
                }
            }
            if ( button_status & CAPSENSE2_BUTTON_STATUS_1_BUTTON_2 )
            {
                if ( !( button_press_state & CAPSENSE2_BUTTON_STATUS_1_BUTTON_2 ) )
                {
                    log_printf ( &logger, " Button 2 pressed \r\n\n" );
                    button_press_state |= CAPSENSE2_BUTTON_STATUS_1_BUTTON_2;
                }
            }
            capsense2_clear_interrupt ( &capsense2 );

            // check if buttons are released
            if ( CAPSENSE2_OK == capsense2_read_register ( &capsense2, CAPSENSE2_REG_BUTTON_STATUS_1, &button_status ) )
            {
                if ( ( button_press_state & CAPSENSE2_BUTTON_STATUS_1_BUTTON_1 ) &&
                    !( button_status & CAPSENSE2_BUTTON_STATUS_1_BUTTON_1 ) )
                {
                    log_printf ( &logger, " Button 1 released \r\n\n" );
                    button_press_state &= ~CAPSENSE2_BUTTON_STATUS_1_BUTTON_1;
                }
                if ( ( button_press_state & CAPSENSE2_BUTTON_STATUS_1_BUTTON_2 ) &&
                    !( button_status & CAPSENSE2_BUTTON_STATUS_1_BUTTON_2 ) )
                {
                    log_printf ( &logger, " Button 2 released \r\n\n" );
                    button_press_state &= ~CAPSENSE2_BUTTON_STATUS_1_BUTTON_2;
                }
            }

            // check if swipe event is finished and display the slider position
            uint8_t slider = 0;
            if ( CAPSENSE2_OK == capsense2_read_register ( &capsense2, CAPSENSE2_REG_SLIDER_POSITION_DATA, &slider ) )
            {
                if ( slider )
                {
                    log_printf ( &logger, " Slider position: %u \r\n\n", ( uint16_t ) slider );
                }
                else
                {
                    swipe_state = 0;
                }
            }
        }
        capsense2_clear_interrupt ( &capsense2 );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
