Intermediate
30 min

Prevent damage from short circuits and reverse polarity with TPS25940 and STM32F413ZH

Power path defender: Where control meets reliability

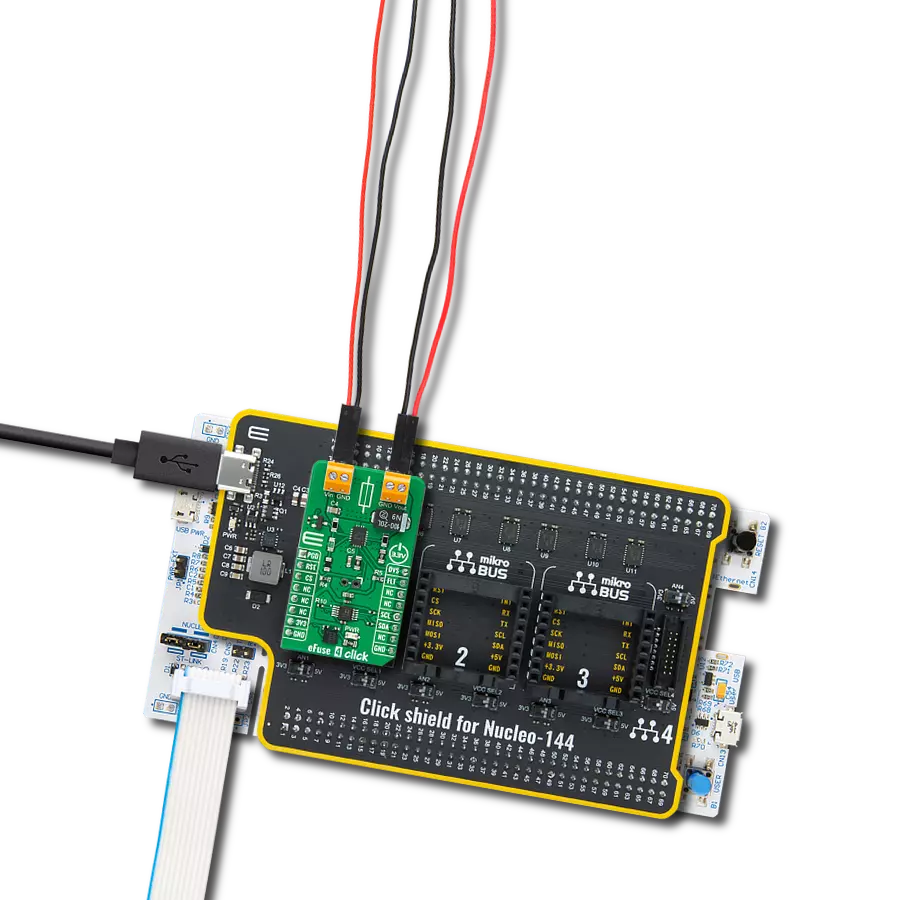

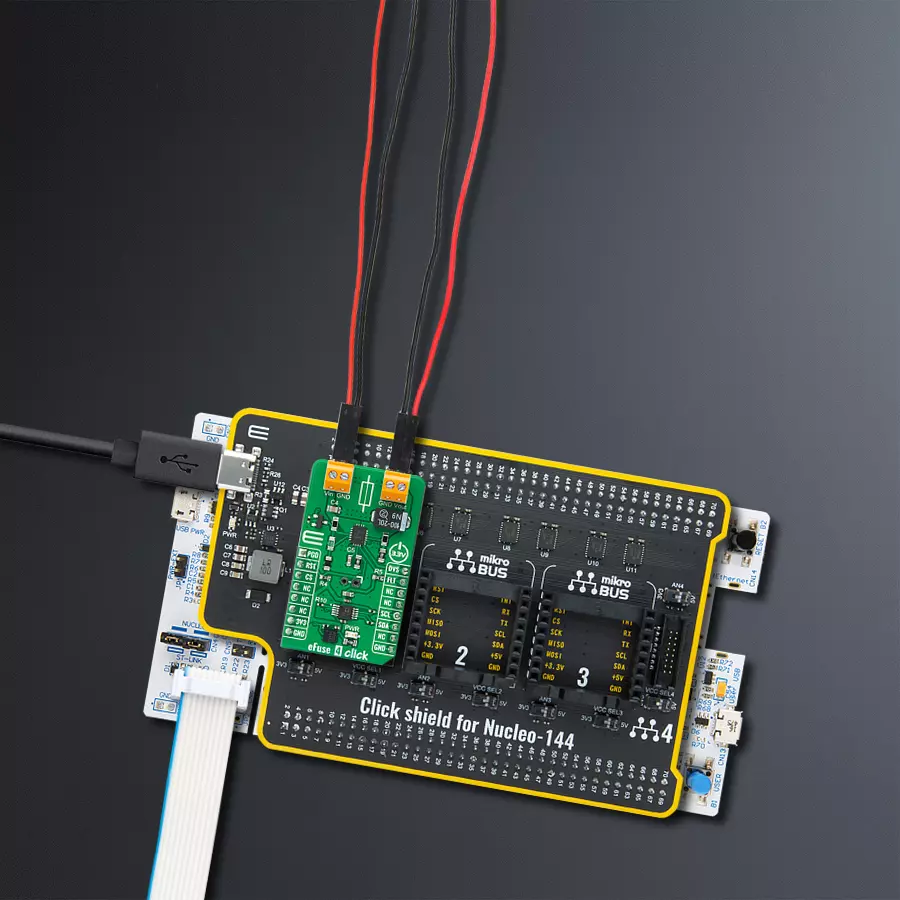

eFuse 4 Click with Nucleo 144 with STM32F413ZH MCU

Published Feb 14, 2024

Click board™

eFuse 4 Click

Dev. board

Nucleo 144 with STM32F413ZH MCU

Compiler

NECTO Studio

MCU

STM32F413ZH

Our eFuse solution is engineered to provide advanced circuit protection, offering precise current limiting, fault detection, and overcurrent protection for enhanced reliability and safety

A

A

Hardware Overview

How does it work?

eFuse 4 Click is based on the TPS25940, a smart eFuse with integrated back-to-back FETs and enhanced built-in protection circuitry from Texas Instruments. The TPS25940 provides robust protection for all systems and applications powered by an external power supply from 2.7V to 18V. It also features a full suite of protection and monitoring functions, including a low-power DevSleep™ mode, controllable through a DVS pin routed on the PWM pin of the mikroBUS™ socket, that supports compliance with the SATA™ Device Sleep standard. This Click board™ is designed to protect systems such as enterprise SSD drives against sudden power loss events. It monitors voltages of the input and output terminals to provide true reverse blocking from the output

when a reverse condition or input power fail condition is detected. The TPS25940 allows users to program the overcurrent limit threshold between 1A and 5A via an external I2C-configurable digital potentiometer, the AD5272 from Analog Devices. Besides the overcurrent feature, the TPS25940 has programmable over and undervoltage thresholds for load, source, and device protection. The TPS25940 also provides an additional power-good comparator on the PGD pin, routed on the AN pin of the mikroBUS™ socket, with precision internal reference for output or any other rail voltage monitoring and a fault event indicator on the FLT pin. This fault indicator goes to a low logic state to indicate fault conditions due to under/overvoltage, reverse

voltage, and thermal shutdown events in the event of an overcurrent. A special addition on the plate represents an unpopulated header, which represents a precise current monitor output for health monitoring of the system, alongside the Enable pin routed on the RST pin of the mikroBUS™ socket that controls the ON/OFF state of the internal TPS25940’s FETs. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

eFuse 4 Click hardware overview image

Features overview

Development board

Nucleo-144 with STM32F413ZH MCU board offers an accessible and adaptable avenue for users to explore new ideas and construct prototypes. It allows users to tailor their experience by selecting from a range of performance and power consumption features offered by the STM32 microcontroller. With compatible boards, the

internal or external SMPS dramatically decreases power usage in Run mode. Including the ST Zio connector, expanding ARDUINO Uno V3 connectivity, and ST morpho headers facilitate easy expansion of the Nucleo open development platform. The integrated ST-LINK debugger/programmer enhances convenience by

eliminating the need for a separate probe. Moreover, the board is accompanied by comprehensive free software libraries and examples within the STM32Cube MCU Package, further enhancing its utility and value.

Nucleo 144 with STM32F413ZH MCU double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

ARM Cortex-M4

MCU Memory (KB)

1536

Silicon Vendor

STMicroelectronics

Pin count

144

RAM (Bytes)

327680

You complete me!

Accessories

Click Shield for Nucleo-144 comes equipped with four mikroBUS™ sockets, with one in the form of a Shuttle connector, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-144 board with no effort. This way, MIKROE allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. Featuring an ARM Cortex-M microcontroller, 144 pins, and Arduino™ compatibility, the STM32 Nucleo-144 board offers limitless possibilities for prototyping and creating diverse applications. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-144 board out of the box, with an additional USB cable connected to the USB mini port on the board. Simplify your project development with the integrated ST-Link debugger and unleash creativity using the extensive I/O options and expansion capabilities. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-144 board with our Click Shield for Nucleo-144, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Nucleo-144 accessories 1 image

Used MCU Pins

mikroBUS™ mapper

Power-Good Indicator
PC0
AN
Reset
PA13
RST
NC
NC
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
DevSleep Mode
PC6
PWM
Fault Interrupt
PF13
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PF1
SCL
I2C Data
PF0
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

eFuse 4 Click Schematic schematic

Step by step

Project assembly

Click Shield for Nucleo-144 accessories 1 image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo 144 with STM32F413ZH MCU as your development board.

Click Shield for Nucleo-144 accessories 1 image hardware assembly
Nucleo 144 with STM32F446ZE MCU front image hardware assembly
Charger 27 Click front image hardware assembly
Prog-cut hardware assembly
Charger 27 Click complete accessories setup image hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
STM32F413ZH Nucleo MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for eFuse 4 Click driver.

Key functions:

  • efuse4_set_current_limit - eFuse 4 set current limit function

  • efuse4_set_resistance - eFuse 4 set resistance function

  • efuse4_set_digi_pot - eFuse 4 set normal mode function

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief eFuse 4 Click example
 *
 * # Description
 * This library contains API for the eFuse 4 Click driver.
 * This driver provides the functions to set the current limiting conditions
 * in order to provide the threshold of the fault conditions.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization of I2C module and log UART.
 * After driver initialization, default settings turn on the device.
 *
 * ## Application Task
 * This example demonstrates the use of the eFuse 4 Click board™.
 * Reading user's input from UART Terminal and using it as an index
 * for an array of pre-calculated values that define the current limit level.
 * Results are being sent to the UART Terminal, where you can track their changes.
 *
 * @author Nenad Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "efuse4.h"

static efuse4_t efuse4;
static log_t logger;

const efuse4_current_limit_t limit_value_op[ 7 ] =
{
    EFUSE4_CURRENT_LIMIT_670_mA,
    EFUSE4_CURRENT_LIMIT_750_mA,
    EFUSE4_CURRENT_LIMIT_990_mA,
    EFUSE4_CURRENT_LIMIT_2080_mA,
    EFUSE4_CURRENT_LIMIT_3530_mA,
    EFUSE4_CURRENT_LIMIT_4450_mA,
    EFUSE4_CURRENT_LIMIT_5200_mA,
};

static void display_selection ( void )
{
    log_printf( &logger, "  To select current limit  \r\n" );
    log_printf( &logger, "  Send one of the numbers: \r\n" );
    log_printf( &logger, "- - - - - - - - - - - - - -\r\n" );
    log_printf( &logger, " '0' - Limited to  670 mA  \r\n" );
    log_printf( &logger, " '1' - Limited to  750 mA  \r\n" );
    log_printf( &logger, " '2' - Limited to  990 mA  \r\n" );
    log_printf( &logger, " '3' - Limited to 2080 mA  \r\n" );
    log_printf( &logger, " '4' - Limited to 3530 mA  \r\n" );
    log_printf( &logger, " '5' - Limited to 4450 mA  \r\n" );
    log_printf( &logger, " '6' - Limited to 5200 mA  \r\n" );
    log_printf( &logger, "---------------------------\r\n" );
}

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    efuse4_cfg_t efuse4_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    efuse4_cfg_setup( &efuse4_cfg );
    EFUSE4_MAP_MIKROBUS( efuse4_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == efuse4_init( &efuse4, &efuse4_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( EFUSE4_ERROR == efuse4_default_cfg ( &efuse4 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
    log_printf( &logger, "---------------------------\r\n" );
    Delay_ms ( 100 );

    display_selection( );
    Delay_ms ( 100 );
}

void application_task ( void )
{
    static char index;

    if ( EFUSE4_ERROR != log_read( &logger, &index, 1 ) )
    {
        if ( ( index >= '0' ) && ( index <= '6' ) )
        {
            efuse4_set_current_limit ( &efuse4, limit_value_op[ index - 48 ] );
            log_printf( &logger, "  >>> Selected mode %d     \r\n", index - 48 );
            log_printf( &logger, "  Current limit is %d mA   \r\n", limit_value_op[ index - 48 ] );
            log_printf( &logger, "---------------------------\r\n" );
            Delay_ms ( 100 );
        }
        else
        {
            log_printf( &logger, "    Data not in range!    \r\n" );
            log_printf( &logger, "---------------------------\r\n" );
            display_selection( );
            Delay_ms ( 100 );
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
