Achieve indoor and outdoor air quality tracking with BME690 and PIC18F57Q43

Complete 4-in-1 environmental sensing solution with integrated AI for smart air quality monitoring

Environment 6 Click with Curiosity Nano with PIC18F57Q43

Published Sep 25, 2025

Click board™

Environment 6 Click

Dev. board

Curiosity Nano with PIC18F57Q43

Compiler

NECTO Studio

MCU

PIC18F57Q43

Evaluate overall indoor and outdoor air quality by detecting volatile organic compounds (VOCs), volatile sulfur compounds (VSCs), carbon monoxide (CO), hydrogen, and other gases

A

A

Hardware Overview

How does it work?

Environment 6 Click is based on the BME690, the world’s smallest 4-in-1 environmental sensor with integrated AI from Bosch Sensortec. This board combines gas, humidity, pressure, and temperature measurement and provides a highly integrated environmental sensing solution designed for precise monitoring of air quality and ambient conditions. The BME690 is capable of detecting volatile organic compounds, volatile sulfur compounds, carbon monoxide, hydrogen, and other gases, and it includes a gas scanner function that offers extended measurements to evaluate overall indoor or outdoor air quality. By using Bosch’s software, gas readings can be analyzed further, and AI-driven algorithms can be trained to detect specific environmental indicators such as the likelihood of bacteria growth or the presence of organic contaminants, delivering reliable and adaptable data for a wide range of use cases. The BME690 provides key outputs such as Index for Air Quality, bVOC- and CO2-equivalent values, ensuring actionable insights into environmental

health. It supports a full operating range with pressure accuracy of ±0.05hPa, humidity accuracy of ±3%RH, and temperature accuracy of ±0.5°C within 0 to 65°C range, making it suitable for demanding applications including wearables, mobile devices, smart home solutions, and care-related products. This Click board™ is designed in a unique format supporting the newly introduced MIKROE feature called "Click Snap." Unlike the standardized version of Click boards, this feature allows the main sensor/IC/module area to become movable by breaking the PCB, opening up many new possibilities for implementation. Thanks to the Snap feature, the BME690 can operate autonomously by accessing its signals directly on the pins marked 1-8. Additionally, the Snap part includes a specified and fixed screw hole position, enabling users to secure the Snap board in their desired location. This board supports communication with the host MCU through either SPI (maximum clock frequency of 10MHz) or I2C (maximum clock frequency of 3.4MHz) interfaces,

with I2C being the default option. The communication interface is selected by adjusting the COMM SEL jumper to the desired position. To enhance flexibility, particularly with the detachable Snap section of the Click Snap format, an additional COMM SEL jumpers are available. These jumpers functions the same as the COMM SEL, allowing for independent communication interface selection when the Snap section is used independently. To ensure proper functionality, all COMM jumpers must be set to the same interface. For those using the I2C interface, the board also provides an ADDR SEL jumper, enabling users to configure the I2C address as needed for their specific application. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. It also comes equipped with a library containing functions and example code that can be used as a reference for further development.

Environment 6 Click hardware overview image

Features overview

Development board

PIC18F57Q43 Curiosity Nano evaluation kit is a cutting-edge hardware platform designed to evaluate microcontrollers within the PIC18-Q43 family. Central to its design is the inclusion of the powerful PIC18F57Q43 microcontroller (MCU), offering advanced functionalities and robust performance. Key features of this evaluation kit include a yellow user LED and a responsive

mechanical user switch, providing seamless interaction and testing. The provision for a 32.768kHz crystal footprint ensures precision timing capabilities. With an onboard debugger boasting a green power and status LED, programming and debugging become intuitive and efficient. Further enhancing its utility is the Virtual serial port (CDC) and a debug GPIO channel (DGI

GPIO), offering extensive connectivity options. Powered via USB, this kit boasts an adjustable target voltage feature facilitated by the MIC5353 LDO regulator, ensuring stable operation with an output voltage ranging from 1.8V to 5.1V, with a maximum output current of 500mA, subject to ambient temperature and voltage constraints.

PIC18F57Q43 Curiosity Nano double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

PIC

MCU Memory (KB)

128

Silicon Vendor

Microchip

Pin count

48

RAM (Bytes)

8196

You complete me!

Accessories

Curiosity Nano Base for Click boards is a versatile hardware extension platform created to streamline the integration between Curiosity Nano kits and extension boards, tailored explicitly for the mikroBUS™-standardized Click boards and Xplained Pro extension boards. This innovative base board (shield) offers seamless connectivity and expansion possibilities, simplifying experimentation and development. Key features include USB power compatibility from the Curiosity Nano kit, alongside an alternative external power input option for enhanced flexibility. The onboard Li-Ion/LiPo charger and management circuit ensure smooth operation for battery-powered applications, simplifying usage and management. Moreover, the base incorporates a fixed 3.3V PSU dedicated to target and mikroBUS™ power rails, alongside a fixed 5.0V boost converter catering to 5V power rails of mikroBUS™ sockets, providing stable power delivery for various connected devices.

Curiosity Nano Base for Click boards accessories 1 image

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
ID SEL
PA7
RST
SPI Select / ID COMM
PD4
CS
SPI Clock
PC6
SCK
SPI Data OUT
PC5
MISO
SPI Data IN
PC4
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
NC
NC
PWM
NC
NC
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB2
SCL
I2C Data
PB1
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

Environment 6 Click Schematic schematic

Step by step

Project assembly

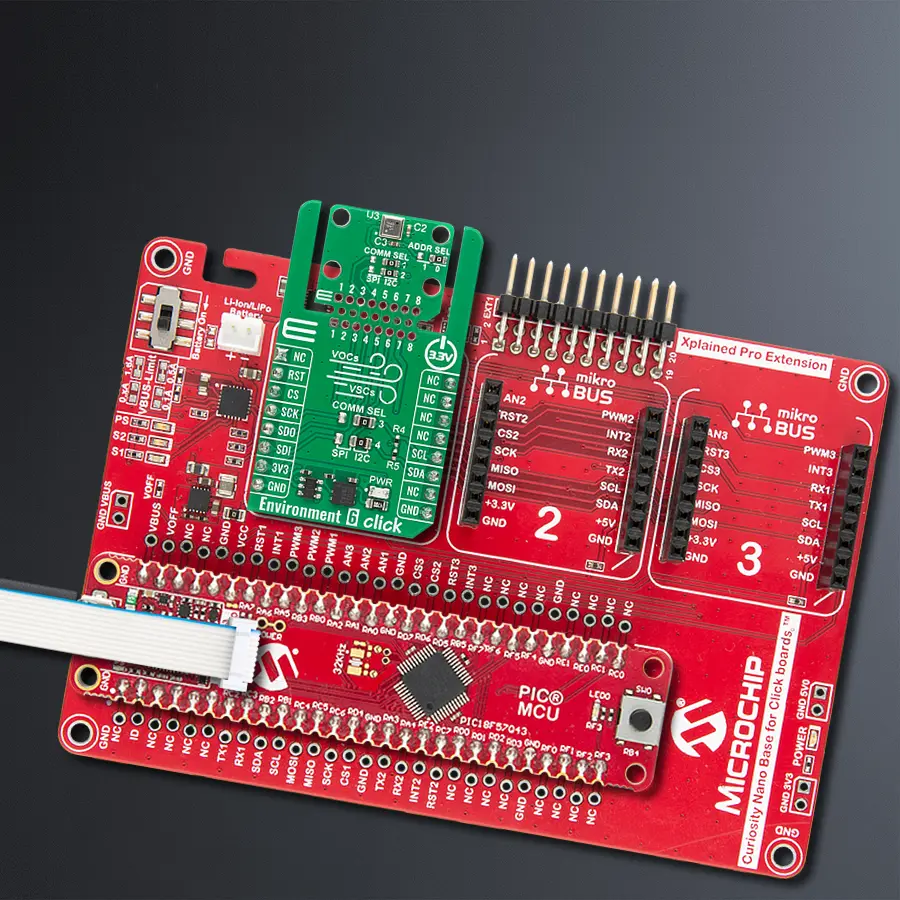

Curiosity Nano Base for Click boards front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Curiosity Nano with PIC18F57Q43 as your development board.

Curiosity Nano Base for Click boards front image hardware assembly
Charger 27 Click front image hardware assembly
PIC18F47Q10 Curiosity Nano front image hardware assembly
Prog-cut hardware assembly
Charger 27 Click complete accessories setup image hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
PIC18F57Q43 Curiosity MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

Environment 6 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

Example Description
This example demonstrates the use of the Environment 6 Click board, which integrates a high-precision environmental sensor for measuring temperature, humidity, pressure, and gas resistance. The application initializes the device and periodically reads and logs all available environmental parameters via UART.

Key functions:

  • environment6_cfg_setup - This function initializes Click configuration structure to initial values.

  • environment6_init - This function initializes all necessary pins and peripherals used for this Click board.

  • environment6_default_cfg - This function executes a default configuration of Environment 6 Click board.

  • environment6_set_sensor_conf - This function configures the sensor oversampling, filter, and data rate.

  • environment6_set_gas_conf - This function sets the heater temperature, duration, and enables gas measurements.

  • environment6_get_data - This function triggers a measurement and reads temperature, pressure, humidity, and gas resistance data.

Application Init
Initializes the logger and configures the Environment 6 Click. It sets up communication and applies the default configuration to the sensor.

Application Task
Continuously reads temperature (degC), humidity (%RH), pressure (mBar), and gas resistance (Ohms) if enabled, then logs the measured values every second.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief Environment 6 Click example
 *
 * # Description
 * This example demonstrates the use of the Environment 6 Click board, which integrates
 * a high-precision environmental sensor for measuring temperature, humidity, pressure,
 * and gas resistance. The application initializes the device and periodically reads
 * and logs all available environmental parameters via UART.
 *
 * The demo application is composed of two sections:
 *
 * ## Application Init
 * Initializes the logger and configures the Environment 6 Click. It sets up
 * communication and applies the default configuration to the sensor.
 *
 * ## Application Task
 * Continuously reads temperature (degC), humidity (%RH), pressure (mBar), and gas
 * resistance (Ohms) if enabled, then logs the measured values every second.
 *
 * @note
 * The BME690 sensor on this Click board provides raw gas resistance data only.
 * To calculate indoor air quality (IAQ), VOC index, CO2 equivalents, and similar
 * environmental parameters, Bosch Sensortec BSEC (Bosch Software Environmental Cluster)
 * algorithm must be integrated separately.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "environment6.h"

static environment6_t environment6;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    environment6_cfg_t environment6_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    environment6_cfg_setup( &environment6_cfg );
    ENVIRONMENT6_MAP_MIKROBUS( environment6_cfg, MIKROBUS_1 );
    err_t init_flag = environment6_init( &environment6, &environment6_cfg );
    if ( ( I2C_MASTER_ERROR == init_flag ) || ( SPI_MASTER_ERROR == init_flag ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( ENVIRONMENT6_ERROR == environment6_default_cfg ( &environment6 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    environment6_data_t meas_res;
    if ( ENVIRONMENT6_OK == environment6_get_data ( &environment6, &meas_res ) )
    {
        log_printf( &logger, " Temperature : %.2f degC\r\n", meas_res.temperature );
        log_printf( &logger, " Humidity : %.2f %%\r\n", meas_res.humidity );
        log_printf( &logger, " Pressure : %.1f mBar\r\n", meas_res.pressure );
        if ( environment6.gas_conf.enable )
        {
            log_printf( &logger, " Gas Resistance : %.1f Ohms\r\n", meas_res.gas_resistance );
        }
        log_printf( &logger, "--------------------------------\r\n" );
        Delay_ms ( 1000 );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
