Deliver up to 3A for telecom and industrial applications with MPM54313 and PIC18F57Q43

Multi-rail, high-performance power management solution featuring three independent buck converters

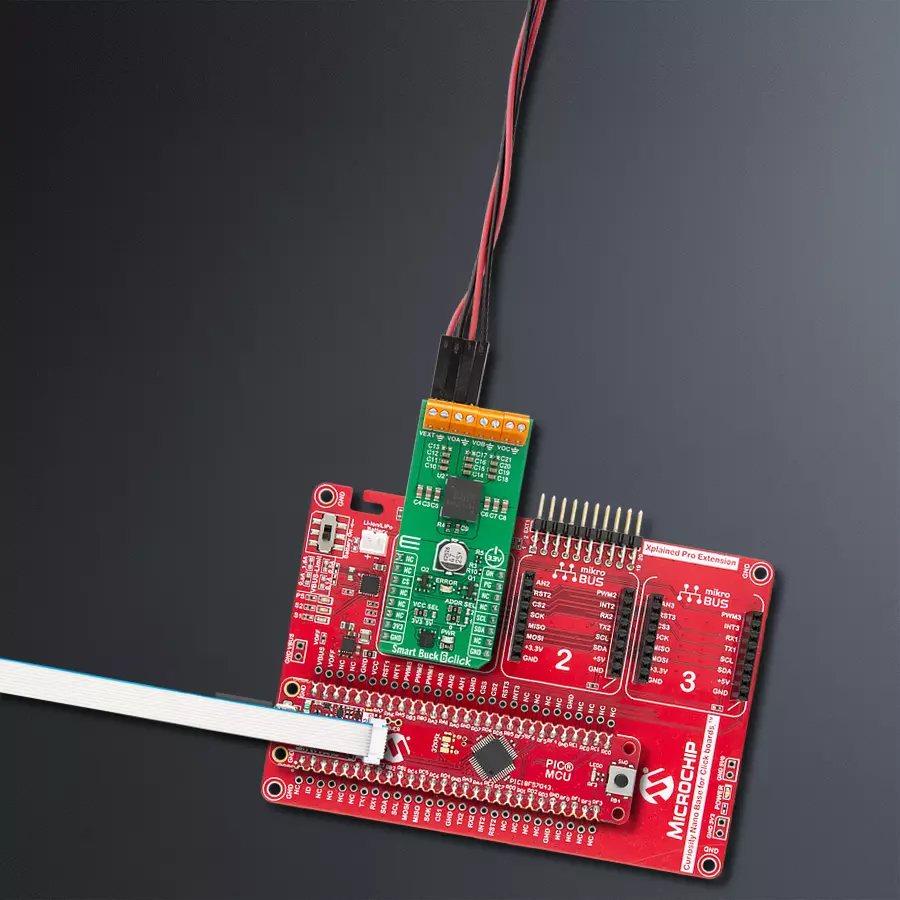

Smart Buck 6 Click with Curiosity Nano with PIC18F57Q43

Published Sep 15, 2025

Click board™

Smart Buck 6 Click

Dev. board

Curiosity Nano with PIC18F57Q43

Compiler

NECTO Studio

MCU

PIC18F57Q43

Power embedded systems with three independent buck converters that deliver stable and configurable power outputs

A

A

Hardware Overview

How does it work?

Smart Buck 6 Click is based on the MPM54313, a triple 3A power module from MPS that provides a highly integrated power management solution for a wide range of embedded applications. This module offers three independent buck converters, each capable of delivering up to 3A of continuous output current, with flexible configuration through the I2C interface. It supports a wide input voltage range from 4V to 16V at the VEXT terminal, while the output voltages can be adjusted digitally via I2C or set through multiple-time programmable memory in the range of 0.4V to 5.5V on all VOx outputs, ensuring adaptability to different system requirements. The device integrates sophisticated power-on and power-off sequencing, configurable soft-start, compensation, and comprehensive protection features including under-voltage lockout, over-voltage, under-voltage, over-current protection, and thermal shutdown, ensuring safe and reliable operation. Its constant-on-time control

architecture enables ultra-fast transient response, making it ideal for powering sensitive digital systems such as FPGAs, ASICs, and optical communication modules. For higher current demands, Buck channels A and B can operate in parallel in interleaving mode, supporting up to 6A with active current balancing, while configurable active voltage positioning allows up to three outputs to be paralleled with passive current sharing. This level of integration and flexibility makes Smart Buck 6 Click an excellent choice for networking, telecommunications, and other complex embedded systems requiring compact and programmable multi-rail power supplies. The MPM54313 interfaces with the host MCU via an I2C-compatible serial interface operating at standard (100kHz) or fast mode (400kHz) clock speeds, enabling control and monitoring of output voltages and status registers. The I2C address of the MPM54313 can be easily configured via onboard jumpers marked

ADDR SEL, allowing multiple devices to coexist on the same bus. A dedicated ON pin allows for external enable/disable control of the entire power module, supporting power domain management in software-controlled power sequencing scenarios. Additionally, the MPM54313 features a Power Good (PG pin) output that is also routed to an onboard red LED labeled ERROR, which provides real-time visual indication of any voltage irregularities or faults - indicate valid and stable output voltages. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

Smart Buck 6 Click hardware overview image

Features overview

Development board

PIC18F57Q43 Curiosity Nano evaluation kit is a cutting-edge hardware platform designed to evaluate microcontrollers within the PIC18-Q43 family. Central to its design is the inclusion of the powerful PIC18F57Q43 microcontroller (MCU), offering advanced functionalities and robust performance. Key features of this evaluation kit include a yellow user LED and a responsive

mechanical user switch, providing seamless interaction and testing. The provision for a 32.768kHz crystal footprint ensures precision timing capabilities. With an onboard debugger boasting a green power and status LED, programming and debugging become intuitive and efficient. Further enhancing its utility is the Virtual serial port (CDC) and a debug GPIO channel (DGI

GPIO), offering extensive connectivity options. Powered via USB, this kit boasts an adjustable target voltage feature facilitated by the MIC5353 LDO regulator, ensuring stable operation with an output voltage ranging from 1.8V to 5.1V, with a maximum output current of 500mA, subject to ambient temperature and voltage constraints.

PIC18F57Q43 Curiosity Nano double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

PIC

MCU Memory (KB)

128

Silicon Vendor

Microchip

Pin count

48

RAM (Bytes)

8196

You complete me!

Accessories

Curiosity Nano Base for Click boards is a versatile hardware extension platform created to streamline the integration between Curiosity Nano kits and extension boards, tailored explicitly for the mikroBUS™-standardized Click boards and Xplained Pro extension boards. This innovative base board (shield) offers seamless connectivity and expansion possibilities, simplifying experimentation and development. Key features include USB power compatibility from the Curiosity Nano kit, alongside an alternative external power input option for enhanced flexibility. The onboard Li-Ion/LiPo charger and management circuit ensure smooth operation for battery-powered applications, simplifying usage and management. Moreover, the base incorporates a fixed 3.3V PSU dedicated to target and mikroBUS™ power rails, alongside a fixed 5.0V boost converter catering to 5V power rails of mikroBUS™ sockets, providing stable power delivery for various connected devices.

Curiosity Nano Base for Click boards accessories 1 image

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
NC
NC
RST
ID COMM
PD4
CS
NC
NC
SCK
NC
NC
MISO
NC
NC
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Device Enable
PB0
PWM
Power-Good Indicator
PA6
INT
NC
NC
TX
NC
NC
RX
I2C Clock
PB2
SCL
I2C Data
PB1
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

Smart Buck 6 Click Schematic schematic

Step by step

Project assembly

Curiosity Nano Base for Click boards front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Curiosity Nano with PIC18F57Q43 as your development board.

Curiosity Nano Base for Click boards front image hardware assembly
Charger 27 Click front image hardware assembly
PIC18F47Q10 Curiosity Nano front image hardware assembly
Prog-cut hardware assembly
Charger 27 Click complete accessories setup image hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
PIC18F57Q43 Curiosity MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

Smart Buck 6 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

Example Description
This example demonstrates the use of the Smart Buck 6 Click board. The application changes the output voltage of all three buck converters (A, B, and C) in a periodic manner and logs the output current of each. It also monitors the PG (Power Good) pin to detect and log any fault conditions such as over-temperature, overvoltage, undervoltage, or overcurrent.

Key functions:

  • smartbuck6_cfg_setup - This function initializes Click configuration structure to initial values.

  • smartbuck6_init - This function initializes all necessary pins and peripherals used for this Click board.

  • smartbuck6_default_cfg - This function executes a default configuration of Smart Buck 6 Click board.

  • smartbuck6_set_buck_vout - This function sets the output voltage for one or more buck regulators.

  • smartbuck6_read_buck_current - This function reads and returns the output current of the selected buck regulator.

  • smartbuck6_get_pg_pin - This function reads the logic level of the PG pin.

Application Init
Initializes the logger and the Smart Buck 6 Click driver and applies the default configuration.

Application Task
Periodically increases or decreases the output voltage, reads and logs the output current for each buck channel, and checks for any fault conditions indicated via the PG pin and status registers.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief Smart Buck 6 Click example
 *
 * # Description
 * This example demonstrates the use of the Smart Buck 6 Click board. The application changes
 * the output voltage of all three buck converters (A, B, and C) in a periodic manner and logs
 * the output current of each. It also monitors the PG (Power Good) pin to detect and log any
 * fault conditions such as over-temperature, overvoltage, undervoltage, or overcurrent.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the logger and the Smart Buck 6 Click driver and applies the default configuration.
 *
 * ## Application Task
 * Periodically increases or decreases the output voltage, reads and logs the output current for
 * each buck channel, and checks for any fault conditions indicated via the PG pin and status registers.
 *
 * @note
 * Ensure that a valid power supply and appropriate load are connected to the Click board
 * to observe proper current and fault condition readings.
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "smartbuck6.h"

static smartbuck6_t smartbuck6;
static log_t logger;

/**
 * @brief Smart Buck 6 display status function.
 * @details This function parses and logs all detected status flags from the Smart Buck 6 Click board
 * including over-temperature, power-good, overvoltage, undervoltage, and overcurrent conditions.
 * @param[in] status : Status register structure.
 * See #smartbuck6_status_t object definition for detailed explanation.
 * @return None.
 * @note This function outputs human-readable messages via the logger for each active status flag.
 */
static void smartbuck6_display_status ( smartbuck6_status_t status );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    smartbuck6_cfg_t smartbuck6_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    smartbuck6_cfg_setup( &smartbuck6_cfg );
    SMARTBUCK6_MAP_MIKROBUS( smartbuck6_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == smartbuck6_init( &smartbuck6, &smartbuck6_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( SMARTBUCK6_ERROR == smartbuck6_default_cfg ( &smartbuck6 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    smartbuck6_status_t status;
    static uint16_t vout = SMARTBUCK6_VOUT_MV_MIN;
    static int16_t vout_step = 200;
    uint16_t current = 0;
    if ( smartbuck6_get_pg_pin ( &smartbuck6 ) )
    {
        log_printf( &logger, "\r\n Fault indication detected via PG pin!\r\n" );
        if ( SMARTBUCK6_OK == smartbuck6_read_status ( &smartbuck6, &status ) )
        {
            smartbuck6_display_status ( status );
        }
        smartbuck6_clear_status( &smartbuck6 );
    }
    if ( SMARTBUCK6_OK == smartbuck6_set_buck_vout ( &smartbuck6, SMARTBUCK6_BUCK_ALL, vout ) )
    {
        log_printf ( &logger, "\r\n All outputs voltage: %u mV\r\n", vout );
        vout += vout_step;
        if ( ( vout > SMARTBUCK6_VOUT_MV_MAX ) || ( vout < SMARTBUCK6_VOUT_MV_MIN ) )
        {
            vout_step = -vout_step;
            vout += vout_step;
            vout += vout_step;
        }
        Delay_ms ( 100 );
        if ( SMARTBUCK6_OK == smartbuck6_read_buck_current ( &smartbuck6, SMARTBUCK6_BUCK_A, &current ) )
        {
            log_printf ( &logger, " Buck A current: %u mA\r\n", current );
        }
        if ( SMARTBUCK6_OK == smartbuck6_read_buck_current ( &smartbuck6, SMARTBUCK6_BUCK_B, &current ) )
        {
            log_printf ( &logger, " Buck B current: %u mA\r\n", current );
        }
        if ( SMARTBUCK6_OK == smartbuck6_read_buck_current ( &smartbuck6, SMARTBUCK6_BUCK_C, &current ) )
        {
            log_printf ( &logger, " Buck C current: %u mA\r\n", current );
        }
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void smartbuck6_display_status ( smartbuck6_status_t status )
{
    if ( status.status_0 )
    {
        if ( status.status_0 & SMARTBUCK6_STATUS_0_OVER_TEMP_STATUS )
        {
            log_printf ( &logger, " A critical temperature shutdown has occurred\r\n" );
        }
        if ( status.status_0 & SMARTBUCK6_STATUS_0_BUCK_A_PWR_NOT_GOOD )
        {
            log_printf ( &logger, " Buck A output power is not good\r\n" );
        }
        if ( status.status_0 & SMARTBUCK6_STATUS_0_BUCK_B_PWR_NOT_GOOD )
        {
            log_printf ( &logger, " Buck B output power is not good\r\n" );
        }
        if ( status.status_0 & SMARTBUCK6_STATUS_0_BUCK_C_PWR_NOT_GOOD )
        {
            log_printf ( &logger, " Buck C output power is not good\r\n" );
        }
        if ( status.status_0 & SMARTBUCK6_STATUS_0_VIN_OV )
        {
            log_printf ( &logger, " A VIN OV condition has occurred\r\n" );
        }
    }
    if ( status.status_1 )
    {
        if ( status.status_1 & SMARTBUCK6_STATUS_1_BUCK_A_OV )
        {
            log_printf ( &logger, " A buck A output OV condition has occurred\r\n" );
        }
        if ( status.status_1 & SMARTBUCK6_STATUS_1_BUCK_B_OV )
        {
            log_printf ( &logger, " A buck B output OV condition has occurred\r\n" );
        }
        if ( status.status_1 & SMARTBUCK6_STATUS_1_BUCK_C_OV )
        {
            log_printf ( &logger, " A buck C output OV condition has occurred\r\n" );
        }
        if ( status.status_1 & SMARTBUCK6_STATUS_1_BUCK_A_UV )
        {
            log_printf ( &logger, " A buck A output UV condition has occurred\r\n" );
        }
        if ( status.status_1 & SMARTBUCK6_STATUS_1_BUCK_B_UV )
        {
            log_printf ( &logger, " A buck B output UV condition has occurred\r\n" );
        }
        if ( status.status_1 & SMARTBUCK6_STATUS_1_BUCK_C_UV )
        {
            log_printf ( &logger, " A buck C output UV condition has occurred\r\n" );
        }
    }
    if ( status.oc_status )
    {
        if ( status.oc_status & SMARTBUCK6_OC_STATUS_BUCK_A_OC )
        {
            log_printf ( &logger, " There is an output OC condition on buck A\r\n" );
        }
        if ( status.oc_status & SMARTBUCK6_OC_STATUS_BUCK_B_OC )
        {
            log_printf ( &logger, " There is an output OC condition on buck B\r\n" );
        }
        if ( status.oc_status & SMARTBUCK6_OC_STATUS_BUCK_C_OC )
        {
            log_printf ( &logger, " There is an output OC condition on buck C\r\n" );
        }
    }
}

// ------------------------------------------------------------------------ END
