Conquer the challenges of autonomy with multi-band RTK GNSS solution based on ZED-F9R-02B and ATmega2560

Precision in every dimension

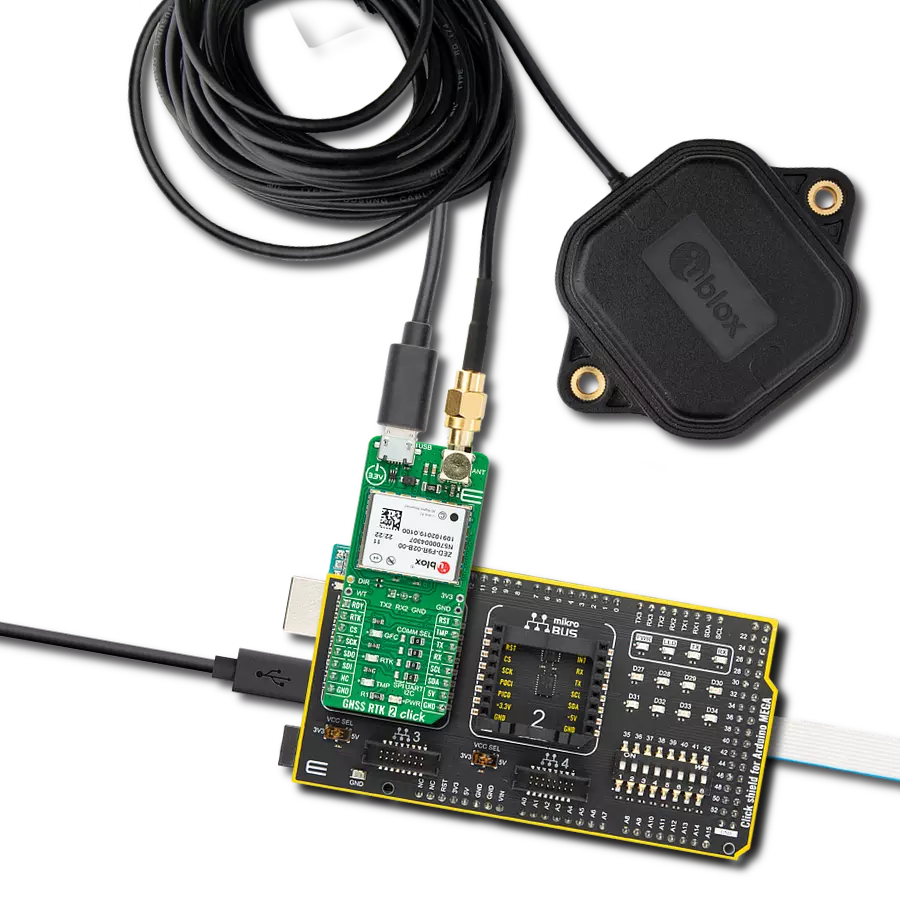

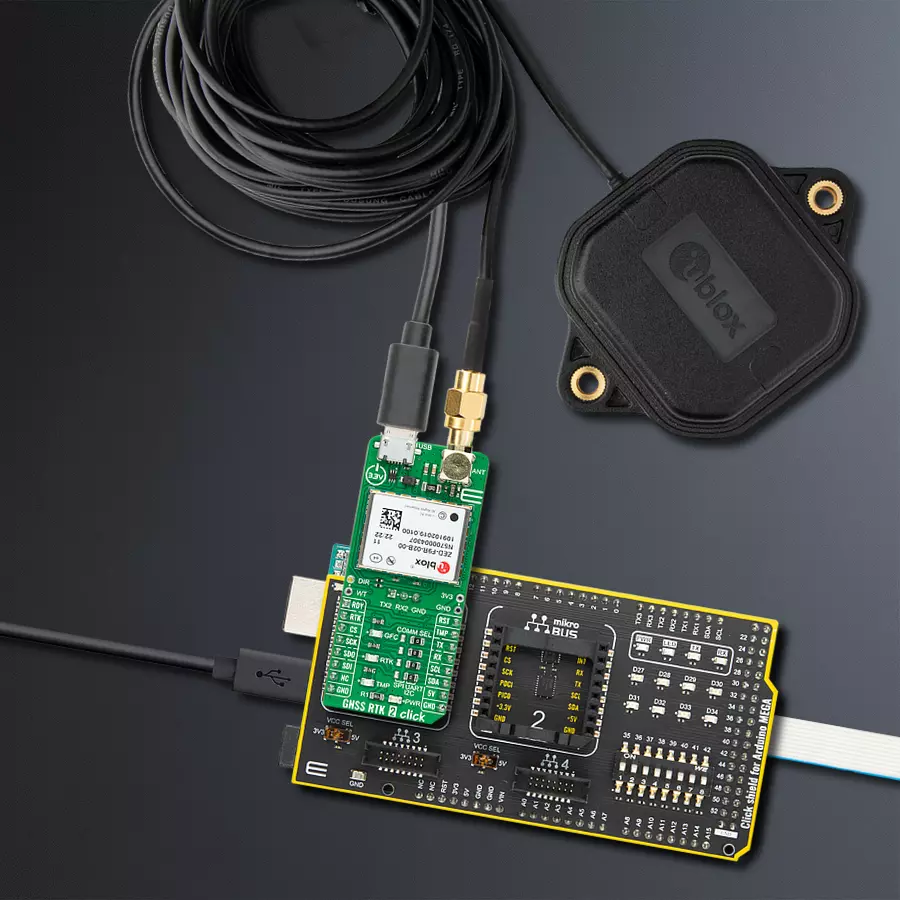

GNSS RTK 2 Click with Arduino Mega 2560 Rev3

Published Feb 14, 2024

Click board™

GNSS RTK 2 Click

Dev. board

Arduino Mega 2560 Rev3

Compiler

NECTO Studio

MCU

ATmega2560

Our multi-band RTK GNSS solution stands as the beacon of precision in the face of complex multipath environments. Designed to excel where others falter, it's the ideal navigation companion for modern autonomous robotics applications.

A

A

Hardware Overview

How does it work?

GNSS RTK 2 Click is based on the ZED-F9R, a multi-band professional-grade GNSS positioning module featuring the u-blox F9 receiver platform, providing a reliable multi-band GNSS sensor fusion solution for industrial applications. Thanks to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BeiDou) plus SBAS and QZSS satellites can be received concurrently. The ZED-F9R high-performance sensor fusion module also has an integrated inertial measurement unit (IMU) for centimeter-level accuracy RTK positioning (RTK rover feature). The ZED-F9R's built-in algorithms fuse the IMU data, GNSS measurements, wheel ticks, correction data, and a vehicle dynamics model to provide optimal positioning accuracy where GNSS alone would fail. The module operates in the open sky, in the wooded countryside, in demanding multipath environments, and even in challenging environments such as cities. Designed for industrial applications, ZED-F9R is the ultimate solution for a data-driven economy where control and position availability are crucial. This module represents a turnkey self-contained solution, eliminating the technical risk and effort of selecting and integrating RF components and third-party libraries such as precise positioning engines. It also supports a range of correction services, RTCM or SPARTN-formatted corrections, enabling high-precision navigation using internet or satellite data through an unpopulated UART

header in the middle of the board. This interface allows each application to optimize performance according to the application's unique needs. GNSS RTK 2 Click communicates with an MCU using the UART interface at 115200bps as its default communication protocol. Users can use other interfaces, such as SPI and I2C, to configure the module and write the library themselves. The interface is selected by positioning SMD jumpers labeled COMM SEL in an appropriate position. When choosing the SPI communication, with the correct selection of the COMM SEL jumpers, it is also necessary to populate the DSEL jumper to configure the interface pins as SPI. In the default state, the jumper labeled as DSEL is unpopulated. The receiver also can enter a Safe-Boot mode. When the jumper labeled SFBT is populated, the receiver starts in Safe-Boot mode, and the GNSS operation is disabled. The USB interface, compatible with USB version 2.0 (Full Speed, 12 Mbit/s), can be used for communication as an alternative to the UART. The USB port can be used as an additional power supply if the Click board™ is required to be a standalone device. In case of a mains supply failure, the module can use a backup supply voltage from a connected battery. Backup voltage supplies the real-time clock and battery-backed RAM and enables all relevant data to be saved in the backup RAM to allow a hot or warm start later. In addition to these features, this board also uses several mikroBUS™ socket pins. RDY pin routed to the AN pin of the mikroBUS™ socket is

used as a communication indicator when bytes are ready to be transmitted. The RST pin routed on the PWM pin of the mikroBUS™ socket provides the general reset ability, and the TMP pin, alongside its LED indicator, routed on the INT pin of the mikroBUS™ socket provides one pulse per second time pulse with configurable duration and frequency. The RTK pin routed on the RST pin of the mikroBUS™ socket, alongside an LED indicator labeled RTK, indicates the RTK positioning status. When LED blinks, a valid stream of RTCM messages is received, but no RTK fixed mode has been achieved. When the LED is constantly lit, the LED indicates that RTK mode has been achieved. It also has another LED indicator labeled as GDC that shows the current geofence status of whether the receiver is inside any active areas. For example, this feature can wake a sleeping host when a defined geofence condition is reached. GNSS RTK 2 Click has an SMA antenna connector for connecting an appropriate antenna, also offered by Mikroe, such as a GPS Active External Antenna. This antenna is an excellent choice for all GSM/GPRS applications supporting L1 and L2 band frequencies. This Click board™ can be operated only with a 5V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

GNSS RTK 2 Click hardware overview image

Features overview

Development board

Arduino Mega 2560 is a robust microcontroller platform built around the ATmega 2560 chip. It has extensive capabilities and boasts 54 digital input/output pins, including 15 PWM outputs, 16 analog inputs, and 4 UARTs. With a 16MHz crystal

oscillator ensuring precise timing, it offers seamless connectivity via USB, a convenient power jack, an ICSP header, and a reset button. This all-inclusive board simplifies microcontroller projects; connect it to your computer via USB or power it up

using an AC-to-DC adapter or battery. Notably, the Mega 2560 maintains compatibility with a wide range of shields crafted for the Uno, Duemilanove, or Diecimila boards, ensuring versatility and ease of integration.

Arduino Mega 2560 Rev3 double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

AVR

MCU Memory (KB)

256

Silicon Vendor

Microchip

Pin count

100

RAM (Bytes)

8192

You complete me!

Accessories

Click Shield for Arduino Mega comes equipped with four mikroBUS™ sockets, with two in the form of a Shuttle connector, allowing all the Click board™ devices to be interfaced with the Arduino Mega board with no effort. Featuring an AVR 8-bit microcontroller with advanced RISC architecture, 54 digital I/O pins, and Arduino™ compatibility, the Arduino Mega board offers limitless possibilities for prototyping and creating diverse applications. This board is controlled and powered conveniently through a USB connection to program and debug the Arduino Mega board efficiently out of the box, with an additional USB cable connected to the USB B port on the board. Simplify your project development with the integrated ATmega16U2 programmer and unleash creativity using the extensive I/O options and expansion capabilities. There are eight switches, which you can use as inputs, and eight LEDs, which can be used as outputs of the MEGA2560. In addition, the shield features the MCP1501, a high-precision buffered voltage reference from Microchip. This reference is selected by default over the EXT REF jumper at the bottom of the board. You can choose an external one, as you would usually do with an Arduino Mega board. There is also a GND hook for testing purposes. Four additional LEDs are PWR, LED (standard pin D13), RX, and TX LEDs connected to UART1 (mikroBUS™ 1 socket). This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the Arduino Mega board with Click Shield for Arduino Mega, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Arduino Mega accessories 1 image

GNSS Active External Antenna is a unique multi-band type of antenna coming from u-blox that is the perfect selection for high precision GNSS applications, which require highly accurate location abilities such as RTK. The ANN-MB-00 is a multi-band (L1, L2/E5b/B2I) active GNSS antenna with a 5m cable and SMA connector. The antenna supports GPS, GLONASS, Galileo, and BeiDou and includes a high-performance multi-band RHCP dual-feed patch antenna element, a built-in high-gain LNA with SAW pre-filtering, and a 5 m antenna cable with SMA connector, and is waterproof.

GNSS RTK 2 Click accessories image

Used MCU Pins

mikroBUS™ mapper

Transmission Ready Indicator
PF1
AN
RTK Positioning Status
PL1
RST
SPI Chip Select
PL4
CS
SPI Clock
PB1
SCK
SPI Data OUT
PB3
MISO
SPI Data IN
PB2
MOSI
NC
NC
3.3V
Ground
GND
GND
Reset
PE4
PWM
Timepulse
PB6
INT
UART TX
PE0
TX
UART RX
PE1
RX
I2C Clock
PD0
SCL
I2C Data
PD1
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

GNSS RTK 2 Click Schematic schematic

Step by step

Project assembly

Click Shield for Arduino Mega front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Arduino Mega 2560 Rev3 as your development board.

Click Shield for Arduino Mega front image hardware assembly
Arduino Mega 2560 Rev3 front image hardware assembly
Charger 27 Click front image hardware assembly
Prog-cut hardware assembly
Charger 27 Click complete accessories setup image hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Arduino MEGA MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for GNSS RTK 2 Click driver.

Key functions:

  • gnssrtk2_reset_device - This function resets the device by toggling the RST pin

  • gnssrtk2_generic_read - This function reads a desired number of data bytes from the module

  • gnssrtk2_parse_gngga - This function parses the GNGGA data from the read response buffer

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief GNSS RTK 2 Click example
 *
 * # Description
 * This example demonstrates the use of GNSS RTK 2 Click by reading and displaying
 * the GNSS coordinates.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and resets the Click board.
 *
 * ## Application Task
 * Reads the received data, parses the GNGGA info from it, and once it receives the position fix
 * it will start displaying the coordinates on the USB UART.
 *
 * ## Additional Function
 * - static void gnssrtk2_clear_app_buf ( void )
 * - static err_t gnssrtk2_process ( gnssrtk2_t *ctx )
 * - static void gnssrtk2_parser_application ( char *rsp )
 *
 * @author Stefan Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "gnssrtk2.h"

#define PROCESS_BUFFER_SIZE 300

static gnssrtk2_t gnssrtk2;
static log_t logger;

static char app_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;
static int32_t app_buf_cnt = 0;

/**
 * @brief GNSS RTK 2 clearing application buffer.
 * @details This function clears memory of application buffer and reset its length and counter.
 * @return None.
 * @note None.
 */
static void gnssrtk2_clear_app_buf ( void );

/**
 * @brief GNSS RTK 2 data reading function.
 * @details This function reads data from device and concatenates data to application buffer.
 * @param[in] ctx : Click context object.
 * See #gnssrtk2_t object definition for detailed explanation.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read or Application buffer overflow.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t gnssrtk2_process ( gnssrtk2_t *ctx );

/**
 * @brief GNSS RTK 2 parser application.
 * @param[in] rsp Response buffer.
 * @details This function logs GNSS data on the USB UART.
 * @return None.
 * @note None.
 */
static void gnssrtk2_parser_application ( char *rsp );

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    gnssrtk2_cfg_t gnssrtk2_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    gnssrtk2_cfg_setup( &gnssrtk2_cfg );
    GNSSRTK2_MAP_MIKROBUS( gnssrtk2_cfg, MIKROBUS_1 );
    err_t init_flag = gnssrtk2_init( &gnssrtk2, &gnssrtk2_cfg );
    if ( ( UART_ERROR == init_flag ) || ( I2C_MASTER_ERROR == init_flag ) || ( SPI_MASTER_ERROR == init_flag ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    gnssrtk2_process( &gnssrtk2 );
    if ( app_buf_len > ( sizeof ( GNSSRTK2_RSP_GNGGA ) + GNSSRTK2_GNGGA_ELEMENT_SIZE ) )
    {
        gnssrtk2_parser_application( app_buf );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void gnssrtk2_clear_app_buf ( void )
{
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
    app_buf_cnt = 0;
}

static err_t gnssrtk2_process ( gnssrtk2_t *ctx )
{
    int32_t rx_size = 0;
    char rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
    if ( GNSSRTK2_DRV_SEL_UART == ctx->drv_sel )
    {
        rx_size = gnssrtk2_generic_read( ctx, rx_buf, PROCESS_BUFFER_SIZE );
    }
    else if ( ( GNSSRTK2_DRV_SEL_I2C == ctx->drv_sel ) || ( GNSSRTK2_DRV_SEL_SPI == ctx->drv_sel ) )
    {
        if ( GNSSRTK2_OK == gnssrtk2_generic_read( ctx, rx_buf, 1 ) )
        {
            if ( GNSSRTK2_DUMMY != rx_buf[ 0 ] )
            {
                rx_size = 1;
            }
        }
    }
    if ( rx_size > 0 )
    {
        int32_t buf_cnt = 0;
        if ( ( app_buf_len + rx_size ) > PROCESS_BUFFER_SIZE )
        {
            gnssrtk2_clear_app_buf(  );
            return GNSSRTK2_ERROR;
        }
        else
        {
            buf_cnt = app_buf_len;
            app_buf_len += rx_size;
        }
        for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
        {
            if ( rx_buf[ rx_cnt ] )
            {
                app_buf[ ( buf_cnt + rx_cnt ) ] = rx_buf[ rx_cnt ];
            }
            else
            {
                app_buf_len--;
                buf_cnt--;
            }
        }
        return GNSSRTK2_OK;
    }
    return GNSSRTK2_ERROR;
}

static void gnssrtk2_parser_application ( char *rsp )
{
    char element_buf[ 100 ] = { 0 };
    if ( GNSSRTK2_OK == gnssrtk2_parse_gngga( rsp, GNSSRTK2_GNGGA_LATITUDE, element_buf ) )
    {
        static uint8_t wait_for_fix_cnt = 0;
        if ( strlen( element_buf ) > 0 )
        {
            log_printf( &logger, "\r\n Latitude: %.2s degrees, %s minutes \r\n", element_buf, &element_buf[ 2 ] );
            gnssrtk2_parse_gngga( rsp, GNSSRTK2_GNGGA_LONGITUDE, element_buf );
            log_printf( &logger, " Longitude: %.3s degrees, %s minutes \r\n", element_buf, &element_buf[ 3 ] );
            memset( element_buf, 0, sizeof( element_buf ) );
            gnssrtk2_parse_gngga( rsp, GNSSRTK2_GNGGA_ALTITUDE, element_buf );
            log_printf( &logger, " Altitude: %s m \r\n", element_buf );
            wait_for_fix_cnt = 0;
        }
        else
        {
            if ( wait_for_fix_cnt % 5 == 0 )
            {
                log_printf( &logger, " Waiting for the position fix...\r\n\n" );
                wait_for_fix_cnt = 0;
            }
            wait_for_fix_cnt++;
        }
        gnssrtk2_clear_app_buf(  );
    }
}

// ------------------------------------------------------------------------ END
