Master electrical power analysis with MCP3910 and STM32F091RC

Voltage, current, and beyond

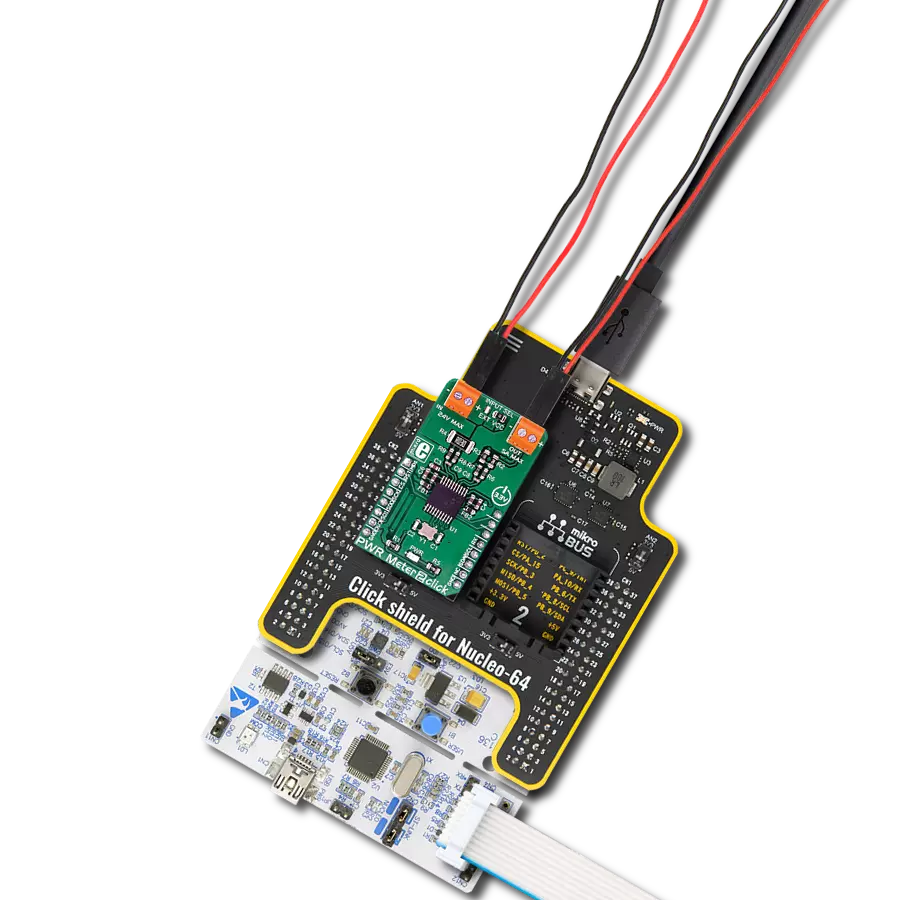

PWR Meter 2 click with Nucleo-64 with STM32F091RC MCU

Published Feb 26, 2024

Click board™

PWR Meter 2 click

Dev. board

Nucleo-64 with STM32F091RC MCU

Compiler

NECTO Studio

MCU

STM32F091RC

Our groundbreaking power monitoring solution is designed to provide unrivaled accuracy in measuring and monitoring voltage and current values, ensuring optimal performance and efficiency in your electrical systems.

A

A

Hardware Overview

How does it work?

PWR Meter 2 Click is based on the MCP3910, an integrated two-channel analog front-end (AFE) device from Microchip. This IC is composed of several sections, aimed at accurate capturing of the input voltage. Two sigma-delta input A/D converters used with the internal reference voltage of 1.2V with very low thermal drift, reducing the measurement noise at a minimum, yielding Signal to Noise ratio (SNR) up to 96dB. The input ADCs are fully configurable and can be set to work in 16-bit or 24-bit mode, can use oversampling ratio from 32 X up to 4096 X, gain ratio from 1 X to 32 X, and 24-bit digital offset and gain error correction for each ADC channel. The Click board™ is clocked by a 20MHz crystal. However, it is up to the user to set the pre-scalers correctly, according to the datasheet of the MCP3910. However, the included library offers functions which take care about correct settings. High clock speed allows maximum oversampling rate (OSR) to be used, allowing the best performance to be achieved, but consuming more power at the same time. The voltage and current readings are performed over two differential ADC input channels of the MCP3910 itself. The CH0 (Channel 0) is connected to a resistor voltage

divider, allowing it to measure up to 0.6V when the input voltage is 24V, which is the maximum voltage at the input terminal. Although the voltage across a differential input on the ADC channel can go up to ±2V, it is recommended by the manufacturer to stay within the ±0.6V margin to achieve optimal harmonic distortion and noise ratios, which might affect the measurement accuracy. The CH1 (Channel 1) differential input is connected to the shunt resistor of 0.03 Ω. A small voltage drop is measured by the ADC, allowing up to 5A of current to be measured. More of 5A might destroy the shunt resistor so it is not recommended going over 5A. The current measurement is done by connecting the load in series with the Click board™, so the shunt value of 0.03Ω will not introduce significant error or influence the current through the load. The measurement is performed using so-called Kelvin connections, where the main trace carries the majority of the current, while thin traces are used to measure the voltage across the shunt, reducing the current running through the ADC section of the IC itself. Additional 270 Ω resistors reduce the current through the ADC even further. The MCP3910 contains several additional pins, which

are used to simplify the implementation and reduce the bulkiness of the firmware application. The Data Ready pin can be used to trigger an interrupt event on the host MCU when there is conversion data ready to be read. This simplifies the MCU performance greatly, saving it from having to poll status bits in order to determine if the data is ready for reading. The Data Ready pin is routed to the mikroBUS™ INT pin, labeled as the DR. Two Modulator Output pins are also routed to the mikroBUS™. These pins offer direct 1-bit data output directly from the delta-sigma modulators for a user-defined MCU or DSP filtering, overriding the internal SINC filter, which is turned off if these pins are activated. The DR pin is also disabled when these pins are enabled. MDAT0 and MDAT1 pins offer modulator output from ADC channel 0 and ADC channel 1. These pins are routed to mikroBUS™ pins PWM and AN and are labeled as MDT0 and MDT1, respectively. As already mentioned, the Click board™ offers measurement of either internal power supply from the mikroBUS™, or the externally with up to 24V and 5A. To select the measurement target, the SMD jumper labeled INPUT SEL should be switched to the desired position.

PWR Meter 2 click hardware overview image

Features overview

Development board

Nucleo-64 with STM32F091RC MCU offers a cost-effective and adaptable platform for developers to explore new ideas and prototype their designs. This board harnesses the versatility of the STM32 microcontroller, enabling users to select the optimal balance of performance and power consumption for their projects. It accommodates the STM32 microcontroller in the LQFP64 package and includes essential components such as a user LED, which doubles as an ARDUINO® signal, alongside user and reset push-buttons, and a 32.768kHz crystal oscillator for precise timing operations. Designed with expansion and flexibility in mind, the Nucleo-64 board features an ARDUINO® Uno V3 expansion connector and ST morpho extension pin

headers, granting complete access to the STM32's I/Os for comprehensive project integration. Power supply options are adaptable, supporting ST-LINK USB VBUS or external power sources, ensuring adaptability in various development environments. The board also has an on-board ST-LINK debugger/programmer with USB re-enumeration capability, simplifying the programming and debugging process. Moreover, the board is designed to simplify advanced development with its external SMPS for efficient Vcore logic supply, support for USB Device full speed or USB SNK/UFP full speed, and built-in cryptographic features, enhancing both the power efficiency and security of projects. Additional connectivity is

provided through dedicated connectors for external SMPS experimentation, a USB connector for the ST-LINK, and a MIPI® debug connector, expanding the possibilities for hardware interfacing and experimentation. Developers will find extensive support through comprehensive free software libraries and examples, courtesy of the STM32Cube MCU Package. This, combined with compatibility with a wide array of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE, ensures a smooth and efficient development experience, allowing users to fully leverage the capabilities of the Nucleo-64 board in their projects.

Nucleo 64 with STM32F091RC MCU double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

ARM Cortex-M0

MCU Memory (KB)

256

Silicon Vendor

STMicroelectronics

Pin count

64

RAM (Bytes)

32768

You complete me!

Accessories

Click Shield for Nucleo-64 comes equipped with two proprietary mikroBUS™ sockets, allowing all the Click board™ devices to be interfaced with the STM32 Nucleo-64 board with no effort. This way, Mikroe allows its users to add any functionality from our ever-growing range of Click boards™, such as WiFi, GSM, GPS, Bluetooth, ZigBee, environmental sensors, LEDs, speech recognition, motor control, movement sensors, and many more. More than 1537 Click boards™, which can be stacked and integrated, are at your disposal. The STM32 Nucleo-64 boards are based on the microcontrollers in 64-pin packages, a 32-bit MCU with an ARM Cortex M4 processor operating at 84MHz, 512Kb Flash, and 96KB SRAM, divided into two regions where the top section represents the ST-Link/V2 debugger and programmer while the bottom section of the board is an actual development board. These boards are controlled and powered conveniently through a USB connection to program and efficiently debug the Nucleo-64 board out of the box, with an additional USB cable connected to the USB mini port on the board. Most of the STM32 microcontroller pins are brought to the IO pins on the left and right edge of the board, which are then connected to two existing mikroBUS™ sockets. This Click Shield also has several switches that perform functions such as selecting the logic levels of analog signals on mikroBUS™ sockets and selecting logic voltage levels of the mikroBUS™ sockets themselves. Besides, the user is offered the possibility of using any Click board™ with the help of existing bidirectional level-shifting voltage translators, regardless of whether the Click board™ operates at a 3.3V or 5V logic voltage level. Once you connect the STM32 Nucleo-64 board with our Click Shield for Nucleo-64, you can access hundreds of Click boards™, working with 3.3V or 5V logic voltage levels.

Click Shield for Nucleo-64 accessories 1 image

Used MCU Pins

mikroBUS™ mapper

Modulator Output 1
PC0
AN
Reset
PC12
RST
SPI Chip Select
PB12
CS
SPI Clock
PB3
SCK
SPI Data OUT
PB4
MISO
SPI Data IN
PB5
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Modulator Output 0
PC8
PWM
Data Ready
PC14
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

PWR Meter 2 click Schematic schematic

Step by step

Project assembly

Click Shield for Nucleo-64 accessories 1 image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo-64 with STM32F091RC MCU as your development board.

Click Shield for Nucleo-64 accessories 1 image hardware assembly
Nucleo 64 with STM32F401RE MCU front image hardware assembly
LTE IoT 5 Click front image hardware assembly
Prog-cut hardware assembly
LTE IoT 5 Click complete accessories setup image hardware assembly
Nucleo-64 with STM32XXX MCU Access MB 1 Mini B Conn - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Clicker 4 for STM32F4 HA MCU Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for PWR Meter 2 Click driver.

Key functions:

  • pwrmeter2_get_data - This function gets the calculated voltage( V ), current( A ) and power( W ) data

  • pwrmeter2_write_reg - This function writes 24-bit data to the register

  • pwrmeter2_read_reg - This function reads the desired number of 24-bit data from the register/registers.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file
 * \brief PwrMeter Click example
 *
 * # Description
 * This Click is capable of measuring voltage and current through the load, connected to either
 * AC or DC power source. It is used to calculate all the measurement parameters, returning
 * values of multiple power parameters directly, over the UART interface, reducing the processing
 * load on the host MCU. These parameters include active, reactive, and apparent power, current
 * and voltage RMS, line frequency, and power factor.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes UART interface, puts output of regulator in active state and
 * configures gain channel and uart baud rate.
 *
 * ## Application Task
 * Reads voltage, current and power measurements from data registers, then converts this values
 * to determined units and logs all results on uart terminal each second.
 *
 * ## Additional Function
 * - void check_response ( ) - Displays an appropriate message on USB UART
 * if there's an error occurred in the last response from the module.
 *
 * ## Note
 * Do not apply higher voltage than 60V to this board! This Click is designed for lower voltage
 * monitoring and evaluation of the MCP39F511A and its basic functionalities.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "pwrmeter.h"
#include "string.h"
#include "math.h"

// ------------------------------------------------------------------ VARIABLES


static pwrmeter_t pwrmeter;
static log_t logger;

PWRMETER_RETVAL response_byte;
uint16_t voltage_rms;
uint32_t current_rms;
uint32_t active_power;
uint32_t reactive_power;
uint32_t apparent_power;
int32_t power_factor;
uint8_t status_byte;

float meas_data[ 6 ];

// ------------------------------------------------------- ADDITIONAL FUNCTIONS

void check_response ( )
{
    if ( response_byte != PWRMETER_SUCCESSFUL )
    {
        switch ( response_byte )
        {
            case PWRMETER_ADDRESS_FAIL :
            {
                log_printf( &logger, "Wrong address parameter\r\n" );
            break;
            }
            case PWRMETER_CHECKSUM_FAIL :
            {
                log_printf( &logger, "Checksum fail\r\n" );
            break;
            }
            case PWRMETER_COMMAND_FAIL :
            {
                log_printf( &logger, "Command can't be performed\r\n" );
            break;
            }
            case PWRMETER_NBYTES_FAIL :
            {
                log_printf( &logger, "Number of bytes is out of range\r\n" );
            break;
            }
            case PWRMETER_PAGE_NUM_FAIL :
            {
                log_printf( &logger, "Page number is out of range\r\n" );
            break;
            }
            default :
            {
            break;
            }
        }
    }
}

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    pwrmeter_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );
    Delay_ms ( 100 );

    //  Click initialization.

    pwrmeter_cfg_setup( &cfg );
    PWRMETER_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    pwrmeter_init( &pwrmeter, &cfg );
    Delay_ms ( 500 );

    pwrmeter_enable( &pwrmeter, PWRMETER_ENABLE );
    Delay_ms ( 100 );

    response_byte = pwrmeter_write_reg_dword ( &pwrmeter, PWRMETER_SYS_CONFIG_REG, PWRMETER_VOLT_GAIN_1 | PWRMETER_CURR_GAIN_8 | PWRMETER_UART_BR_9600 );
    check_response( );
    response_byte = pwrmeter_send_command( &pwrmeter, PWRMETER_SAVE_TO_FLASH_COMM );
    check_response( );

    log_printf( &logger, "PWR Meter is initialized\r\n" );
    Delay_ms ( 100 );
}

void application_task ( void )
{
    response_byte = pwrmeter_read_reg_word( &pwrmeter, PWRMETER_VOLT_RMS_REG, &voltage_rms );
    check_response( );
    response_byte = pwrmeter_read_reg_dword( &pwrmeter, PWRMETER_CURR_RMS_REG, &current_rms );
    check_response( );
    response_byte = pwrmeter_read_reg_dword( &pwrmeter, PWRMETER_ACTIVE_PWR_REG, &active_power );
    check_response( );
    response_byte = pwrmeter_read_reg_dword( &pwrmeter, PWRMETER_REACTIVE_PWR_REG, &reactive_power );
    check_response( );
    response_byte = pwrmeter_read_reg_dword( &pwrmeter, PWRMETER_APPARENT_PWR_REG, &apparent_power );
    check_response( );
    response_byte = pwrmeter_read_reg_signed( &pwrmeter, PWRMETER_PWR_FACTOR_REG, PWRMETER_16BIT_DATA, &power_factor );
    check_response( );

    meas_data[ 0 ] = ( float ) voltage_rms / 100;
    meas_data[ 1 ] = ( float ) current_rms / 1000;
    meas_data[ 2 ] = ( float ) active_power / 100000;
    meas_data[ 3 ] = ( float ) reactive_power / 100000;
    meas_data[ 4 ] = ( float ) apparent_power / 100000;
    meas_data[ 5 ] = ( float ) power_factor / 32767;

    response_byte = pwrmeter_get_status( &pwrmeter, &status_byte );
    check_response( );

    if ( ( status_byte & PWRMETER_DCMODE_MASK ) != 0 )
    {
        log_printf( &logger, "DC mode\r\n" );
    }
    else
    {
        log_printf( &logger, "AC mode\r\n" );
    }


    log_printf( &logger, "RMS voltage:  " );
    if ( ( ( status_byte & PWRMETER_DCMODE_MASK ) != 0) && ( ( status_byte & PWRMETER_DCVOLT_SIGN_MASK ) == 0 ) )
    {
        log_printf( &logger, "-" );
    }
    log_printf( &logger, "%.2f[ V ]\r\n", meas_data[ 0 ] );


    log_printf( &logger, "RMS current:  " );
    if ( ( ( status_byte & PWRMETER_DCMODE_MASK ) != 0 ) && ( ( status_byte & PWRMETER_DCCURR_SIGN_MASK ) == 0 ) )
    {
        log_printf( &logger, "-" );
    }
    log_printf( &logger, "%.2f[ mA ]\r\n", meas_data[ 1 ] );


    log_printf( &logger, "Active power:  " );
    if ( ( status_byte & PWRMETER_PA_SIGN_MASK ) == 0 )
    {
        log_printf( &logger, "-" );
    }
    log_printf( &logger, "%.2f[ W ]\r\n", meas_data[ 2 ] );


    log_printf( &logger, "Reactive power:  " );
    if ( ( status_byte & PWRMETER_PR_SIGN_MASK ) == 0 )
    {
        log_printf( &logger, "-" );
    }
    log_printf( &logger, "%.2f[ VAr ]\r\n", meas_data[ 3 ] );


    log_printf( &logger, "Apparent power:  " );
    log_printf( &logger, "%.2f[ VA ]\r\n", meas_data[ 4 ] );


    log_printf( &logger, "Power factor:  %.2f\r\n", meas_data[ 5 ] );
    log_printf( &logger, "-----------------------------------\r\n" );

    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}


// ------------------------------------------------------------------------ END
