Beginner
10 min

Translate industrial input signals into serialized SPI-compatible output with MAX22199 and STM32F031K6

IEC 61131-2 compliant octal digital input solution for multiple signal types commonly found in industrial settings

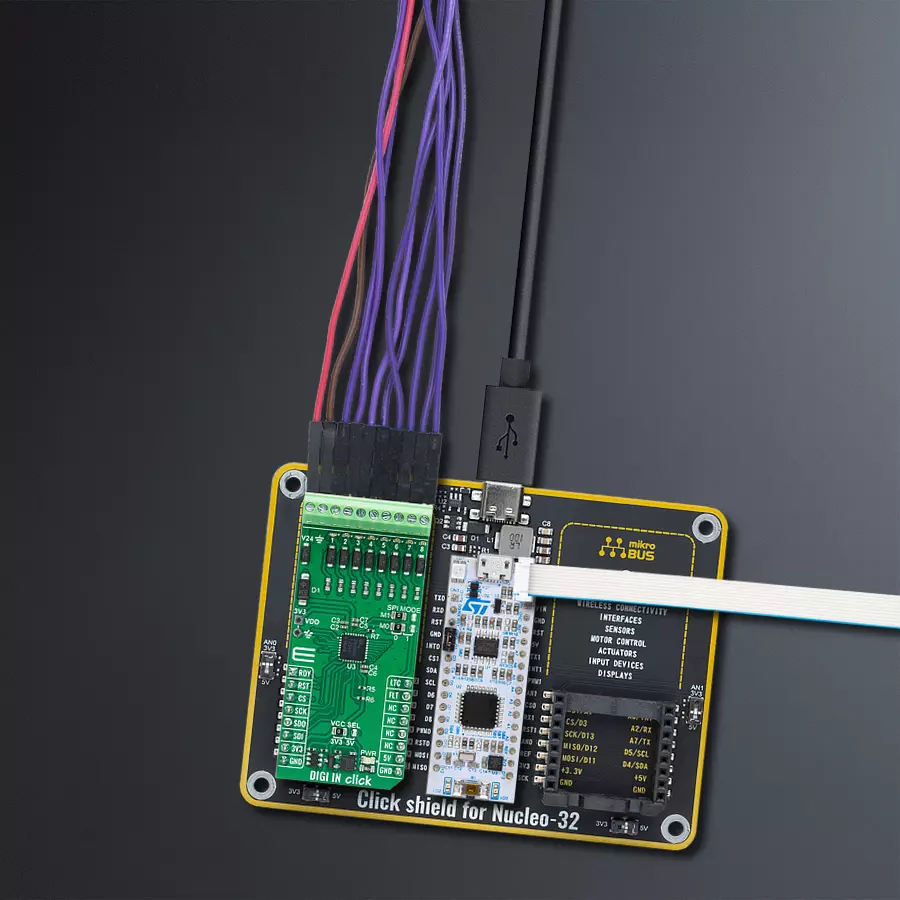

DIGI IN Click with Nucleo 32 with STM32F031K6 MCU

Published Oct 01, 2024

Click board™

DIGI IN Click

Dev. board

Nucleo 32 with STM32F031K6 MCU

Compiler

NECTO Studio

MCU

STM32F031K6

Enhance industrial systems with reliable signal processing for precise control and diagnostics in building automation, motor control, and PLCs, boosting reliability and efficiency

A

A

Hardware Overview

How does it work?

DIGI IN Click is based on the MAX22199, an octal industrial digital input module from Analog Devices. The MAX22199 complies with the IEC 61131-2 standard for industrial digital input devices. It efficiently converts eight 7-24V current-sinking industrial inputs into a serialized output compatible with SPI, supporting both 3V and 5V logic systems. It can function as eight Type 1 / Type 3 digital inputs or four Type 2 digital inputs. The eight yellow LEDs, numbered 1 through 8, provide immediate visual feedback on the status of the digital input channels, whether active or not. This Click board™ is designed for various applications, including programmable logic controllers, distributed control systems, motor control applications, and building automation systems. To ensure reliability in the demanding conditions of industrial environments, the MAX22199 incorporates a customizable glitch filter for each input, with noise filters that can be

independently set to any of eight durations ranging from 50µs to 20ms or completely bypassed. A 4-pin SPI interface and an LTC latch input facilitate the device's connectivity, allowing synchronized data sampling across multiple devices. In addition, the MAX22199 is equipped with several diagnostic features, including protection against thermal overload, alarms for under voltage and missing voltage conditions on the 24V supply, and detection mechanisms for SPI and CRC communication errors. These errors can trigger an interrupt signal via the FLT pin. Besides these pins, the mikroBUS™ socket also includes a READY (RDY) pin, which signals when the MAX22199 is operational by transitioning to a LOW state. An additional feature of the board is the provision of SPI MODE jumpers, which offer control over the SPI Mode settings from 0 to 3. Adjusting the M1 jumper to position 1 activates the SPI daisy-chain

mode, whereas setting the M0 jumper to position 1 turns off the CRC error detection feature. The device is powered by a single 7V to 24V supply connected to the V24 terminal. It also includes an integrated LDO regulator that not only powers the MAX22199 but also provides a 3.3V output capable of delivering up to 25mA to external circuits. It should be noted that if this pin is used as a supply of the MAX22199, no power supply should be connected to the V24 terminal. This Click board™ can operate with either 3.3V or 5V logic voltage levels selected via the VCC SEL jumper. This way, both 3.3V and 5V capable MCUs can use the communication lines properly. Also, this Click board™ comes equipped with a library containing easy-to-use functions and an example code that can be used as a reference for further development.

DIGI IN Click hardware overview image

Features overview

Development board

Nucleo 32 with STM32F031K6 MCU board provides an affordable and flexible platform for experimenting with STM32 microcontrollers in 32-pin packages. Featuring Arduino™ Nano connectivity, it allows easy expansion with specialized shields, while being mbed-enabled for seamless integration with online resources. The

board includes an on-board ST-LINK/V2-1 debugger/programmer, supporting USB reenumeration with three interfaces: Virtual Com port, mass storage, and debug port. It offers a flexible power supply through either USB VBUS or an external source. Additionally, it includes three LEDs (LD1 for USB communication, LD2 for power,

and LD3 as a user LED) and a reset push button. The STM32 Nucleo-32 board is supported by various Integrated Development Environments (IDEs) such as IAR™, Keil®, and GCC-based IDEs like AC6 SW4STM32, making it a versatile tool for developers.

Nucleo 32 with STM32F031K6 MCU double side image

Microcontroller Overview

MCU Card / MCU

default

Architecture

ARM Cortex-M0

MCU Memory (KB)

32

Silicon Vendor

STMicroelectronics

Pin count

32

RAM (Bytes)

4096

You complete me!

Accessories

Click Shield for Nucleo-32 is the perfect way to expand your development board's functionalities with STM32 Nucleo-32 pinout. The Click Shield for Nucleo-32 provides two mikroBUS™ sockets to add any functionality from our ever-growing range of Click boards™. We are fully stocked with everything, from sensors and WiFi transceivers to motor control and audio amplifiers. The Click Shield for Nucleo-32 is compatible with the STM32 Nucleo-32 board, providing an affordable and flexible way for users to try out new ideas and quickly create prototypes with any STM32 microcontrollers, choosing from the various combinations of performance, power consumption, and features. The STM32 Nucleo-32 boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger/programmer and come with the STM32 comprehensive software HAL library and various packaged software examples. This development platform provides users with an effortless and common way to combine the STM32 Nucleo-32 footprint compatible board with their favorite Click boards™ in their upcoming projects.

Click Shield for Nucleo-32 accessories 1 image

Used MCU Pins

mikroBUS™ mapper

Data Ready
PA0
AN
ID SEL
PA11
RST
SPI Select / ID COMM
PA4
CS
SPI Clock
PB3
SCK
SPI Data OUT
PB4
MISO
SPI Data IN
PB5
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
SPI Latch Data
PA8
PWM
Fault Interrupt
PA12
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
Power Supply
5V
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

DIGI IN Click Schematic schematic

Step by step

Project assembly

Click Shield for Nucleo-144 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo 32 with STM32F031K6 MCU as your development board.

Click Shield for Nucleo-144 front image hardware assembly
Nucleo 144 with STM32L4A6ZG MCU front image hardware assembly
Stepper 22 Click front image hardware assembly
Prog-cut hardware assembly
Stepper 22 Click complete accessories setup image hardware assembly
Board mapper by product8 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
STM32 M4 Clicker HA MCU/Select Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for DIGI IN Click driver.

Key functions:

  • digiin_write_reg - This function is used to write data into the selected register by using SPI serial interface

  • digiin_read_reg - This function reads a data byte from the selected register by using SPI serial interface

  • digiin_pulse_latch - This function is used to generate LATCH pulse for capturing channel data

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief DIGI IN Click example
 *
 * # Description
 * This example demonstrates the use of DIGI IN Click board by reading and
 * displaying the state of the channels.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver, performs the Click default configuration.
 *
 * ## Application Task
 * Reads and displays on the USB UART the channel state every second.
 *
 * @author Stefan Ilic
 *
 */

#include "board.h"
#include "log.h"
#include "digiin.h"

static digiin_t digiin;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    digiin_cfg_t digiin_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    digiin_cfg_setup( &digiin_cfg );
    DIGIIN_MAP_MIKROBUS( digiin_cfg, MIKROBUS_1 );
    if ( SPI_MASTER_ERROR == digiin_init( &digiin, &digiin_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    while ( DIGIIN_PIN_STATE_HIGH == digiin_get_rdy_pin( &digiin ) )
    {
        log_printf( &logger, "Please check if 24V is connected \r\n" );
        Delay_ms ( 1000 );
    }

    if ( DIGIIN_ERROR == digiin_default_cfg ( &digiin ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

void application_task ( void )
{
    uint8_t channel_data = 0;

    digiin_pulse_latch( &digiin );

    if ( DIGIIN_OK == digiin_read_reg( &digiin, DIGIIN_REG_DISTATE, &channel_data ) )
    {
        if ( channel_data & DIGIIN_CHANNEL_1_MASK )
        {
            log_printf( &logger, "Channel 1 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 1 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_2_MASK )
        {
            log_printf( &logger, "Channel 2 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 2 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_3_MASK )
        {
            log_printf( &logger, "Channel 3 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 3 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_4_MASK )
        {
            log_printf( &logger, "Channel 4 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 4 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_5_MASK )
        {
            log_printf( &logger, "Channel 5 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 5 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_6_MASK )
        {
            log_printf( &logger, "Channel 6 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 6 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_7_MASK )
        {
            log_printf( &logger, "Channel 7 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 7 State: LOW \r\n" );
        }
        if ( channel_data & DIGIIN_CHANNEL_8_MASK )
        {
            log_printf( &logger, "Channel 8 State: HIGH \r\n" );
        }
        else
        {
            log_printf( &logger, "Channel 8 State: LOW \r\n" );
        }
        log_printf( &logger, "- - - - - - - - - - - - - -\r\n" );
    }
    if ( DIGIIN_PIN_STATE_LOW == digiin_get_flt_pin( &digiin ) )
    {
        uint8_t flt_data = 0;
        digiin_read_reg( &digiin, DIGIIN_REG_FAULT1, &flt_data );
        log_printf( &logger, "Fault1 data: 0x%.2X \r\n", ( uint16_t ) flt_data );
        digiin_read_reg( &digiin, DIGIIN_REG_FAULT2, &flt_data );
        log_printf( &logger, "Fault2 data: 0x%.2X \r\n", ( uint16_t ) flt_data );
        log_printf( &logger, "- - - - - - - - - - - - - -\r\n" );
    }

    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
