Accelerate data access and retrieval like never before with W25Q128JV and STM32F031K6

Flash forward to excellence

Flash 6 Click with Nucleo 32 with STM32F031K6 MCU

Published Oct 01, 2024

Click board™

Flash 6 Click

Dev Board

Nucleo 32 with STM32F031K6 MCU

Compiler

NECTO Studio

MCU

STM32F031K6

Upgrade to faster, reliable storage with our flash memory solution

Hardware Overview

How does it work?

Flash 6 Click is based on the W25Q128JV, a 128M-bit flash memory from Winbond organized into 65,536 programmable pages of 256 bytes each. Up to 256 bytes can be programmed at a time. Pages can be erased in groups of 16 (4KB sector erase), groups of 128 (32KB block erase), groups of 256 (64KB block erase), or the entire chip (chip erase). The W25Q128JV has 4,096 erasable sectors and 256 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. The Flash 6 Click uses the standard Serial Peripheral Interface (SPI), supporting SPI clock frequencies of up to 133MHz Single, Dual/Quad SPI clocks. Besides that, the W25Q128JV provides a Continuous Read Mode that allows for efficient access to the entire memory array with a single Read command. This feature is ideal for

code-shadowing applications. Also, it offers the highest performance thanks to 133MHz Standard/Dual/Quad SPI clocks and a 66MB/S continuous data transfer rate. It has an efficient Continuous Read Mode, allowing direct read access to the entire array. However, the performance depends on the main MCU used with this Click board™. A Hold pin, Write Protect pin and programmable write protection provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device ID and SFDP, a 64-bit Unique Serial Number, and three 256-byte Security Registers. The W25Q128JV is accessed through an SPI-compatible bus consisting of four signals: Serial Clock (CLK), Chip Select (/CS), Serial Data Input (DI), and Serial Data Output (DO). Standard SPI instructions use the DI input pin to serially

write instructions, addresses, or data to the device on the rising edge of CLK. The DO output pin reads data or status from the device on the falling edge of CLK. For a detailed explanation, please consult the included datasheet. However, MIKROE provides a library that contains functions that simplify and speed up working with this device. The provided application example demonstrates the functionality of the library functions. It can be used as a reference for a custom project development. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

Features overview

Development board

Nucleo 32 with STM32F031K6 MCU board provides an affordable and flexible platform for experimenting with STM32 microcontrollers in 32-pin packages. Featuring Arduino™ Nano connectivity, it allows easy expansion with specialized shields, while being mbed-enabled for seamless integration with online resources. The

board includes an on-board ST-LINK/V2-1 debugger/programmer, supporting USB reenumeration with three interfaces: Virtual Com port, mass storage, and debug port. It offers a flexible power supply through either USB VBUS or an external source. Additionally, it includes three LEDs (LD1 for USB communication, LD2 for power,

and LD3 as a user LED) and a reset push button. The STM32 Nucleo-32 board is supported by various Integrated Development Environments (IDEs) such as IAR™, Keil®, and GCC-based IDEs like AC6 SW4STM32, making it a versatile tool for developers.

Nucleo 32 with STM32F031K6 MCU double side image

Microcontroller Overview

MCU Card / MCU

Architecture

ARM Cortex-M0

MCU Memory (KB)

Silicon Vendor

STMicroelectronics

Pin count

RAM (Bytes)

4096

You complete me!

Accessories

Click Shield for Nucleo-32 is the perfect way to expand your development board's functionalities with STM32 Nucleo-32 pinout. The Click Shield for Nucleo-32 provides two mikroBUS™ sockets to add any functionality from our ever-growing range of Click boards™. We are fully stocked with everything, from sensors and WiFi transceivers to motor control and audio amplifiers. The Click Shield for Nucleo-32 is compatible with the STM32 Nucleo-32 board, providing an affordable and flexible way for users to try out new ideas and quickly create prototypes with any STM32 microcontrollers, choosing from the various combinations of performance, power consumption, and features. The STM32 Nucleo-32 boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger/programmer and come with the STM32 comprehensive software HAL library and various packaged software examples. This development platform provides users with an effortless and common way to combine the STM32 Nucleo-32 footprint compatible board with their favorite Click boards™ in their upcoming projects.

Used MCU Pins

mikroBUS™ mapper

RST

SPI Chip Select

PA4

SPI Clock

PB3

SCK

SPI Data OUT/IO1

PB4

MISO

SPI Data IN/IO0

PB5

MOSI

Power Supply

3.3V

Ground

GND

Write Protect/IO2

PA8

PWM

Data Transfer Pause/IO3

PA12

INT

SCL

SDA

Ground

GND

Take a closer look

Schematic

Step by step

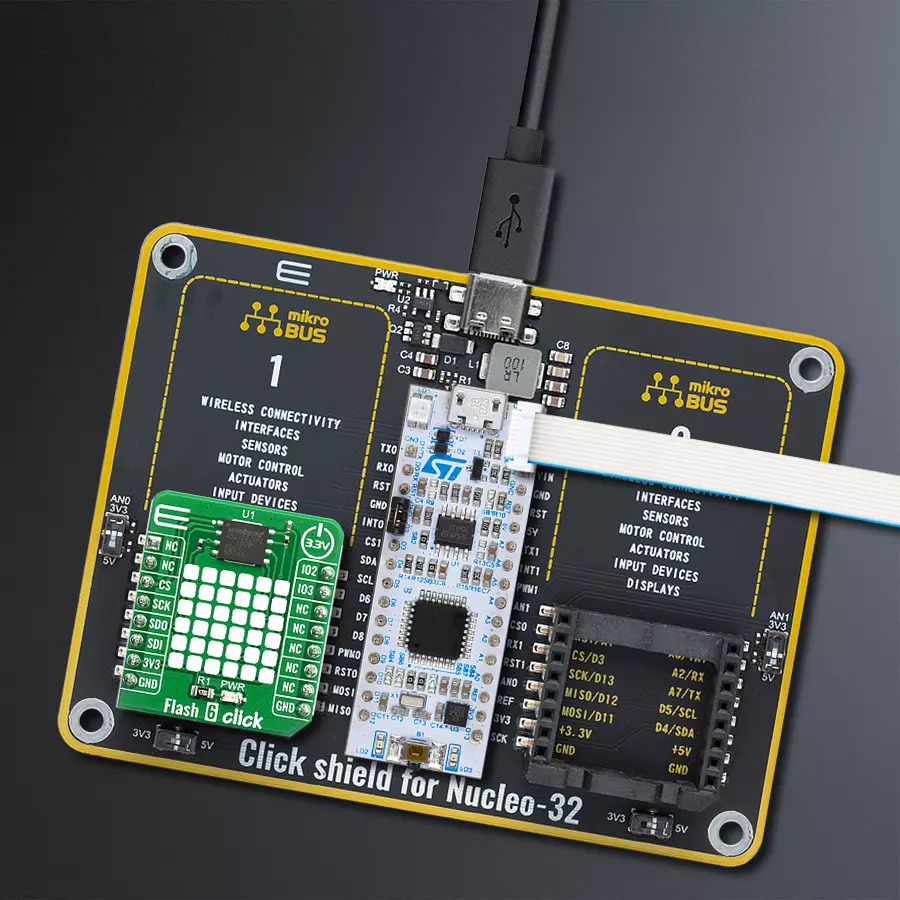

Project assembly

Click Shield for Nucleo-144 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Nucleo 32 with STM32F031K6 MCU as your development board.

Nucleo 144 with STM32L4A6ZG MCU front image hardware assembly

2x4 RGB Click front image hardware assembly

Nucleo-32 with STM32 MCU MB 1 - upright/background hardware assembly

Clicker 4 for STM32F4 HA MCU Step hardware assembly

Necto No Display image step 8 hardware assembly

Debug Image Necto Step hardware assembly

Track your results in real time

Application Output via Debug Mode

1. Once the code example is loaded, pressing the "DEBUG" button initiates the build process, programs it on the created setup, and enters Debug mode.

2. After the programming is completed, a header with buttons for various actions within the IDE becomes visible. Clicking the green "PLAY" button starts reading the results achieved with the Click board™. The achieved results are displayed in the Application Output tab.

Software Support

Library Description

This library contains API for Flash 6 Click driver.

Key functions:

flash6_write_memory_data - Function used for writing in memory
flash6_read_memory_data - Function used for reading from memory
flash6_erase_memory_segment - Function for eraseing segment

Open Source

Code example

This example can be found in NECTO Studio. Feel free to download the code, or you can copy the code below.

/*!
 * \file
 * \brief Flash6 Click example
 *
 * # Description
 * This application writes in memory and reads from memory.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes driver, resets device and tests communication.
 *
 * ## Application Task
 * Clears the memory sector, writes "MikroE" to device memory
 * and then reads it and sends it to log every 2 sec.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "flash6.h"

// ------------------------------------------------------------------ VARIABLES

static flash6_t flash6;
static log_t logger;

static char write_buf[ 9 ] = { 'M', 'i', 'k', 'r', 'o', 'E', 13, 10, 0 };

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    flash6_cfg_t cfg;

    uint8_t manufacture_id;
    uint8_t device_id;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    flash6_cfg_setup( &cfg );
    FLASH6_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    flash6_init( &flash6, &cfg );

    flash6_software_reset( &flash6 );
    Delay_ms( 100 );

    flash6_get_manufacture_device_id( &flash6, &manufacture_id, &device_id );
    log_printf( &logger, "\r\n ------> MANUFACTURE ID: 0x%x \r\n", manufacture_id );
    log_printf( &logger, " ------> DEVICE ID: 0x%x \r\n \r\n", device_id );
    Delay_ms( 1000 );
}

void application_task ( void )
{
    uint32_t start_addr;
    char read_buff[ 50 ];
    uint8_t cnt;

    start_addr = 0x002000;

    log_printf( &logger, " ---> Erase sector  \r\n" );
    flash6_erase_memory_segment( &flash6, FLASH6_CMD_SECTOR_ERASE_4KB, start_addr );
    Delay_ms( 500 );

    log_printf( &logger, " ---> Write in memory ... \r\n" );
    flash6_write_memory_data( &flash6, start_addr, &write_buf[ 0 ], 9 );
    log_printf( &logger, " ---> Read from memory \r\n" );
    flash6_read_memory_data( &flash6, start_addr, read_buff, 9 );

    log_printf( &logger, "---->>>> " );

    log_printf( &logger, "%s ", read_buff );
    Delay_ms( 100 );
    log_printf( &logger, "----------------------------------\r\n" );

    Delay_ms( 2000 );
}

void main ( void )
{
    application_init( );

    for ( ; ; )
    {
        application_task( );
    }
}

// ------------------------------------------------------------------------ END
