Intermediate
30 min

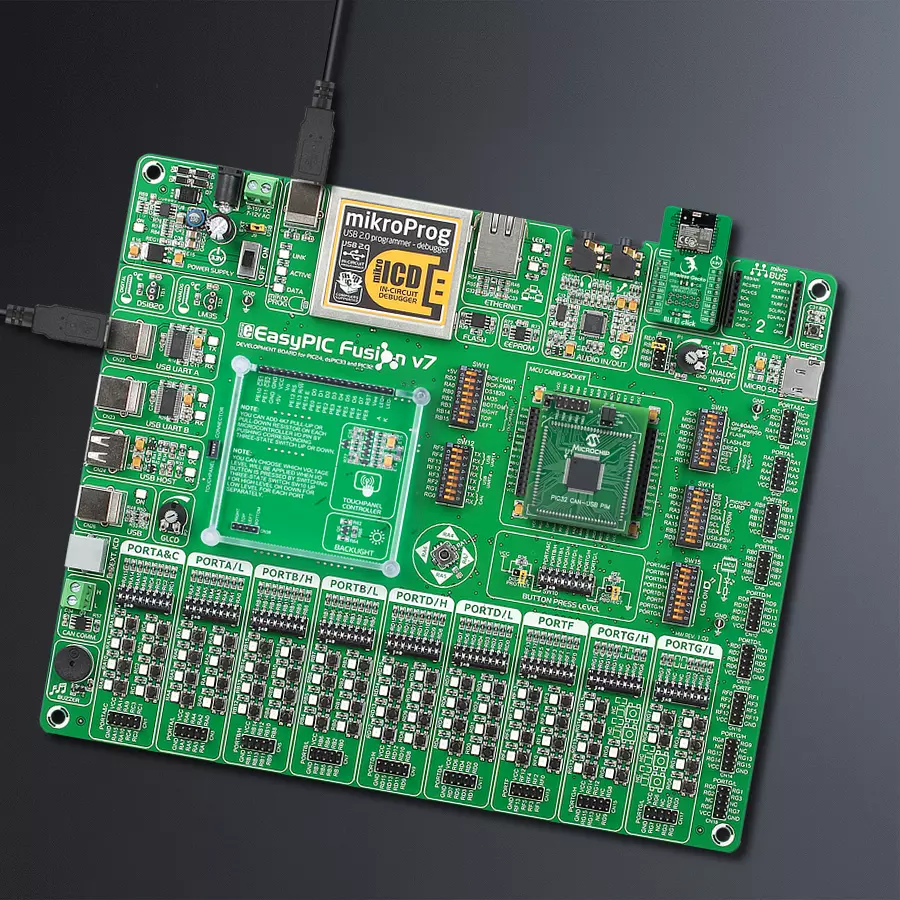

Unlock the magic of Bluetooth with BGM220P and PIC32MX795F512L

Our Bluetooth marvel!

BLE 9 Click with EasyPIC Fusion v7

Published Jul 29, 2023

Click board™

BLE 9 Click

Dev. board

EasyPIC Fusion v7

Compiler

NECTO Studio

MCU

PIC32MX795F512L

Discover the true essence of wireless convenience with our advanced Bluetooth solution, connecting your devices effortlessly and eliminating the hassle of cables

A

A

Hardware Overview

How does it work?

BLE 9 Click is based on the BGM220P, an RF performance Bluetooth Low Energy solution that provides BT/BLE connectivity for any embedded application from Silicon Labs. It supports Bluetooth 5.2, direction-finding, and Bluetooth Mesh Low Power Node protocols to deliver industry-leading accuracy. It has worldwide regulatory certifications and a fully-upgradeable software stack as advanced development and debugging tool. The BGM220P module combines the EFR32BG22 wireless System on a Chip (SoC), required decoupling capacitors and inductors, 38.4 MHz and 32.768 kHz crystals, an RF matching circuit, and an integrated ceramic onboard chip antenna. The EFR32BG22 SoC, inside the BGM220P module, includes an Arm Cortex-M33 processing core, up to 32Kb of RAM, up to 512kB of flash memory, and a 2.4GHz radio transceiver, offering up to 8dB output power. This Click board™ offers enhanced performance,

security, and reliability to support IoT products running on Bluetooth networks. BLE 9 Click communicates with MCU using the UART interface as its default communication protocol with the option for the users to use other interfaces, such as SPI and I2C, if they want to configure the module and write the library by themselves using these protocols. It also can be used in a stand-alone SoC configuration without an external host processor. In addition to these protocol pins, this Click board™ also has serial UART connections labeled as CTS and RTS, routed on the CS and INT pins of the mikroBUS™ socket, as well as the Reset pin provided and routed at the RST pin of the mikroBUS™ socket. An additional GPIO pin, labeled as IO routed on the PWM pin of the mikroBUS™ socket, is left for configuration purposes as the user desires. An onboard jumper selects the function of the CS mikroBUS™ pin between the SPI or UART communication pin.

Selection is performed by positioning the SMD jumper, labeled as CTS or CS, to an appropriate position. At the bottom of the BLE 9 Click is an additional header, the Mini Simplicity Debug Connector, which fully supports debugging and programming capabilities. With this header, the user can use a serial wire debug interface for programming and debugging, using SWCLK and SWDIO pins, with a Virtual UART COM port and Virtual UART-SWD-based interface also available through the SWD interface (SWDIO, SWCLK, and SWO). This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used, as a reference, for further development.

BLE 9 Click hardware overview image

Features overview

Development board

EasyPIC Fusion v7 is the seventh generation of PIC development boards specially designed to develop embedded applications rapidly. It supports a wide range of 16/32-bit PIC microcontrollers from Microchip and a broad set of unique functions, such as a powerful onboard mikroProg programmer and In-Circuit debugger over USB-B. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. With two different connectors for each port, EasyPIC Fusion v7 allows you to connect accessory boards, sensors, and custom electronics more efficiently than ever. Each part of

the EasyPIC Fusion v7 development board contains the components necessary for the most efficient operation of the same board. An integrated mikroProg, a fast USB 2.0 programmer with mikroICD hardware In-Circuit Debugger, offers many valuable programming/debugging options and seamless integration with the Mikroe software environment. Besides it also includes a clean and regulated power supply block for the development board. It can use a wide range of external power sources, including an external 12V power supply, 7-12V AC or 9-15V DC via DC connector/screw terminals, and a power source via the USB Type-B (USB-B) connector. Communication options such

as USB-UART, USB-HOST, CAN, and Ethernet are also included, including the well-established mikroBUS™ standard, one display option for the TFT board line of products, and a standard TQFP socket for the seventh-generation MCU cards. This socket covers a wide range of 16-bit dsPIC/PIC24 and 32-bit PIC32 MCUs. EasyPIC Fusion v7 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

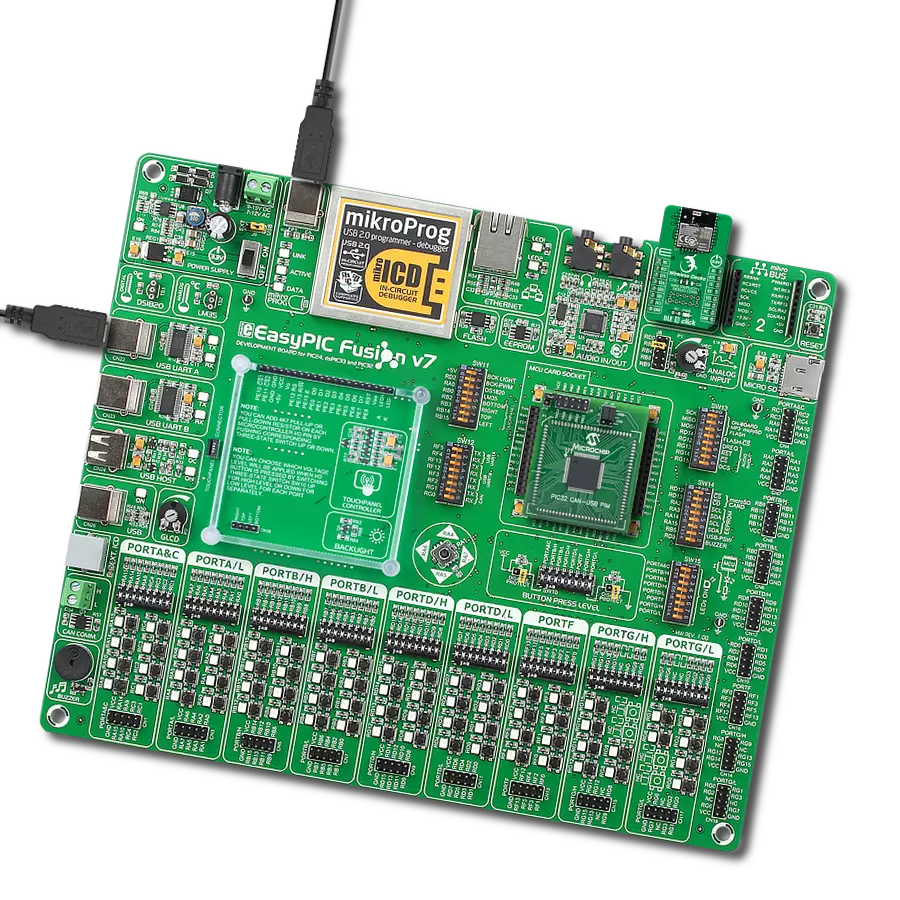

EasyPIC Fusion v7 horizontal image

Microcontroller Overview

MCU Card / MCU

default

Type

7th Generation

Architecture

PIC32

MCU Memory (KB)

512

Silicon Vendor

Microchip

Pin count

100

RAM (Bytes)

131072

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
Reset
RC1
RST
UART CTS / SPI Chip Select
RC2
CS
SPI Clock
RD15
SCK
SPI Data OUT
RF2
MISO
SPI Data IN
RF8
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
User-Configurable I/0
RD0
PWM
UART RTS
RE8
INT
UART TX
RF5
TX
UART RX
RF4
RX
I2C Clock
RA2
SCL
I2C Data
RA3
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

BLE 9 Click Schematic schematic

Step by step

Project assembly

EasyPIC Fusion v7 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyPIC Fusion v7 as your development board.

EasyPIC Fusion v7 front image hardware assembly
GNSS2 Click front image hardware assembly
EasyPIC FUSION v7 ETH MCUcard with PIC32MZ2048EFH144 front image hardware assembly
Board mapper by product7 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
EasyPIC PRO v7a MCU Selection Necto Step hardware assembly
EasyPIC PRO v7a Display Selection Necto Step hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for BLE 9 Click driver.

Key functions:

  • ble9_adv_create_id - This function creates adequate ID

  • ble9_adv_start - This function starts advertising

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief BLE 9 Click example
 *
 * # Description
 * This example demonstrates the use of BLE 9 Click board by processing
 * the incoming data and displaying them on the USB UART.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes the driver and performs the Click default configuration.
 *
 * ## Application Task
 * Reads and processes all incoming data and displays them on the USB UART.
 *
 * ## Additional Function
 * - static void ble9_clear_app_buf ( void )
 * - static err_t ble9_process ( ble9_t *ctx )
 *
 * <pre>
 * For more information on the chip itself and the firmware on it,
 * please visit the following page:
 *     [1] https://docs.silabs.com/bluetooth/3.1
 *         - Take into condideration that the library itself
 *           is designed to work with GSDK version 3.1.0
 *           If you wish to use a different version of firmware,
 *           take into consideration that some functions might not work.
 * </pre>
 *
 * @author MikroE Team
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "ble9.h"
#include "log.h"

#define PROCESS_BUFFER_SIZE 200

static ble9_t ble9;
static log_t logger;

static uint8_t app_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
static int32_t app_buf_len = 0;

/**
 * @brief BLE 9 clearing application buffer.
 * @details This function clears memory of application buffer and reset its length.
 * @note None.
 */
static void ble9_clear_app_buf ( void );

/**
 * @brief BLE 9 data reading function.
 * @details This function reads data from device and concatenates data to application buffer.
 * @param[in] ctx : Click context object.
 * See #ble9_t object definition for detailed explanation.
 * @return @li @c  0 - Read some data.
 *         @li @c -1 - Nothing is read.
 * See #err_t definition for detailed explanation.
 * @note None.
 */
static err_t ble9_process ( ble9_t *ctx );

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    ble9_cfg_t cfg;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );
    Delay_ms ( 100 );

    // Click initialization.
    ble9_cfg_setup( &cfg );
    BLE9_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    ble9_init( &ble9, &cfg );
    Delay_ms ( 1000 );

    // Clear app buffer
    ble9_process ( &ble9 );
    ble9_clear_app_buf( );
    Delay_ms ( 100 );

    if ( BLE9_OK == ble9_sys_get_version ( &ble9 ) )
    {
        log_printf( &logger, "--- System Version ---\r\n" );
        log_printf( &logger, " Major: 0x%.4X\r\n", ble9.ble9_version.version_major );
        log_printf( &logger, " Minor: 0x%.4X\r\n", ble9.ble9_version.version_minor );
        log_printf( &logger, " Patch: 0x%.4X\r\n", ble9.ble9_version.version_patch );
        log_printf( &logger, " Build: 0x%.4X\r\n", ble9.ble9_version.version_build );
        log_printf( &logger, " Bootloader: 0x%.8LX\r\n", ble9.ble9_version.version_bootloader );
        log_printf( &logger, " Hash: 0x%.8LX\r\n", ble9.ble9_version.version_hash );
        log_printf( &logger, "------------------------\r\n" );
    }

    log_printf( &logger, "Creating advertising point...\r\n" );
    Delay_ms ( 100 );
    ble9_adv_create_id ( &ble9 );

    log_printf( &logger, "Starting module advertising...\r\n" );
    Delay_ms ( 100 );
    ble9_adv_start ( &ble9, BLE9_ADVERTISER_MODE_DISCOVERABLE_GENERAL,
                     BLE9_ADVERTISER_MODE_CONNECTABLE_SCANNABLE );

    log_printf( &logger, "The module has been configured.\r\n" );
    Delay_ms ( 100 );
}

void application_task ( void )
{
    ble9_process ( &ble9 );
    if ( app_buf_len > 0 )
    {
        for ( uint16_t cnt = 0; cnt < app_buf_len; cnt++ )
        {
            log_printf( &logger, "%.2X ", ( uint16_t ) app_buf[ cnt ] );
        }
        ble9_clear_app_buf( );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

static void ble9_clear_app_buf ( void )
{
    memset( app_buf, 0, app_buf_len );
    app_buf_len = 0;
}

static err_t ble9_process ( ble9_t *ctx )
{
    uint8_t rx_buf[ PROCESS_BUFFER_SIZE ] = { 0 };
    int32_t rx_size = 0;
    rx_size = ble9_generic_read( ctx, rx_buf, PROCESS_BUFFER_SIZE );
    if ( rx_size > 0 )
    {
        int32_t buf_cnt = app_buf_len;
        if ( ( ( app_buf_len + rx_size ) > PROCESS_BUFFER_SIZE ) && ( app_buf_len > 0 ) )
        {
            buf_cnt = PROCESS_BUFFER_SIZE - ( ( app_buf_len + rx_size ) - PROCESS_BUFFER_SIZE );
            memmove ( app_buf, &app_buf[ PROCESS_BUFFER_SIZE - buf_cnt ], buf_cnt );
        }
        for ( int32_t rx_cnt = 0; rx_cnt < rx_size; rx_cnt++ )
        {
            if ( rx_buf[ rx_cnt ] )
            {
                app_buf[ buf_cnt++ ] = rx_buf[ rx_cnt ];
                if ( app_buf_len < PROCESS_BUFFER_SIZE )
                {
                    app_buf_len++;
                }
            }
        }
        return BLE9_OK;
    }
    return BLE9_ERROR;
}

// ------------------------------------------------------------------------ END
