Add data storage to any application with GD5F2GQ5UEYIGR and STM32L496AG

Improve your memory

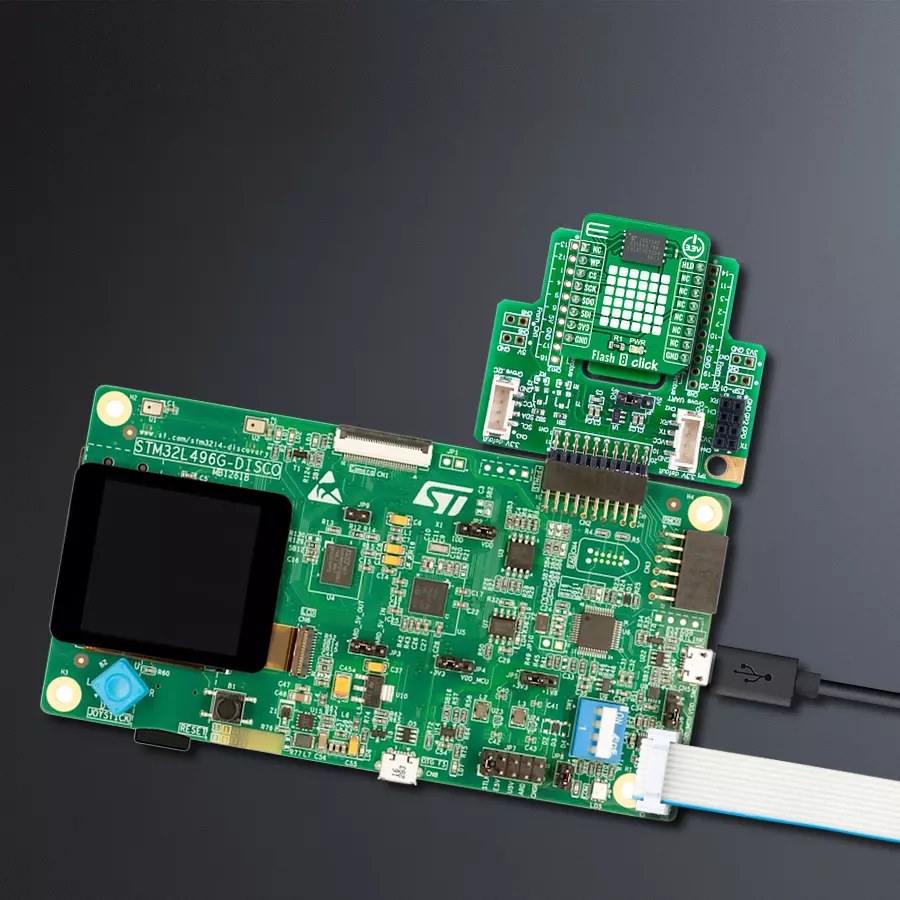

Flash 8 Click with Discovery kit with STM32L496AG MCU

Published Jul 22, 2025

Click board™

Flash 8 Click

Dev. board

Discovery kit with STM32L496AG MCU

Compiler

NECTO Studio

MCU

STM32L496AG

Highly reliable memory solution

A

A

Hardware Overview

How does it work?

Flash 8 Click is based on the GD5F2GQ5UEYIGR, a highly reliable serial Flash memory solution offering flexibility designed for use in various consumer applications from GigaDevice Semiconductor. It comes with a density of 2Gb based on an industry-standard NAND Flash memory core, representing an attractive alternative to SPI-NOR and standard parallel NAND Flash with advanced features. Organized as 256Mx8, the GD5F2GQ5UEYIGR has advanced security features (8K-Byte OTP region). It specifies a minimum of 100.000 endurance cycles with data retention of a minimum of 10 years, allowing it to handle unlimited reads/writes to the memory. This Click board™ communicates with MCU through an industry-standard SPI interface (Dual and QSPI compatible) that enables high clock speed,

supporting the two most common SPI modes, SPI Mode 0 and 3, with a maximum frequency of 104MHz. It is programmed/read in page-based operations and erased in block-based operations. Data is transferred to/from the NAND Flash memory array, page by page, to a data register and a cache register which is closest to I/O control circuits, acting as a data buffer for the I/O data (enable page and random data READ/WRITE and copy back operations). In addition to the SPI communication, this Click board™ also has two additional pins used for Write Protection and HOLD function routed to the RST and PWM pins of the mikroBUS™ socket. The configurable Write Protection, marked as WP and routed on the RST pin of the mikroBUS™ socket, prevents the block lock bits from being overwritten and must be held

low to inhibit all the write operations to registers. When this pin is low, also by setting the appropriate bits, all memory and register write are prohibited, and the address counter is not incremented. On the other hand, the HOLD pin labeled as HLD and routed to the PWM pin of the mikroBUS™ socket stops any serial communications with the device. Still, it doesn’t stop the operation of reading programming or erasing in progress. This Click board™ can only be operated from a 3.3V logic voltage level. Therefore, the board must perform appropriate logic voltage conversion before using MCUs with different logic levels. However, the Click board™ comes equipped with a library containing functions and an example code that can be used as a reference for further development.

Flash 8 Click top side image
Flash 8 Click lateral side image
Flash 8 Click bottom side image

Features overview

Development board

The 32L496GDISCOVERY Discovery kit serves as a comprehensive demonstration and development platform for the STM32L496AG microcontroller, featuring an Arm® Cortex®-M4 core. Designed for applications that demand a balance of high performance, advanced graphics, and ultra-low power consumption, this kit enables seamless prototyping for a wide range of embedded solutions. With its innovative energy-efficient

architecture, the STM32L496AG integrates extended RAM and the Chrom-ART Accelerator, enhancing graphics performance while maintaining low power consumption. This makes the kit particularly well-suited for applications involving audio processing, graphical user interfaces, and real-time data acquisition, where energy efficiency is a key requirement. For ease of development, the board includes an onboard ST-LINK/V2-1

debugger/programmer, providing a seamless out-of-the-box experience for loading, debugging, and testing applications without requiring additional hardware. The combination of low power features, enhanced memory capabilities, and built-in debugging tools makes the 32L496GDISCOVERY kit an ideal choice for prototyping advanced embedded systems with state-of-the-art energy efficiency.

Discovery kit with STM32L496AG MCU double side image

Microcontroller Overview

MCU Card / MCU

STM32L496AG Image

Architecture

ARM Cortex-M4

MCU Memory (KB)

1024

Silicon Vendor

STMicroelectronics

Pin count

169

RAM (Bytes)

327680

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
QSPI IO2 / Write Protection
PB2
RST
SPI Chip Select
PG11
CS
SPI Clock
PI1
SCK
SPI Data OUT
PD3
MISO
SPI Data IN
PI3
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
QSPI IO3 / SPI Suspension
PA0
PWM
NC
NC
INT
NC
NC
TX
NC
NC
RX
NC
NC
SCL
NC
NC
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

Flash 8 Click Schematic schematic

Step by step

Project assembly

Discovery kit with STM32H750XB MCU front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Discovery kit with STM32L496AG MCU as your development board.

Discovery kit with STM32H750XB MCU front image hardware assembly
Thermo 21 Click front image hardware assembly
Prog-cut hardware assembly
Board mapper by product7 hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
Necto image step 5 hardware assembly
Necto image step 6 hardware assembly
Discovery kit with STM32H750XB MCU NECTO MCU Selection Step hardware assembly
Necto No Display image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto image step 11 hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for Flash 8 Click driver.

Key functions:

  • flash8_write_memory Flash 8 write memory function.

  • flash8_read_memory Flash 8 read memory function.

  • flash8_read_id Flash 8 read ID function.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief Flash8 Click example
 *
 * # Description
 * This library contains API for Flash 8 Click driver.
 * The library using SPI serial interface.
 * The library also includes a function for write and read memory
 * as well as write protection control functions.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization of SPI module and log UART.
 * After driver initialization and default setting,
 * involves disabling write protection and hold,
 * the app writes demo_data string ( mikroE ) starting
 * from the selected row_address of the 123 ( 0x0000007B )
 * and column_address of the 456 ( 0x01C8 ).
 *
 * ## Application Task
 * This is an example that shows the use of a Flash 8 Click board™.
 * The app reads a data string, which we have previously written to memory,
 * starting from the selected row_address of the 123 ( 0x0000007B )
 * and column_address of the 456 ( 0x01C8 ).
 * Results are being sent to the Usart Terminal where you can track their changes.
 *
 * @author Nenad Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "flash8.h"

static flash8_t flash8;
static log_t logger;

static uint8_t manufacture_id;
static uint8_t device_id;
static uint8_t organization_id;
static uint8_t feature_status_out;
static uint8_t demo_data[ 9 ] = { 'M', 'i', 'k', 'r', 'o', 'E', 13 ,10 , 0 };
static uint8_t rx_data[ 9 ] = { 0 };
static feature_cfg_t feature_data;

void application_init ( void )
{
    log_cfg_t log_cfg;        /**< Logger config object. */
    flash8_cfg_t flash8_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    flash8_cfg_setup( &flash8_cfg );
    FLASH8_MAP_MIKROBUS( flash8_cfg, MIKROBUS_1 );
    if ( SPI_MASTER_ERROR == flash8_init( &flash8, &flash8_cfg ) )
    {
        log_error( &logger, " Application Init Error. " );
        log_info( &logger, " Please, run program again... " );
        for ( ; ; );
    }

    flash8_default_cfg ( &flash8 );
    log_info( &logger, " Application Task " );
    Delay_ms ( 100 );

    flash8_read_id( &flash8, &manufacture_id, &device_id, &organization_id );
    log_printf( &logger, "--------------------------\r\n" );
    log_printf( &logger, "  Manufacture ID  : 0x%.2X\r\n", ( uint16_t) manufacture_id );
    log_printf( &logger, "  Device ID       : 0x%.2X\r\n", ( uint16_t) device_id );
    log_printf( &logger, "  Organization ID : 0x%.2X\r\n", ( uint16_t) organization_id );
    log_printf( &logger, "--------------------------\r\n" );
    Delay_ms ( 100 );

    flash8_sw_reset( &flash8, &feature_status_out );
    if ( feature_status_out & FLASH8_GET_PRG_F_PROGRAM_FAIL )
    {
        log_printf( &logger, "\tProgram Fail \r\n" );
    }
    else
    {
        log_printf( &logger, "\tProgram Pass \r\n" );
    }
    log_printf( &logger, "--------------------------\r\n" );
    Delay_ms ( 1000 );

    feature_data.brwd   = FLASH8_SET_BRWD_ENABLE;
    feature_data.bl     = FLASH8_SET_BL_ALL_UNLOCKED;
    feature_data.idr_e  = FLASH8_SET_IDR_E_NORMAL_OPERATION;
    feature_data.ecc_e  = FLASH8_SET_ECC_E_INTERNAL_ECC_ENABLE;
    feature_data.prt_e  = FLASH8_SET_PRT_E_NORMAL_OPERATION;
    feature_data.hse    = FLASH8_SET_HSE_HIGH_SPEED_MODE_ENABLE;
    feature_data.hold_d = FLASH8_SET_HOLD_D_HOLD_IS_ENABLED;
    feature_data.wel    = FLASH8_SET_WEL_WRITE_ENABLE;
    flash8_set_config_feature( &flash8, feature_data );
    Delay_ms ( 100 );

    flash8_block_erase( &flash8, 123, &feature_status_out );
    if ( feature_status_out & FLASH8_GET_ERS_F_ERASE_FAIL )
    {
        log_printf( &logger, "\tErase Fail \r\n" );
    }
    else
    {
        log_printf( &logger, "\tErase Pass \r\n" );
    }
    log_printf( &logger, "--------------------------\r\n" );
    Delay_ms ( 1000 );

    log_printf( &logger, "   Write data : %s", demo_data );
    log_printf( &logger, "--------------------------\r\n" );
    log_printf( &logger, "        Write status:\r\n"  );
    flash8_write_memory( &flash8, 123, 456, &demo_data[ 0 ], 9, &feature_status_out );
    if ( feature_status_out & FLASH8_GET_OIP_BUSY_STATE )
    {
        log_printf( &logger, " Operation is in progress.\r\n" );
    }
    else
    {
        log_printf( &logger, " Operation is not in progress.\r\n" );
    }
    log_printf( &logger, "- - - - - - - - - - -  - -\r\n" );
    Delay_ms ( 1000 );

    log_printf( &logger, "    Check data ready...\r\n" );
    while ( FLASH8_GET_OIP_READY_STATE != feature_status_out )
    {
        flash8_get_feature( &flash8, FLASH8_FEATURE_C0, &feature_status_out );
        log_printf( &logger, "\tBusy state.\r\n" );
        Delay_ms ( 100 );
    }

    if ( FLASH8_GET_OIP_READY_STATE == feature_status_out )
    {
        log_printf( &logger, "\tReady state.\r\n" );
    }
    log_printf( &logger, "--------------------------\r\n" );
    Delay_ms ( 100 );
}

void application_task ( void )
{
    flash8_read_memory( &flash8, 123, 456, &rx_data[ 0 ], 9, &feature_status_out );
    log_printf( &logger, "    Read data : %s", rx_data );
    log_printf( &logger, "--------------------------\r\n" );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
