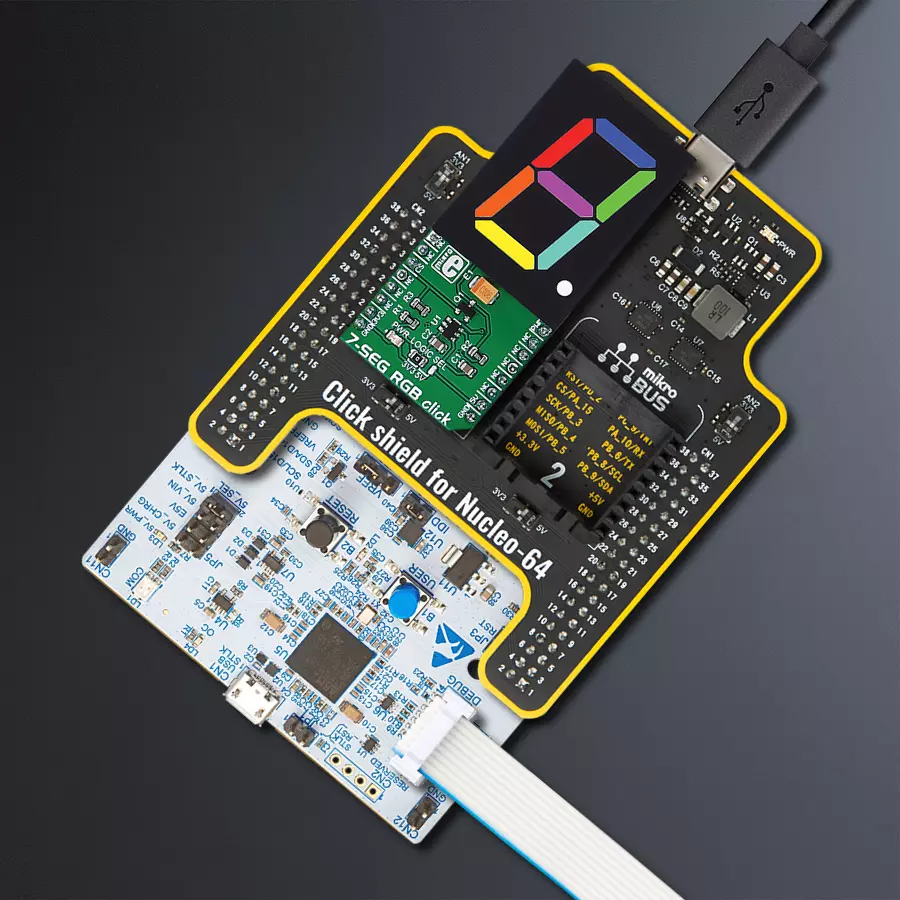

使用160100-71和STM32G474RE用迷人的数字和字母传达您的信息

/*!
 * \file
 * \brief 7-SEG RGB Click example
 *
 * # Description
 * This Click shows all ten digits on a full-color single 7 segment digit display.
 * Each segment has R, G, B LEDs that can be adjusted in 255 steps and
 * the ability to control the brightness of all the LED.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initialization driver enables - GPIO.
 *
 * ## Application Task
 * This is an example which demonstrates the use of 7-SEG RGB Click board.
 * This simple example shows all ten digits in different colors on 7-SEG RGB Click.
 *
 * @note
 * Make sure the logic delays are defined for your system in the c7segrgb_delays.h file.
 *
 * <pre>
 * Additional Functions :
 * void logic_one ( )  - Generic logic one function.
 * void logic_zero ( ) - Generic logic zero function.
 * </pre>
 *
 * - segments layout
 *       _0_
 *     5|   |1
 *      |_6_|
 *     4|   |2
 *      |_3_|.7
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "c7segrgb.h"
#include "c7segrgb_delays.h"

// ------------------------------------------------------------------ VARIABLES

static c7segrgb_t c7segrgb;

static uint8_t CHARACTER_TABLE[ 10 ] =
{
    0x3F, // '0'
    0x06, // '1'    _a_
    0x5B, // '2'  f|   |b
    0x4F, // '3'   |_g_|
    0x66, // '4'  e|   |c
    0x6D, // '5'   |_d_|.dp
    0x7D, // '6'
    0x07, // '7'
    0x7F, // '8'
    0x6F  // '9'
};

static c7segrgb_segment_t segments_data[ 8 ] =
{
    { true, 40, 0, 0 },
    { true, 0, 40, 0 },
    { true, 0, 0, 40 },
    { true, 10, 40, 40 },
    { true, 40, 10, 40 },
    { true, 40, 40, 10 },
    { true, 10, 20, 30 },
    { true, 30, 20, 10 }
};

// ------------------------------------------------------- ADDITIONAL FUNCTIONS

void logic_one ( void )
{
    hal_ll_gpio_set_pin_output( &c7segrgb.pwm.pin );
    DELAY_T1H;
    hal_ll_gpio_clear_pin_output( &c7segrgb.pwm.pin );
    DELAY_T1L;
}

void logic_zero ( void )
{
    hal_ll_gpio_set_pin_output( &c7segrgb.pwm.pin );
    DELAY_TOH;
    hal_ll_gpio_clear_pin_output( &c7segrgb.pwm.pin );
    DELAY_TOL;
}

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    c7segrgb_cfg_t cfg;

    //  Click initialization.
    c7segrgb_cfg_setup( &cfg );
    cfg.logic_one = &logic_one;
    cfg.logic_zero = &logic_zero;
    C7SEGRGB_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    c7segrgb_init( &c7segrgb, &cfg );

    for ( uint8_t cnt = 0; cnt < 8; cnt++ )
    {
        c7segrgb.segments[ cnt ] = segments_data[ cnt ];
    }
    c7segrgb_set_seven_seg( &c7segrgb );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

void application_task ( void )
{
    for ( uint8_t cnt_i = 0; cnt_i < 10; cnt_i++ )
    {
        for ( uint8_t cnt_j = 10; cnt_j > 0; cnt_j-- )
        {
            c7segrgb_set_num( &c7segrgb, CHARACTER_TABLE[ cnt_i ], 4 * cnt_i, 4 * cnt_j, cnt_i * cnt_j );
            Delay_ms ( 100 );
        }
    }

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_POINT, 10, 10, 10 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_ZERO, 40, 40, 40 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_ONE, 40, 0, 0 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_TWO, 0, 40, 0 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_THREE, 0, 0, 40 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_FOUR, 40, 0, 40 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_FIVE, 0, 40, 40 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_SIX, 40, 40, 0 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_SEVEN, 20, 30, 40 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_EIGHT, 40, 15, 31 );
    Delay_ms ( 1000 );

    c7segrgb_set_num( &c7segrgb, C7SEGRGB_NINE, 20, 10, 30 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}


// ------------------------------------------------------------------------ END
