Deliver measurements of current, voltage, power, and temperature with the TSC1641 and STM32F407VGT6

Digital power monitor for alerting undesirable operating conditions

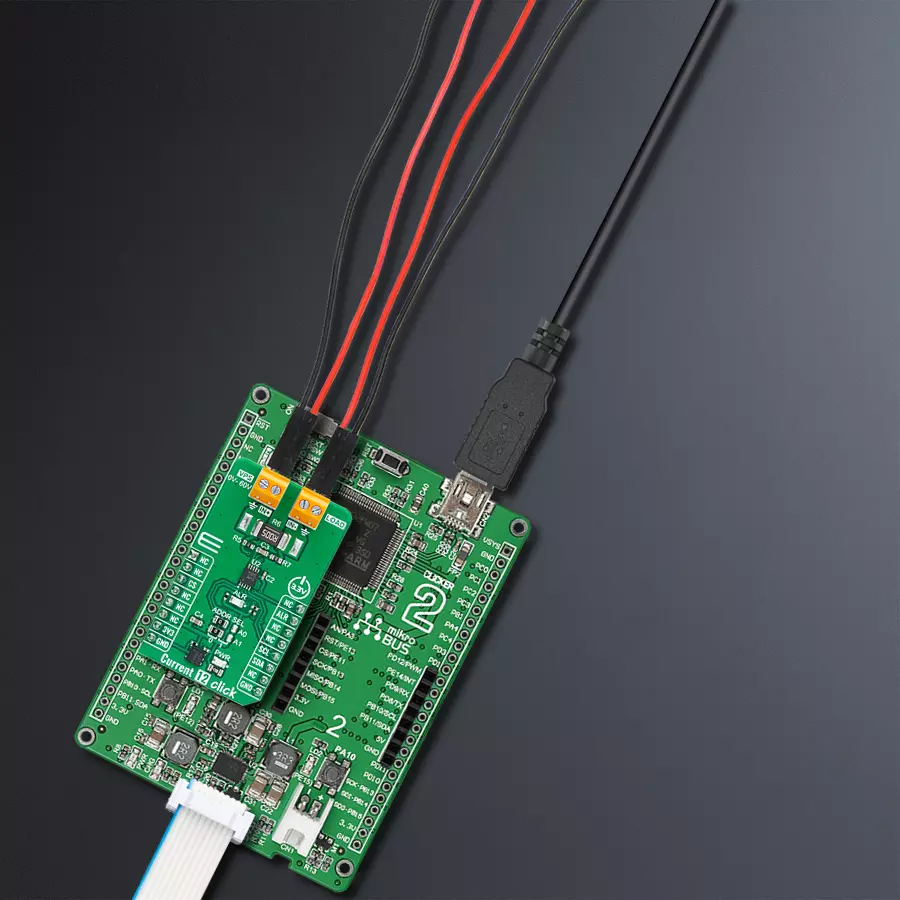

Current 12 Click with Clicker 2 for STM32

Published Jun 06, 2024

Click board™

Current 12 Click

Dev. board

Clicker 2 for STM32

Compiler

NECTO Studio

MCU

STM32F407VGT6

Achieve precise regulation and monitoring of voltage, current, and power ensuring stable and reliable power delivery

Hardware Overview

How does it work?

Current 12 Click is based on the TSC1641, a 60V 16-bit high-precision power monitor with an I2C interface from STMicroelectronics. The TSC1641 is a high-precision analog front-end (AFE) that monitors current, voltage, power, and temperature. It measures current through a shunt resistor and load voltage from 0V up to 60V in a synchronized manner. The current measurement can be high-side, low-side, and bidirectional. The device integrates a high-precision 16-bit resolution dual-channel sigma-delta ADC with a programmable

conversion time ranging from 128µs to 32.7ms. This board makes it ideal for applications such as industrial battery packs, power inverters, DC power supplies, data centers, telecom equipment, power tools, and more. Current 12 Click uses a standard 2-wire I2C communication protocol to enable the host MCU to control the TSC1641. The I2C interface supports clock frequencies of up to 1MHz, with the I2C address selectable via the ADDR SEL jumpers. The alert interrupt ALR pin allows the assertion of several alerts regarding voltage,

current, power, and temperature, with thresholds that can be set for each parameter in a specific register. This Click board™ can be operated only with a 3.3V logic voltage level. The board must perform appropriate logic voltage level conversion before using MCUs with different logic levels. Also, it comes equipped with a library containing functions and an example code that can be used as a reference for further development.

Current 12 Click hardware overview image

Features overview

Development board

Clicker 2 for STM32 is a compact starter development board that brings the flexibility of add-on Click boards™ to your favorite microcontroller, making it a perfect starter kit for implementing your ideas. It comes with an onboard 32-bit ARM Cortex-M4 microcontroller, the STM32F407VGT6 from STMicroelectronics, two mikroBUS™ sockets for Click board™ connectivity, a USB connector, LED indicators, buttons, a JTAG programmer connector, and two 26-pin headers for interfacing with external electronics. Its compact design with clear and easily recognizable silkscreen markings allows you to build gadgets with unique functionalities and features quickly. Each part of the Clicker 2 for

STM32 development kit contains the components necessary for the most efficient operation of the same board. In addition to the possibility of choosing the Clicker 2 for STM32 programming method, using a USB HID mikroBootloader, an external mikroProg connector for STM32 programmer, or through an external ST-LINK V2 programmer, the Clicker 2 board also includes a clean and regulated power supply module for the development kit. It provides two ways of board-powering; through the USB Mini-B cable, where onboard voltage regulators provide the appropriate voltage levels to each component on the board or using a Li-Polymer battery via an onboard battery

connector. All communication methods that mikroBUS™ itself supports are on this board, including the well-established mikroBUS™ socket, reset button, and several user-configurable buttons and LED indicators. Clicker 2 for STM32 is an integral part of the Mikroe ecosystem, allowing you to create a new application in minutes. Natively supported by Mikroe software tools, it covers many aspects of prototyping thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

Microcontroller Overview

MCU Card / MCU

Architecture

ARM Cortex-M4

MCU Memory (KB)

Silicon Vendor

STMicroelectronics

Pin count

100

RAM (Bytes)

100

Used MCU Pins

mikroBUS™ mapper

RST

ID COMM

PE8

SCK

MISO

MOSI

Power Supply

3.3V

Ground

GND

PWM

Alert Interrupt

PE10

INT

I2C Clock

PA8

SCL

I2C Data

PC9

SDA

Ground

GND

Take a closer look

Click board™ Schematic

Step by step

Project assembly

Clicker 2 for PIC18FJ front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Clicker 2 for STM32 as your development board.

GNSS2 Click front image hardware assembly

GNSS2 Click complete accessories setup image hardware assembly

Board mapper by product7 hardware assembly

Flip&Click PIC32MZ MCU step hardware assembly

Necto No Display image step 8 hardware assembly

Debug Image Necto Step hardware assembly

Track your results in real time

Application Output

1. Application Output - In Debug mode, the 'Application Output' window enables real-time data monitoring, offering direct insight into execution results. Ensure proper data display by configuring the environment correctly using the provided tutorial.

2. UART Terminal - Use the UART Terminal to monitor data transmission via a USB to UART converter, allowing direct communication between the Click board™ and your development system. Configure the baud rate and other serial settings according to your project's requirements to ensure proper functionality. For step-by-step setup instructions, refer to the provided tutorial.

3. Plot Output - The Plot feature offers a powerful way to visualize real-time sensor data, enabling trend analysis, debugging, and comparison of multiple data points. To set it up correctly, follow the provided tutorial, which includes a step-by-step example of using the Plot feature to display Click board™ readings. To use the Plot feature in your code, use the function: plot(*insert_graph_name*, variable_name);. This is a general format, and it is up to the user to replace 'insert_graph_name' with the actual graph name and 'variable_name' with the parameter to be displayed.

Software Support

Library Description

This library contains API for Current 12 Click driver.

Key functions:

current12_get_load_voltage - This function reads the load voltage measurement values [V].
current12_get_dc_power - This function reads the DC power measurement values [W].
current12_get_current - This function reads the current measurement values [mA].

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * @file main.c
 * @brief Current 12 Click example
 *
 * # Description
 * This example demonstrates the use of the Current 12 Click board
 * by reading and displaying the input current measurements.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * The initialization of the I2C module and log UART.
 * After driver initialization, the app sets the default configuration.
 *
 * ## Application Task
 * The demo application reads and displays the results
 * of the input current, voltage, and power measurements.
 * Results are being sent to the UART Terminal, where you can track their changes.
 *
 * @author Nenad Filipovic
 *
 */

#include "board.h"
#include "log.h"
#include "current12.h"

static current12_t current12;
static log_t logger;

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    current12_cfg_t current12_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    current12_cfg_setup( &current12_cfg );
    CURRENT12_MAP_MIKROBUS( current12_cfg, MIKROBUS_1 );
    if ( I2C_MASTER_ERROR == current12_init( &current12, &current12_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( CURRENT12_ERROR == current12_default_cfg ( &current12 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
    log_printf( &logger, "_____________________\r\n " );
    Delay_ms ( 100 );
}

void application_task ( void )
{
    float meas_data = 0;
    if ( CURRENT12_OK == current12_get_shunt_voltage( &current12, &meas_data ) )
    {
        log_printf( &logger, " Shunt Voltage: %.2f [mV]\r\n ", meas_data );
        Delay_ms ( 100 );
    }

    if ( CURRENT12_OK == current12_get_load_voltage( &current12, &meas_data ) )
    {
        log_printf( &logger, " Load Voltage: %.2f [V]\r\n ", meas_data );
        Delay_ms ( 100 );
    }

    if ( CURRENT12_OK == current12_get_dc_power( &current12, &meas_data ) )
    {
        log_printf( &logger, " DC Power: %.2f [W]\r\n ", meas_data );
        Delay_ms ( 100 );
    }

    if ( CURRENT12_OK == current12_get_current( &current12, &meas_data ) )
    {
        log_printf( &logger, " Current: %.2f [mA]\r\n", meas_data );
        Delay_ms ( 100 );
    }
    log_printf( &logger, "_____________________\r\n " );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
