Heart Rate 2 Click with Flip&Click PIC32MZ

Published Jun 01, 2023

Click board™

Heart Rate 2 Click

Dev. board

Flip&Click PIC32MZ

Compiler

NECTO Studio

MCU

PIC32MZ2048EFH100

Take control of your heart health with our intuitive heart rate monitoring solution

Hardware Overview

How does it work?

Heart Rate 2 Click is based on MAXM86161, a complete, integrated optical data acquisition system from Analog Devices ideal for optical pulse oximetry and heart-rate detection applications. It comprises a single optical readout channel and current LED driver DACs that modulate LED pulses for various optical measurements. The LED current DACs have 8 bits of dynamic range with four programmable full-scale ranges of 31mA, 62mA, 94mA, and 124mA. The LED drivers are low dropout current sources allowing for low-noise, power-supply independent LED currents to be sourced at the lowest supply voltage possible, minimizing LED power consumption. The LED pulse width can be programmed from 14.8μs to 117.3μs to allow the algorithms to optimize SpO2 and HR accuracy at the lowest dynamic power consumption dictated by the application. The optical subsystem Heart Rate 2 Click based on MAXM86161 comprises ambient light cancellation (ALC), a continuous-time

sigma-delta ADC, and a proprietary discrete time filter. ALC incorporates a proprietary scheme to cancel ambient-light-generated photodiode currents, allowing the sensor to work in high ambient light conditions. The optical ADC has programmable full-scale ranges of 4μA to 32μA. The internal ADC is a continuous time, oversampling sigma-delta converter with 19-bit resolution. The ADC output data rate can be programmed from 8sps (samples per second) to 4096sps. The MAXM86161 includes a proprietary discrete time filter to reject 50Hz/60Hz interference and change residual ambient light from the sensor measurements. The sensor also includes an optical proximity function which could significantly reduce energy consumption and extend battery life when the sensor is not in contact with the skin. MAXM86161 power to a minimum during situations with no reflective returned signal. It is also intended to reduce the emitted light to a minimum or even below

what the human eye perceives. The native delta-sigma ADC linearity is exceptional. However, the sub-ranging DAC uses a unary architecture with some mismatch between the DAC's unit current sources and the ADC reference current. This mismatch results in some transfer function nonlinearity (XNL) errors when the sub-DAC code transitions. For this reason, the sub-ranging DAC algorithm is designed to minimize DAC transitions by introducing large hysteresis through the overlapping sub-DAC ranges. Consequently, under normal PPG operation, the sub-DAC does not transition, and the linearity of the converter signal is driven entirely by the linear native delta-sigma ADC. In addition to algorithmically reducing the sub-DAC transitions, the MAXM86161 incorporates a self-calibration scheme that can be used to reduce the sub-DAC XNL errors further.

Features overview

Development board

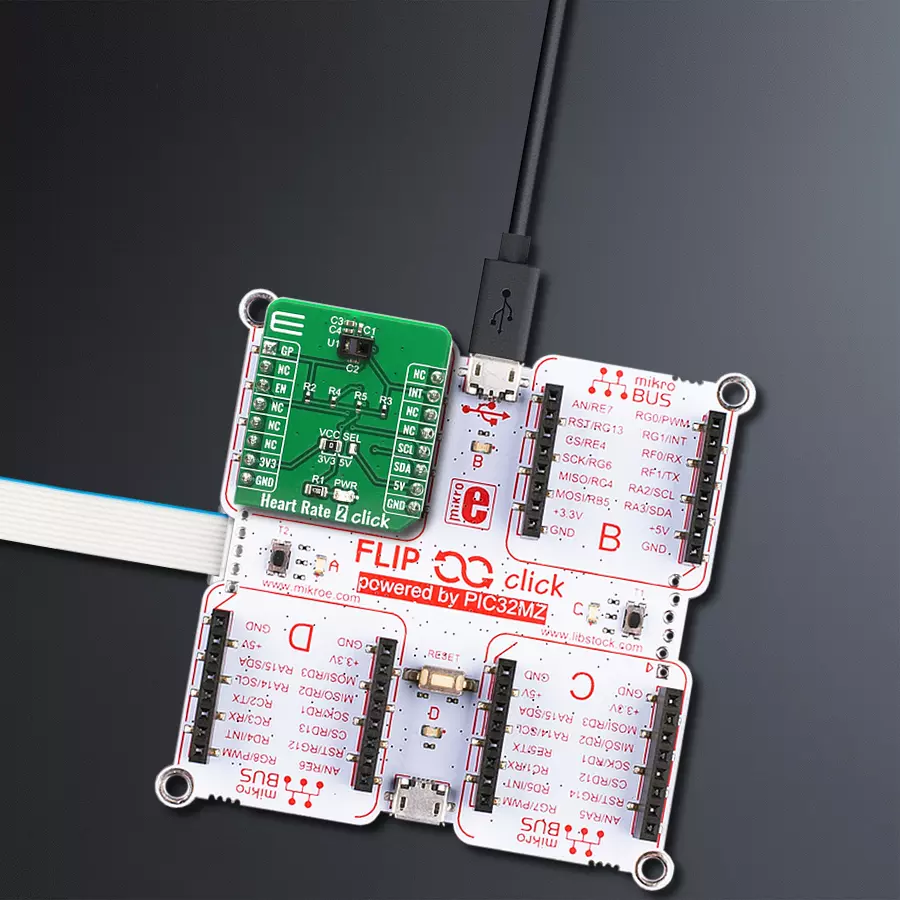

Flip&Click PIC32MZ is a compact development board designed as a complete solution that brings the flexibility of add-on Click boards™ to your favorite microcontroller, making it a perfect starter kit for implementing your ideas. It comes with an onboard 32-bit PIC32MZ microcontroller, the PIC32MZ2048EFH100 from Microchip, four mikroBUS™ sockets for Click board™ connectivity, two USB connectors, LED indicators, buttons, debugger/programmer connectors, and two headers compatible with Arduino-UNO pinout. Thanks to innovative manufacturing technology,

it allows you to build gadgets with unique functionalities and features quickly. Each part of the Flip&Click PIC32MZ development kit contains the components necessary for the most efficient operation of the same board. In addition, there is the possibility of choosing the Flip&Click PIC32MZ programming method, using the chipKIT bootloader (Arduino-style development environment) or our USB HID bootloader using mikroC, mikroBasic, and mikroPascal for PIC32. This kit includes a clean and regulated power supply block through the USB Type-C (USB-C) connector. All communication

methods that mikroBUS™ itself supports are on this board, including the well-established mikroBUS™ socket, user-configurable buttons, and LED indicators. Flip&Click PIC32MZ development kit allows you to create a new application in minutes. Natively supported by Mikroe software tools, it covers many aspects of prototyping thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

Microcontroller Overview

MCU Card / MCU

Architecture

PIC32

MCU Memory (KB)

2048

Silicon Vendor

Microchip

Pin count

100

RAM (Bytes)

524288

Used MCU Pins

mikroBUS™ mapper

General Purpose

RB11

RST

SCK

MISO

MOSI

Power Supply

3.3V

Ground

GND

PWM

Interrupt

RD9

INT

I2C Clock

RA2

SCL

I2C Data

RA3

SDA

Power supply

Ground

GND

Take a closer look

Click board™ Schematic

Step by step

Project assembly

Flip&Click PIC32MZ front image hardware assembly

Start by selecting your development board and Click board™. Begin with the Flip&Click PIC32MZ as your development board.

GNSS2 Click front image hardware assembly

Board mapper by product7 hardware assembly

Flip&Click PIC32MZ MCU step hardware assembly

Necto No Display image step 8 hardware assembly

Debug Image Necto Step hardware assembly

Software Support

Library Description

This library contains API for Heart Rate 2 Click driver.

Key functions:

uint8_t heartrate2_generic_read ( uint8_t reg_adr ) - Generic function for reading data.
void heartrate2_generic_write ( uint8_t reg_adr, uint8_t write_data ) - Generic function for writing data.
void heartrate2_default_configuration ( uint8_t cfg_led ) - Function for setting default config and turning on one led with cfg_led parameter.
void heartrate2_read_fifo ( heartrate2_fifo_data_t *fifo ) - Function for reading fifo data and tag values from device.

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file
 * \brief HeartRate2 Click example
 *
 * # Description
 * This example demonstrates the use of Heart rate 2 Click board.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initilizes the driver, resets the device, checks the device ID and applies default settings.
 *
 * ## Application Task
 * Reads the data from Green diode and displays the results on USB UART if the measured data
 * is above defined threshold, otherwise, it displays a desired message on the terminal.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "heartrate2.h"

// ------------------------------------------------------------------ VARIABLES

static heartrate2_t heartrate2;
static log_t logger;
static uint16_t counter = 1000;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    heartrate2_cfg_t cfg;
    uint8_t rd_stat;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    heartrate2_cfg_setup( &cfg );
    HEARTRATE2_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    heartrate2_init( &heartrate2, &cfg );

    log_printf( &logger, "Configuring the module...\r\n" );
    Delay_ms ( 1000 );

    heartrate2_set_en( &heartrate2, HEARTRATE2_PIN_HIGH );
    Delay_ms ( 100 );
    heartrate2_soft_reset ( &heartrate2 );

    rd_stat = heartrate2_generic_read( &heartrate2, HEARTRATE2_REG_PART_ID );

    if ( rd_stat != HEARTRATE2_DEV_ID )
    {
        log_error( &logger, "---- WRONG ID ----" );
        log_printf( &logger, "Please restart your system.\r\n" );
        for ( ; ; );
    }

    heartrate2_default_cfg( &heartrate2, HEARTRATE2_CONFIG_GREEN );
    log_printf( &logger, "The module has been configured!\r\n" );
    Delay_ms ( 1000 );
}

void application_task ( void )
{
    heartrate2_fifo_data_t fifo_object;

    heartrate2_read_fifo( &heartrate2, &fifo_object );

    if ( fifo_object.tag == HEARTRATE2_FIFO_TAG_PPG1_LEDC1 )
    {
        counter++;
        if ( fifo_object.data_val > 1000 )
        {
            log_printf( &logger, "%lu;\r\n", fifo_object.data_val );
            counter = 1000;
        }
        else if ( counter > 1000 )
        {
            log_printf( &logger, "Please place your index finger on the sensor.\r\n" );
            counter = 0;
        }
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}

// ------------------------------------------------------------------------ END
