Enable precise activity tracking and intuitive gesture control using IIS2DLPC and PIC18F47K40

Get in the groove: Your 3-axis accelero-friend!

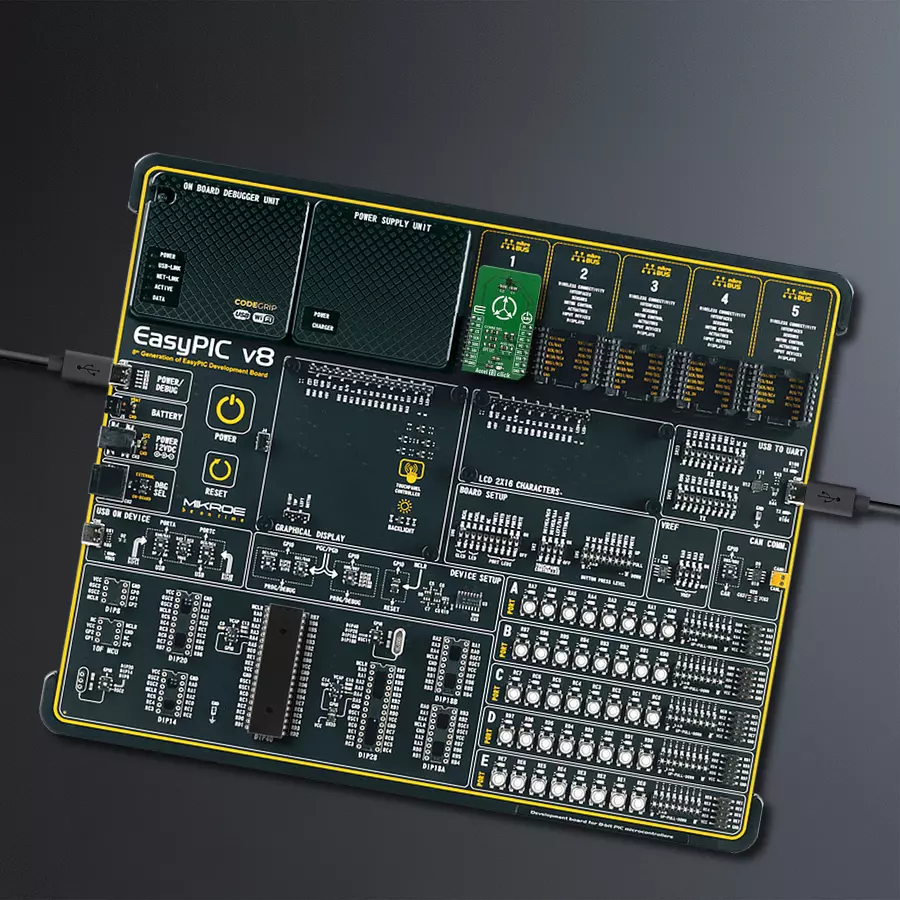

Accel 13 Click with EasyPIC v8

Published Oct 07, 2023

Click board™

Accel 13 Click

Dev. board

EasyPIC v8

Compiler

NECTO Studio

MCU

PIC18F47K40

Enhance the accuracy of your navigation systems and robotics projects by integrating our three-axis accelerometer, offering real-time motion data for improved control

A

A

Hardware Overview

How does it work?

Accel 13 Click is based on the IIS2DLPC, a high-performance ultra-low-power 3-axis accelerometer for industrial applications, from STMicroelectronics. This sensor has many features perfectly suited for wearables, handheld, and IoT applications, offering a good balance between the performance and the power consumption. One of its key features is its extremely low power consumption, which makes it perfectly suited for such applications. There are several power modes which the IIS2DLPC device can use. While in Low Power mode, the device consumes the least power, but the access to some features is restricted. More information can be found within the IIS2DLPC datasheet. The IIS2DLPC sensor can measure acceleration within ranges of ±2 g, ±4 g, ±8, and ±16 g. It can output the measurement data using the Output Data Rate (ODR) from 1.6Hz (Low Power mode), up to 1600Hz (Performance mode). A high-precision analog front end facilitates highly sensitive MEMS, featuring a 14-bit A/D Converter. It allows very high accuracy of the output, even during very low amplitude changes. This makes the sensor particularly sensitive and accurate

with movements that generate relatively low acceleration signals. However, using a highly sensitive MEMS makes the IIS2DLPC prone to damage caused by extremely high g-forces (10,000 g for less than 200 µs). Acceleration data is available in 14-bit format from both the data registers and the internal FIFO buffe, which can can memorize 32 slots of X, Y and Z data. The FIFO buffer can be used for more complex calculations or timed readings, reducing the traffic on the communication interface. The interrupt engine facilitates the FIFO buffer, triggering an interrupt for two FIFO events: watermark event, and FIFO buffer full event. FIFO buffer allows optimization within the firmware that runs on the host MCU. Besides the acceleration MEMS and complementary analog front-end circuit, the IIS2DLPC sensor also has an integrated temperature sensor. It is updated up to 25 times per second, and sampled to an 12-bit value (complement of 2’s format). Interrupts can be triggered for many different events. Some basic events include the data-ready interrupt event and aforementioned FIFO events, while so-called

feature engines can trigger an interrupt for any of the detected motion/movement events, including step detection/counter, activity recognition, tilt on wrist, tap/double tap, any/no motion, and error event interrupt. The extensive interrupt engine can use two programmable interrupt pins. Both of these pins can be assigned with any interrupt source and can be either LOW or HIGH on interrupt, depending on settings in appropriate registers. These two pins are routed to PWM and INT pin of the mikroBUS™, and are labeled as IT1 and IT2, respectively. Accel 13 click offers two communication interfaces. It can be used with either I2C or SPI. The onboard SMD jumpers labeled as COMM SEL allow switching between the two interfaces. Note that all the jumpers have to be positioned either I2C or to SPI position. When I2C interface is selected, an additional SMD jumper labeled as ADDR SEL becomes available, determining the least significant bit of the IIS2DLPC I2C address. The Click board™ should be interfaced only with MCUs that use logic levels of 3.3V.

Accel 13 Click top side image
Accel 13 Click bottom side image

Features overview

Development board

EasyPIC v8 is a development board specially designed for the needs of rapid development of embedded applications. It supports many high pin count 8-bit PIC microcontrollers from Microchip, regardless of their number of pins, and a broad set of unique functions, such as the first-ever embedded debugger/programmer. The development board is well organized and designed so that the end-user has all the necessary elements, such as switches, buttons, indicators, connectors, and others, in one place. Thanks to innovative manufacturing technology, EasyPIC v8 provides a fluid and immersive working experience, allowing access anywhere and under any

circumstances at any time. Each part of the EasyPIC v8 development board contains the components necessary for the most efficient operation of the same board. In addition to the advanced integrated CODEGRIP programmer/debugger module, which offers many valuable programming/debugging options and seamless integration with the Mikroe software environment, the board also includes a clean and regulated power supply module for the development board. It can use a wide range of external power sources, including a battery, an external 12V power supply, and a power source via the USB Type-C (USB-C) connector.

Communication options such as USB-UART, USB DEVICE, and CAN are also included, including the well-established mikroBUS™ standard, two display options (graphical and character-based LCD), and several different DIP sockets. These sockets cover a wide range of 8-bit PIC MCUs, from the smallest PIC MCU devices with only eight up to forty pins. EasyPIC v8 is an integral part of the Mikroe ecosystem for rapid development. Natively supported by Mikroe software tools, it covers many aspects of prototyping and development thanks to a considerable number of different Click boards™ (over a thousand boards), the number of which is growing every day.

EasyPIC v8 horizontal image

Microcontroller Overview

MCU Card / MCU

PIC18F47K40

Architecture

PIC

MCU Memory (KB)

128

Silicon Vendor

Microchip

Pin count

40

RAM (Bytes)

3728

Used MCU Pins

mikroBUS™ mapper

NC
NC
AN
NC
NC
RST
SPI Chip Select
RE0
CS
SPI Clock
RC3
SCK
SPI Data OUT
RC4
MISO
SPI Data IN
RC5
MOSI
Power Supply
3.3V
3.3V
Ground
GND
GND
Interrupt 1
RC0
PWM
Interrupt 2
RB0
INT
NC
NC
TX
NC
NC
RX
I2C Clock
RC3
SCL
I2C Data
RC4
SDA
NC
NC
5V
Ground
GND
GND
1

Take a closer look

Click board™ Schematic

Accel 13 Click Schematic schematic

Step by step

Project assembly

EasyPIC v8 front image hardware assembly

Start by selecting your development board and Click board™. Begin with the EasyPIC v8 as your development board.

EasyPIC v8 front image hardware assembly
GNSS2 Click front image hardware assembly
MCU DIP 40 hardware assembly
EasyPIC v8 Access DIPMB 1 - upright/background hardware assembly
Necto image step 2 hardware assembly
Necto image step 3 hardware assembly
Necto image step 4 hardware assembly
NECTO Compiler Selection Step Image hardware assembly
NECTO Output Selection Step Image hardware assembly
Necto image step 6 hardware assembly
Necto DIP image step 7 hardware assembly
Necto image step 8 hardware assembly
Necto image step 9 hardware assembly
Necto image step 10 hardware assembly
Necto PreFlash Image hardware assembly

Software Support

Library Description

This library contains API for Accel 13 Click driver.

Key functions:

  • accel13_get_status - This function reads the status data and stores it in the status object

  • accel13_get_tap_status - This function reads the tap status data and stores it in the tap_status object

  • accel13_get_6d_status - This function reads the 6D status data and stores it in the sixd_status object

Open Source

Code example

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

/*!
 * \file
 * \brief Accel13 Click example
 *
 * # Description
 * This application enables reading acceleration and tapping data on all 3 axes,
 * using I2C or SPI communication.
 *
 * The demo application is composed of two sections :
 *
 * ## Application Init
 * Initializes driver init, Test communication,
 * starts chip configuration for measurement and Temperature reads.
 *
 * ## Application Task
 * Reads Accelerometer data and detects tap on the axis
 *
 * *note:*
 * The example is the basic functionality of the IIS2DLPC sensor,
 * it is possible to read the acceleration data and detect Tap on all 3 axes.
 * For other settings and improvements in reading accuracy,
 * you need to further set up the registers and set the sensor to your conditions.
 *
 * \author MikroE Team
 *
 */
// ------------------------------------------------------------------- INCLUDES

#include "board.h"
#include "log.h"
#include "accel13.h"

// ------------------------------------------------------------------ VARIABLES

static accel13_t accel13;
static log_t logger;
static accel13_axis_t axis;
static accel13_tap_t tap;

// ------------------------------------------------------ APPLICATION FUNCTIONS

void application_init ( void )
{
    log_cfg_t log_cfg;
    accel13_cfg_t cfg;
    uint8_t device_id;
    float temperature;

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, "---- Application Init ----" );

    //  Click initialization.

    accel13_cfg_setup( &cfg );
    ACCEL13_MAP_MIKROBUS( cfg, MIKROBUS_1 );
    accel13_init( &accel13, &cfg );

    accel13_generic_read_bytes( &accel13, ACCEL13_REG_WHO_AM_I, &device_id, 1 );

    if ( device_id != ACCEL13_DEF_WHO_AM_I )
    {
        log_printf( &logger, "*\\*/*\\*/ Communication ERROR !!! \\*/*\\*/*" );
        for ( ; ; );
    }
    log_printf( &logger, "---- Communication OK!!! ----\r\n" );
    Delay_100ms( );

    // Configuration

    accel13_default_cfg ( &accel13 );

    accel13_generic_write_single_byte( &accel13, ACCEL13_REG_CTRL_6, ACCEL13_CTRL6_BW_FILT_ODR_2 |
                                                                     ACCEL13_CTRL6_FULL_SCALE_2g |
                                                                     ACCEL13_CTRL6_FDS_LOW_PASS |
                                                                     ACCEL13_CTRL6_LOW_NOISE_ENABLE );

    // Temperature

    temperature = accel13_get_temperature( &accel13 );
    log_printf( &logger, " Temperature : %f.2 \r\n", temperature);
}

void application_task ( void )
{

    // Reads Accel data

    accel13_get_axis_data( &accel13, &axis );

    log_printf( &logger, "---- Accel axis data ----\r\n\n" );

    log_printf( &logger, "* X : %d \r\n", axis.x );

    log_printf( &logger, "* Y : %d \r\n", axis.y);

    log_printf( &logger, "* Z : %d \r\n", axis.z);
    log_printf( &logger, "-------------------------\r\n" );
    Delay_ms ( 300 );

    // Detections Tap on the axis

    accel13_get_tap_status( &accel13, &tap );

    if ( tap.tap_x == 0x01 )
    {
        log_printf( &logger, "---- Tap on the X axis ----\r\n" );
    }

    if ( tap.tap_y == 0x01 )
    {
        log_printf( &logger, "---- Tap on the Y axis ----\r\n" );
    }

    if ( tap.tap_z == 0x01 )
    {
        log_printf( &logger, "---- Tap on the Z axis ----\r\n" );
    }
}

int main ( void )
{
    /* Do not remove this line or clock might not be set correctly. */
    #ifdef PREINIT_SUPPORTED
    preinit();
    #endif

    application_init( );

    for ( ; ; )
    {
        application_task( );
    }

    return 0;
}


// ------------------------------------------------------------------------ END
